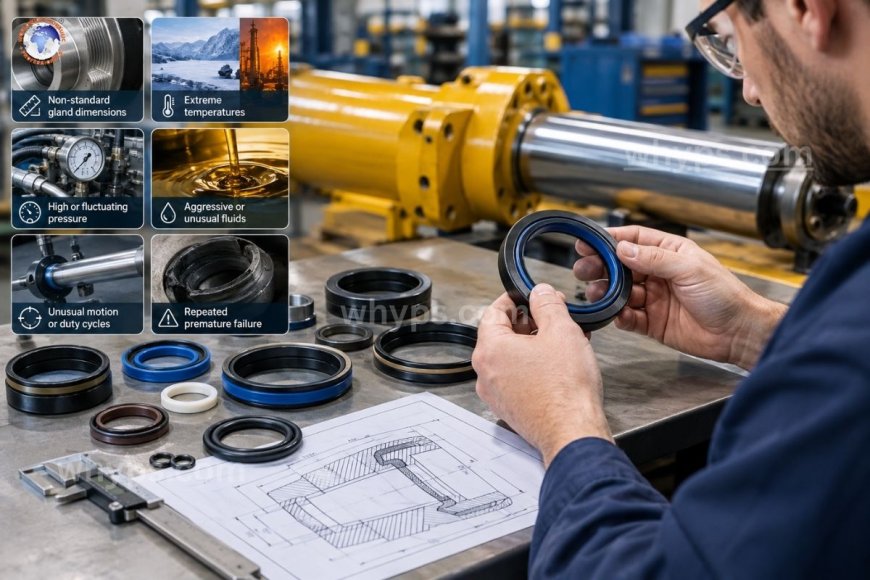

Custom hydraulic seals: when do you need a custom solution?

You need a custom hydraulic seal when no standard seal fits your gland geometry, operating conditions, or fluid without compromising service life. Typical triggers include non-standard or legacy groove dimensions, extreme temperature or pressure, aggressive media, unusual motion, and repeated premature failures that a standard seal change has not solved. If an off-the-shelf seal meets your specification and lasts to its expected interval, stay standard. If not, custom is often cheaper than ongoing downtime. Most hydraulic systems run perfectly well on standard catalogue seals. Standard profiles are proven, widely stocked, and inexpensive. But some applications push seals beyond what catalogue designs can handle, and forcing a "close enough" seal into those systems is a common source of leaks, unplanned shutdowns, and repeat repairs. Knowing where that line sits helps you avoid both overspending on custom parts and underspecifying seals that fail early.

What are custom hydraulic seals?

A custom hydraulic seal is engineered or manufactured for a specific application rather than selected from a standard catalogue range. Customization can apply to one or more of the following:

• Dimensions: inner diameter, outer diameter, cross-section, or groove fit
• Profile: the cross-sectional shape, lip design, or backup arrangement
• Material: the elastomer or polymer compound, including special blends and fillers
• Configuration: multi-piece or energized designs, or seals combined with wear rings and wipers

Custom does not always mean a completely new design. Often it means a standard profile in a non-standard size or a different compound, which keeps cost and lead time manageable.

Signs of a standard seal won't work

Non-standard or legacy gland dimensions

Older equipment, imported machinery, and OEM-specific cylinders often use grooves that match no current standard. A seal that is slightly too small can extrude or leak. One that is slightly too large can pinch, twist, or generate excess friction. If measured groove dimensions do not match an ISO, metric, or inch-series seal, a custom size is usually the right fix.

Extreme temperature ranges

Standard nitrile (NBR) seals handle typical mineral-oil service, but they harden in deep cold and degrade quickly at high temperatures. Applications such as foundries, steel mills, Arctic mining, or offshore equipment may need FKM, PTFE-based, or specialty compounds. When your operating window falls outside a catalogue compound's rated range, a custom material selection is warranted.

High or fluctuating pressure

Pressure spikes, shock loading, and very high working pressures can extrude standard seals into the clearance gap. Custom solutions may add backup rings, use harder compounds, or apply a different profile that resists extrusion. Presses, injection molding machines, and heavy mobile equipment frequently fall into this category.

Aggressive or unusual fluids

Water-glycol, phosphate ester, biodegradable esters, fire-resistant fluids, and chemically contaminated media can attack common elastomers, causing swelling, hardening, or cracking. Fluid compatibility is a material question, and when no catalogue compound is compatible, a custom compound is the safer path.

Unusual motion or duty cycles

Very high speeds, long strokes, oscillating or rotary movement, and frequent start-stop cycles all change how a seal behaves. High speed generates frictional heat, while slow stick-slip motion causes jerky operation. Applications with these characteristics may need low-friction PTFE designs or specialized profiles.

Repeated premature failure

This is often the clearest signal. If you have replaced the same seal several times and it keeps failing, first rule out installation damage, contamination, misalignment, and rod surface problems. If those are ruled out and the failure pattern still points to the seal's design or material, a custom solution deserves serious consideration.

Standard vs. custom: a quick comparison

Custom seals cost more per unit, but the true comparison is total cost of ownership. One avoided unplanned shutdown on a production line can outweigh the entire price difference.

Common applications for custom hydraulic seals

Custom seals appear most often where conditions are demanding or equipment is specialized:

• Mining and quarrying: heavy contamination, shock loads, and abrasive environments
• Steel and metal processing: high heat and fire-resistant fluids
• Marine and offshore: corrosion, seawater exposure, and wide temperature swings
• Presses and injection molding: very high pressures and rapid cycling
• Legacy and vintage machinery: discontinued parts and non-standard grooves

What information do you need to provide?

A manufacturer can only design a good seal if it understands the application. Gather the following before requesting a quote:

1. Groove and hardware dimensions: bore, rod diameter, groove width and depth, surface finish, and clearances
2. Operating pressure: working, peak, and any pressure spikes
3. Temperature range: minimum, maximum, and typical
4. Fluid type: the exact product name, plus any cleaning agents or contaminants
5. Motion type and speed: reciprocating, rotary, or oscillating, with stroke length and cycle rate
6. Failure history: what failed, how it looked, and how long it lasted
7. Volume and timeline: one-off repair or ongoing supply

A photograph of failed seals and the mating surfaces is often as useful as any drawing.

The custom seal process

Although each supplier differs, the path usually follows a similar sequence:

1. Application review: the manufacturer assesses conditions and failure history.
2. Design and material selection: profile, compound, and configuration are proposed.
3. Prototype or sample production: a small batch is made for evaluation.
4. Testing and validation: the seal is fitted and monitored on a test rig or in the field.
5. Production and supply: approved designs move into regular manufacturing.

Asking for a sample before committing to volume is a reasonable request and reduces risk.

Cost and lead time considerations

Tooling, low-volume machining, and engineering time all add to custom seal cost. Ways to keep it reasonable include:

• Using a standard profile with a modified size or compound
• Standardizing on one custom design across multiple machines

Lead times are longer than for catalog parts, so plan ahead for critical assets rather than waiting for a failure.

Standard seals are the right choice for most hydraulic systems, and they should be your starting point. Move to a custom solution when the gland geometry is non-standard, the operating conditions exceed catalogue limits, the fluid is aggressive, the motion is unusual, or repeated failures persist after the basic causes have been ruled out. Diagnose the root cause before customizing, provide your supplier with complete application data, validate before scaling up, and weigh the cost against the downtime a failing seal actually causes.

1. When should I choose a custom hydraulic seal over a standard one?

Choose custom when no standard seal fits your groove dimensions, operating temperature, pressure, or fluid, or when standard seals fail repeatedly even after installation and contamination issues have been corrected.

2. Are custom hydraulic seals more expensive?

Yes, per unit, they usually cost more, particularly at low volumes. However, they can reduce total cost by extending service life and preventing unplanned downtime.

3. How long does it take to get a custom hydraulic seal?

Lead times typically run from a few weeks to a couple of months, depending on complexity, materials, and whether tooling is required. Machined prototypes can sometimes be produced faster.

4. What information does a manufacturer need to make a custom seal?

At minimum: groove and hardware dimensions, working and peak pressure, temperature range, fluid type, motion type and speed, and the history of previous failures. Photos of failed seals help considerably.

5. Can a custom seal fix a leak caused by a damaged rod or bore?

Not reliably. Scored rods, worn bores, and misalignment will damage any seal. Repair or replace the mating surfaces first, then select or design the seal for the corrected condition.
