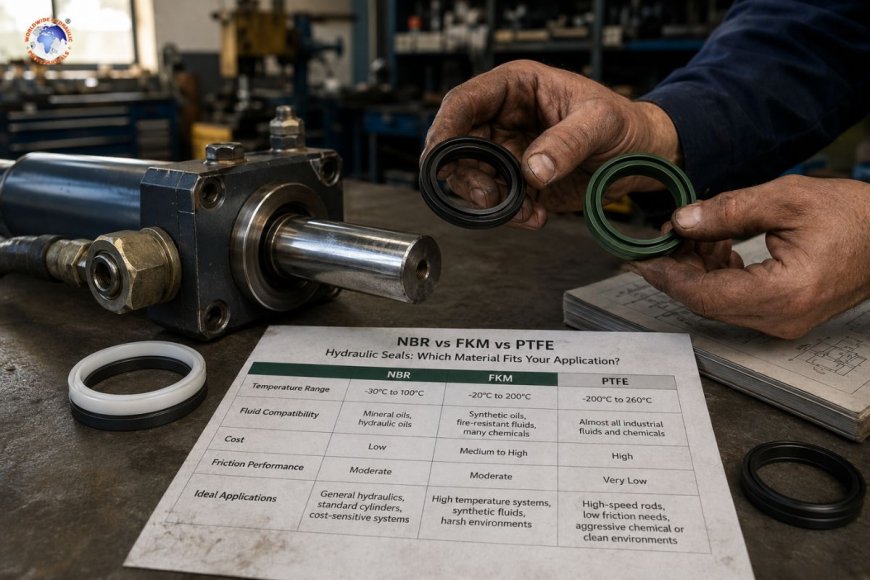

NBR vs FKM vs PTFE hydraulic seals: which material fits your application?

Selecting the wrong material for a seal is among the most frequently made—and expensive—mistakes made in the design of hydraulic systems. A seal that appears identical to the one shown in a diagram of a part could fail within weeks if the rubber isn't properly matched to the temperature, fluid, and frequency it's exposed to. In the hundreds of seals there are three that are the most popular in the world of hydraulics: NBR, FKM, and PTFE. Each one has its own chemical formula as well as a distinct temperature window as well as a distinct failure mechanism when it is pushed beyond its comfortable zone.

NBR Vs FKM vs PTFE at a glance

If you're in need of a quick answer, here's the one: NBR (nitrile rubber) is the most popular option for mineral oil hydraulics that operate between -30°C and 100°C, and it's the most affordable choice for the vast majority of mobile and industrial equipment. FKM (fluoroelastomer is often available by its Viton brand name) is used when temperatures rise above 100°C or if the system is running on synthetic or fire-resistant liquids that degrade the nitrile. PTFE is the most specialized material and is not used for its elasticity, which it does not have—more so for its low friction and chemical resistance in rod sealing, wipers, and other areas where stick-slip resistance to contamination is more important than the raw sealing force.

Why is sealing material selection crucial for hydraulic system design?

A hydraulic seal is able to perform one thing: keep the pressure limit when a piston or rod is moving past it in cycle after cycle for many years. In order to accomplish this, the seal has to be able to withstand three things at once—the chemical composition of the fluid it's within, temperature variations of the operating environment, and the mechanical wear that comes with the constant movement. If any of these are incorrect and your seal expands, hardens, or extends, or simply wears out quicker than the maintenance schedule suggests. Because replacement of the seal usually means downtime and because a damaged rod seal could mean an unclean fluid traversing all the circuits, the choice of material is not a minor aspect of the line; it's a decision on reliability.

NBR (Nitrile Rubber) seals: The most popular seal in the market

NBR gained its dominating market position due to the fact that it performs its most frequently used task extremely effectively: sealing mineral-based hydraulic oils in moderate temperatures. The amount of acrylonitrile (typically between 18 and 50% or 50%) determines the balance between resistance to low temperatures and oil flexibility, which is the reason the manufacturers provide a range of NBR grades instead of the same formulation. A typical medium-nitrile compound can handle continuous service of around 30°C to 100°C. There are small excursions up to 120°C, which is acceptable in many designs.

The area where NBR struggles is in the mineral-oil-moderate-heat envelope. It breaks down quickly when exposed to UV exposure and ozone as well as a variety of synthetic or fire-resistant fluids (phosphate esters, for instance, can cause the destruction of a sealing nitrile). It also loses elasticity in low temperatures much faster than FKM or other low-temperature compounds, which is a problem for equipment that is cold to start, agricultural machinery that is left outside overnight, for instance, or construction equipment used in northern temperatures. In the vast majority of industrial presses, hydraulics are mobile and run on mineral oil, as well as general-purpose cylinders; however, NBR remains the correct option: it's affordable and well-understood, readily accessible from every seal manufacturer in all standard profiles, and has been proven over decades of field usage.

FKM (Fluoroelastomer/Viton) seals: built for heat and chemical resistance

FKM is designed for conditions that break NBR. The fluorine-based polymer backbone provides the FKM a constant service temperature range that can reach approximately 200°C and, in some fluorine-rich grades, a little higher, as well as a robust resistance to weathering, ozone, and a wider variety of fluids, which includes several synthetic esters as well as hydrocarbons that are fire-resistant, which can be able to attack nitrile in just a few hours.

This is the reason FKM appears so often in the various applications NBR cannot access: hydraulic systems operating close to exhaust or engines offshore and subsea equipment that are exposed to extreme chemical environments and high-temperature industrial presses and mobile equipment that run biodegradable or synthetic fluids, which NBR isn't made for. The cost is a tradeoff, as is low-temperature performance—conventional FKM compounds become stiffer when colder than NBR usually and then become unsuitable for temperatures below -20°C until an extremely low-temperature FKM type is identified. The material costs significantly more than NBR. In applications where fluid or heat chemical is the primary risk, instead of budget, the difference in cost is the cost of not having to replace seals every couple of months.

Seals PTFE: The high-performance specialist

PTFE is not unlike NBR or FKM, and that's the purpose of it. It's not an elastomer; it doesn't have any elastic memory. Therefore, the seals made of PTFE are typically designed as energized seals, with an O-ring, spring, or any other elastomeric energizer installed behind a lip of PTFE to give the spring force PTFE does not have. What PTFE offers is an extremely low coefficient of friction as well as chemical inertness towards almost every industrial fluid used and a temperature range that surpasses the rubber compounds. Typically, they are stated as being between -200°C and the temperature of 260 degrees Celsius.

The friction profile makes PTFE the ideal material to seal rods as well as wipers for high-speed and high-precision applications where stick-slips made of elastomeric result in erratic motion or excess heat production. It's also the standard for cleanroom, food-grade, and aggressive-chemical environments in which an elastomer is likely to dissolve or expand. The cost is in the high cost and complexity of design since PTFE requires an energizer and more precise tolerances for machining to seal without its own elastic properties; these seals cost more to create and source than a conventional NBR and FKM profile. They're not the best option for low-speed, simple, and cost-sensitive cylinders. A regular elastomer will do the job at only a fraction of the cost.

The key distinctions at an enumeration

The temperature range can be the most efficient method of separating the three components: NBR covers roughly -30°C to 100°C, FKM extends that to 200°C, and PTFE covers a wide range of temperatures from 200°C to 260°C. Fluid compatibility follows the same pattern—the difference is that NBR is designed for mineral oils. FKM also includes synthetic fluids and numerous fire-resistant fluids, while PTFE is generally inert to nearly everything. Costs vary in opposite directions, with NBR the least expensive, FKM several multiples higher, and PTFE assemblies typically the most expensive after the necessary energizer and the machining process are included. Dynamic and frictional behavior is the area where PTFE completely disappears and offers a lower friction than either compound, which is why it is a top choice for rod seals with high speed regardless of its cost and complex nature.

What is the best way to select a material that is compatible with the application?

Begin with the fluid, and not with the seal. If the system uses normal mineral hydraulic oil within a -30°C-100°C temperature range, which is the case for the majority of machines and general mobile equipment and normal cylinders -- NBR is the best and most economical option. If the application is hotter or is located near sources of heat or utilizes chemical or fire-resistant fluids, switch to FKM This is typical on offshore machines, presses with high temperatures and mobile hydraulics that are formulated with synthetic or biodegradable fluids. Choose PTFE in situations where the main factor is the performance of friction rod seals with high speeds or applications prone to stick-slip or chemical exposure that is over the limits of what FKM can manage—and plan for the extra engineering complexity of a sealed seal that is energized.

Common errors when selecting seal material

The most frequently repeated mistake is to specify NBR by default without examining the actual fluid being used, especially after a change to a biodegradable or synthetic oil, which the initial NBR seals were not tested for. Another mistake is to assume FKM is an all-purpose upgrade—it costs more and performs less than NBR in low temperatures; therefore, over-specifying it for a cold-climate mineral oil system will cost more without enhancing the security. When using PTFE, one of the most common mistakes is to treat the material as a drop-in replacement rather than redesigning the seal housing to create an energized shape, which causes leakage, regardless of whether the material is appropriate for the intended use.

NBR, FKM, and PTFE don't compete for the same task—they're all designed to work in a distinct failure type. The proper question to ask should not be "Which seal material is best?" but rather "What is actually going to destroy a seal in this system?" such as temperature, fluid chemical, or friction. Find out the first answer, and then the choice of material will follow directly.
