What are the early signs of hydraulic seal wear?

The first indications of hydraulic seal wear is slow leaks of external oil around the cylinder rods and housings of pumps and a gradual decrease in pressure of the system (also known as cylinder hold force) slow as well as "spongy" actuator movement, an increase in temperature of the fluid, as well as small whistling or hissing sounds close to seals. The early detection of these signs—typically weeks prior to when an entire seal fails—allows maintenance teams to plan a replacement seal instead of attempting to deal with a system shutdown that was not planned in the event of contaminated fluid or damaged bores or rods.

Hydraulic seals are rarely faulty without warning. They weaken gradually, and this gradual degradation leaves clues in the fluid's condition, pressure readings, or noises, as well as visible hardware. The problem is that these indicators are easy to ignore by themselves—a bit of dampness here, a slow piston there. The ability to spot the pattern before it gets too obvious is what differentiates a five-minute seal change from a lengthy teardown.

Why do seals break down in the first place?

Before spotting indications, it's important to comprehend what causes the degeneration of the seal. Hydraulic seals lie at the crossroads of continuous friction, temperature fluctuations, pressure cycling, and fluid chemical reactions. As time passes, a variety of mechanisms erode the integrity of seals:

• Wear from abrasive abrasions caused by contaminated liquid carrying metal particles, dirt, or degraded additive residual beyond the lip of the sealing
• Extrusions where pressure is applied to push the material to seal gaps in particular because rubber compounds become harder with the passage of time.
• The degradation of thermal energy causes elastomers to become hard, crack-prone, or permanently deformed
• Incompatibility between chemical components of the seal compound and the hydraulic fluid, especially after a change in fluid that was not cross-checked with the seal material
• Installation errors, such as twists, nicks, or misalignments resulting from the assembly process that cause an issue way before normal wear.

All of these could be the reason; however, they all produce an identical early symptom set. This is advantageous, since it doesn't require operators to determine the cause in order for the warning.

The visual indicators: What should you be on the lookout for when inspecting?

The rod or housing is splattered with a haze of water and gla rod or the housing.

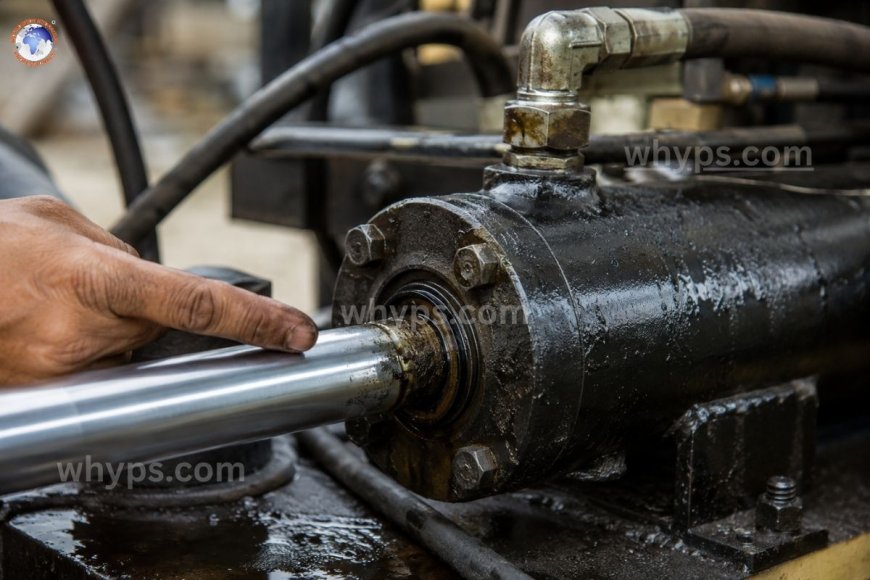

The first sign that is easily identifiable is a thin layer of oil that forms around the pump shaft, cylinder rod, or valve body, often referred to as "weeping." At this point, it's not an actual leak in the drip sense, but rather a sticky residue that gathers dust and appears to be the appearance of a light varnish. It's the seal's lip not being able to completely cleanse the rod after every stroke. This is among the first mechanical indications that the geometry or elastic properties have changed.

The discoloration or hardening of the visible sealant material

When seals are visible, such as rod wipers, gaskets that are exposed and cylinder glands that are accessiblean abrupt change from a smooth, supple and slightly shiny surface to a chalky, dull or cracked seal indicates the elastomer is losing its plasticizers and is becoming fragile. Cracks along the edges of seals, particularly, or even cracks at the hairline are a reliable indicator of imminent extrusion damage.

Metallic sheen or debris in the wiped debris

If the residue removed from the fitting or rod has a metallic sheen or a rough texture, the contamination could be leading to wear and tear on seals, not the seal itself aging. This should be flagged in isolation, as it could point towards a problem with the fluid that could cause further damage to the seal replacement unless dealt with.

The performance signals are what the system is telling you.

Gradual decrease in pressure or loss of the holding force

A cylinder that was designed to keep a load steady but has now begun to slide down over a period of minutes or a system that requires a slightly greater pump output to achieve the same working pressure has an internal bypass. Fluid is sliding through an impeller from its high-pressure side to the side with low pressure instead of completing the necessary work. It usually shows up as a minor, difficult-to-miss shift in the pressure gauge instead of a clear fault.

Inconsistent or slow actuator movement

When internal leakage is increasing, the actuators become less crisp. A cylinder that was once stretched without a hitch may become a little sluggish, jerky, or inconsistent over time—most noticeable at the beginning or at the end of a stroke when seal contact is the most important factor.

Operating temperature rising

Seals that begin to bypass fluid are converting some of the thermal energy from the hydraulic system into heat instead of mechanical work. A system that is just a couple of degrees warmer than the normal baseline without any reason is a subdued but important early indicator that is to be logged instead of dismissed as a normal variation.

Noise or increased pump cycle

Pumps that are working harder to correct internal leakage can run more often or trigger an alteration in the operating pitch. A sudden hiss, a whistle, or a growl at an area of seal that is different from the normal pump sounds typically indicates that fluid is bypassing an aging sealing surface under the pressure.

Fluid-side indicators that lead back to seals

Wear and tear on the seal doesn't only occur on the seal. It is evident within the oil.

• Elastomer or rubber particles found in the fluid samples of routine oil analysis are an obvious sign of a seal that is degrading and shedding material
• More fluid contamination than expected after a filter change could be a sign that a seal has let through air or debris from the environment instead of a filter that is not working properly.
• The foaming or aeration of the reservoir may be caused by a seal opening that allows air to enter on the low-pressure side of a pump or cylinder. pump

Teams that already run scheduled oil analyses have an advantage in this regard: seal wear frequently is evident in particle counts, but it rarely is visible in any other way.

The development of an early-detection routine

The most effective defense against unexpected seal failure is a brief routine inspection, which is repeatable instead of a major program overhaul.

1. Clean and inspect glands and rods for any exposed areas on routine walkthroughs, searching for discolouration, film, or grit
2. Log temperatures and pressure baselines are used for critical circuits so that even small deviations can be seen when compared to a standard
3. Pay attention during the operation, particularly close to pump housings and cylinders; listen for any new or different sound effects
4. Schedule fluid samples and check for particles of elastomer, not just metal
5. Force or drift to track on load-bearing cylinders, where the slow creep can be an indication of the trend.

None of these requires specialized equipment. They require the sameness so that even any small shift is interpreted as a change instead of being absorbed into the ordinary operating sound.

How do you transition from being a spectator to acting?

The early signs are a chance to think about the future and not a cause to worry. A cylinder that has light weeping without measurable pressure loss is usually able to operate safely during the time-bound maintenance interval. When weeping becomes dropping, when pressure loss is measurable as well as repeatable or after the analysis of fluids confirms that there are elastomer particles the seal is moved to "early wear" to "active failure," and the calculus shifts and if you wait, you risk damaging the bore or rod that can turn a seal replacement into a costly repair.

Which is the first indication of leaks?

The earliest indication is typically a thin oily film or the appearance of weeping around a rod or shaft of a pump that appears prior to any performance or pressure loss.

Can the hydraulic system work when the seal is worn?

Yes, usually for a short time, but with a lower efficiency, more heat generated, and an increased chance for internal damage, the longer it goes on unaddressed.

How often do seals need to be inspected visually?

Pumps and cylinders that are critical can benefit from a quick and thorough visual inspection during each routine walkthrough. It is also helpful to have more thorough inspections scheduled at maintenance intervals.

Do fluids contaminating the environment cause wear on seals or cause it?

Both. Contaminated fluid causes abrasive wear on seals. A degrading seal could allow in more contamination and create a compounding cycle.

Does seal wear occur in a way that is preventable or doable?

It's mostly manageable but not completely preventable since seals are wear components in design. The goal is to match the seal material with the conditions and fluids correctly, and catching wear before it becomes too late to replace it on a scheduled timetable.
