How to bleed hydraulic pressure effectively?

To effectively bleed hydraulic pressure to achieve the desired effect, shut down your power source, then close or disconnect the load-holding valves and then slowly open the designated bleed port, pressure relief valve or fitting to release pressure that is trapped in a controlled wayalways starting from the point of lowest pressure towards the outward direction and checking for the absence of pressure on a gauge prior to cutting off any line or component. Pressure remaining in the hydraulic circuit does not disappear when a pump is turned off. Check valves, loaded cylinders, and accumulators could hold the system pressure for days or even hours following shutdown. The proper bleeding of this pressure ensures that technicians are protected from injuries caused by injection of fluid or sudden component movement and high-pressure fluid release.

Why is trapped hydraulic pressure risky?

Hydraulic systems are designed to keep pressure in place and not release it at the moment of need. Certain components are specially made to hold fluid when under pressure:

• Check valves stop backflow and ensure that the cylinders are extended after the pump has stopped.
• The load-holding and counterbalance valves keep their position when overhung or on vertical loads.
• Accumulators store hydraulic energy and are able to remain in pressurized condition until the end of the system has been shut off.
• Pilot-operated check valves within circuits of cylinders keep pressure on both sides of the piston.

Fluid that escapes from a pinhole leak under pressure could penetrate the skin in just seconds, and a line that is not relieved of pressure could whip or cause the fitting to eject at a sufficient force, causing severe damage. This is why pressure bleeding is considered to be a mandatory lockout or tagout (LOTO) procedure, not an optional option.

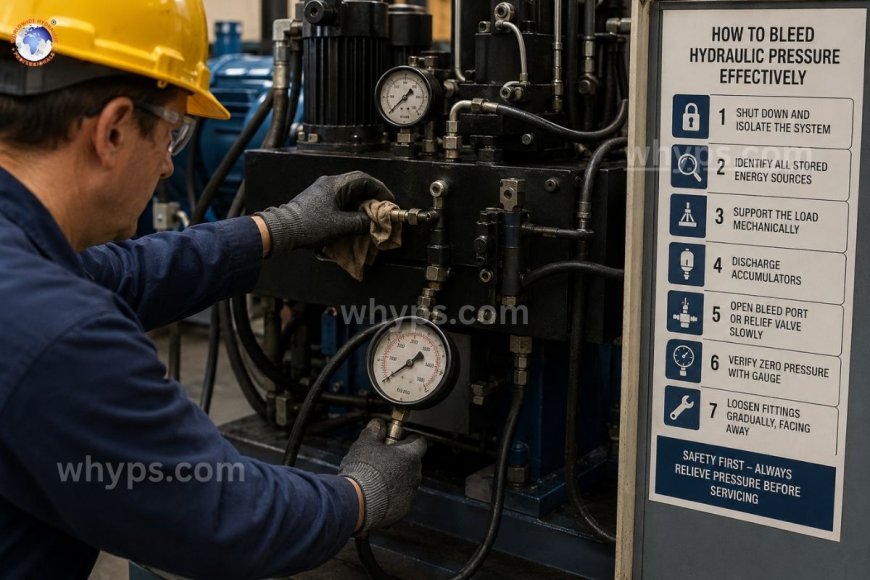

Step-by-step instructions on how to reduce hydraulic pressure in a safe way

1. It is important to shut down the computer and then isolate the system.

Shut off the power or pump unit, and follow the facility's lockout/tagout procedures. Separate the circuit from any pressure source external to it, like accumulators or secondary pumps that might be able to re-pressurize the line.

2. Find all the storage energy sources.

Before touching even a single fitting, draw a map of every element that is capable of holding pressure, including cylinders under load, accumulators, and any other section that is isolated through a check or counterbalance valve. Doing this is the main reason why technicians are stuck with "residual" pressure they didn't take into account.

3. First, release the load held by the cylinder.

If a cylinder supports an object (an elevated platform or an overhung tool clamped fixture), it must be supported by mechanical means—e.g., cribbed, blocked, or lifted onto a stand that is rated prior to contacting with the hydraulic circuit. Do not rely on the only hydraulic pressure to support the load when you're squeezing the system.

4. Discharge accumulations are accumulators of discharge by a bleed valve.

Accumulators need to have a dump valve or manual bleed. It should be opened slowly, and then the pressure gauge should be monitored as it decreases. Do not attempt to remove the fitting of an accumulator directly or assume that the accumulator is full just because the pump isn't working.

5. The system bleed port should be opened or the relief valve

A majority of industrial circuits contain the bleed screw, test port, or a manual relief valve close to the valve manifold or pump. Open it slowly—by turning it a quarter at a time—and let air or fluid be released slowly instead of all at once. The rapid release of air can cause an explosion of fluid with a moderate residual pressure.

6. Verify that there is no pressure before disconnecting any device

Make use of a pressure gauge that is calibrated instead of relying on an assumption to verify that the gauge reads zero. If there is no gauge at the location you're working on, try the portable gauge at the closest port. After confirming that there is no pressure, should hoses, fittings, or other components be removed?

7. The fittings are loosening gradually, facing towards the connector.

In the event of bleeding, remove the fittings gradually, rather than taking them off in one go, and ensure that your body is placed to the side instead of directly to the front of the connection. This will help relieve any pressure that isn't completely released before it gets to you.

Pressure of bleeding is different from. blood-sucking air Know the distinction.

The two processes are similar, but they are not the same, and confusion can lead to errors:

Air bleeding typically occurs using a system that is running at low pressure, allowing the cylinder to flush air pockets using a special valve for air bleed, which is in contrast to the shutdown-first method that is used to bleed pressure.

Common errors that can make pressure bleeding dangerous

• Assuming pump-off means pressure-off. Check valves and loaded cylinders to maintain pressure in the cylinder independent of the state of the pump.
• The fittings are looser without checking gauges. "It's probably fine" is not an alternative to a zero-pressure verification.
• Do not ignore mechanical load support. The pressure of hydraulics should not be the only thing that holds the load up or hanging over when working within the circuit.
• Opening bleed valves too quickly. A quick release may release debris or fluid at lower pressures.
• Forgetting accumulators. They're the biggest cause of residual pressure that is not expected in systems that are otherwise "de-energized" systems.

Pressure build-up leaking into routine maintenance

Facilities that consider bleeding pressure as a normal documented step and not a decision-making process -- experience a lower incidence of incidents involving high-pressure fluids. A sensible approach

• Include a checklist of pressure bleeds as part of each LOTO method for hydraulic machines.
• Label the ports for bleed and relief valves in a clear manner in the device, not only within the instruction manual.
• Make sure that technicians always check the accuracy of gauges, not using a sound or feel.
• Conduct periodic checks of the accumulator dump valves in order to ensure they are operating properly when required.

The idea of treating pressure release as an established, validated step, rather than an assumption, is what differentiates an everyday maintenance job from a serious accident waiting to occur.

1. How can I tell when a hydraulic line is in use after shutting down?

Use a pressure gauge that is calibrated close to the area you're working. Don't assume that an area is safe simply because the pump is not running. Make sure to check for valves; valves that counterbalance and accumulators may keep pressure independent of their state.

2. Is it safe to release the fittings of a hydraulic machine gradually to let pressure release?

No. The act of loosening a fitting when in the presence of pressure, even gradually, can permit high-pressure fluid to escape in a fine jet that can penetrate the skin. Always ensure that you bleed pressure through an appropriate port for bleed or relief first, then confirm the absence of pressure using a gauge prior to tightening any fitting.

3. How long will an accumulator of hydraulic pressure last when the system is shut down?

Based on the design and precharge, accumulators can keep usable pressure for hours or even days after shutting. It is required to be emptied by a bleed valve or dump valve prior to the time any work is done around it.

4. What is the difference between the bleeding pressure and the flow of bleeding air that comes from the hydraulic system?

Bleeding pressure releases stored energy to ensure safety prior to maintenance. It is carried out by shutting down the system. Bleeding air is a way to remove air pockets for a smooth process and is generally performed with the system running at a low pressure, through an air bleeding valve.

5. What should I do if my hydraulic cylinder is unable to hold the load and I want to drain the system?

Support the load mechanically first with blocks or cribbing, or even a rated stand prior to bleeding any pressure. Pressure alone from hydraulics should not be used to secure a load when the circuit is depressurized.
