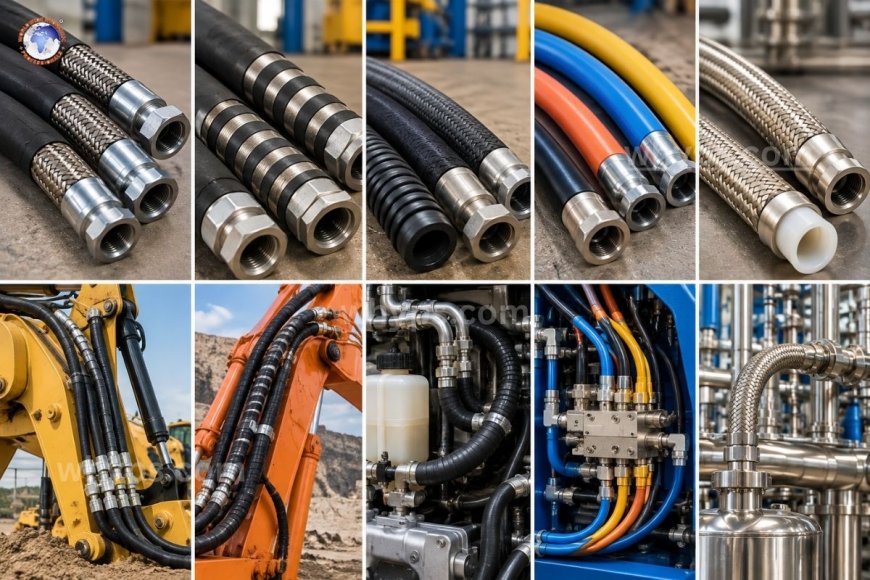

What types of hydraulic hoses are available, and where are they used?

Hydraulic hoses fall into four main groups: wire braid hoses (such as SAE 100R1, 100R2, and 100R16), spiral wire hoses (100R9, 100R12, 4SP/4SH, and 100R15), textile braid and low-pressure hoses (100R3, 100R6, and suction types), and thermoplastic or PTFE hoses (100R7, 100R8, and specialty lines). The right choice depends on working pressure, fluid type, temperature, flexibility, and the environment the hose will run in. Wire braid suits general industrial and mobile equipment, spiral hoses handle high-pressure heavy machinery, textile hoses serve return and low-pressure lines, and thermoplastic and PTFE hoses cover lightweight, chemical, and high-temperature jobs. Hoses are the flexible arteries of a hydraulic system. They carry pressurized fluid to and from moving components where rigid tubing cannot go, absorbing vibration, movement, and pressure pulses along the way. Choosing the wrong hose is one of the fastest routes to leaks, downtime, and safety incidents, so it helps to understand what each type offers.

How is a hydraulic hose built?

Every hydraulic hose has three basic layers, and the differences between hose types come mostly from how those layers are made.

• Inner tube: A synthetic rubber or thermoplastic liner that contains the fluid. It must be compatible with the oil, water-glycol, or other medium being conveyed.
• Reinforcement: One or more layers of textile yarn, braided steel wire, or spiraled steel wire. This layer determines pressure capacity and flexibility.
• Outer cover: A protective layer that resists abrasion, weather, ozone, oil splash, and heat.

Understanding this structure makes the classification below much easier to follow.

Main types of hydraulic hoses

Wire braid hoses

Wire braid hoses use one or two layers of woven high-tensile steel wire around the inner tube. They are the most widely used hydraulic hoses in the world because they balance pressure rating, flexibility, and cost.

• Single wire braid (SAE 100R1AT / EN 853 1SN): Suitable for medium pressure, typically up to around 250 bar depending on diameter. Common in general hydraulic circuits, machine tools, and light mobile equipment.
• Double wire braid (SAE 100R2AT / EN 853 2SN): Two braided layers roughly double the pressure capacity, making them a standard choice for medium to high pressure lines on construction and industrial machinery.
• Compact and high-flexibility variants (SAE 100R16 and similar): Designed with smaller bend radii and tighter outer diameters, they fit crowded engine compartments and compact machines where routing space is limited.

Spiral wire hoses

Spiral hoses use four or six layers of wire wound in alternating directions. This construction handles very high pressures and heavy impulse cycling, which is the repeated pressure spiking common in hard-working machinery.

• SAE 100R9 / 4SP: Four-spiral hose for high-pressure applications, often rated to around 350 bar.
• SAE 100R12 / 4SH: Built for higher pressure and better impulse life, often used on excavators and heavy loaders.
• SAE 100R13 and 100R15: Multi-spiral hoses for extreme pressure, commonly found in large mining and construction equipment.

Spiral hoses are stiffer and heavier than braided hoses, so they require larger bend radii and careful routing.

Textile braid and low-pressure hoses

Where pressure is modest, fiber reinforcement is enough and keeps cost and weight down.

• SAE 100R3 and 100R6: Textile braided hoses for return lines, drain lines, and low-pressure supply.
• SAE 100R4: A suction and return hose with a spiral wire helix that prevents collapse under vacuum, used on pump inlet lines.
• SAE 100R5: A textile and single wire braid hose used in some medium pressure applications.

These hoses are appropriate wherever the system will not exceed their limited working pressure, but they should never be substituted for pressure line hoses.

Thermoplastic hoses

Thermoplastic hoses replace the rubber tube and cover with engineered polymers, usually with fiber or wire reinforcement.

• SAE 100R7 and 100R8: Fiber-reinforced (R7) and wire-reinforced (R8) thermoplastic hoses, widely used in tool circuits, hydraulic power packs, and mobile equipment.
• Advantages: They are lightweight, resist abrasion, and are available in bright colors for circuit identification. Many have very small outer diameters.
• Limitations: Bend radius, temperature range, and compatibility with certain fluids can be narrower than rubber hoses.

PTFE (Teflon) hoses

PTFE-lined hoses use a fluoropolymer inner tube, usually covered with stainless steel braid. They tolerate high temperatures, aggressive chemicals, and fluids such as phosphate ester that attack many rubber compounds. They are often used in aerospace, chemical processing, and food or pharmaceutical machinery. They are more expensive and less forgiving of tight bends, so correct fitting selection and routing matter.

Where each hose type is used

Key factors when selecting a hydraulic hose

Picking a hose from a type name alone is not enough. Work through the following checks.

1. Working pressure: Choose a hose whose rated working pressure exceeds the highest system pressure, including spikes. The usual safety factor is 4:1 burst pressure to working pressure.
2. Fluid compatibility: The inner tube must resist the fluid. Mineral oil, water-glycol, phosphate ester, and biodegradable fluids each call for specific tube materials.
3. Temperature range: Consider both the fluid temperature and ambient conditions. Heat shortens hose life sharply, and cold makes rubber stiff.
4. Size and flow: Too small a bore increases velocity, heat, and pressure drop. Too large adds cost and bulk.
5. Bend radius and routing: Never bend a hose tighter than its minimum bend radius. Avoid twisting and use clamps to prevent rubbing.
6. Environment: Abrasion, UV, ozone, chemicals, and sparks all call for the right cover, sleeves, or guards.
7. Fittings and couplings: The hose and fitting must be a matched, tested assembly. Crimp specifications are hose-specific.
8. Standards and approvals: Confirm compliance with SAE, EN, ISO, or industry approvals such as MSHA for mining.

Common mistakes to avoid

• Substituting a low-pressure hose in a pressure line because it "looks the same."
• Ignoring pressure spikes and impulse cycles when sizing a hose.
• Mixing hose and fitting brands without verifying crimp compatibility.
• Routing hoses so they twist under motion or chafe against sharp edges.
• Leaving aged hoses in service beyond their inspection and replacement schedule.

Regular inspection is the final piece. Look for cracks, blisters, exposed wire, leaks at fittings, and hardening of the cover. A hose that shows any of these should be replaced, not repaired.

Hydraulic hoses range from simple textile return lines to multi-spiral wire hoses that survive punishing pressure cycles on the world's largest machines, plus lightweight thermoplastic and chemical-resistant PTFE options for specialty work. Matching the hose type to the pressure, fluid, temperature, and duty cycle keeps systems safe, efficient, and reliable. When in doubt, consult the manufacturer's specifications and use tested hose assemblies.

1. What is the most common type of hydraulic hose?

Single and double wire braid hoses (SAE 100R1AT and 100R2AT) are the most common. They offer a good balance of pressure rating, flexibility, and cost for general industrial and mobile hydraulic systems.

2. What is the difference between braided and spiral hydraulic hoses?

Braided hoses use one or two woven wire layers and are more flexible, while spiral hoses use four or six wound wire layers for higher pressure and better impulse resistance. Spiral hoses are stiffer and need a larger bend radius.

3. Can I use a low-pressure hose on a return line?

Yes, provided the hose is rated for the maximum return pressure, including surges. Textile braid hoses such as SAE 100R3 and 100R6 are designed for return and drain lines but should never be used on pressure lines.

4. When should I choose a PTFE hose?

Choose PTFE when the system involves high temperatures, aggressive chemicals, or fluids that attack rubber, such as phosphate ester. It is common in aerospace, chemical, and specialty processing applications.

5. How do I know when a hydraulic hose needs replacing?

Replace a hose when you see cracked or hardened covers, blisters, exposed reinforcement, leaks at the fittings, or kinks. Also replace hoses at planned intervals based on service severity and manufacturer guidance.
