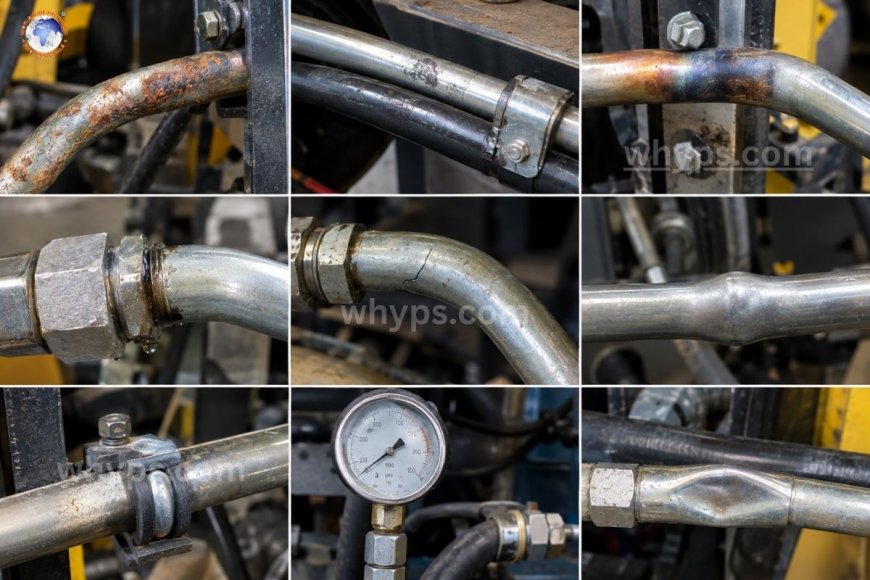

What are the early warning signs of hydraulic tube failure?

Early warning signs include visible corrosion, discoloration, or chafing from other components. Other early warning signs are cracks in the fitting area or fluid leakage, abnormal vibrations or noises, or bulging or flattening on the tube walls. A routine inspection will almost always catch any of these signs, which can be far more dangerous and expensive than a tube replacement.

The hydraulic tubing is bolted in place and can carry fluids at pressures exceeding several thousand pounds per square inch. It also has to withstand vibrations, temperature changes, and even the impact of nearby machinery and careless maintenance. Steel or stainless tubing is not designed to bend, so signs of degradation are usually subtle and less dramatic. When maintenance teams know what to look out for, they can intervene in time to prevent a shutdown or fluid spill from becoming a safety issue.

Why does tube failure often escalate quickly?

Failures of hoses and tubings are usually different. A hose will typically show signs of degradation over time, such as surface cracking and cover wear. A tube is a single-wall metal component. Once a crack begins, usually due to fatigue, corrosion, or mechanical damage, it can propagate quickly, even within days. Early detection is more important with the tube than any other component.

Another complicating factor is the fact that tube runs are often fixed with brackets, clamps, and fittings. The failure point, therefore, is not always the tube, but rather the connection point or support point. Most tube failures occur at or near fittings, bends, and clamp locations, where the stress is concentrated.

Surface and visual indicators

Corrosion & pitting

External corrosion can be a major cause of tube failure. This is especially true in humid environments or when mobile equipment is exposed to road salt. Surface rust can be cosmetic, but pitting corrosion beneath the surface may cause a wall to thin and increase stress. If you see rust, flaking paint, plating, or a rough texture, it is important to check the wall thickness of any tube.

Wear and Chafing Marks

A tube that rubs up against another tube, frame members, hoses, or unsecured clamps will develop a worn, bright patch. This can be seen as a shiny groove on the metal. It is the beginning of mechanical fatigue. The tube is not usually the cause of chafing, but rather the support or routing. A chafed tube needs to be replaced and the routing or clamping that caused it fixed; otherwise, the tube will continue to fail in the same place.

Heat-induced discoloration

Discolorations of a bluish or straw color on steel tubing are indicative of localized overheating. This can be caused by a hot component nearby, a heat-traced line, or friction due to a loose clamp that allows the tube to vibrate against its mounting. Heat exposure alters the metal's temper, reducing its fatigue resistance. Discolored sections can be weaker even without visible cracks.

Signs for fitting and connecting

Weeping or wet fittings

Fitting connections that show a film of liquid, a dust circle, or visible dampness are often the first signs of an upcoming tube-end issue—flare cracking or a damaged seal surface. A fitting may also have backed away slightly due to vibration. Fluid weeping is rarely static. It tends to get worse as the seal or crack gap increases. A fitting that was dry a month ago and now appears damp should be addressed immediately.

Cracking the bend or flare

The transition between flared and straight tubes is a common fatigue point. This is because the forming of the tube hardens the metal. Vibrations also concentrate stress at this transition. It can be hard to detect hairline cracks without a magnifying glass and a flashlight, but a gentle tap or a fingernail running across the surface may reveal one that the eye missed. This logic also applies to bends with a tight radius, especially when the bend is close to a rigid mounting.

Signs for mechanical and operational equipment

Noise, vibration, or movement

This is usually caused by a missing or loosened clamp, resonance with the pump's pulsation frequency, or entrained air in the system. It's usually due to a missing clamp, resonance of the pump's pulse frequency, or air entrained in the system. Vibration fatigue, if left uncorrected, is one of many causes of tube failures in industrial and mobile equipment. It's easy to fix—often by adding a clamp or changing the support spacing.

Bulging, flattening, or kinking

A visible change to the cross-section of the tube—a small bulge, flat spot, or kink caused by an impact—should be a red flag for structural integrity. Bulging indicates that the wall is thinned, or the material has weakened under pressure. Flattening or kinking is usually caused by an external impact or overbending during installation. All of these are not self-correcting, and they all concentrate the stress on the deformed area.

Pressure or flow anomalies

If you notice a gradual drop in pressure in the system, an increase in pump cycles that is not explained, or a drip in fluid level over time, it could be a pinhole in a tube. This can happen before the leak becomes visible. This can be detected by monitoring trends in fluid level and pressure over time.

Building an inspection schedule around these signs

It is more useful to check the signs regularly than when something goes wrong. The practical routine should include a visual inspection of tube runs to check for corrosion, chafing, and discoloration, as well as a fitting examination for weeping and wetness. It also includes a listening and feeling check while the tube is in operation to check for noise or vibration and a periodic spot-check for wall thickness on tube runs that are located in high-vibration or corrosive zones. Even minor surface rust can be documented to create a trend that will make it easier to identify tubes that are degrading more quickly than their neighbors.

How frequently should hydraulic tubing for signs of failure be checked?

The majority of industrial and mobile equipment maintenance programs inspect exposed tubes at each scheduled interval. Checks are more frequent in applications that are corrosive or have high vibrations.

Can an hydraulic tube be repaired rather than replaced?

Some minor surface corrosion can be cleaned or treated. However, any tube that has a visible crack, pitting below the surface level, or deformation, should be replaced instead of repaired.

What is the most common cause of hydraulic tube failures?

The most common cause of cracks is vibration fatigue, which can be caused by corrosion, chafing, or fittings.

Does a small leak at a tube fitting need to be addressed urgently?

Weeping is a sign of a seal or crack problem that will worsen with continued pressure cycling. It's best to address the issue immediately rather than monitor it indefinitely.

Does the tube material affect the early warning signs?

Yes, stainless steel is more resistant to corrosion than carbon steel, but it can still exhibit chafing and fatigue cracking. All the mechanical warning signs are still valid regardless of material.
