How does temperature affect hydraulic seal performance?

The temperature affects the performance of hydraulic seals by changing the elastomer’s hardness and elasticity. High heat speeds up compression set, extrusion, and oxidation. Low temperatures can cause shrinkage and stiffening as well as a loss of sealing.

The hydraulic seal is at the crossroads of fluid chemistry, pressure, and motion. Temperature is the most often underestimated of these variables. The engineers size cylinders based on pressure and choose seal profiles based on motion type. However, the thermal environment in which a seal operates—including transient spikes as well as steady-state averages—determines its lifespan. Understanding thermal degradation mechanics helps maintenance teams select the right materials and detect early warning signs of seal failure before it occurs.

Why is temperature more important than many people realize?

Each elastomeric material has a temperature envelope defined within which its mechanical properties are retained. The polymer's molecule structure can change in ways that are irreversible outside of that envelope. Elastomers, unlike metal components that expand and contract with temperature in a predictable manner, undergo chemical and mechanical transformations—cross-linking and plasticizer loss as well as oxidative breakdown—which permanently alter their performance.

It is important to note that hydraulic systems are rarely operated at a constant temperature. The seal's thermal exposure is affected by ambient conditions, duty cycles, fluid friction, inefficiency of pumps, and proximity to heat-producing components.

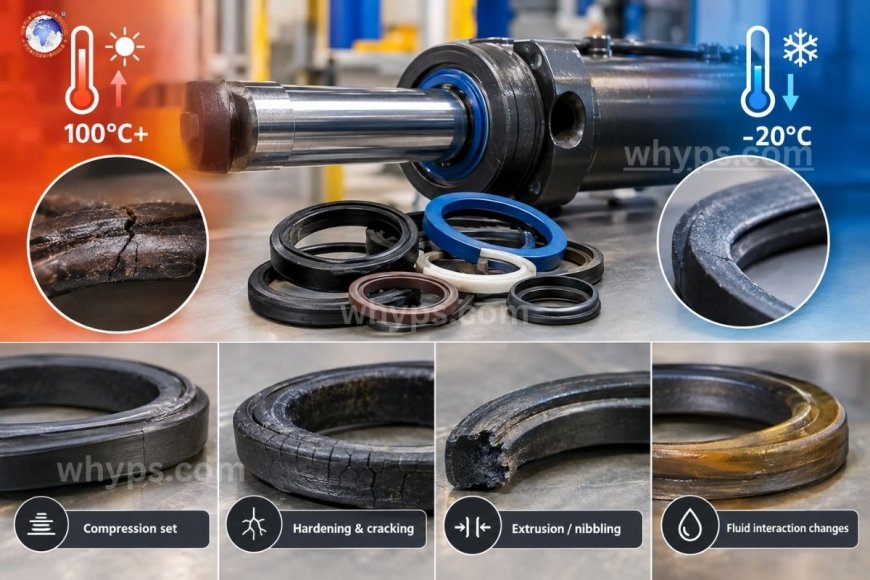

Seals and high-temperature effects

Compression set

The most common failure mode is compression set. The elastomer loses its ability to spring back into its original shape when a seal has been compressed at high temperatures for an extended period of time. Seals with significant compression sets can't maintain contact with mating surfaces during pressure fluctuations and thermal cycling. This creates a path where fluid can escape.

Seal life can be dramatically reduced by a small increase in operating temperatures. Seal failures are common in systems that operate hotter than the design baseline, due to undersized cooling units, clogged heat exchangers, or heavy-duty cycle work.

Thermal hardening and degradation

The polymer chains of most elastomers are oxidized by prolonged heat exposure, which causes the material to become hard and brittle. Hardened seals lose the flexibility required to conform to irregular surfaces and follow dynamic movements, leading to increased friction and stick-slip behavior and ultimately cracking. Surface crazing and color changes are common signs of hardening, even if the seal is not yet leaking.

Extrusion of nibbling

Heat softens seals for a short time before the long-term hardening takes place. This softening also reduces the resistance to extrusion, where seal material is forced under pressure into the clearance gap in between the mating parts. Extrusion cycles repeated repeatedly can cause material to break into small pieces, which is a mode of failure called nibbling. The risk of extrusion increases when worn guide rings and oversized clearances are combined with high temperatures, as the material is less resistant to being pushed through the gap.

Fluid Interaction Changes

The temperature can also affect how a seal reacts to the fluid. Certain elastomers expand more in hot fluids, changing the compression fit inside the gland. Others become more vulnerable to chemical attacks as fluid additives are more reactive at high temperatures. This is one reason seal compatibility charts specify both a fluid type and a temperature range rather than treating compatibility as a fixed, temperature-independent property.

Seals and low temperatures

Loss of elasticity

The elasticity of seal elastomers is reduced by cold temperatures. Below the glass transition point in a material, polymers can change from a rubbery, flexible state to one that is hard and glass-like. This condition causes the seal to be unable to maintain contact with the sealing surface during motion or startup. Leakage is often seen during cold starts but disappears when the system warms.

Shrinkage and gland fitting

Elastomers cool down and contract. If a seal contracts enough in its gland, then it may not maintain the static seal or lose contact with the rod surface or bore during dynamic motion. This can be a problem for outdoor equipment or non-heated equipment that sits idly overnight in cold climates before starting under load.

Increased friction at startup

This is because a cold, stiffened sealing generates more friction on a mating surface in the initial movements of the system before the fluid friction inside the system has warmed it up. The early-cycle friction spike can accelerate wear of both the seal surface and the mating surface and cause temporary stick-slip movement in cylinders.

Seal material matched to thermal environment

Material selection should take into account the actual thermal profile of the system, not just the nominal rating.

• Nitrile (NBR), while offering good performance for general purposes in moderate temperatures, degrades more quickly at high temperatures.
• Fluorocarbons (FKMs) can tolerate higher temperatures continuously and are more resistant to oxidative hardening, which makes them a popular choice for high-heat mobile and industrial equipment.
• Polyurethane is a versatile material that performs well in a wide range of applications. However, it can be sensitive to hydrolysis at high temperatures when used with water-containing fluids.
• Seals made of PTFE maintain their dimensional stability, low friction, and resistance to temperature changes. This is why they are often used as dynamic seals in systems that have large thermal variations.
• Low-temperature-rated compounds, including specialized nitrile and silicone blends, retain flexibility in cold-climate or refrigerated equipment applications where standard elastomers would stiffen prematurely.

The right material is chosen by looking at the extremes of the operating temperatures—the coldest start-up and the highest sustained load. Seal failures are usually caused by the outer edges, not the center.

Thermal effects on seals: Practical measures to reduce them

Maintainers can prevent temperature-related seal failures through monitoring fluid temperatures over time, rather than using spot checks. They should also ensure that coolers and heat exchanging units are correctly sized for their duty cycle and check seals during routine maintenance for signs of cracking, hardening, or discoloration. Allowing adequate warm-up before full-load operation or specifying cold seal compounds at the beginning can prevent the friction and leakage problems associated with cold starts. Monitoring ambient and system temperatures along with seal replacement intervals will also show if failures cluster around extreme thermal conditions, rather than random wear patterns.

At what temperature do hydraulic seals fail?

The failure temperature depends on the material of the seal. Standard nitrile sealing materials typically begin to degrade through compression set and hardening at temperatures above 100°C (212°F), while seals based on fluorocarbon or PTFE tolerate higher sustained temperatures before showing similar effects.

Is it possible for a seal to be damaged only by cold temperatures, without a mechanical fault?

Yes. The elastomer will stiffen and lose elasticity below the glass transition point of a material. This can lead to leakage when the seal is first installed, even if it's in excellent condition.

What is the difference between pressure-related seal wear and temperature-related seal wear?

Temperature-related wear is more likely to show up as cracking or hardening of the seal, which reduces its ability to maintain contact.

Does the choice of hydraulic fluid affect the temperature impact on seals?

Yes. As temperatures change, fluid additives and base stock interact differently with seal materials. Therefore, compatibility between fluid and seal material should be evaluated across the entire expected temperature range and not just at room temp.

When should seals in systems that experience wide temperature fluctuations be checked?

Thermal cycling can accelerate fatigue, whereas a steady-state operating profile is not prone to this.
