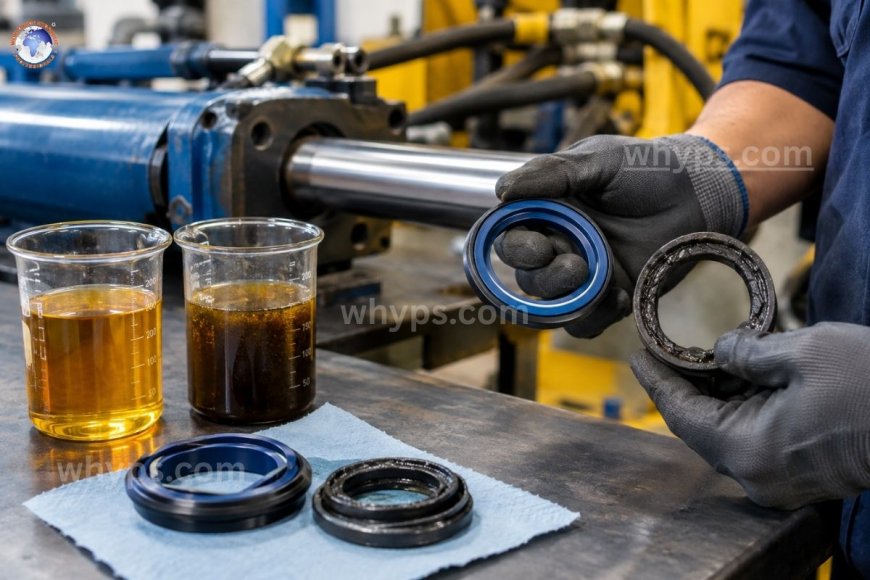

Can old hydraulic oil damage new hydraulic seals?

Yes, old or degraded hydraulic oils could cause damage to new seals. As oil gets older, it begins to oxidize, accumulating acidic byproducts and losing additive protection, and also absorbs particles and moisture. If the fluid is stored in a system or reused following a sealing replacement, smudges the elastomer compound, leading to shrinkage, swelling, and hardening or chemical breakdown, often resulting in premature leakage of seals that were in perfect state.

Seal replacement is among the most frequently performed hydraulic maintenance tasks, yet it's also one of those tasks that is most often neglected. Technicians replace worn seals, rebuild the valve or cylinder, and then refill it by using the exact oil already in the reservoir or even top off the system that is partially empty instead of performing a full fluid change. If the oil is rusty or oxidized or is affected, the new seals will be exposed to the same harmful chemicals that could have caused the initial failure. Understanding how the aging of seals react to oil can help explain why "new parts, same problems" is a typical problem within the industry.

How does hydraulic oil degrade over time?

Hydraulic oil won't break down in one go—it deteriorates slowly by overlapping several mechanisms.

Acid formation and oxygenation

The air, heat, and catalytic metals (copper and iron) increase the rate of oxidation of base oil. The byproducts of oxidation include organic acids as well as sludge and varnish. When the total acid number (TAN) increases, it becomes chemically aggressive towards elastomers, especially the nitrile (NBR) and polyurethane substances that are used in rod and cylinder seals.

Additive depletion

Anti-wear, anti-oxidant, and rust-inhibitor additives will be consumed during the course of the fluid's life. After depletion the base oil provides no buffering capability, and the acidic or oxidative products can be more powerfully absorbed by the seal's surface. The depleted oil also tends to create more metal-to-metal wear and create fine particles, which erode the seal's lips.

Water contamination and moisture

Ingress of water—caused by condensation wear on wiper seals or from contaminated top-off oil—hydrolyzes some oils and triggers the development of corrosive acids. Water can also soften some seals made of polyurethane and could cause seal degradation due to hydrolysis, particularly in high-cycle or humid environments.

Sludge and particulate buildup

Old oil collects dirt, wear metals and oxide Sludge. Even after a seal has been repaired, this debris is able to circulate through the seal grooves with close tolerance as well as rod surfaces, creating an abrasive wear to the newly sealed lip before normal wear and tear will.

What is the significance of this for sealings that are new?

A brand new seal is usually more susceptible to attack during the first days of use as opposed to later. The elastomer surface that is new hasn't developed the light surface glaze that forms during normal break-in. As a result, they are more susceptible to attack by chemicals. When you install new seals on older, degraded oil bypasses the protection conditions the seal was created to function in and places the seal directly in a dangerous setting.

The seal is swollen and softened.

Certain oxidation byproducts as well as residual water can trigger elastomer swell and swell, especially in NBR and polyurethane compounds. Seals that are swollen lose control of dimension, leading to increased friction and heat production, and are more prone to expand under pressure once they exceed their tolerances.

Hardening and shrinkage

However, prolonged exposure to additive-depleted or oxidized oil could cause drying out of plasticizers inside the elastomer. This can lead to shrinkage as well as hardening. The seals that are hardened lose the flexibility necessary to keep the force of contact against the rod or bore of the cylinder, which can lead to the leakage of weeping or complete bypass.

The chemical attack can cause cracks, and the fractures may be permanent.

The high acid content may affect the chemical structure of the seal, which can lead to cracks on the surface, pitting, and a general decline in the strength of the seal. This is especially harmful for dynamic seals, which are already subject to cyclic mechanical stress due to piston or rod motion.

Contamination-driven abrasion

Fine particles that are suspended in old oil function as a lapping material against the lip of the seal. As time passes, this causes the wear on the seal lip to a level that is far greater than is normal for fresh fluid, which reduces the life of the seal, regardless of whether the seal was put in place.

Recommendations for replacing seals on hydraulic systems

Make sure to change the fluid at sealing replacement.

If seals need to be replaced, particularly in the event of a failure due to degradation or contamination, the fluid should be thoroughly removed to be replaced and not only filled with. Reusing old oil will defeat the goal of seal replacement.

Clean the system thoroughly.

A full fluid change by itself does not remove varnish, sludge, or other particles that have coated the internal surfaces of hoses, hoses, and manifolds. A thorough flush cycle can ensure that the residual contaminants aren't introduced back into the fresh fluid charge.

Clean or replace filters.

Filters that are old can be a reservoir of contamination, which will then bleed into new oil over the initial cycle of operation. Filter elements must be replaced prior to any major seal maintenance.

Check for any root causes.

If seals were damaged early, the degraded oil chemistry could be a factor instead of simple wear. Examining the condition of oil, such as viscosity, TAN (the amount of water), and the particle count, can help determine whether the cause was due to a chemical or mechanical cause or both.

Find the seal material that matches the type of fluid.

If a change in the fluid (e.g., switching to a biodegradable or fire-resistant hydraulic fluid) is part of the seal replacement, ensure that the seal's new compound has chemical compatibility with the fluid. Incompatible seal-fluid combinations could cause the same shrinkage or swelling issues, even with fresh oil.

Seals that are new are only just as effective as the surroundings they're placed in. Water-laden, old, oxidized, or contaminated hydraulic oil will degrade mechanically and chemically new seals in the same way as the older ones—and sometimes more quickly because fresh elastomer is more reactive prior to breaking in. Combining each sealing replacement with a complete fluid flush, system flush, and filter service helps protect the investment made in new components and prevents recurring failures after a few weeks of repair.

1. What can I do to tell whether your hydraulic oil is a bit old to be reused after a seal replacement?

Verify the total acid value (TAN) as well as its viscosity, water content, and particle count with an oil laboratory or portable analysis kit. Dark colors, a burning smell, or cloudiness, as well as visible sludge, are all indicators that indicate the fluid is best replaced, not reused.

2. Does the old oil befall the materials used to seal?

No. The NBR (nitrile) or polyurethane seals are typically more susceptible to oxidation byproducts as well as water than FKM (Viton) or PTFE, which have greater chemical resistance. However, all elastomers break down more quickly in acidic or polluted fluids than in well-adjusted, clean oil.

3. If I simply replace the seals but use that same type of oil, at what point would the seals that I replace fail?

The severity of contamination varies. Seals placed in heavily degraded oil may show swelling or leakage, as well as wear-related issues within just one or two months, well in the middle of their performance.

4. Is topping up with new oil sufficient, or do I require draining the tank completely and refilling?

The process of topping off dilutes doesn't remove any contamination of acid, sludge, or. A complete drain or flush and refill are required to ensure a fresh working environment.

5. Does old oil cause damage to seals, even though the system was not leaking in the past?

Yes, oil can degrade internally by oxidation, additive depletion, or uptake of moisture—and not cause obvious signs until the seals are damaged by disassembly or reassembly, after which the weakening of fluid chemistry speeds up the degradation of new seals.
