What is hydraulic cylinder stroke length?

The length of the stroke of a hydraulic cylinder is the length of the piston rod that traverses between its fully retractable or fully extended position. It determines how far a cylinder has the ability to pull or push a load and is one of the primary specifications—along with rod diameter, bore diameter, and the rated pressure—that decides whether a cylinder can be used and perform properly for the specific application.

The length of a stroke is a basic measurement. However, calculating it incorrectly is among the most frequent and costly errors in hydraulic system design. A cylinder that is too small will not be able to complete the movement the machine needs. If it's too long, it could collapse or buckle under stress or simply be too large for the space. Knowing what the stroke length actually means—and how it interplays with the rest of the design—can help engineers, technicians, and buyers prevent these issues before they happen.

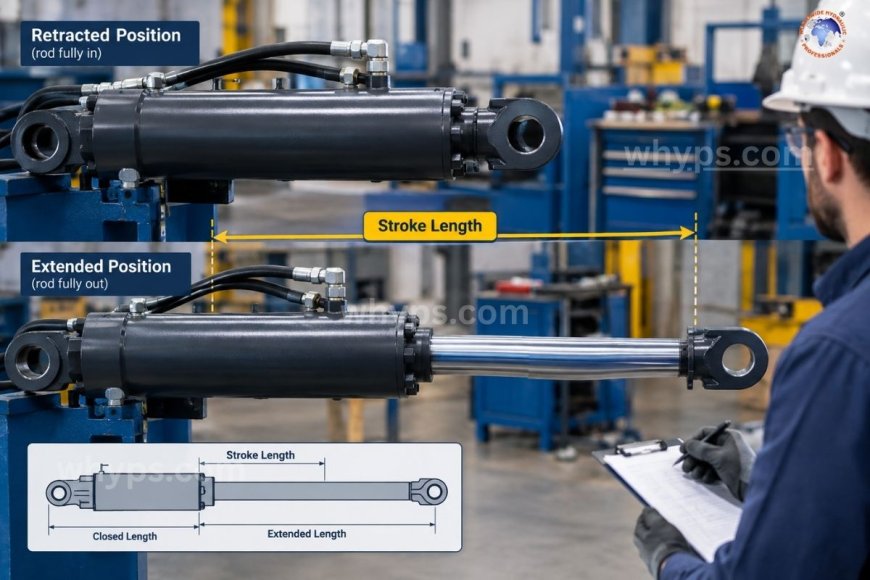

Defining stroke length

The length of a stroke is defined by the distance in a linear fashion from the piston's completely retractable location (rod completely in) as well as its extended state (rod completely out). It's usually measured in millimeters or inches and is among the primary specifications on any data sheet for cylinders along with bore and rod diameter.

It is important to differentiate stroke length from several similar but distinct measures:

• The length that is closed (retracted length) The length of the rod when it is completely retractable.
• The length extended (open length) The length of the rod of the rod when it is extended fully, which is roughly equivalent to the length of the stroke plus the length of the closed.
• Collapsed length is sometimes used in conjunction with closed length and refers to the minimum installed length.

The confusion of the terms used is a common reason for ordering errors. A cylinder that is specified by an longer length rather than stroke length, for instance, could end up having a few inches less useful travel than what the application actually requires.

The importance of stroke length

Stroke length isn't just a number on a spec sheet; it is directly affecting the way a machine functions and how well it performs throughout time.

The application must match the motion.

The stroke must correspond to the physical distance that the mechanism is operating, whether it's the dump bed tipped over an angle that is set or a press platen closing an open gap or a lift arm lifting a load to a certain size. A stroke that is not sufficient, and the machine will not be able to finish its movement. A lot of strokes wastes envelope space, adds weight and costs, and increases the likelihood of the machine buckling.

The structural and buckling aspects

The longer stroke lengths will increase the unsupported length of the rods when they are extended and increase the chance of the column buckling under compressive loads. Engineers make use of buckling calculations (often built on Euler's column formula that is adjusted to accommodate mounting styles) in order to calculate the most safe stroke for any given rod's diameter and load. This is the reason why long-stroke cylinders typically have bigger rod diameters than the bore diameter would suggest. The rod must resist bending and not only transmit force.

End-of-stroke and cushioning behavior

When fully extended or retracted, the piston may smash into the cylinder's end caps if the speed isn't reduced. A lot of cylinders have internal cushioning, an elongated plunger or needle valve that stops oil flow at the end of the stroke to slow the piston prior to impact. The length of the stroke affects the amount of the piston's velocity that can increase before the cushioning process begins and, in turn, affects the degree of abrasion that cushioning must be.

The volume of fluid and the cycle time

A longer stroke will require greater hydraulic fluid in order to retract or extend the cylinder, which impacts the time it takes to cycle for a certain speed of flow. Two cylinders having identical bore dimensions but with different stroke lengths require different flow rates to reach the same speed; therefore, stroke length is an integral influence on pump sizing as well as circuit design.

How do you determine the length of your stroke?

The length of the stroke is usually determined by the mechanical design of the application, rather than selected arbitrarily. Some common approaches are

• Measurement of travel directly: To retrofit or replace a cylinder, technicians determine the stroke of the cylinder or the physical travel distance that the mechanism needs.
• Geometric calculation: When designing new designs, engineers calculate stroke using the linkage geometry—such as the arc of a lift arm has to be able to travel, which is transformed into linear rod travel by calculating mount angles and pivot points.
• Standard increments for manufacturers: Several cylinder manufacturers sell standard cylinders with standard stroke sizes (commonly in 25-millimeter increments) to speed up lead times. They also offer custom strokes for non-standard applications.

Engineers usually add a slight safe margin of safety to their calculated stroke, rather than specifying the exact amount in real-world conditions, as tolerances, wear, and deflection could eat away at the amount of travel available over the course of.

The length of the stroke and style of mounting

The mount's configuration determines the extent to which the stroke is actually used. Clevis and trunnion, as well as flange mounts, change the design of the cylinder in relation to its load. These changes could alter the amount of stroke required to attain the same motion. The type of mount also influences the amount of side-loading that is applied to the rod. Side-loading gets more important as the stroke increases since a rod will have more leverage to bend when under an unbalanced and off-axis load.

Common errors when defining stroke length

A few common errors show up after cylinders are ordered or replaced.

• Confusion of stroke length and the overall length of the cylinder, leading to a cylinder that does not conform to the envelope it was installed on.
• Inattention to buckling limits for small-bore, long-stroke cylinders, which could result in rods bending or failing under stress.
• Not taking into account the mounting geometry, which results in a cylinder that has the proper stroke on paper but with an incorrect travel when placed with an incline.
• Over-specifying the stroke "just in case" increases cost weight and risk but has no functional benefits.

Achieving a precise application geometry and double-checking the stroke against mounting and buckling calculations -- can eliminate the majority of these problems before the cylinder is purchased.

The length of the stroke on a hydraulic cylinder is a fundamental specification that determines the length the cylinder is able to travel, its interaction with the limits of buckling, the design of cushioning, the geometry of its mounting, and the way it affects the amount of fluid flow and cycle needs across the entire system. The right stroke length is starting with the mechanical movement that the application requires using the proper safety margins and ensuring that the diameter of the rod and the mounting design can accommodate this stroke without causing excessive risk of buckling. The idea of treating stroke length as an element of an interconnected set of specifications instead of an individual number is what differentiates the cylinder that works and works from one that is prone to failure in the future.

1. What's the distinction between cylinder length and stroke length?

The length of the stroke is the distance it travels when the rod has been fully extended or fully extended. The length of the cylinder (closed as well as extended) is the total physical length of a cylinder at any given rod position. It includes the stroke, as well as the dimensions fixed to the cylinder tube, the end caps, and the rod.

2. Can the stroke length be changed after the manufacturing process?

Generally, no. The length of stroke is built into the cylinder at manufacturing time according to rod and tube length. Certain applications employ mechanical stops or limiters to decrease the effectiveness of travel; however, expanding the stroke beyond the initial design isn't feasible without rebuilding the entire cylinder.

3. How is stroke length affecting the risk of buckling a cylinder?

The longer strokes will increase the rod's length without support in full extension, increasing the possibility of a column buckling under compressive loads. Longer-stroke cylinders usually require bigger rod diameters or more support to keep within safe limits for buckling.

4. Do stroke lengths that are longer always mean a cylinder that is running slower?

Not necessarily. Speed is determined by flow rate in relation to the volume of the cylinder, not on stroke length by itself. A longer stroke requires more fluid in order to move at the same distance, and when the flow rate isn't increased to match, the time for a cycle will be extended. However, the cylinder with more flow will travel at the same speed as a smaller cylinder.

5. What is the safety margin that is usually included in the stroke length calculation?

There's not a universal standard; however, many engineers include an unspecified amount, usually the percentage of the calculated distance or an increment fixed to accommodate the tolerances of installation, mechanical wear, and deflection throughout the life of the cylinder, instead of specifying the minimum stroke.
