What are the main parts of a hydraulic cylinder and what does each do?

Hydraulic cylinders are the engines of power systems that use fluids. These cylinders convert the hydraulic, energy-pressured fluid into a controlled linear force. They can be found in agricultural machinery, industrial presses, aircraft landing gear, and many other fields where reliable, raw pulling and pushing force is required.

However, a hydraulic cylinder isn't just a single component. It's an engineered system made up of precisely matched components that play a particularly important function. Knowing what each component does and why it is important is vital to anyone who designs or maintains the fluid power technology.

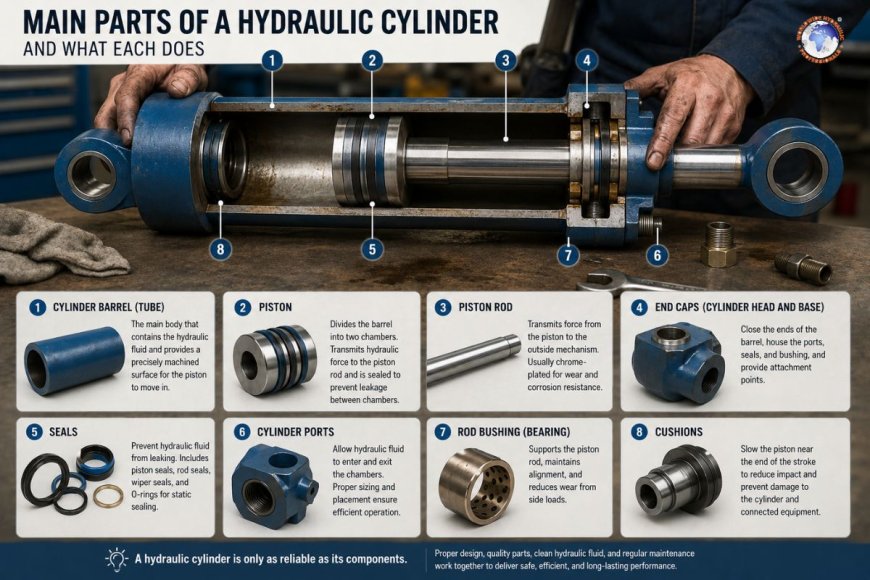

Here's a detailed description of the major components in a hydraulic piston as well as the functions each performs.

1. Cylinder barrel (Tube)

The barrel of the cylinder is the primary component of the hydraulic piston. It's hollow, thick-walled tube that is typically made from aluminum, high-strength steel or stainless steel which forms the pressure vessel through which the hydraulic fluid operates.

Its primary purpose is to hold the pressurized liquid and to help the piston move through its stroke. The bore in the barrel needs to be machinable to extremely precise tolerances and polished to mirror-like surfaces. Any imperfections, roughness, or irregularity can accelerate wear on the seal, lead to internal leakage, and lower effectiveness.

The barrel should also be able to withstand extreme pressures without fatigue. The wall thickness and the material choice depend on the pressure of operation and the dimension of bores for the device.

2. Piston

The piston is an internal moving component that splits the cylinder barrel into two parts that are the end-cap (or the blind-end) chamber as well as the chamber with a rod end. When fluid that is pressurized enters the chamber, it is able to act upon the piston, and it drives it down the barrel.

The piston transfers forces directly onto the rod. It is precisely machined to fit the bore of the barrel with the smallest clearance and comes with seals around the outside of its diameter to avoid cross-leakage between two chambers.

Piston design matters enormously. A properly designed piston will ensure the integrity of its seal under extreme differential pressures while also allowing fluid, low-friction movement. In high-load situations, pistons can be constructed out of ductile iron or a reinforced steel to withstand the deformation caused by pressure.

3. Piston rod

A piston rod acts as the part that extends out of the cylinder in order to provide an electric force on the object. It is connected to the piston at one end and also to the outside mechanism -- called a linkage, ram or attachment on the other.

Piston rods are usually constructed from high-strength carbon steel that was chrome-plated. The chrome layer has two major advantages: it produces an extremely durable, wear-resistant surface that is able to withstand the continuous sliding contact of the rod seal. In addition, it provides corrosion resistance to the elements and contaminants.

The diameter of the rod can be measured by necessary compressive and tensile strength and also the requirement to resist buckling under pressure. For applications that require long strokes as well as high compressive forces, the diameter of the rod becomes an important design factor.

4. Caps for the end (Cylinder head and base of cylinder)

Each hydraulic cylinder comes with two cap ends, which are the head of the cylinder (front end, from which the rod leaves) and the base of the cylinder or cap end (rear end, which is sealed).

The cylinder base is what seals the barrel's rear and is the conduit where hydraulic fluid flows and exits from the cap-end chamber. It is typically bolted, welded, or threaded to the barrel, based on the style of the barrel.

The cylinder head is what closes the front and performs the purpose of a much more intricate one. It does not only house the hydraulic port for the rod's end, but it also contains the wiper seal and seal of the rod and the rod bushing (bearing). It has to protect the cylinder to prevent leakage and, at the same time, allow the piston rod to move through the cylinder with little friction. It is considered to be a precise component, and its condition is crucial to stop leaks from external oil.

5. Seals

Seals are among the most important—and most maintenance-sensitive—components in any hydraulic cylinder. Without a good seal, the hydraulic fluid obstructs the piston and leaks outside, which means that the piston loses the capacity to sustain or generate force.

There are a variety of seals found in a typical cylinder with their particular job.

Piston seals fit in grooves that are located on the outside dimensions of the piston. They keep fluid from flowing from the pressure side to the lower-pressure side. They are generally dynamic seals made of polyurethane rubber, nitrile rubber, or PTFE-based materials, chosen to be compatible with liquid hydraulic and the operating temperatures.

Rod seals are located inside the cylinder head. They provide the primary barrier that stops the hydraulic fluid from flowing out of the rod into the external environment. These are crucial for the security and efficiency of the system.

Wiper seals (also known as scraper seals) are located at the most outer location of the cylinder head. When the rod retracts, the wiper scrubs dust, dirt, moisture, and other debris from the surface of the rod before re-entering the piston. If there is no seal for the wiper, particles are pulled straight into direct contact with the seal of the rod and piston, speeding up wear on the entire system.

Static seals (O-rings and gaskets) stop leaks at joints that are fixed, such as between the end caps and the barrel.

Failure of the seal is among the most common causes of malfunctioning hydraulic cylinders. Thermal degradation, contamination in the installation process, improper placement, and chemical incompatibility are the most frequent causes.

6. Cylinder ports

Hydraulic ports serve as ports that allow the pressurized fluid to enter and exit chambers within the cylinder. A typical double-acting cylinder comes with two ports, one at the cap's end and another at the rod's end. The cap-end port's fluid extends the rod, while fluid that enters the port at the rod's end retracts it.

Port dimensions, thread types, and the location are designed to be in line with the requirements for flow rates and system plumbing. The ports that are not sized correctly limit flow and cause pressure drops that decrease effectiveness. Ports are also where contaminants typically enter the system, which makes proper sealing and filtration of these ports vital.

7. Bushing for the rod (Bearing)

Rod bushings are a circular shell that fits inside the cylinder head. It supports the lateral load of the rod of the piston and ensures it stays in alignment throughout its journey through and out. Without this support and side loads, forces that are perpendicular to the rod's axis can result in the rod's movement, which would accelerate wear on the seal and could cause damage to the bore of the barrel.

Bushings are generally made of bronze, composite materials, or steel-backed PTFE liner. The material selection is contingent on load as well as speed, lubrication supply, and the environmental conditions. A damaged or seized bushing is the primary source of premature seal failure.

8. Cushions

Many hydraulic cylinders come with cushioning devices on either or both ends of the stroke. When the piston is approaching the end of the stroke, the cushion plunger or sleeve is inserted into a narrow orifice, capturing a tiny volume of fluid. This creates an area of deceleration, which slows down the piston prior to when it reaches the cap at the end.

If there is no cushioning, the shock at the end of the stroke could create structural harm to the cylinder, mounting hardware, and any other machinery connected. Cushions significantly prolong the life of your equipment for high-speed and high-intensity use. The flow restriction of cushion circuits is usually adjustable by a needle valve, which allows the deceleration rate to be adjusted according to the specific application.

A hydraulic cylinder can only be as secure as its weakest component. The barrel is the main structure; the rod and piston transmit force, the seals hold the pressure, the caps seal the system, and the bushing ensures alignment and cushions against shock. They function as a system that is integrated; each component is at risk, and performance, efficiency, and service life will all suffer.

For maintenance specialists and engineers, this knowledge provides the basis for making educated decisions regarding cylinder specifications and fluid selection, as well as contamination control and the development of predictive maintenance schedules. Understanding what each component does and the ways it could fail is the key difference between proactive firefighting and reactive management of the system.
