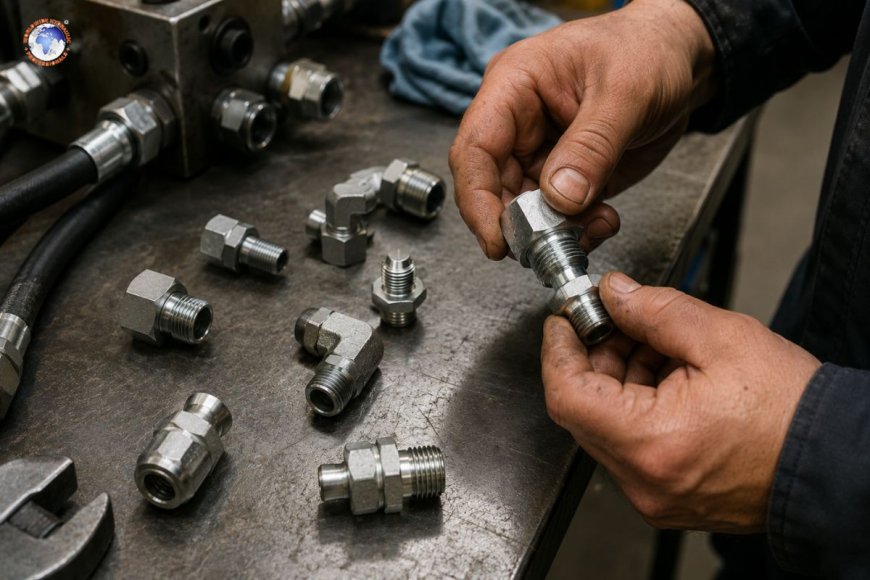

Best hydraulic fittings for high-pressure systems

High-pressure hydraulic systems can be extremely harsh. The leak of a fitting at more than 5,000 PSI does more than cause an issue; it poses a risk to safety as well as a decrease in efficiency and can cause catastrophic failure of the component downstream. The choice of the correct fitting isn't an afterthought in procurement; it's an essential engineering decision that determines the reliability of the system maintenance intervals, as well as the safety of personnel.

This guide explains the most appropriate fitting types for hydraulics with high pressure. The metallurgical and design requirements that are important and what to be looking out for in the process of defining and installing.

Learning to recognize "high tension" in relation to hydraulic systems

Before deciding on a fitting, engineers should determine their pressure range. In the field of fluid power engineering, the operating thresholds for pressure are typically described as:

• Medium pressure: up to 3000 PSI (207 bar)
• High pressure: 3,000 to 6,000 PSI (207-414 bar)
• Ultra-high pressure: 6,000 to 30,000 PSI (414-2,068 bar)

The majority of industrial hydraulic circuits run between 1,500 and 5,000 PSI, and mobile equipment, offshore drilling rigs, metal-forming presses, and injection molding equipment typically require an amount of 6,000 PSI and higher. Each pressure band needs the exact geometry of fitting and the material specifications.

1. JIC (joint industry council) 37° flare fittings

Pressure rating: up to 10,000 PSI dependent on the size of the tube and the type of material

JIC 37° fittings continue to be an extremely frequently utilized connection type used in North American hydraulic systems. The mechanism that seals them is based on contact between metal and metal, the flared end of a 37-degree tube, and the seat that matches in the body of the fitting. This ensures JIC fittings are insensitive to thermal cycling and vibration, two factors that can destroy soft seal materials with time.

The main benefit is the possibility of reuse. When properly flared, a JIC connection can be dismantled and rebuilt multiple times without losing sealing integrity. This is important, especially in systems that need regular servicing. But the quality of the flare is crucial. A damaged or uncoordinated flare will leak instantly or break under pressure cycling, irrespective of the quality of the fitting.

Most suitable for machines with hydraulics and mobile hydraulics and industrial systems that require a connection that can be serviced.

Limitations: JIC fittings are not suitable for environments that have extreme vibrations or high pressures because the metal-to-metal seal could fret and loosen with time.

2. ORFS (o-ring face seal) fittings

Pressure rating: 9,000 to 9000 PSI

ORFS fittings are now the most popular choice for leak-sensitive and high-pressure hydraulic circuits, specifically in those systems where leak-free performance is a requirement. The sealing process is accomplished by an O-ring made of elastomeric that is placed in a groove that is machined onto the male fitting. It is compressed against a flat seal surface on the female side when it is torqued.

This O-ring seal is positive and eliminates the vulnerability of metal-tometal contact joints to loosening caused by vibrations. ORFS connections have superior performance in extreme pressures, which makes them a standard feature in construction equipment, agriculture, and aerospace ground support systems.

The O-ring material has to be compatible with that of the hydraulic fluid. Nitrile (NBR) is the most common choice used for fluids based on mineral oils. Fluorocarbon (FKM/Viton) is needed for fire-resistant and phosphate ester fluids. EPDM is suitable for water-glycol systems. The wrong O-ring material can expand, extrude, or even harden, each of which could result in leakage.

Ideal for mobile devices such as high-pressure manifolds or systems with high-speed pulsating loads, and for any other application that has zero tolerance leak demands.

Limitations: Inspection of O-rings and replacement increases the complexity of maintenance. Faces to be fitted should be free from scratch marks or contamination prior to installation.

3. SAE Straight thread o-ring (boss) fittings

Pressure rating up to 6,600 PSI and more with proper porting

Straight thread fittings from SAE, often known as O-ring boss (ORB) fittings, are made to connect port connections into the valve block, cylinders, and manifolds. Contrary to tapered pipe threads (NPT), which depend on thread interference for sealing—a process susceptible to leakage under vibration—ORB fittings make use of straight threads to provide mechanical engagement and an O-ring beneath the hex flange to create the pressure seal.

This distinction is crucial: the thread is the one carrying the load, and the O-ring acts as the seal. This distinction in function makes ORB ports significantly more durable than NPT when used in dynamic, high-pressure environments. They also allow angular adjustment. The fitting can be rotated to align the hose routing prior to sealing the jam nut, which eases the installation pressure to the assembly of hoses.

Most suitable for: port connections to valves, pumps, and cylinders, as well as manifolds that are hydraulic across all ranges of pressure.

Limitation: It is not suitable for tube-to-tube connection; ORB is a port-end fitting that is only suitable for tube-to-tube connections.

4. Hydraulic flanged fittings (SAE Code 61 and Code 62)

Pressure ratings: Code 61 up to 3000 PSI. Code: 62 from 6,000 PSI

High-flow connections for large bores, usually 3/4 inch bore or more, flanged fittings offer the most structurally solid connections available for hydraulic systems. SAE Code 61 and Code 62 four-bolt flange connections utilize a flat O-ring seal as well as an affixed flange that clamps to the face of a machined port.

Code 62 flanges are the high-pressure version, which has the split-flange, or one-piece design, rated at 6,000 PSI for all types of sizes. They are used for large power systems, maritime equipment, and heavy equipment for construction in which vibration, hose movement, and sustained high pressure generate tension on the threaded connections.

The clamp is made of all metal with an O-ring that is captive and practically eliminates the chance of joint separation during a pressure surge—an actual risk when using the large-diameter threaded connection. Flange connections allow for more efficient maintenance. Four bolts are significantly more manageable than a large hex fitting in a tight space.

Ideal for large-bore connections (3/4" and higher) as well as hydropower units for marine applications and industrial presses.

Limitations: More expensive and longer installation time when compared with threaded fittings and requires face ports that are machined.

5. Compression (bite-type) Fittings — DIN 2353

Pressure rating: up to 10,000 PSI depending on the series

Bite-type fittings, which are standardized in accordance with DIN 2353 (also known as ISO 8434-1), utilize a ferrule that pierces the outside diameter of the rigid hydraulic tube when under the assembly torque, resulting in mechanical retention as well as a metal-to-metal seal. These fittings are prevalent within European industrial hydraulics and are increasingly utilized worldwide in high-pressure control and instrumentation circuits.

Two ferrule designs are typical: the single-ferrule (L-series light duty) and double-ferrule model. For applications that require high pressures over 4,500 PSI, it is recommended to use the heavier series (S-series) with a more robust wall tubing. The quality that the connections provide is highly dependent on the quality of the tube; the wall's thickness, its hardness, and its roundness should all be within acceptable limits. Substandard tubing coupled with high-end fittings is a typical and dangerous error to make.

Most suitable for: European standard equipment, instrumentation lines, stainless-steel tubing circuits, and offshore/subsea-related applications.

The Limitation Assembly demands precise use of the torque. Too much torque can collapse the ferrule. Under-torquing is unable to properly bite.

Material selection: More than a catalogue choice

The material used for fitting is not an additional factor to consider. The carbon steel material is the preferred choice for the majority of industrial hydraulic applications and offers high pressure ratings with a low cost. However, in the case of saltwater, chemically aggressive substances, or food-grade fluids, stainless steel (316L or 304) is required. Brass fittings are suitable for low-to-medium-pressure applications that involve water, air, and certain types of fluids but are not suitable for high-pressure hydraulics because of their lower tensile strengths.

All high-pressure fittings must carry certified material that is traceable. For systems that are critical, such as aerospace, subsea, or press-related applications, the use of third-party pressure testing documents is a standard practice for procurement.

Installation: Where most failures originate

A fitting with a high-tech design is prone to failure if it is not installed correctly. The most frequently cited causes for malfunctions in fields are

• Incorrect torque, either under- or over-torquing, causes leakage. Always use a torque wrench and follow the manufacturer's specifications.
• Damage to threads during assembly: Cross-threading can damage the sealing geometry permanently.
• Contamination: Metal chips, thread sealant, or particles that are trapped in the sealing interface can break any O-ring or metal-to-metal seating.
• Incorrect tube preparation for bite and flare fittings, squareness of the tube's end, deburring, and cleanliness are not negotiable.
• Mixing with the wrong thread: JIC 37° and SAE 45° flare fittings look identical; however, they are incompatible. Mixing them creates an incomplete contact seat that can fail under pressure.

Matching fitting to application

High-pressure hydraulic systems require that each component of the fluid path be selected to be installed and maintained in accordance with the same standards. Fittings are the connections of the system—the transition points and connections at which the repercussions of a bad choice are felt the most. Understanding the mechanism of sealing the pressure rating, the material compatibility, and the correct torque of installation for each fitting type is essential to build systems that can be trusted over the entire life of their service.
