Hydraulic cylinder types and their applications

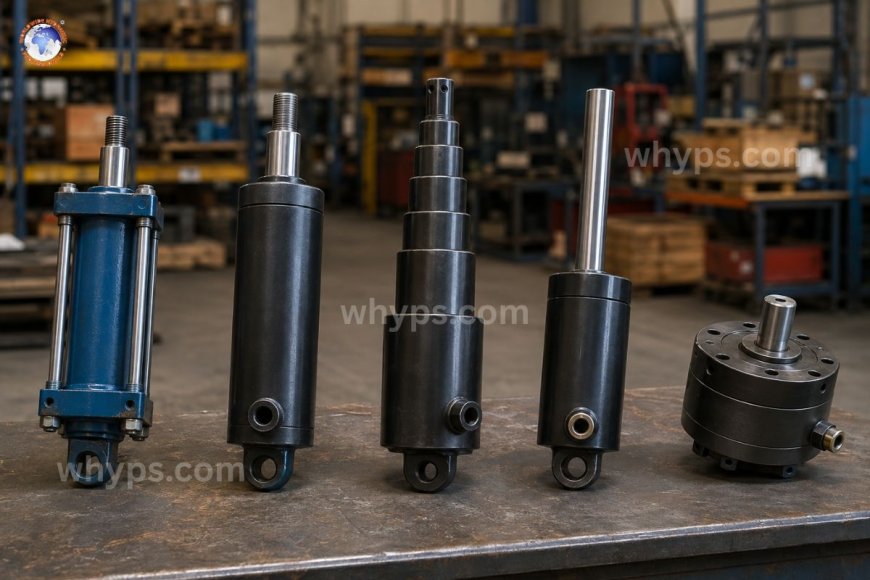

Hydraulic cylinders can be found in various basic types: tie-rod, welded, telescopic plunger (ram), and rotary. Each is designed to meet different ranges of pressure as well as stroke lengths as well as duty cycles. Tie-rods dominate industrial machinery due to their ease of service; welded cylinders can handle high-pressure mobile equipment, while telescopic pistons are extended beyond their retractable lengths for lifting and dump trucks. Plunger cylinders are particularly effective in single-acting high-load presses, and rotary cylinders convert hydraulic force into a rotating motion for clamping and indexing tasks.

The right type of cylinder isn't merely a matter of connecting the bore and stroke to a specification sheet. It's about knowing how the cylinder will perform under actual operating conditions. Side load, mounting limitations, exposure to contamination, and duty cycle all affect the type of design that will last and which one will fail early. This guide will break down the main hydraulic cylinder types and how each has a place.

What is a hydraulic cylinder?

A hydraulic cylinder is an actuator that converts pressure from hydraulic fluid into mechanical forces. A pressurized liquid enters the other part of a piston that is housed within a cylindrical barrel; it causes it (and the rod) to retract or extend. The differences in design between the different types of cylinders are due to the way that the barrel, the end caps, and the rods are built and joined. that the design of the barrel determines their pressure rating, repairability, and the application fit.

All types of core components are essential to the operation.

Whatever the type, all hydraulic cylinders have the same basic structure:

• Barrel—the cylindrical housing that houses the piston
• Piston—the internal part that separates two chambers of pressure
• Rod—a shaft that transmits force to the load
• End caps are used to seal the barrel and also fix the mounting points.
• Seals—stop the leakage of fluids from both sides.

What is different between the various types of cylinders is how they are assembled. The assembly method is the primary dividing line between different types of cylinders.

Tie-rod cylinders

Tie-rod cylinders are made of rods of steel that run through the barrel, which are clamped between the two caps under tension. This type of design has been a norm in industry for a long time due to its being fully maintenance-free—seals, pistons, and rods can be changed without having to scrape the entire unit.

Which tie-rods are suitable for which cylinders?

Tie-rod cylinders are used within stationary machines for industrial use, such as presses and injection molding machines, machine tools, and factories that automatize. They are typically operating in the range of 3,000 psi, although heavy-duty models can push higher. Their ability to service makes them economical in the long run, particularly in establishments that have in-house maintenance capabilities.

Limitations

The tie rods that are external can add weight and bulk to welded models, and the tension of the rods may loosen in the course of time due to heat or vibration and require regular refoing.

Cylinders that have been welded

The cylinders that are welded have their end caps attached directly onto the barrel rather than being mechanically secured. This eliminates the tie rods entirely, producing a more compact, higher-pressure-rated cylinder for a given bore size.

Where do welded cylinders work?

This is the predominant style used in off-highway and mobile equipment like excavators, cranes, loaders, and agricultural machinery where space is constrained and pressures can often be higher than three hundred pounds, and sometimes the 5,000-psi mark in extremely demanding situations. The slim profile reduces the chance of damage to external surfaces caused by debris and impacts in the harsh field conditions.

Limitations

Since the end caps are constructed of steel, field repair is more difficult. A damaged seal usually requires sending the cylinder to an industrial shop that has machining capabilities instead of a straightforward rebuild kit swap. Nevertheless, a lot of models are now equipped with an open gland to permit rod seal replacements without complete removal.

Telescopic cylinders

Telescopic cylinders encase several stages of smaller tubes inside each other, which allows for a retracted length that is a fraction of the stroke that is fully extended. As pressure increases, the biggest diameter stage is extended first, then progressively smaller stages.

Where telescopic cylinders can be used

They are the preferred option when a large stroke is required, but the length is restricted—dump truck beds, aerial dock levelers, work platforms, or refuse trucks. Telescopic cylinders can provide three to four times the stroke of the same single-stage cylinder in the same envelope.

Design aspects

Telescopic cylinders are usually single-acting (extending under pressure from hydraulics and retracting when gravity or loads are present) because double-acting designs are considerably more complicated and costly. The force output decreases as the stages get bigger, as each step has less piston area. This must be considered when sizing, rather than taking it as the force will remain constant throughout the entire stroke.

Plunger (Ram) cylinders

Plunger, also known as ram, pistons are made up of a rod that is sized close to the bore itself and without any distinct piston head. Pressure from the fluid is directly applied to the rod's end. They are usually single-acting and are designed to push instead of pulling loads.

Where can plunger cylinders be used?

Ram cylinders are commonly used in single-direction, high-load applications like hydraulic jacks, presses, and lifts, where the load itself is the force to retract (via gravity or a return spring). Their straightforward design that does not have a piston seal and fewer wear points makes them designed for high-force, low-cycle applications like scissor lifts and elevator systems.

Limitations

Because the rod isn't supported by a piston inside the bore and the plunger cylinders are susceptible to buckling under large side loads, if not properly guided externally.

Rotor (rotary actuator) cylinders

Rotary cylinders convert hydraulic linear power into rotational output typically via a rack-and-pinion or vane mechanism that is internal to the housing. Instead of extending the rod, they turn an output shaft at an angle of a specified degree, typically 90 deg, 180 deg, and all the way to 360 deg.

Where do rotary cylinders work?

They are used in clamping tables, indexing table fixtures, valve actuators, and dump body applications in which the need for rotation is required instead of a linear pull or push. Rack and pinion designs give greater consistency in torque throughout the range of rotation, whereas vane-style designs are less bulky to provide a specific torque output.

Comparing the cylinder types at an opportune moment

What is the best way to select the correct kind of cylinder?

The choice is usually based on five elements: force required and mounting envelope available stroke length, limits on length that can be retracted as well as duty cycle, and the expected access to maintenance. Mobile equipment OEMs that are focused on small size and density of pressure tend to choose welding cylinders, whereas a factory maintenance staff that values field serviceability will tend to go with tie-rod designs despite an enlargement of a bit. Applications that have a lot of space in relation to strokes—such as dump beds—typically point to telescopic designs, regardless of any other considerations.

What's the major distinction between tie-rods and hydraulic cylinders?

The cylinders with tie rods utilize rods externally to clamp the end caps onto the barrel, which makes them completely serviceable but heavier. They have caps for the end that are welded directly onto the barrel, resulting in a smaller, more compact design that is more difficult to fix on the spot.

Why do telescopic cylinders tend to be single-acting?

Double-acting telescopic designs need sealing and pressurizing every step in both directions. This adds considerable expense and complexity. The majority of applications, such as bed dump trucks, do not require powered extension, as gravity or load weights control the retraction.

Can the plunger cylinder pull an object?

No. Plungers, also known as ram, cylindrical devices, are single-acting and intended to push. They depend on the force of gravity, a spring, or an external load itself to bring the rod to its retract position.

What causes buckling of the plunger cylinders?

Since the rod's not held via an internal piston inside the bore of it, it's much more prone to being bent or side-loaded as opposed to a conventional piston-and-rod design. Correct external guiding and size for the anticipated load path will help to prevent this.

Are rotary hydraulic cylinders the same as motors for hydraulics?

No. Rotary cylinders provide a narrow range of rotation, generally around 360 deg, which is ideal for applications such as indexing or clamping. Hydraulic motors, on the other hand, offer continuous rotation and are utilized for driving augers, wheels, or other permanently moving loads.
