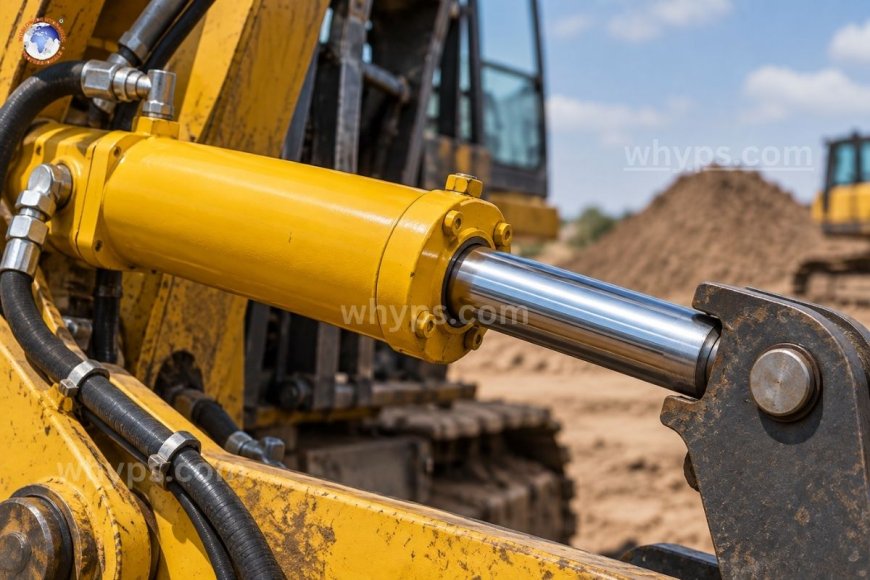

How to calculate the force produced by a hydraulic cylinder

The force a hydraulic cylinder produces equals system pressure multiplied by the piston's effective area: F = P × A. For a standard extending cylinder, use the full bore area; for retraction, subtract the rod's cross-sectional area from the bore area, since the rod displaces part of the piston face on that side. Get the units consistent—pounds per square inch with square inches, or bar/pascals with square meters—and this simple formula predicts output force within a few percent of real-world performance. Cylinder force calculations look intimidating because of the different units floating around hydraulic catalogs, but the underlying physics is just Pascal's Law applied to a piston. Once you understand the two working areas of a cylinder and how pressure translates into linear force, sizing a cylinder for a job—or troubleshooting one that isn't lifting what it should—becomes a five-minute calculation.

The basic force formula

Hydraulic force calculation starts from Pascal's Law: pressure applied to a confined fluid is transmitted equally in all directions. Inside a cylinder, that pressure pushes against the piston face, and the resulting force is

F = P × A

Where:

• F = Force (pounds or Newtons)
• P = System pressure (psi or Pa)
• A = Effective piston area (square inches or square meters)

If a system runs at 2,000 psi and the piston has a bore diameter of 4 inches, the piston area is π × (2/1)² = 12.57 square inches. Multiply that by 2,000 psi, and the cylinder produces roughly 25,133 pounds of force on the extend stroke—over 12.5 tons from a single 4-inch bore.

The same relationship in metric terms uses pascals and square meters, though most technicians work in bars and convert: 1 bar = 100,000 Pa, and 1 bar ≈ 14.5 psi.

Calculating piston area

The piston area is the single most common place people miscalculate cylinder force, mostly because they use the bore diameter instead of the radius, or they mix up diameter and radius mid-calculation.

The formula for a circular piston area is

A = π × r² = π × (D/2)²

Where D is the bore diameter. For a 3-inch bore cylinder, the radius is 1.5 inches, so the area is π × 1.5² = 7.07 square inches. That figure—not the bore diameter itself—is what gets multiplied by system pressure.

Manufacturers publish bore area tables for standard sizes, which is worth keeping on hand if you're speccing cylinders regularly, since it removes a step where arithmetic errors creep in.

Extend force vs. retract force

A double-acting hydraulic cylinder does not produce the same force in both directions, and this is where a lot of underperformance complaints originate. On the extend stroke, fluid pushes against the full piston face, so the entire bore area is available. On the retract stroke, fluid enters the rod-side chamber, and the piston rod itself occupies part of that chamber's cross-section—reducing the effective area.

Retract force formula:

F(retract) = P × (A(bore) − A(rod))

For example, take a cylinder with a 4-inch bore (12.57 sq in area) and a 2-inch rod (3.14 sq in area). At 2,000 psi:

• Extend force: 2,000 × 12.57 = 25,133 lbs
• Retract force: 2,000 × (12.57 − 3.14) = 2,000 × 9.43 = 18,850 lbs

That's roughly a 25% drop in force on retraction—significant if the application (like a press that needs to pull apart tooling or a pull cylinder in a compaction system) relies on retract force rather than extend force. Applications genuinely built around pulling loads often use pull-type or telescopic cylinder configurations specifically to manage this asymmetry.

Working backward: finding required pressure

Cylinder sizing problems often run in the opposite direction—you know the load you need to move and the bore size available, and you need to find the minimum system pressure. Rearranging the formula gives:

P = F / A

If a job requires 10,000 lbs of force from a 3-inch bore cylinder (7.07 sq in area), the minimum pressure needed is 10,000 / 7.07 ≈ 1,414 psi. In practice, engineers add a safety margin—typically sizing for 20–30% above the calculated minimum—to account for pressure drops in the circuit, seal friction, and system inefficiencies that reduce delivered force below the theoretical value.

Accounting for real-world efficiency losses

The F = P × A formula gives theoretical force, but actual output is always somewhat lower due to friction losses. Seal drag, misalignment, and internal friction in the cylinder and valving typically account for a 3–10% efficiency loss, depending on cylinder condition, seal type, and how well the system is maintained. A cylinder with worn wiper seals or excessive side-loading can lose considerably more than that. For critical lifting or clamping applications, it's worth measuring actual output force periodically rather than relying solely on the calculated figure, especially as a cylinder ages.

Why do cylinder force calculations matter?

Getting these numbers right upfront prevents two common and costly outcomes: undersizing a cylinder so it can't move the intended load (or moves it too slowly under load) and oversizing one so unnecessarily high system pressure accelerates wear on seals, hoses, and fittings across the whole circuit. Cylinder force calculations also feed directly into pump and relief valve selection, since the pump has to deliver flow at whatever pressure the largest cylinder in the system requires to do its job.

Quick reference summary

1. What is the basic formula for hydraulic cylinder force?

Force equals pressure multiplied by the piston's effective area (F = P × A). For the extend stroke, use the full bore area; for retraction, subtract the rod area from the bore area.

2. Why does a cylinder produce less force when retracting?

On retraction, hydraulic fluid acts on the rod-side chamber, where the piston rod itself takes up part of the cross-sectional area. That reduces the effective area the pressure acts on, so retract force is always lower than extend force on a standard double-acting cylinder.

3. How do I calculate the piston area if I only know the bore diameter?

Divide the bore diameter by two to get the radius, then apply A = π × r². Using the diameter directly instead of the radius is the most common calculation mistake.

4. How much pressure do I need to produce a specific force?

Rearrange the force formula to P = F / A, then add a 20–30% safety margin to account for friction losses, pressure drops, and system inefficiencies that reduce real-world output below the theoretical value.

5. Does cylinder force calculation change for metric vs. imperial units?

No—the relationship is identical, but pressure is measured in bar or pascals and area in square meters rather than psi and square inches. Convert consistently before calculating; mixing unit systems mid-calculation is a frequent source of error.
