What causes volumetric losses in a hydraulic or fluid system, and how do these losses affect its performance?

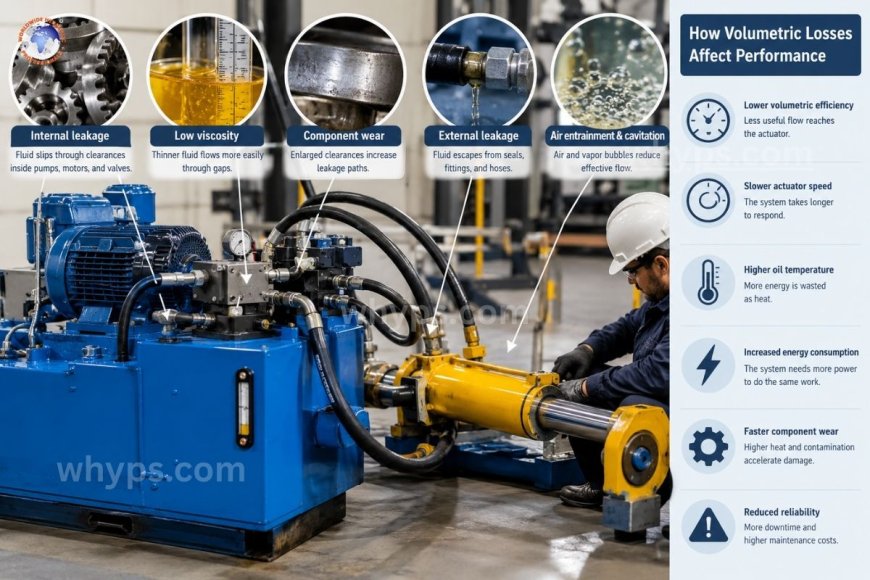

Volumetric losses are the portion of fluid that a hydraulic pump or motor displaces but that never becomes useful flow at the actuator. They are caused mainly by internal leakage across tight clearances, external leaks, fluid compressibility, air entrainment, and cavitation. The result is lower volumetric efficiency, slower actuators, higher oil temperature, wasted energy, and faster component wear. Every hydraulic system depends on a simple promise: the fluid a pump delivers is the fluid the actuator receives. In practice, that promise is never fully kept. Some oil slips backward through clearances, some escapes outside the circuit, and some volume is lost to compression or air. Understanding where these losses come from helps maintenance teams diagnose sluggish machines, specify the right components, and protect long-term reliability.

What are volumetric losses?

Volumetric loss is the difference between the theoretical flow a component should produce and the actual flow it delivers. For a pump, theoretical flow equals displacement multiplied by shaft speed. Actual flow is always lower.

The ratio between the two is called volumetric efficiency:

Volumetric efficiency = (actual flow ÷ theoretical flow) × 100

A healthy gear, vane, or piston pump typically runs between roughly 90% and 98% volumetric efficiency when new, depending on design, pressure, and viscosity. A pump that has dropped to 80% is losing one fifth of its output before the oil ever reaches a valve.

Volumetric losses are different from mechanical losses. Mechanical losses come from friction in bearings, seals, and moving parts and reduce torque efficiency. Volumetric losses reduce flow. Together they determine the overall efficiency of the component.

Main causes of volumetric losses

1. Internal leakage

Internal leakage is the largest source of volumetric loss in most systems. Hydraulic components rely on very small clearances, often only a few microns, to seal high-pressure oil from low-pressure oil. Because those clearances are never perfectly zero, some fluid always slips from the high-pressure side to the low-pressure side.

Common leakage paths include:

• Pumps: between gear tips and the housing, across vane tips, between pistons and cylinder bores, and across port plates or valve plates.
• Motors: the same clearances inside the rotating group, which reduce speed because oil bypasses the motor instead of turning it.
• Valves: between spool and bore, and across worn poppet seats.
• Cylinders: past worn or damaged piston seals, which allow oil to move from one side of the piston to the other.

Leakage rises sharply with pressure. Higher differential pressure pushes more oil through every gap, so a component that performs well at 100 bar may lose far more flow at 300 bar.

2. Low fluid viscosity

Viscosity is the fluid's resistance to flow, and it is the main barrier that limits leakage through clearances. When viscosity falls, oil thins out and passes through gaps more easily.

Viscosity drops for several reasons:

• High operating temperature, especially when cooling is inadequate
• Shear thinning of viscosity-index improvers in the oil
• Contamination with a lighter fluid or fuel
• Selecting a grade that is too light for the application

A system that runs well in the morning but loses speed and power once it heats up is often showing temperature-driven volumetric loss.

3. Component wear

Wear enlarges clearances, and larger clearances mean more leakage. The process feeds on itself: leakage generates heat, heat thins the oil, thinner oil leaks more, and the cycle accelerates wear.

The usual causes of wear include abrasive particles in the oil, water contamination, poor lubrication, cavitation damage, and operation beyond rated pressure. Contamination is especially damaging because hard particles of a size similar to the clearance can score pump surfaces and valve spools.

4. External leakage

External leakage is fluid that escapes from the system entirely. Typical sources are:

• Loose or damaged fittings and flanges
• Worn rod seals and shaft seals
• Cracked or aged hoses
• Failed O-rings and gaskets
• Damaged port threads and sealing faces

External leaks are easy to see but are often tolerated longer than they should be. Besides lost volume, they create safety hazards, environmental problems, and a steady drain on the fluid reservoir.

5. Fluid compressibility

Hydraulic oil is often treated as incompressible, but it is not. Mineral oil compresses by roughly 0.5% to 0.7% per 100 bar of pressure. In a high-pressure system with a large oil volume, that adds up to a noticeable amount of displaced flow that is spent compressing the fluid instead of moving the actuator.

Compressibility also affects response. Systems with long lines, large reservoirs of trapped oil, or flexible hoses feel "spongy" and respond more slowly to control commands.

6. Air entrainment and cavitation

Air in hydraulic oil is far more compressible than the oil itself. Even small amounts of entrained or dissolved air that comes out of solution can sharply increase effective compressibility and reduce usable flow.

Air enters through:

• Leaking suction lines and fittings
• Low reservoir levels
• Poorly designed return lines that cause foaming
• Worn shaft seals that draw air into the pump inlet

Cavitation is a related problem. When inlet pressure falls too low, vapor bubbles form in the fluid and collapse violently when they reach higher pressure zones. This reduces the volume the pump can deliver and damages metal surfaces. Clogged suction strainers, excessive oil viscosity at cold starts, and undersized inlet lines are frequent triggers.

How volumetric losses affect system performance

Slower actuator speed

Actuator speed depends on the flow it receives. If a pump loses 15% of its flow to leakage, every cylinder and motor operates roughly 15% slower than designed, and cycle times lengthen. In production environments such as presses, injection molding machines, and material handling equipment, this translates directly to lost output.

Reduced efficiency and higher energy use

The prime mover still spends the energy needed to drive a full pump displacement, but only part of that work becomes useful output. The remainder becomes heat. Higher energy consumption and lower productivity make an inefficient hydraulic system expensive to run.

Heat generation

Oil that leaks through a clearance drops from high pressure to low pressure without doing any work, and the pressure energy converts into heat. This extra heat raises fluid temperature, lowers viscosity, and speeds up oxidation of the oil. It also hardens and degrades elastomer seals, creating more leakage in turn.

Loss of positioning accuracy and load holding

Internal leakage across cylinder pistons and valve spools causes drift. A load that should hold position slowly creeps down, and a cylinder that should stop precisely does not. In systems that depend on repeatable positioning, even small volumetric losses reduce accuracy.

Faster wear and shorter component life

Because leakage, heat, and wear reinforce each other, volumetric loss is both a symptom and a cause of component failure. Pumps that run hot and thin wear faster, and the resulting wear produces more particles that damage downstream valves and cylinders.

Reduced pressure capability

If leakage paths consume the pump's entire output, the system cannot build or maintain pressure. Operators then notice that the machine stalls under load or fails to reach working pressure at all.

How to detect volumetric losses

A few practical checks reveal where the flow is going:

1. Pump flow test: Measure pump output with a flow meter at working pressure and compare it to the rated flow. A drop of more than 10% to 15% suggests significant wear.
2. Case drain flow check: On piston pumps and motors, rising case drain flow points to worn internal components.
3. Cylinder drift test: Hold a load and monitor movement over time to identify piston seal or valve leakage.
4. Thermal imaging: Hot spots on valves, pump housings, and lines often mark internal bypass.
5. Cycle time monitoring: Track how long standard operations take. Gradual increases signal developing losses.
6. Oil analysis: Wear metals, viscosity changes, and contamination counts show conditions that drive leakage.

How to reduce volumetric losses

• Choose the right viscosity: Match the oil grade to operating temperature and component requirements, and use a high-viscosity-index fluid where temperature swings are large.
• Control contamination: Effective filtration and good breather practices keep abrasive particles and water out of the system.
• Manage temperature: Keep coolers clean, reservoirs properly sized, and operating temperature within the recommended range.
• Seal the suction side: Tighten fittings, maintain oil levels, and design reservoirs to limit foaming and air ingress.
• Maintain seals and fittings: Replace aging hoses, seals, and O-rings before leaks develop.
• Operate within ratings: Avoid sustained overpressure and pressure spikes that accelerate wear.
• Inspect on a schedule: Condition-based monitoring catches efficiency decline before it becomes a failure.

Volumetric losses are an unavoidable part of hydraulic power transmission, but they do not have to become a performance problem. Internal leakage, low viscosity, wear, external leaks, compressibility, and aeration all remove useful flow from the circuit, and their combined effects show up as slow machines, hot oil, and shortened component life. By measuring volumetric efficiency, keeping the fluid clean and correctly specified, and acting early on signs of decline, operators can protect efficiency and extend the life of their equipment.

1. What is volumetric efficiency in a hydraulic pump?

Volumetric efficiency is the ratio of actual pump flow to theoretical flow, expressed as a percentage. It shows how much of the pump's displaced volume actually reaches the system. Healthy pumps usually operate in the low-to-high 90% range.

2. What is the most common cause of volumetric loss?

Internal leakage through component clearances is the most common cause. It increases with pressure, falls with higher viscosity and grows worse as parts wear.

3. Does high temperature increase volumetric losses?

Yes. High temperature thins the oil, which lowers its resistance to flow through clearances and increases internal leakage. It also degrades seals, which adds to the problem.

4. How can I tell if my hydraulic pump has lost volumetric efficiency?

Signs include slower actuator speeds, longer cycle times, rising oil temperature and difficulty reaching working pressure. A flow test at working pressure and a case drain check confirm the condition.

5. Can volumetric losses be completely eliminated?

No. Some clearance is needed for lubrication and motion, so a small amount of leakage is always present. The goal is to keep losses low through correct fluid selection, clean oil, controlled temperature and timely maintenance.
