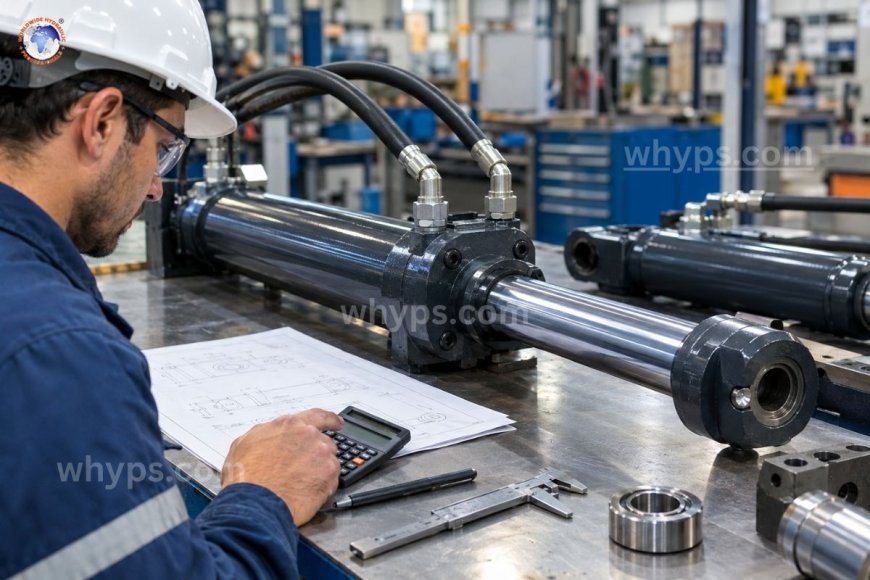

How do you calculate hydraulic cylinder force and required bore size?

To calculate hydraulic cylinder force, multiply system pressure by the effective piston area (F = P × A). To find the required bore size, work backward: divide the required force by the available pressure to get the area, then solve for diameter using D = √(4A ÷ π). Always add allowances for friction losses and a safety margin, then round up to the next standard bore size. Sizing a cylinder correctly is one of the most important decisions in hydraulic system design. An undersized bore stalls under load, while an oversized one wastes oil, cost, and space and can make speed control harder. This guide walks through the formulas, a complete worked example, and the practical factors that separate a textbook calculation from a cylinder that performs in the field.

The core formula: Force equals pressure times area

Hydraulic cylinders convert fluid pressure into linear force. The relationship is simple:

F = P × A

Where:

• F is the output force (newtons, N, or pounds-force, lbf)
• P is the working pressure at the cylinder (pascals, bar, or psi)
• A is the effective area the pressure acts on (square millimeters, square centimeters, or square inches)

Unit consistency is the most common source of errors. Two shortcuts help:

• Metric: Force (N) = Pressure (bar) × Area (cm²) × 10
• Imperial: Force (lbf) = Pressure (psi) × Area (in²)

Because pressure acts equally in all directions, the force depends only on pressure and the surface area it pushes against. This is why a small increase in bore diameter produces a large increase in force: area grows with the square of the diameter.

Step 1: Calculate the piston area

For a circular piston, the area is

A = π × (D ÷ 2)² = 0.7854 × D²

Here, D is the bore diameter, the inside diameter of the cylinder barrel.

Imperial example: A cylinder with a 4-inch bore has a piston area of 0.7854 × 4² = 12.57 in². At 3,000 psi, the theoretical extend force is 3,000 × 12.57 = 37,699 lbf, roughly 18.9 US tons.

Metric example: A 100 mm bore has an area of 0.7854 × 100² = 7,854 mm², or 78.54 cm². At 160 bar, the theoretical force is 160 × 78.54 × 10 = 125,664 N, or about 125.7 kN.

Step 2: Understand extend force vs. retract force

A double-acting cylinder produces different forces in each direction, and this surprises many people.

Extend (push) stroke: Pressure acts on the full piston area on the cap side. The force uses the entire bore area.

Retract (pull) stroke: Pressure acts on the rod side, where the piston rod occupies part of the area. The effective area is the annulus:

A(retract) = 0.7854 × (D² − d²)

Where d is the rod diameter.

Continuing the metric example with a 100 mm bore and a 56 mm rod:

• Rod area = 0.7854 × 56² = 2,463 mm²
• Annular area = 7,854 − 2,463 = 5,391 mm²
• Theoretical retract force at 160 bar = 5,391 mm² × 16 N/mm² = 86,256 N, or about 86.3 kN

The cylinder pushes with roughly 126 kN but pulls with only about 86 kN at the same pressure. If your application loads the retract stroke heavily, such as lifting or clamping on the return, size the bore using the retract force, not the extend force.

Step 3: Calculate the required bore size

Most real projects start with a known load and a known system pressure, so the calculation runs in reverse.

1. Determine the required force. Include the load weight, any friction, and any acceleration forces.
2. Apply a safety factor. Common practice is 1.25 to 1.5 for general machinery and more for lifting or critical applications.
3. Account for efficiency losses. Seal friction and mechanical losses typically reduce output by 5 to 15 percent.
4. Calculate the required area: A = F ÷ P
5. Calculate the bore diameter: D = √(4A ÷ π)
6. Round up to the next standard bore size.

Worked example

Suppose you need to push an 80 kN load with a system pressure of 160 bar (16 N/mm²).

• Design force with safety factor (1.25): 80 kN × 1.25 = 100 kN
• Adjust for 90% efficiency: 100 kN ÷ 0.9 = 111.1 kN, or 111,100 N
• Required area: 111,100 N ÷ 16 N/mm² = 6,944 mm²
• Required bore: D = √(4 × 6,944 ÷ π) = √8,841 ≈ 94 mm

No standard cylinder has a 94 mm bore, so you would select the next size up: 100 mm.

Verification: A 100 mm bore at 160 bar gives 125.7 kN theoretical force. At 90% efficiency, that is about 113 kN, which comfortably exceeds the 100 kN design requirement. The 100 mm cylinder works.

Standard bore sizes

Cylinder manufacturers build to standard bore diameters so that seals, mounting dimensions, and replacement parts are interchangeable. Common metric ISO bore sizes include 32, 40, 50, 63, 80, 100, 125, 160, 200, and 250 mm. Common imperial sizes run from 1.5 inches upward in half-inch increments, with 2, 3, 4, 5, 6, and 8 inches being the most widely stocked.

Choosing a standard size is almost always cheaper and faster than ordering a custom bore, so it is often worth adjusting system pressure slightly rather than specifying a non-standard diameter.

Choosing the rod diameter

Bore size sets force, but rod diameter determines whether the cylinder survives the load. A long, slender rod under compression can buckle well before the pressure limit is reached.

Key considerations:

• Stroke length: Longer strokes need thicker rods.
• Mounting style: Fixed, rigid mounts support more load than pivoting mounts, which allow the rod to bow.
• Rod-to-bore ratio: Standard ratios are often around 0.5 to 0.7 of the bore diameter. A larger rod reduces retract force but improves buckling resistance.

For long-stroke or high-compression applications, check the rod against Euler buckling calculations or the manufacturer's stroke-and-load charts before finalizing the design.

Balancing bore size, pressure, and flow

You can reach the same force with a larger bore at lower pressure or a smaller bore at higher pressure. Each approach has trade-offs.

Larger bore, lower pressure:

• Lower stress on seals, hoses, and fittings
• Greater oil volume needed per stroke
• Slower speed for the same pump flow
• Larger, heavier cylinder

Smaller bore, higher pressure:

• Compact, lightweight cylinder
• Faster extension with the same flow
• Higher stress on components, more heat, and tighter requirements for fluid cleanliness

Speed follows the relationship v = Q ÷ A, where Q is flow rate. A bigger bore moves more slowly at a given flow, so confirm that your pump can deliver the cycle time your application demands. Flow, force, and speed must be balanced together, not in isolation.

Common mistakes to avoid

Ignoring the rod area on retract. This is the most frequent error and leads to cylinders that cannot pull their load.

Using pump pressure instead of cylinder pressure. Pressure drops across valves, hoses, and fittings mean the cylinder never sees the full relief valve setting. Use actual working pressure at the cylinder port.

Skipping the safety factor. Calculating for the exact load leaves no margin for friction, shock, or pressure variation.

Forgetting back pressure. Return-line restrictions or counterbalance valves create pressure on the opposite side of the piston, subtracting from net force.

Mixing units. Combining bar with mm², or psi with cm², produces answers that are off by orders of magnitude. Convert everything first.

Overlooking side loads. Calculations assume purely axial force. Side loads accelerate rod bearing and seal wear and are not captured by F = P × A.

Putting it all together

Calculating hydraulic cylinder force and bore size comes down to a repeatable process: define the load, add allowances for safety and efficiency, divide by working pressure to find the area, convert area to diameter, and round up to a standard bore. Then verify retract force, check rod buckling, and confirm that pump flow delivers acceptable speed.

Done carefully, this approach produces a cylinder that handles its load reliably without wasted cost or oversized hardware. When in doubt, especially on lifting or safety-critical equipment, confirm your numbers with the cylinder manufacturer's engineering team.

1. What is the formula for hydraulic cylinder force?

The formula is F = P × A, where F is force, P is working pressure, and A is the effective piston area. For a round piston, A = 0.7854 × D², with D being the bore diameter. Keep units consistent: bar with cm² (multiplied by 10 for newtons), or psi with square inches for pounds-force.

2. Why is retract force lower than extend force?

On the retract stroke, the piston rod takes up part of the piston area on the rod side. Pressure acts only on the remaining annular area, so the force is lower. The difference grows as the rod diameter increases relative to the bore.

3. How do I calculate the bore size for a required force?

Divide the required force by the system pressure to get the required area (A = F ÷ P), then calculate the diameter with D = √(4A ÷ π). Include a safety factor and efficiency allowance, then round up to the next standard bore size.

4. What safety factor should I use when sizing a hydraulic cylinder?

A factor of 1.25 to 1.5 is common for general industrial equipment. Lifting, personnel-handling, or shock-loaded applications may require higher factors, and applicable standards or manufacturer guidance should take priority.

5. Does a larger bore always mean a better cylinder?

No. A larger bore delivers more force at the same pressure but needs more oil per stroke, moves slower at a given flow, and costs more. The best bore is the smallest standard size that meets your force requirement with proper margins while keeping speed and system pressure within practical limits.
