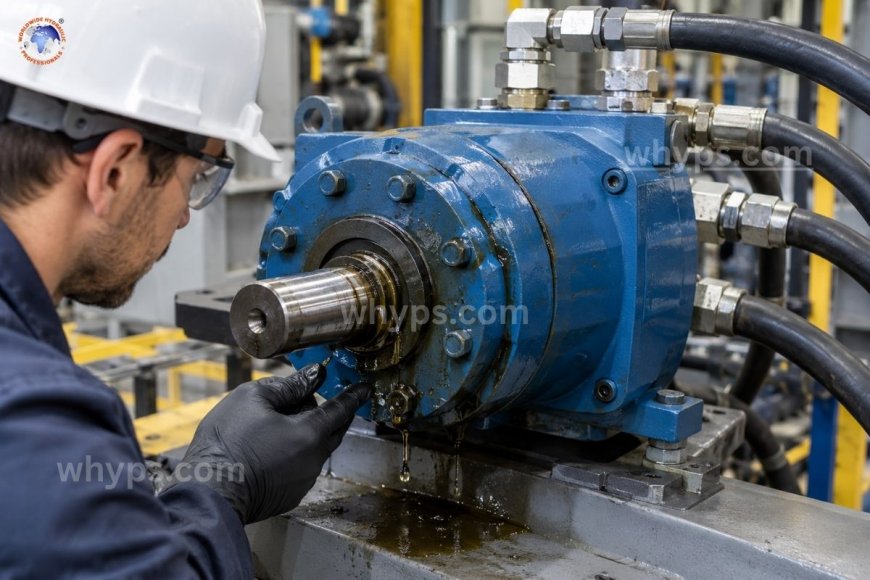

Hydraulic leakage issues in hydraulic rotary actuator

Leakage in a hydraulic rotary actuator almost always traces back to one of four sources—worn internal seals, damaged shaft seals, loose or degraded port/end-cap connections, or excessive back pressure and heat that accelerate seal wear—and catching it early through routine external checks and periodic internal leak-down testing prevents the torque loss, positioning drift, and contamination that follow once leakage goes unaddressed. Rotary actuators convert hydraulic fluid pressure into rotational motion, typically through a rack-and-pinion, vane, or helical-spline design. Because they combine rotating and reciprocating elements in a single compact housing, they carry more seal interfaces per unit than a standard cylinder—which also means more places for leakage to start. For technicians and reliability teams, understanding where leaks originate and how to catch them early is central to keeping rotary-driven equipment—from valve actuation systems to robotic positioning arms to marine steering gear—running predictably.

Why are rotary actuators prone to leakage?

Unlike a linear cylinder, which only needs to seal a single reciprocating rod, a rotary actuator must seal around a rotating output shaft while also managing internal pressure differentials between two or more working chambers. Vane-style actuators, in particular, rely on vane tip seals that must maintain contact with the housing bore across the full rotational range—any wear at that interface creates a bypass path between chambers, which shows up as reduced torque rather than visible external fluid.

Rack-and-pinion actuators add another leakage-prone junction: the piston seals on each rack piston, plus the end-cap seals where the pistons are housed. Helical-spline actuators, common in higher-torque applications, introduce leakage risk at the spline interface itself if lubrication and seal design aren't matched to the load profile.

Common causes of leakage in rotary actuators

Worn or damaged internal seals

Piston seals, vane tip seals, and chamber seals degrade over repeated cycling. As they wear, internal clearances open up, and fluid bypasses from the high-pressure chamber to the low-pressure chamber. This internal leakage rarely produces visible fluid outside the housing—instead, it shows up as sluggish rotation, reduced output torque, or the actuator drifting from a holding position under load.

Shaft seal failure

The rotary output shaft seal is the most common source of external leakage. It's subjected to continuous rotational friction, and over time the sealing lip wears, hardens, or develops a permanent set. Contamination trapped against the seal lip accelerates this wear significantly, as does shaft misalignment that creates uneven loading around the seal circumference.

Port and end-cap connection leaks

Threaded ports, O-ring boss fittings, and end-cap-to-body joints are common leak points, especially after maintenance work where a fitting wasn't torqued to specification or an O-ring was pinched during reassembly. Vibration in mobile or high-cycle applications can also gradually loosen fittings that were correctly torqued initially.

Excessive pressure spikes

Rotary actuators that hit hard stops repeatedly, or that experience pressure spikes from undersized relief valves, subject internal seals to forces beyond their design rating. Over time this accelerates extrusion and nibbling damage at seal edges, particularly at O-rings and back-up rings near end caps.

Heat buildup

Actuators operating in high-ambient-temperature environments, or in circuits with inadequate cooling, run hotter internally. Elevated temperature softens elastomeric seal material, reduces its resilience, and speeds up the chemical degradation of the hydraulic fluid itself—compounding the wear already happening at seal interfaces.

Fluid contamination

Particulate contamination abrades seal surfaces on every rotation cycle. Because rotary actuators have continuously moving seal-to-metal interfaces (unlike a cylinder's periodic stroke), contaminated fluid causes faster, more continuous wear at the shaft seal and internal chamber seals alike.

How to diagnose leakage in a rotary actuator?

External visual inspection

Check the shaft seal area, port connections, and end-cap joints for fluid accumulation, staining, or drips. Wipe surfaces clean and monitor over a set interval—a fresh wet film reappearing within a shift or a day narrows the leak source quickly.

Internal leakage (bypass) testing

Because internal leakage doesn't show up externally, it's identified functionally: isolate the actuator under a fixed load, apply pressure, and monitor whether the shaft holds position or slowly rotates under load. Drift under a blocked-port condition indicates internal bypass across the piston or vane seals.

Torque and speed performance checks

A rotary actuator with internal leakage typically shows reduced output torque and slower cycle times even when supply pressure and flow are confirmed normal at the actuator inlet. Comparing measured performance against the actuator's rated torque curve helps quantify how much capacity has been lost to internal bypass.

Fluid analysis

Elevated water content or particulate counts in fluid samples drawn near the actuator can indicate that a shaft seal is allowing external contamination ingress even before visible leakage appears, since a failing seal often lets contaminants in before it lets fluid out.

Preventing rotary actuator leakage

Match seal material to the operating environment. NBR seals handle general mineral oil service well but degrade faster in high-heat or chemically aggressive environments where FKM or PTFE-based seals hold up better.

Maintain proper alignment. Shaft misalignment between the actuator and the driven load creates uneven seal loading that leads to premature shaft seal wear. Verify alignment during installation and after any maintenance that involves decoupling the actuator.

Control system pressure. Properly sized relief valves and cushioning at rotational end stops prevent the pressure spikes that damage internal seals over time.

Keep fluid clean. Routine filtration, scheduled oil analysis, and prompt filter changes reduce the abrasive wear that shortens both shaft seal and internal seal life.

Follow torque specifications on reassembly. Any time an actuator is opened for seal replacement or maintenance, port fittings and end-cap fasteners should be torqued to the manufacturer's specification and O-rings inspected for damage before reinstallation.

Schedule internal leak-down checks. Because internal leakage doesn't announce itself visually, building periodic bypass testing into a preventive maintenance schedule—rather than waiting for a performance complaint—catches seal wear while replacement is still a planned task rather than an unplanned failure.

1. What's the difference between internal and external leakage in a rotary actuator?

External leakage is visible fluid escaping the housing, most often at the shaft seal or port connections. Internal leakage is fluid bypassing between the actuator's working chambers without escaping the housing at all—it shows up as reduced torque or position drift rather than visible fluid loss.

2. Can a leaking rotary actuator be repaired, or does it need replacement?

Most rotary actuator leaks are repairable through seal kit replacement, provided the housing bore, shaft, and sealing surfaces aren't scored or worn beyond tolerance. Significant bore wear or shaft scoring typically pushes the decision toward replacement or remanufacture.

3. How often should rotary actuator seals be inspected?

Inspection frequency depends on duty cycle and environment, but a general guideline is a visual external check at each routine equipment inspection, with internal bypass testing performed on a scheduled interval—more frequently for high-cycle or high-contamination applications.

4. Does ambient temperature affect rotary actuator seal life?

Yes. Sustained high ambient or fluid temperature softens elastomeric seals and accelerates fluid oxidation, both of which shorten seal service life and increase leakage risk over time.

5. What's the most common cause of external leakage specifically?

Shaft seal wear is the most common source of external leakage, driven primarily by continuous rotational friction combined with contamination trapped at the seal lip or misalignment between the actuator shaft and the driven load.
