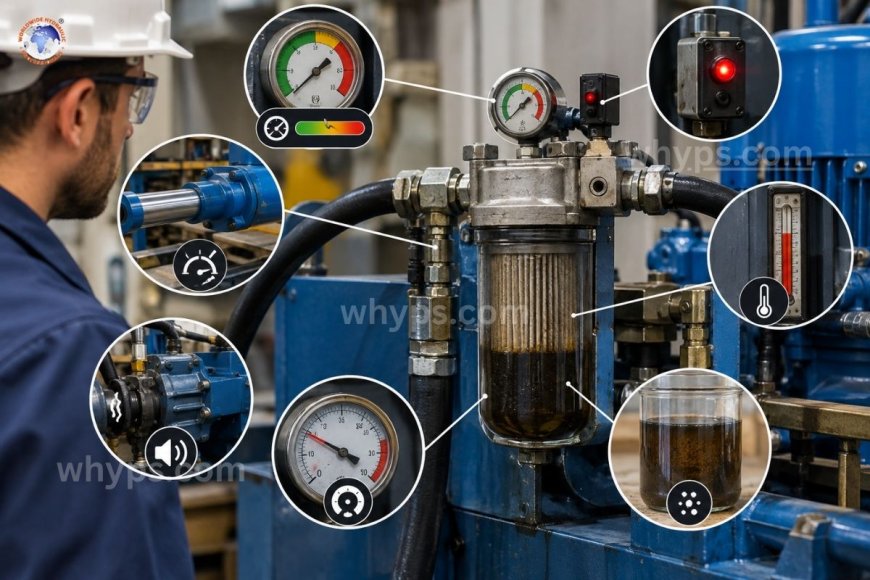

What are the signs of a clogged hydraulic filter?

A clogged hydraulic filter typically shows up as a rising bypass or differential pressure indicator, sluggish or erratic cylinder and motor response, unusual pump noise or cavitation, rising fluid temperature, and reduced overall system pressure. These symptoms occur because a blocked filter starves the pump of clean flow and eventually forces contaminated oil through the bypass valve, exposing the rest of the system to the very particles the filter was meant to stop. Hydraulic filters are consumable components by design—they're meant to fill up with contaminants over time. The problem isn't that a filter clogs; it's failing to catch the warning signs before a clogged filter starts causing secondary damage to pumps, valves, and seals. Below are the operational, visual, and performance indicators that point to a filter nearing or past its service life.

1. Rising differential pressure or bypass indicator activation

Most industrial hydraulic filters include a differential pressure indicator (visual gauge, electrical switch, or both) that measures the pressure drop across the filter element. As the element loads with contaminant, resistance to flow increases, and this differential climbs.

• A gauge needle creeping into the yellow or red zone is the earliest, most direct signal of a loading filter.
• An electrical bypass switch triggering an alarm or indicator light means the element has reached its rated pressure differential, and the bypass valve may already be opening.
• On filters without indicators, a sudden change in system behavior after a long service interval is often the first clue that differential pressure has quietly crossed a critical threshold.

Because this indicator is purpose-built for exactly this failure mode, it should be the first thing checked whenever other symptoms appear.

2. Bypass valve activation and unfiltered oil circulation

Most filter housings include a bypass valve that opens once differential pressure exceeds a set limit, protecting the pump from starvation by letting oil flow around the clogged element rather than stopping altogether. This is a safety mechanism, not a normal operating condition.

• Frequent or prolonged bypass activation means contaminated oil is circulating through valves, cylinders, and pumps unfiltered.
• Systems with contamination monitors or particle counters may show a sudden spike in ISO cleanliness code readings that correlates with bypass events.
• Repeated bypass activity accelerates wear on downstream components even if performance seems normal in the short term, since the damage is cumulative and often invisible until failure.

3. Sluggish or erratic actuator response

A restricted filter reduces the flow rate reaching the pump inlet (on suction-side filtration) or reduces flow delivered downstream (on pressure or return-line filtration). Either way, actuators are usually the first place operators notice the effect.

• Cylinders that extend or retract more slowly than normal, especially under load.
• Hydraulic motors that hunt, stall, or respond inconsistently to control input.
• A general loss of "crispness" in machine movement—delays between command and response that weren't present before.

These symptoms can overlap with other issues like low fluid level, worn pumps, or air ingestion, so a clogged filter should be confirmed with a differential pressure check rather than assumed from actuator behavior alone.

4. Reduced system pressure or inability to reach set pressure

When a filter restricts flow enough, the pump may struggle to build or maintain pressure, particularly under peak demand. This shows up as

• Pressure gauge readings that fall short of the system's normal operating pressure.
• Relief valves opening prematurely because the pump can't deliver enough flow to meet demand at the required pressure.
• Equipment that loses force or torque under load even though the pump itself tests within specification.

If pressure problems disappear after replacing a filter element, that's strong confirmation that restriction—not pump wear—was the root cause.

5. Elevated fluid temperature

A restricted filter forces the pump to work harder to move the same volume of oil, and that extra work converts to heat. Combined with bypass flow (which itself generates heat through the relief mechanism), a clogged filter is a common and often overlooked contributor to overheating.

• Reservoir or return-line temperatures running higher than the system's typical baseline.
• Heat exchangers or coolers working harder without a clear external cause (ambient temperature, duty cycle change).
• Oil that darkens or smells burnt faster than expected, which can be a secondary sign of both heat stress and filter-related contamination cycling.

6. Pump cavitation noise

This symptom is specific to suction-strainer or suction-filter clogging rather than pressure or return-line filtration. A blocked suction filter starves the pump inlet, and if inlet pressure drops low enough, dissolved air comes out of the solution and collapses violently inside the pump—cavitation.

• A knocking, whining, or gravel-like noise from the pump, often described as sounding like marbles in a blender.
• Noise that worsens as the system warms up and oil viscosity drops, since thinner oil flows less effectively through a restricted strainer.
• Pump noise combined with declining flow output, which points toward inlet restriction rather than a worn pump.

Left unaddressed, cavitation causes pitting and erosion damage to pump internals that is far more expensive to repair than the filter that caused it.

7. Frequent, unexplained downstream component failures

When a filter has been in bypass for extended periods without detection, the resulting contamination doesn't announce itself immediately—it shows up later as premature failure elsewhere in the system.

• Valve spools sticking or showing increased internal leakage.
• Seals wearing or scoring faster than their expected service life.
• Repeated pump failures that seem unrelated to load or duty cycle.

When these failures recur despite otherwise sound maintenance practices, filter condition and bypass history are worth investigating as a root cause rather than treating each failure as an isolated event.

Building a response around these signs

None of these signs are conclusive on their own—sluggish actuators can mean low fluid, cavitation noise can point to a suction leak, and elevated temperature has plenty of other causes. What makes a clogged filter the likely culprit is when several of these signs appear together, especially alongside a rising differential pressure reading or an active bypass indicator. Routine differential pressure checks, scheduled element replacement based on operating hours rather than calendar time alone, and periodic fluid cleanliness testing remain the most reliable way to catch a clogging filter before it forces a system into bypass.

How often should hydraulic filters be replaced?

Replacement intervals depend on system duty cycle, contamination ingress, and fluid cleanliness targets, but most industrial systems benefit from replacement based on differential pressure readings rather than fixed calendar schedules, supplemented by periodic inspection.

Can a clogged hydraulic filter damage the pump?

Yes. A severely restricted suction filter can starve the pump and cause cavitation, while prolonged bypass flow allows contaminated oil to circulate and accelerate wear on pump internals, valves, and seals.

What's the difference between a filter in bypass and a filter that's simply dirty?

A dirty filter is still filtering, just with rising resistance; a filter in bypass has reached its pressure limit and is allowing oil to flow around the element largely unfiltered, which is a more urgent condition.

Is a rising pressure differential always a sign of a clogging filter?

In most cases yes, since differential pressure is a direct measure of resistance across the element, but very cold oil or incorrect element selection can also produce a temporary or persistent high reading unrelated to actual contaminant loading.

Can a clogged filter cause a hydraulic system to overheat?

Yes. Increased pump effort to overcome filter restriction, combined with heat generated by bypass flow, can measurably raise system operating temperature even when other components are functioning normally.
