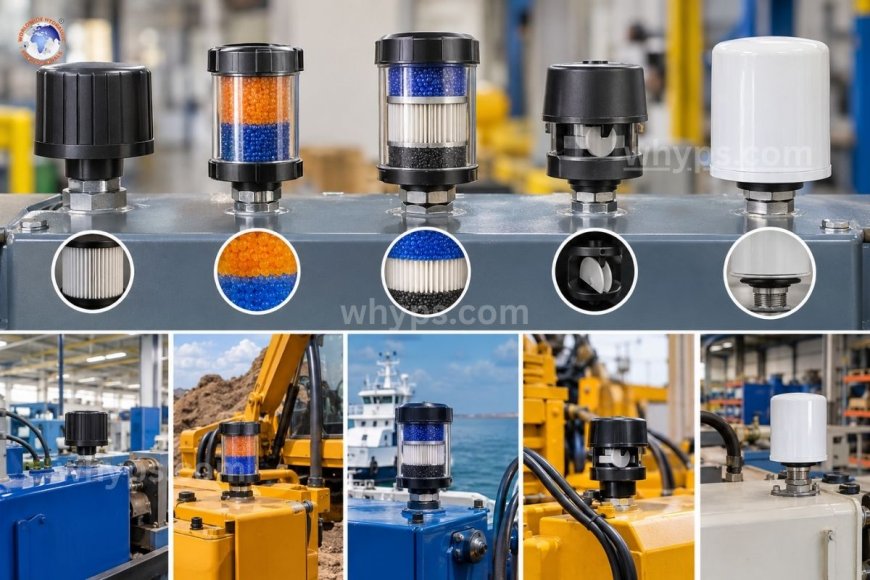

Different types of breather filters and applications

Breather filters keep contaminants out of a hydraulic reservoir as fluid levels rise and fall, and the main types—desiccant, particulate, combination, check-valve, and spin-on cartridge breathers—are chosen based on the ambient environment, moisture exposure, and the level of filtration a system's components demand. Every hydraulic reservoir "breathes." As a cylinder extends, fluid volume in the tank drops and air is drawn in to fill the space; as it retracts, that air is pushed back out. Without a properly selected breather filter, this constant air exchange becomes one of the largest entry points for dirt, dust, and moisture in an otherwise clean system. Choosing the right breather type is a small decision with outsized consequences for fluid cleanliness, seal life, and component wear.

Why does breather filter selection matter?

Hydraulic systems are engineered around fluid cleanliness targets, often expressed as ISO cleanliness codes. A system can have excellent in-line filtration on the pressure and return lines and still fail to hit its target cleanliness if the tank breather is undersized, clogged, or simply the wrong type for the environment. Airborne particulate entering through the breather behaves the same as particulate from any other source: it accelerates abrasive wear on pumps, valves, and cylinders, and it can silently defeat thousands of dollars of in-line filtration investment.

Moisture is the second major concern. In humid climates or in applications with large daily temperature swings, humid air drawn into the tank condenses as the system cools, introducing water into the fluid. Water in hydraulic oil promotes oxidation, depletes additive packages, and increases the risk of corrosion and seal degradation. The breather is often the single largest pathway for both particulate and moisture ingress, which is why its selection deserves the same scrutiny as any other filtration component.

Particulate breather filters

Particulate breathers are the baseline option, built around a media element—commonly cellulose, synthetic fiber, or a combination—that captures airborne dust and dirt as air passes through on its way into the tank. They are rated by micron efficiency, similar to in-line filters, and are typically specified to match or exceed the finest filtration already present in the system so the breather doesn't become the weak link.

Best applications: Indoor or moderately clean environments where moisture ingress is not the primary concern—manufacturing plants, indoor hydraulic power units, and machine tools operating in climate-controlled facilities. In these settings, particulate control is the dominant requirement, and a standard particulate element offers solid protection at a lower cost than more specialized designs.

Desiccant breather filters

Desiccant breathers add a moisture-absorbing layer, usually silica gel, to a particulate filtration stage. As humid air is drawn into the tank, the desiccant media pulls moisture out before it reaches the reservoir. Many designs use color-indicating silica gel that shifts from orange to green (or blue to pink, depending on the formulation) as it becomes saturated, giving maintenance staff a simple visual cue for replacement timing.

Best applications: Outdoor mobile equipment, construction machinery, agricultural equipment, and any system exposed to significant humidity or temperature cycling. Equipment that sits outdoors overnight and heats up during the day is especially prone to condensation inside the tank, making desiccant breathers a near-standard specification for mobile hydraulics in variable climates.

Combination breather filters

Combination breathers integrate multiple stages—typically a particulate stage, a desiccant stage, and sometimes a check valve—into a single housing. Rather than relying on the customer to select and stack separate components, these units are engineered as a complete air-management solution for the reservoir. Some combination designs also include an oil mist separator stage, useful on tanks where turbulence or foaming can carry fine oil droplets toward the breather outlet.

Best applications: Heavy-duty industrial and mobile equipment operating in harsh or unpredictable conditions—mining equipment, off-highway machinery, and marine hydraulic systems—where a single point of failure in air filtration is not acceptable and the cost of a more comprehensive breather is justified by the criticality of the system.

Check-valve (bidirectional) breathers

Check-valve breathers use a spring-loaded or flapper-style valve to control airflow direction and, in many designs, to limit unnecessary air exchange altogether. Some check-valve breathers are configured to only vent air out under pressure and only draw air in under vacuum, minimizing the total volume of ambient air—and the contaminants it carries—that ever enter the tank. Others use a bidirectional valve paired with filtration media on both the intake and exhaust paths.

Best applications: Systems where minimizing total air exchange is a priority, such as sealed or pressurized reservoirs, and applications where breather cracking pressure needs to be tuned to prevent excessive vacuum on the pump inlet during rapid cylinder retraction. These are common on precision machinery and systems sensitive to cavitation risk at the pump suction line.

Spin-on cartridge breathers

Spin-on breathers are designed for fast, tool-free replacement, using a threaded cartridge that screws onto a base fitting mounted to the tank. Internally, they may use particulate media, desiccant media, or a combination, but their defining feature is the maintenance-friendly form factor rather than a unique filtration mechanism.

Best applications: Fleets and facilities managing large numbers of hydraulic units where minimizing maintenance downtime matters. Because replacement doesn't require disassembling a housing or handling loose media, spin-on breathers are popular on mobile fleets, rental equipment, and any operation where technicians service many machines on a tight schedule.

Matching breather type to operating environment

Selecting a breather filter comes down to three practical questions: How clean is the ambient air the system operates in? How much humidity and temperature swing will the tank experience? And how critical is the equipment to unplanned downtime?

A machine tool in a filtered, climate-controlled shop may need nothing more than a basic particulate breather. A wheel loader working construction sites through humid summers and cold winters is a strong candidate for a desiccant or combination unit. A mission-critical press or mining shovel, where any contamination event is expensive, often justifies the added cost of a combination breather with check-valve control. Matching the breather to the actual operating conditions—rather than defaulting to whatever shipped with the equipment—is one of the more cost-effective reliability improvements available for a hydraulic system.

Maintenance considerations

Breather filters are consumable components and should be inspected on a schedule tied to the operating environment, not just calendar time. Desiccant color-change indicators offer an easy visual check. Particulate elements should be evaluated for airflow restriction, since a clogged breather can create excessive vacuum at the tank and starve the pump inlet. In dusty or high-humidity environments, more frequent breather inspection—alongside routine fluid analysis—helps confirm that the breather is doing its job before contamination shows up in the oil itself.

1. How often should a hydraulic breather filter be replaced?

Replacement intervals depend on the operating environment, but a common starting point is every three to six months for standard particulate breathers, with more frequent checks for desiccant units based on their color-change indicator rather than a fixed calendar interval.

2. Can a desiccant breather be reused after it changes color?

Some desiccant breathers can be regenerated by drying the silica gel, but many industrial units are designed as disposable cartridges; check the manufacturer's guidance before attempting to dry and reuse one.

3. What micron rating should a breather filter match?

As a general rule, the breather's micron efficiency should match or exceed the finest in-line filtration in the system so the breather doesn't become the largest source of particulate ingress.

4. Do all hydraulic tanks need a desiccant breather?

No—indoor, climate-controlled systems with low humidity exposure often perform fine with a standard particulate breather; desiccant designs are most valuable where temperature swings and humidity drive condensation inside the tank.

5. What happens if a breather filter becomes clogged?

A clogged breather restricts airflow into the tank, which can create excessive vacuum at the pump inlet, increase cavitation risk, and in some cases collapse flexible reservoir walls on sealed systems.
