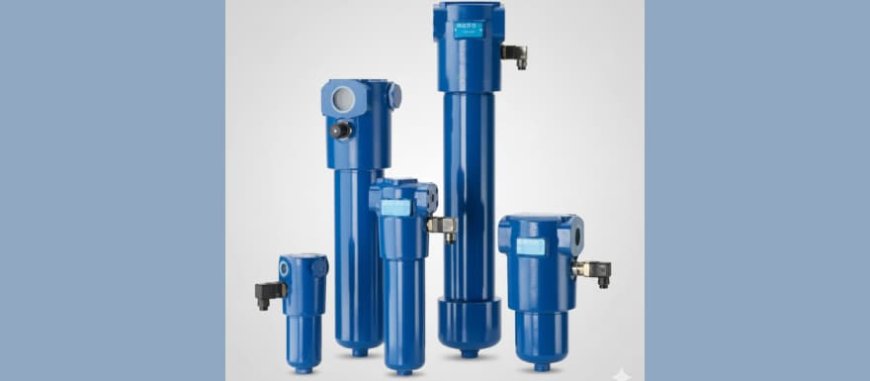

Keeping it Clean: Understanding Hydraulic Pressure Line Filters

If you manage or maintain hydraulic systems, you are aware that hygiene is a must. Contaminants can be silent destruction of hydraulic components which causes wear, downtime and costly repairs. The most important safeguards against this menace can be filtering the filters for hydraulic lines that filter pressure..

Why Pressure Line Filters Matter

In a hydraulic circuit it is situated just downstream of the pump and downstream of the most sensitive components such as servo valves proportional valves, cylinders and so on. This is important as it helps to remove the contaminants prior to they damage the most sensitive and expensive components in the process.

This is why they're important:

• Protection of sensitive components Pressure filters provide the highest degree of filtration available in the system (often the ratio of $beta$ is $beta_x 75$ or $beta_x 200$) which ensures that the oil that reaches high tolerance components is absolutely free of contaminants. This can significantly prolong the operational lifespan of the components.

• Controlling System-Generated Decay: Following the pump, the fluid is in high pressure. If there is any debris created by the pump or brought into the water the pressure filter will take it instantly, and stops the flow of it.

• Maintaining Quality of Fluid: By continuously removing particles, the filter can help maintain the specified ISO cleanliness level that is vital for the best performance of the system and for its longevity.

Key Features of a Pressure Line Filter

Pressure filters are made to manage pressures that are large operating pressures common to hydraulic systems. These pressures could range from hundreds to thousands of PSI.

• robust housing: Filter housings must be exceptionally sturdy to withstand constant high pressure without leaking or failing.

• High Collapse Strength Element: This filter component (the substance that performs actually filtering) is constructed with a sturdy core and pleats to stop it from collapsing due to the huge pressure drop that may result if the element gets very clogged or beginning when the fluid becomes thick.

• Bypass Valve The majority of pressure filters have the bypass valve. When the filter's component becomes blocked to the point that the pressure drop is too high, the valve is opened. Bypassing signifies that oil that is not filtered is flowing, it stops that pressure difference from damaging the element, or causing starvation to downstream components of the fluid. Note that running in bypass mode indicates that the element requires immediate replacement.

• Clogging Indicator A visual or electronic indicator is commonly used to notify maintenance personnel that the differential in pressure has reached an arbitrary limit, indicating that the component needs to be changed prior to the valve that bypasses it is required to open.

Placement in the Hydraulic Circuit

Pressure filters are usually utilized alongside other types of filters, like suction filters (to protect the pump) and return line filters (to cleanse the fluid before it is returned into the reservoir).

This combination makes an elaborate defense system that is multi-stage, however, this one that is a pressure filter acts as the last cleanser with the highest precision prior to the fluid doing its vital job. Consider it the most secure security checkpoint for any hydraulic oil.

Understanding the crucial importance for the pressure line filter, and following a regular maintenance schedule for filter elements to ensure that your hydraulic system is operating smoothly and efficiently over the years that are to be!
