Spin -On Filters For Individual Pumps

Spin-on Filters are a type of filter commonly used in hydraulic, fuel, and oil filtration systems. They are designed for easy installation and replacement, making them highly convenient for maintenance in mobile and industrial applications. Below is a detailed overview:

1. What are Spin-on Filters?

Spin-on filters are self-contained filtration units that consist of a filter element enclosed in a metal housing with a threaded base. They are typically used in systems to remove contaminants from fluids such as oil, fuel, or hydraulic fluid.

2. Components of a Spin-on Filter

Filter Element: The core filtration media that traps contaminants.
Metal Housing: Protects the filter element and holds the fluid.
Sealing Gasket: Ensures a leak-proof connection between the filter and its mount.
Base Plate: Contains threaded ports for installation and flow channels for fluid movement.

3. How Spin-on Filters Work

Fluid enters the filter through the inlet holes on the base plate.
It passes through the filter media, which traps dirt and contaminants.
Clean fluid exits through the outlet, continuing its flow within the system.

4. Advantages

Ease of Replacement: No special tools are needed; the filter is simply spun on and off.
Compact and Lightweight: The integrated design minimizes space requirements.
Cost-Effective: Generally lower cost compared to reusable filter housings.
Variety of Media: Available with different filter media for specific applications (e.g., cellulose, synthetic).

5. Applications

Hydraulic Systems: Filtering hydraulic fluid in mobile and industrial machinery.
Engine Oil Filtration: Used in cars, trucks, and agricultural equipment.
Fuel Systems: Removing contaminants from diesel or gasoline fuel.
Cooling Systems: Filtering coolant in industrial cooling circuits.

6. Types of Spin-on Filters

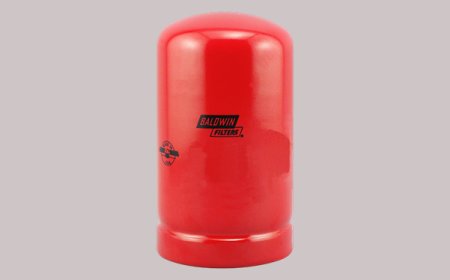

High-Pressure Spin-on Filters: Designed for systems operating at higher pressures (up to several thousand PSI).
Low-Pressure Spin-on Filters: Common in return lines or suction-side filtration.
Coalescing Spin-on Filters: For separating water from oil or fuel.
