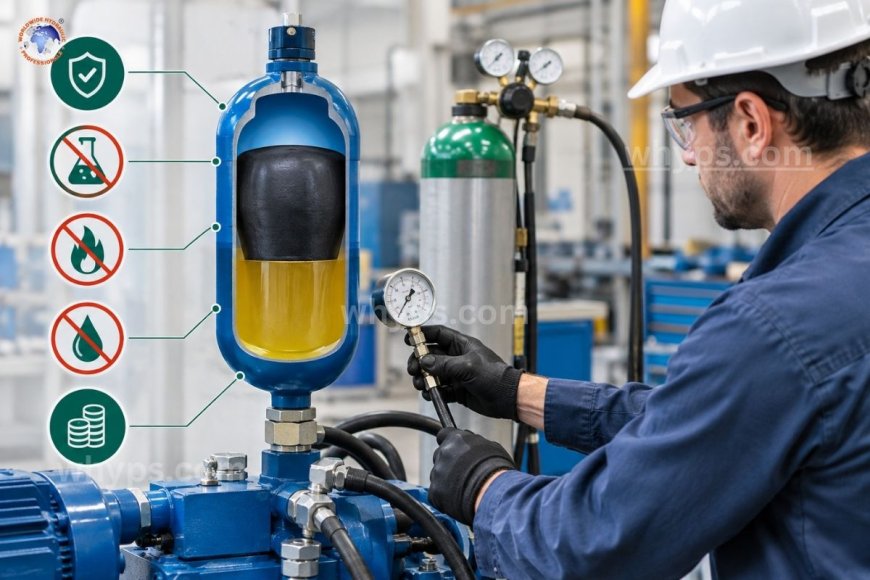

Why is nitrogen used in hydraulic accumulators?

Nitrogen is used in hydraulic accumulators because it is an inert, dry, non-flammable gas that compresses predictably and stores energy safely. Unlike air or oxygen, it does not react with hydraulic oil, does not cause corrosion or oil oxidation, and removes the risk of explosive combustion under high compression. It is also inexpensive and widely available, which makes it the industry standard pre-charge gas. Hydraulic accumulators sit quietly in many systems, storing energy, absorbing shocks, and smoothing out pressure. Their performance depends on one component that is easy to overlook: the gas inside. This article explains how that gas works, why nitrogen is the accepted choice, and what happens when something else is used instead.

How does a hydraulic accumulator work?

A hydraulic accumulator is a pressure vessel divided into two sides: one holds hydraulic fluid, and the other holds a compressible gas. A bladder, piston, or diaphragm separates the two.

Hydraulic oil is essentially incompressible, so it cannot store energy by itself. When the pump pushes fluid into the accumulator, the fluid compresses the gas on the other side. That compressed gas is the spring. When the system needs extra flow or pressure, the gas expands and pushes the stored fluid back into the circuit.

The gas side is therefore the working heart of the accumulator. Its behavior determines how much energy can be stored, how quickly it can be released, and how long the accumulator will last.

The role of pre-charge pressure

Before the accumulator goes into service, the gas side is filled to a specific pre-charge pressure. This is the pressure of the gas when no oil is in the vessel. A common rule for bladder accumulators is to set the pre-charge at roughly 80 to 90 percent of the minimum system working pressure, although the correct value always depends on the application and the manufacturer's specification.

Pre-charge keeps the bladder or piston in the correct position, makes sure the accumulator starts delivering fluid at the right pressure, and protects internal components from damage. Holding that pressure reliably is the job of the gas, and this is where nitrogen earns its place.

The main reasons nitrogen is used

1. Nitrogen is inert

Nitrogen is chemically stable under the conditions found in hydraulic systems. It does not react with hydraulic oil, seals, elastomers, or metal surfaces. That means the gas side of the accumulator stays clean and non-corrosive for years.

Oxygen, by contrast, is highly reactive. It promotes oxidation of hydraulic fluid, accelerates the formation of acids and sludge, and attacks metal and rubber components. An inert gas avoids all of these problems.

2. Nitrogen eliminates the risk of explosion.

This is the most important safety reason. When a gas is compressed quickly, it heats up sharply. If that gas contains oxygen and is in contact with oil vapor or an oil mist, the combination of oxygen, fuel, and heat can ignite. This is sometimes called the diesel effect, because it is the same principle that ignites fuel in a diesel engine.

Pure compressed air or oxygen in an accumulator can therefore lead to an internal explosion. Nitrogen contains no oxygen to support combustion, so this risk is removed. For this reason, accumulators should never be charged with oxygen, and compressed air is also unsuitable.

3. Nitrogen is dry.

Industrial nitrogen supplied in cylinders is dry, with very little moisture. Moisture inside an accumulator causes corrosion on the shell, promotes rust particles, and can degrade bladders and seals. Ordinary compressed air carries water vapor, which condenses as pressure and temperature change. Dry nitrogen keeps the gas side free from this problem.

4. Nitrogen behaves predictably under compression.

Accumulator sizing relies on gas laws. Nitrogen behaves close to an ideal gas over the pressure and temperature ranges typical of hydraulic systems, so engineers can calculate pre-charge, volume, and stored energy with good accuracy. Predictable compression and expansion lead to predictable system response, which matters for applications such as energy storage, pulsation damping, and shock absorption.

5. Nitrogen is affordable and easy to obtain

Cost and availability also matter. Nitrogen is the most abundant gas in the atmosphere, so it is inexpensive to produce, and it is supplied in standard cylinders by almost every industrial gas supplier. Technicians can charge or top up an accumulator with a simple charging kit, which keeps maintenance practical in the field.

Why not use air, oxygen, or other gases?

Understanding the alternatives makes the case for nitrogen clearer.

• Oxygen: Never acceptable. Combined with oil, it creates a serious fire and explosion hazard.
• Compressed air: Contains about 21 percent oxygen and moisture. It carries the same combustion risk, although at a lower level, and introduces corrosion and oil degradation.
• Helium and other light gases: These gases can escape through bladder materials and small leak paths more easily, so the pre-charge would fall faster. They are also more costly.
• Other inert gases such as argon: They are chemically safe but offer no practical advantage over nitrogen and cost more.

Nitrogen therefore sits at the best point of safety, performance, and cost.

How nitrogen supports accumulator performance

Energy storage

The compressed nitrogen stores energy that the system can use later. This lets designers use a smaller pump, because the accumulator supplies short bursts of high flow during peak demand while the pump recharges it during low demand. The result is lower energy use and less heat generation.

Shock and pulsation damping

When valves close suddenly or pumps produce pressure ripples, the nitrogen cushion absorbs the energy. This protects pipework, fittings, hoses, and gauges from fatigue and failure.

Emergency power

If a pump fails, the stored nitrogen pressure can still drive a cylinder to a safe position or complete a braking or shutdown sequence. This makes accumulators a common safety feature in industrial and mobile equipment.

Thermal compensation

In closed circuits, temperature changes cause oil to expand and contract. The nitrogen cushion absorbs this volume change and prevents pressure spikes or drops.

The effect of temperature on nitrogen pre-charge

Nitrogen pressure changes with temperature. If an accumulator is charged in a cold workshop and then runs in a hot environment, the gas pressure will rise. The reverse is also true. For this reason, pre-charge should be set and checked with temperature in mind, and manufacturers provide correction guidance for different operating conditions.

Incorrect pre-charge is one of the most common causes of accumulator trouble. Too low, and the bladder or piston may be forced against the fluid port on every cycle, shortening its life. Too high, and the accumulator will store very little fluid and give poor performance.

Best practices for handling nitrogen in accumulators

1. Use only dry industrial nitrogen from a regulated cylinder. Never use oxygen or compressed air.
2. Use a proper charging and gauging kit designed for accumulators, and follow the manufacturer's procedure.
3. Release all hydraulic pressure from the accumulator before checking or adjusting the pre-charge, and follow lockout procedures.
4. Check pre-charge regularly, especially after commissioning, and record the results to spot slow leaks early.
5. Charge slowly to avoid overheating and to protect the bladder.
6. Train personnel and follow local pressure vessel regulations and inspection requirements.

Handling stored energy at high pressure carries real risk, so only trained and authorized staff should service accumulators.

Nitrogen is used in hydraulic accumulators because it delivers safety, reliability, and predictable performance at a reasonable cost. Being inert and dry, it protects the oil and seals and metal parts from oxidation and corrosion. Containing no oxygen, it removes the risk of internal explosion. Behaving close to an ideal gas, it allows accurate design and consistent operation.

Getting the gas right, and keeping the pre-charge correct, is one of the simplest ways to improve accumulator life and system reliability.

1. Why is nitrogen used instead of air in hydraulic accumulators?

Air contains oxygen and moisture. Under rapid compression, oxygen can combine with oil vapor and ignite, and moisture causes corrosion and degrades components. Nitrogen is inert and dry, so it avoids both problems.

2. Can I use oxygen to charge a hydraulic accumulator?

No. Oxygen mixed with hydraulic oil under high pressure creates a severe explosion hazard. Use only dry industrial nitrogen.

3. How does nitrogen pre-charge affect accumulator performance?

Pre-charge sets the pressure at which the accumulator starts to release fluid and determines how much fluid it can store. Incorrect pre-charge reduces efficiency and can damage the bladder, piston, or diaphragm.

4. How often should the nitrogen pre-charge be checked?

Check it soon after installation, then at regular intervals set by the manufacturer and operating conditions. Many facilities check monthly at first, then extend the interval if the pre-charge proves stable.

5. Does temperature change the nitrogen pressure in an accumulator?

Yes. Gas pressure rises with temperature and falls as it cools, so pre-charge should be set with operating temperature in mind and adjusted according to the manufacturer's guidance.
