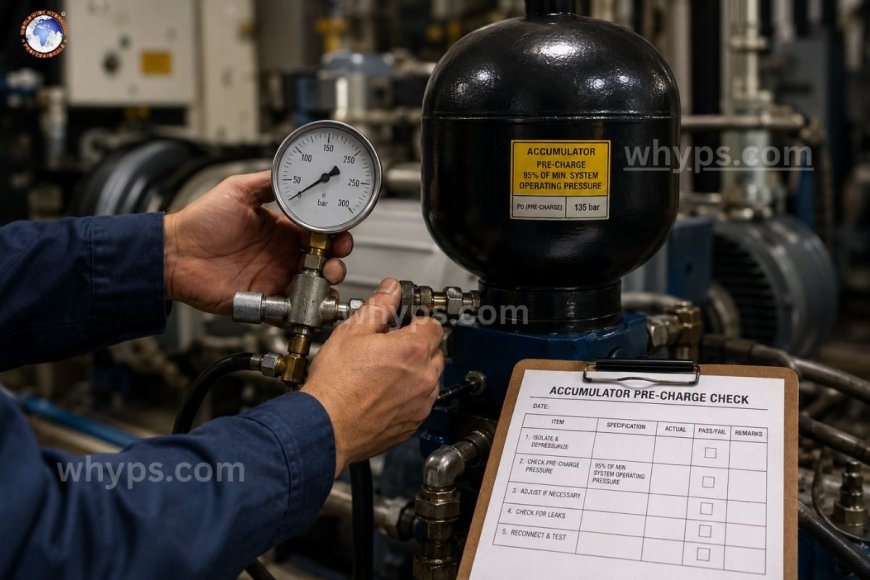

How do you maintain the correct pre-charge in a hydraulic accumulator?

Maintain the proper pre-charge in the accumulator's hydraulic system by checking the nitrogen pressure on a regular basis using a calibration kit for charging while the system is depressurized completely and comparing it to the specified value of the manufacturer (typically 95% of the minimum operating pressure of the system) and then replenishing or removing nitrogen when necessary. This includes checking for leakage of gas past the valve stem and seals for the piston or bladder as well as temperature-driven drift in pressure.

Pre-charge is the major factor that affects the performance of an accumulator, and it's the one that's frequently overlooked. The accumulator's hydraulics can only do its job—absorption of shock storage, storing energy and compensating for leaks, or keeping the pressure in case of a power loss when that gas component is charged to the proper pressure for the operating range of the system. If you don't, the accumulator will do nothing, or, even more importantly, it fails early. This article explains why the pre-charge fluctuates and how to monitor it without risk, and also how to design a maintenance plan to ensure it stays exactly where it should be.

What is the importance of accuracy before charging?

The accumulator of hydraulic energy conserves energy by compressing a gas, usually dry nitrogen, behind a piston, bladder, or diaphragm. The pre-charge pressure is the amount of the gas prior to when any hydraulic fluid is introduced into the accumulator. This one number defines how the accumulator functions across its entire operating range.

If pre-charge is excessively large, the system will not take in fluid until it is at a level that exceeds gas pressure. The gas pressure reduces the volume usable and delays reaction when pressure drops. If the pre-charge is not enough or fluid flows into the system too early, the piston or bladder could end up crashing against the shell. Moreover, repeated contact between metal and shell causes wear and may lead to catastrophic failure. The extremes aren't safe to run for a long time, and both slowly degrade the benefits the accumulator was intended to deliver.

Common reasons for pre-charge drift

Pre-charge isn't able to stay in place by itself. Certain mechanisms are responsible for the majority of the drift that technicians observe on the job.

Gas permeation and leakage from seals

The nitrogen molecules are tiny enough to penetrate through the bladder material for months and even years, even in a unit that is defect-free. Additionally, that gas-charging valve is a typical leak source. A damaged valve core, a leaky valve cap, or an O-ring that is damaged can be able to bleed pressure much more quickly than permeation on its own.

Temperature fluctuations

Gas pressure is temperature-dependent. An accumulator that has been charged during a cold morning will show a different reading once the temperature of the fluid or ambient rises during the operation. It's not a "leak" in the traditional sense, but it could appear to be one if it is tested at an unrelated temperature to the one it was originally set.

The piston seal or the bladder wear

As the separating element gets older as it ages, tiny amounts of gas could move to the fluid or pass through seals that are dynamic, displaying as a steady, slow loss of pressure rather than an abrupt decrease.

Incorrect initial charge

If the pre-charge was not set correctly during commissioning—with an incorrect gauge, an incorrect temperature as a reference, or a rush-to-completion procedure—the accumulator will begin its service life outside of the specifications, and the issue will manifest earlier than you expected.

How can I ensure that the precharge is correct?

Step 1: Remove and completely depressurize the hydraulic side.

Do not check the pre-charge for the residual hydraulic pressure of the accumulator. Remove it completely from the system with the block-and-bleed valve, and ensure that the hydraulic side reads 0 prior to touching the valve for gas. Doing this wrong is among the main injuries that can occur during the accumulator's service.

Step 2 Connect a calibrated charge and gauge assembly.

Utilize a specialized nitrogen charging kit specifically designed to be used for accumulator services instead of a gas gauge. These kits are connected directly to the valve and allow pressure readings without the need to release gas. They also allow for controlled bleed-down and top-up via this same connector.

Step 3: Check your reading with the pre-charge.

Refer to the nameplate of the accumulator or the design document for the system. Most manufacturers will recommend pre-charges around 90% of the minimum system operating pressure, adjusting for the specific application of the accumulator (shock absorption leakage compensation and emergency backup have distinct sizing strategies). Verify that you're comparing to the current temperature of the fluid, not a standard room temperature figure.

Step 4: Make adjustments as needed

If the pressure is not high If pressure is low, slowly add dry nitrogen into the charger kit. Pause to allow temperature and pressure to be stable prior to taking the final read. If the pressure is too high, it is less frequent; however, it could be due to an unintentional recharge taking gas out in small amounts. Do not utilize oxygen, compressed air, or shop air in lieu of nitrogen. Oxygen-bearing gasses can cause serious explosions when they are compressed against hydraulic oils.

Step 5: Reclose and test the valve's leak.

After adjustment, tighten the cap of the valve to specification and look for leaks with an instrument to detect leaks around the cap stem and valve threads. A slow flow of bubbles can help explain a variety of "mystery" pre-charge loss that technicians usually believe is due to wear on the bladder.

Pre-charge maintenance schedules

A single check during the time of installation won't be enough. Most reliability-focused maintenance programs examine the accumulator's pre-charge at a set time frame—typically once every 3 to 6 months in accumulators that are in continuously running service and each scheduled hydraulic system maintenance for less-demanding applications. Applications with high cycles, like those accumulators that are able to absorb regular pressure spikes in a press or an injection molding system, require more frequent inspections because they experience higher levels of thermal cycles and wear and tear on the seal.

Recording every reading is worth the extra time. One test will tell that pre-charge is accurate; a log of your history shows the amount of drift, which is a more accurate early indication of a developing valve or bladder issue than any one information point.

The pre-charge indicator indicates that it has been sunk.

Between the scheduled check, there are a few signs that indicate that the pre-charge is out of its range. These include increased pressure spikes or a hydraulic hammer used by the accumulator to smooth out the slop, an apparent shorter time between pump cycles as the accumulator's capacity to store energy decreases, an unusual sound emanating from the body of the accumulator in operation, or a warmer shell of the accumulator, which could suggest that the bladder or piston is operating to a stopping mechanism rather than as the cushion for gas. Each of these could be an indication to plan a pre-charge test before the normal interval, rather than putting it off until.

The correct pre-charge isn't just a "set it and forget it" feature—it's an important maintenance item that needs the same level of attention as a change in the filter or fluid analysis. Making sure you check it using the appropriate equipment, at the appropriate reference temperature, in line with the manufacturer's specifications, and in a consistent manner ensures that the accumulator is doing its job and prevents premature rupture of the bladder and the instability in pressure due to the fact that it is over the limits of what's recommended.

When should the hydraulic precharge of the accumulator be monitored?

The majority of reliability programs recommend reviewing each three- to six-month interval for accumulations operating in high-cycle or continuous service as well as at every scheduled service interval of the hydraulic system for applications that are less demanding.

What gas can be used to pre-charge an accumulator?

Dry nitrogen is the only option. Compressed air or oxygen is not recommended, since the compression of oxygen-rich gas with hydraulic oil poses the risk of an explosion.

How does it work if the accumulator pre-charge pressure is not enough?

Fluid from hydraulic systems enters the system too early and could force the piston or bladder towards the outer shell, increasing wear and increasing the chance of failure before it occurs.

What will happen if the accumulator pre-charge pressure is excessively high?

The accumulator won't be able to take in fluid until the system pressure is higher than the gas charge, thus reducing the available volume and causing delays in reaction when the pressure drops.

What causes the accumulator's pre-charge pressure to vary according to temperature?

The pressure of the gas can be directly influenced by temperature; therefore, any pre-charge reading made at a different ambient temperature or temperature of the fluid than the original setting can be different even without any gas loss.
