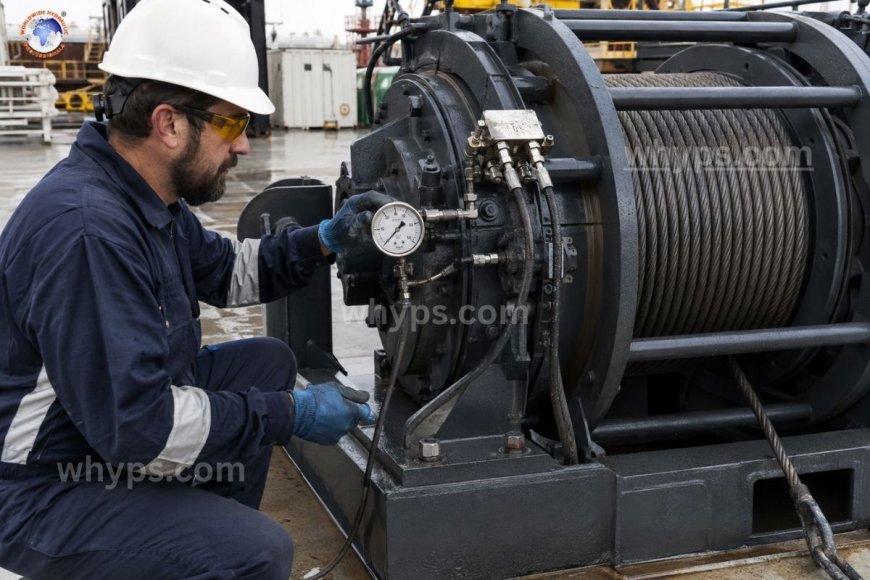

How do you test a Hydraulic Winches after maintenance?

A hydraulic winch must be tested in a specific order following maintenance: Check connections and fluids, perform the test of no load as well as check the brake's holding capacity and test it under a rated or close-to-rated load, test for excessive heat and drift, and ensure that you are sure that the control and pressure valves are within the specs. If you don't follow these steps, it could result in a faulty load, a faulty motor, or a brake that isn't working when it's most needed.

Hydraulic winches are at the heart of many of the most dangerous lifting and pulling activities in the industry, including anchor handling, log skidding, vehicle recovery, crane hoisting, auxiliary to cranes, and offshore anchoring. If a winch is subject to maintenance, such as an oil replacement or a motor swap, an overhaul of the brake, or a complete teardown, the post-maintenance check isn't an exercise in futility. It's the final checkpoint before the winch is put back to service, carrying actual loads over real equipment and people. A systematic, repeatable test process is what differentiates an actual ready winch from one that appears to be ready.

What is the significance of post-maintenance tests for winches compared to other components?

In contrast to a cylinder or valve, which fails in a protected manner, an issue with a winch that fails under load can result in an uncontrolled drop in line, a snapped one in tension, or a running drum. Maintenance work—disassembly, sealing repair, brake liner relining, and maintenance of the gearbox or motor—introduces new variables every time the fitting isn't properly torqued or a brake that wasn't properly bled and a relief valve was pushed out of the calibration when reassembly. Tests can be conducted to pinpoint these problems before the winch can be and is able to be trusted with the load it's carrying.

Step 1: Pre-testing inspection and fluid test

Before any hydraulic pressure is applied, verify the fundamentals:

• Fluids for hydraulics are at the proper level and within the clean and viscosity range for the system.
• The fittings and hoses of all the quick-connects tripped up during maintenance are torqued correctly and free of obvious leaks
• The cable or wire rope is properly spooled, unharmed, and free of knots
• The drum, the gear house, and the motor mounting bolts are torqued according to the specifications
• Air was bled out of the circuit in the event that any lines were open

Operating a winch with unclean fluid or air is among the fastest ways to harm an engine that is being rebuilt. This is why this procedure is not a choice if you are in a hurry.

Step 2: Test the function with no load.

The winch must be disconnected from any load; it should be cycled through its entire movement:

• Payout and haul-ins for both directions using both high and low speeds If the speed setting is variable.
• Free-spool (declutch) engagement and disengagement, if equipped
• Multiple stop-start cycles to look for chatter, hesitation, or other unusual sounds.
• Consistent, smooth drum rotation without binding or unbalanced wrap

A whining, grinding, or "shudder" during this point usually indicates trapped air or a coupling that isn't aligned or a valve that's not properly seated—these are issues that are much easier to correct now than following an actual load test.

Step 3: Holding the brake test

The brake is the single most important part of the hydraulic winch and requires its own separate test, rather than being integrated in testing the load.

• Use a load that is near the capacity that is rated and ensure the brake's position is stable with no creep on the drum.
• Release the hydraulic pressure into the motor (simulating the loss of power) and verify that the brake is engaged automatically and is held
• Examine any shifts that occur in a prolonged hold time, usually a few minutes.
• Check that the brake release pressure and engagement pressures match with the specifications of OEM.

A brake that is held for a short time but then drifts away over time is a failure of the brake and is not a marginally successful pass. This is an area where "close enough" testing is not a good idea.

Step 4: Load testing

Tests on load confirm the performance of the winch in accordance with its specifications when used under actual conditions of operation and not only under non-load spinning.

• Use a test load typically; it is staged from light loads all the way to 100-125 percent of the capacity rated, based on the relevant standard and OEM guidelines
• Pay-out speed and haul-in speed are monitored under load versus the speed of the line that is rated
• Verify the hydraulic system's pressure at the motor of the winch against the operating limits specified.
• Be on the lookout for the consistency of line pull. Surging or pulsing under constant load is usually a sign of a relief valve or pump problem.
• Make sure the winch starts effortlessly under load, without stalling or causing pressure spikes that are excessive.

If there are local rules or manufacturer documents that require proof load tests, the percentage and duration must be precisely followed, not calculated, as this is typically a legally enforceable compliance requirement, not only a good thing to do.

Step 5: Control and Pressure Relief Valve Verification

The post-maintenance time is the perfect opportunity to ensure that the valve for pressure relief and the counterbalance or load-holding valves are properly set:

• Verify the relief valve's cracking pressure against the maximum system pressure
• Check that the counterbalance or motor brake valves maintain the anticipated back-pressure when loaded.
• Make sure that the valve's response is consistent and doesn't result in jerky start or stop

A valve that is set too high will defeat its function as a protection device. If it is when it is set at a low level, the valve could cause the winch to lose its sufficient pulling force. Both of these errors are simple to make during reassembly and simple to spot by using the aid of a gauge.

Step 6: Thermal and extended-run test

The winch should be run through several duty cycles or make a long pull to test for the buildup of heat:

• Monitor the temperature of hydraulic fluid at the reservoir and around the motor.
• Examine for temperature changes at seals, bearings, and the housing for the gear.
• Check that the cooling system, should it be fitted, is in operation and that the fluid remains inside the operating temperatures that are in a safe range

A winch that operates well cold but becomes overheated or loses its pressure after 20 minutes of operation continuously has an issue at the root, usually an unrestricted return line or seal that has failed or a pump that is nearing the expiration date—something that a simple test could miss completely.

Recording the test

Every step that goes beyond must be recorded for pressures observable, load applied, hold time, and any other issues that need to be discovered and resolved. The record doesn't only serve as internal maintenance, but it's typically required for compliance with applicable lifting equipment regulations. Additionally, it's the basis that the subsequent maintenance technician will compare against.

The process of testing a hydraulic winch following maintenance is really a risk assessment: make sure that the basic requirements are met to ensure it operates without a shackle and confirm that the brake is in place, verify it works under actual load, verify the valves are in place, and ensure it won't decrease in performance when used for a long time. Rushing or skipping steps in order to speed up the process defeats the goal of maintenance—a winch that hasn't been tested properly is, in practical terms, not maintained.

1. How long should a winch with a hydraulic load test be?

The majority of load tests last long enough to ensure steady pressure, speed, and brake hold generally, several minutes of holding while the duration of the test is dependent on the OEM and lifting standards.

2. What is the load percentage that is recommended for post-maintenance tests?

A number of standards require testing to test up to 100-125 percent of capacity. However, the exact amount depends on the regulations that govern them and the documentation of the manufacturer of the winch.

3. Can a test of a winch be conducted without physical loads?

A test for no-load functions is a basic test; however, it does not test the brake's capacity to hold line pull or pressure performance. Testing for load is essential to conduct a thorough post-maintenance test.

4. What's the most frequently repeated problem that's discovered during post-maintenance testing?

Relief valve and brake drift inaccuracy are two of the most often-reported issues. Both are usually traced to assembly rather than the actual components.

5. What is the recommended frequency for a winch for hydraulics to be checked, even with no maintenance?

Beyond the post-maintenance check, many companies have periodic brake and function tests every set time, typically annually, or according to the regulations applicable to lifting equipment regardless of whether service work has taken place.
