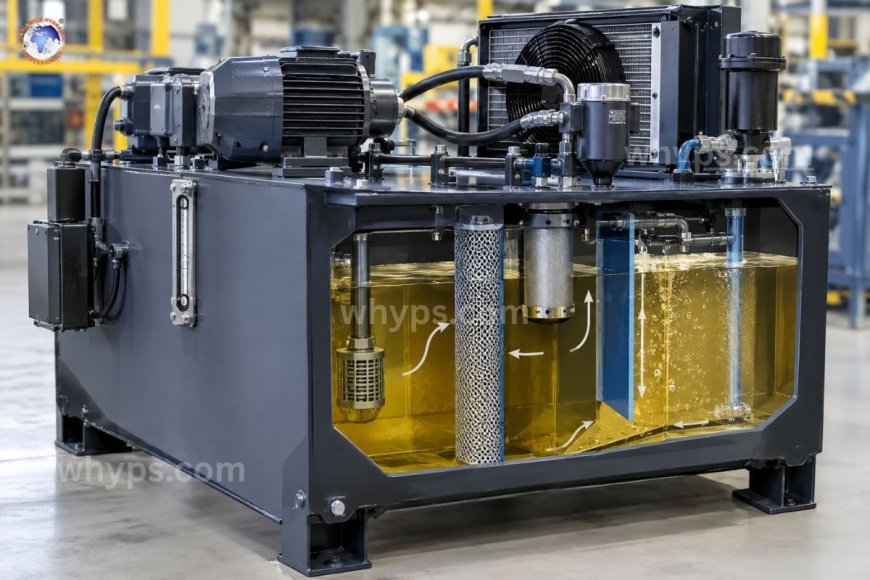

Energy-efficient advancements in hydraulic tanks and reservoirs

Energy-efficient advancements in hydraulic tanks and reservoirs include optimized internal baffle and diffuser designs, compact and pressurized reservoir layouts, improved heat dissipation through better geometry, materials, and integrated cooling, built-in filtration and breather systems, and smart sensors for temperature, level, and contamination. Together, these upgrades keep the oil cooler, cleaner, and better deaerated, which reduces wasted energy, lowers cooling and heating loads, and extends component life. For years, the hydraulic reservoir was treated as a simple steel box that held oil. Today it is recognized as an active part of the system that influences temperature, fluid cleanliness, air content, and, ultimately, energy consumption. Because a hydraulic system wastes energy whenever oil runs too hot, too thick, aerated, or contaminated, reservoir design has become a practical place to find efficiency gains. This article explains what the reservoir does, which advancements matter most, and how to apply them.

Why reservoir design affects energy efficiency?

A hydraulic reservoir does much more than store fluid. It also dissipates heat, allows entrained air to escape, lets contaminants and water settle out, and provides a stable supply of oil to the pump inlet. Each of these functions ties directly to energy use.

Heat and viscosity

Hydraulic oil that runs too hot thins out, which increases internal leakage in pumps, motors, and valves. Oil that is too cold is thick, which raises pumping losses and pressure drop. A reservoir that helps hold oil in its ideal viscosity range reduces both problems. Every degree of unnecessary heat is energy that was converted from useful work into waste, and removing that heat then costs additional energy through coolers and fans.

Air and foam

Air trapped in oil reduces fluid stiffness, causes spongy actuator response, and encourages cavitation at the pump inlet. Cavitation damages components and forces the system to work harder for the same output. A reservoir that deaerates oil effectively protects both efficiency and equipment.

Contamination

Particles and water increase friction, wear, and leakage over time. Worn pumps and valves lose volumetric efficiency, so they consume more input power to deliver the same flow. Keeping contamination out of the reservoir is therefore an energy strategy as well as a maintenance one.

Key energy-efficient advancements

Optimized baffles, diffusers, and internal flow paths

Modern reservoir designers increasingly use flow analysis tools to shape the way oil moves inside the tank. Well-placed baffles separate the return and suction zones so that returning oil does not immediately get pulled back into the pump. This gives the fluid more residence time to release air, shed heat to the tank walls, and let particles settle.

Return-line diffusers are another important upgrade. By slowing the velocity of returning oil and directing it gently below the fluid surface, diffusers reduce foaming and turbulence. Less foam means less entrained air, fewer cavitation events, and more stable pump performance. Sloped tank floors and properly positioned drain points also help collect sludge and water so they can be removed rather than recirculated.

Compact and right-sized reservoirs

A long-standing rule of thumb sizes reservoirs at several times pump flow per minute, but this approach often produces tanks that are larger than necessary. With better deaeration, filtration, and cooling, many applications can use smaller reservoirs without sacrificing performance. A smaller tank means less oil to purchase, heat, cool, and dispose of, plus lower weight on mobile equipment, which directly reduces fuel or battery consumption.

Right-sizing must be done carefully. Reducing volume without improving heat rejection or deaeration can lead to overheating and aeration problems, so compact designs are best paired with the other advancements described here.

Pressurized and sealed reservoirs

Sealed or pressurized reservoirs, including bladder or diaphragm designs, isolate oil from ambient air and moisture. Slight positive pressure also helps keep the pump inlet fully supplied, which supports reliable operation at higher speeds and in compact layouts. Because the oil does not freely exchange air with the environment, it tends to stay cleaner and oxidize more slowly, which supports stable viscosity and longer fluid life.

Improved thermal management

Heat rejection can be improved in several ways:

• Surface area and geometry: Tank shapes and external fins that increase surface area help shed heat to the surrounding air.
• Material selection: Aluminum offers higher thermal conductivity than steel and is lighter, which is valuable in mobile and portable equipment. Stainless steel and coated or composite materials add corrosion resistance for harsh environments.
• Integrated coolers: Mounting air-cooled or water-cooled heat exchangers directly on the reservoir reduces plumbing, pressure drop, and leak points while making the whole package more compact.
• Variable-speed cooling: Thermostatically controlled or variable-speed fans run only as needed, instead of continuously, which cuts auxiliary power consumption.

In cold environments, insulation and low watt-density immersion heaters with accurate thermostatic control prevent the energy waste of overheating the oil while still ensuring it reaches an efficient operating viscosity quickly.

Integrated filtration and breather technology

Clean oil keeps friction and leakage low. Modern reservoirs often include return-line filters, offline recirculation or kidney-loop filtration ports, and high-quality breathers that stop particles and moisture from entering as the oil level changes. Desiccants and combination breathers are especially valuable in humid climates. Easy-access filter mounting and clear differential pressure indicators also make it more likely that maintenance happens on time, which protects efficiency in the long run.

Smart sensors and condition monitoring

One of the biggest advancements is the addition of sensors that turn the reservoir into a data source. Typical options include:

• Oil temperature sensors that trigger cooling or heating only when required
• Level sensors that detect leaks or abnormal consumption early
• Contamination or particle count sensors that show filtration performance in real time
• Moisture sensors that warn before water damages the oil and components

When connected to a controller or remote monitoring platform, this data supports condition-based maintenance. Instead of changing oil on a fixed calendar, operators can act when the fluid condition requires it, reducing both waste and unplanned downtime. Early detection of overheating or contamination also avoids the gradual efficiency losses that otherwise go unnoticed.

Reservoirs in electro-hydraulic and variable-speed systems

As more machines adopt variable-speed pump drives and electro-hydraulic actuators, reservoir requirements are changing. These systems deliver flow only when needed, so they generate less waste heat and often need much smaller oil volumes. Self-contained designs can use compact sealed reservoirs mounted directly on the pump or actuator package. This approach reduces oil quantity, shortens piping runs, and lowers energy losses, though it requires careful attention to heat dissipation because the available surface area is small.

Practical tips for applying these advancements

1. Start with the real heat load. Calculate or measure how much heat the system produces before changing tank size or cooling.
2. Separate suction and return zones. Use baffles and diffusers to make the most of available oil volume.
3. Match the reservoir to the duty cycle. Continuous high-load systems need more thermal capacity than intermittent ones.
4. Protect the oil from the environment. Choose breathers and sealing methods appropriate to your climate and dust levels.
5. Monitor, then adjust. Track temperature and cleanliness trends so improvements are based on data.
6. Retrofit selectively. Upgrades such as diffusers, better breathers, and temperature sensors are often simple additions to existing tanks.

Energy-efficient hydraulic tanks and reservoirs are about managing heat, air, and contamination more intelligently. Optimized internal geometry, compact and sealed designs, better materials, integrated cooling and filtration, and smart monitoring all work together to keep oil in its best condition. The result is lower energy waste, longer component life, and more reliable operation. For anyone designing, specifying, or maintaining hydraulic equipment, the reservoir is no longer an afterthought but a key opportunity for performance and sustainability gains.

1. How does a hydraulic reservoir affect energy efficiency?

The reservoir influences oil temperature, air content, and cleanliness. Oil that is too hot, aerated, or contaminated causes leakage, friction, and cavitation, so the system must use more energy to deliver the same output.

2. Can a smaller hydraulic reservoir save energy?

Yes, when it is paired with good deaeration, filtration, and cooling. A smaller tank reduces oil volume and weight, but undersizing without improving heat rejection can cause overheating and aeration.

3. What is the benefit of a pressurized or sealed reservoir?

A sealed reservoir limits exposure to airborne dirt and moisture, supports consistent pump inlet supply, and helps oil stay stable for longer, which protects efficiency and fluid life.

4. Which materials are best for energy-efficient hydraulic reservoirs?

Aluminum is lightweight and dissipates heat well, making it popular for mobile equipment. Steel remains common for industrial use, and stainless or coated materials suit corrosive environments. The best choice depends on weight, heat load, and operating conditions.

5. How do smart sensors improve reservoir performance?

Sensors for temperature, level, contamination, and moisture provide real-time data, so cooling, heating, and maintenance can be applied only when needed. This reduces wasted energy, prevents hidden fluid problems, and supports condition-based oil changes.
