How important is the oil flow rate and temperature differential in sizing a hydraulic heat exchanger?

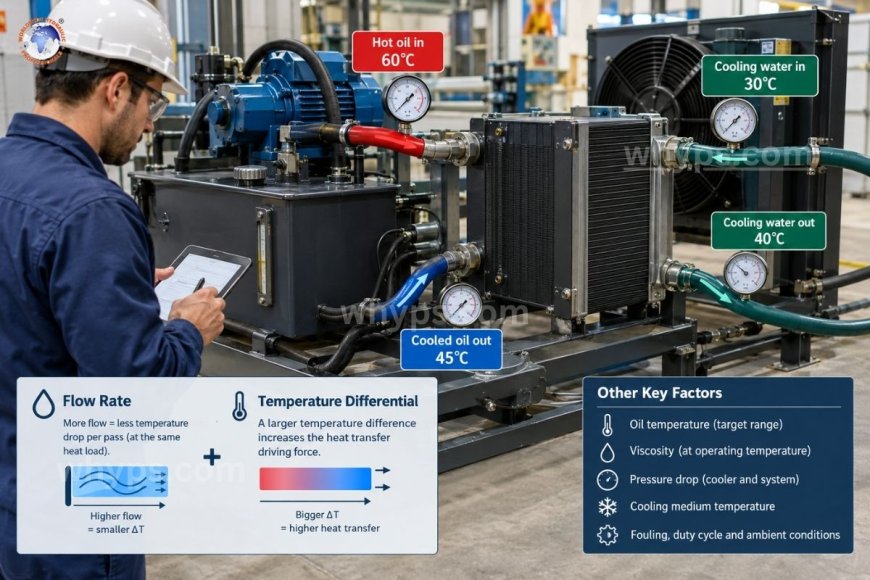

They are two of the most important inputs, and they work together. Oil flow rate and the temperature differential (how many degrees you must remove from the oil and how far the oil sits above the cooling medium) determine the heat load and the heat transfer driving force. Get either wrong, and the exchanger will be undersized (oil runs hot, seals and fluid degrade) or oversized (wasted cost, overcooled oil, slow warm-up). Heat load, cooling medium temperature, viscosity, and pressure drop complete the sizing picture.

Hydraulic systems turn wasted energy into heat. That heat must leave the system at the same rate it is generated, or oil temperature climbs until something fails. A heat exchanger is the component that guarantees this balance, and sizing it correctly starts with understanding how flow rate and temperature differential drive the calculation.

Why does heat exchanger sizing matter?

Most hydraulic oils perform best between roughly 40 °C and 55 °C. Above about 60-65°C, oxidation rates rise sharply, viscosity drops, seals harden, varnish forms, and component life shortens. A common rule of thumb says oil life halves for every 10 °C rise above the recommended range.

Undersizing leads to chronic overheating. Oversizing is less damaging but not free: the oil may run too cold, viscosity stays high, pump efficiency drops, and condensation can form. Correct sizing keeps the oil in its target window across all operating conditions.

Step 1: Define the heat load.

Before flow rate or temperature differential matters, you need to know how much heat must be rejected.

Estimate from installed power. In many industrial circuits, 20-30% of input power ends up as heat. A 75 kW power unit with a 25% loss factor must reject about 19 kW.

Calculate from the circuit. Pressure drops across valves, relief valve flow, pump and motor inefficiencies, and line losses all convert to heat. Pressure drop (bar) multiplied by flow (L/min) divided by 600 gives kW lost across a component.

Measure from an existing system. Log oil temperature rise over time with no cooling, or record temperatures across an existing cooler.

The heat load is the target. Flow rate and temperature differential are how you meet it.

Step 2: The role of oil flow rate

The basic heat balance on the oil side is

Q = ṁ × cp × ΔT

For mineral hydraulic oil, density is about 0.87 kg/L and specific heat about 1.9-2.0 kJ/kg·K. In practical units:

Q (kW) ≈ 0.0275 × oil flow (L/min) × ΔT (°C)

What this means in practice

• More flow means less temperature drop per pass. At a fixed heat load, doubling the flow through the cooler halves the oil temperature change across it.
• Less flow means a larger required ΔT. If the cooler only sees a small flow, the oil must be cooled by many degrees per pass, which demands more surface area and a colder cooling medium.

Worked example

A system generates 19 kW of heat. You want the oil to drop 10°C across the cooler.

Required flow = 19 ÷ (0.0275 × 10) ≈ 69 L/min

If the cooler loop only receives 35 L/min, the oil must drop about 20 °C per pass to remove the same heat. That is a much harder duty and a much larger exchanger.

Where the flow comes from

• Return-line cooling: the cooler sees full or partial return flow. Back pressure limits are critical, since many coolers tolerate only 7-10 bar, and return filters and seals may be sensitive.
• Offline (kidney-loop) cooling: a dedicated pump circulates oil through the cooler and a filter. Flow is independent of the main system, which makes it easy to size flow exactly and provides steady temperature control.

Flow also affects pressure drop. Pushing more oil through a cooler than it was designed for raises pressure drop, can trigger bypass valves, and wastes energy that becomes more heat.

Step 3: The role of temperature differential

"Temperature differential" appears in several forms in sizing, and mixing them up is a common mistake.

Oil temperature change (ΔT across the cooler)

This is the drop in oil temperature from inlet to outlet, used in the heat balance above.

Initial temperature difference (ITD)

For air-cooled exchangers, manufacturers rate performance by ITD, the difference between oil inlet temperature and ambient air inlet temperature. A cooler rated at 1.2 kW per °C ITD removes 1.2 kW for every degree the oil is hotter than the air.

Example: to hold oil at 55°C in an ambient of 35°C, ITD = 20°C. Rejecting 19 kW needs a cooler rated at about 0.95 kW/°C or higher at your flow and viscosity. If summer ambient reaches 45°C, ITD falls to 10°C, and the same load needs about 1.9 kW/°C, double the capacity.

Log mean temperature difference (LMTD)

For water-cooled shell-and-tube and plate exchangers, the governing equation is

Q = U × A × LMTD

Here U is the overall heat transfer coefficient, A is the surface area, and LMTD is the average driving temperature difference between oil and water along the exchanger. A small LMTD means a larger required area. If cooling water enters at 30 °C and you want oil leaving at 45 °C, the approach is only 15 °C, and the exchanger must be large. A colder water supply shrinks the exchanger dramatically.

Why is differential so influential?

The heat transfer driving force is nearly proportional to the temperature differential. Halve the available differential and you roughly double the required surface area. That makes the cooling medium temperature one of the most sensitive inputs, often more so than small changes in flow.

Step 4: Factors that interact with flow and temperature differential

Oil viscosity. Viscous oil flows in laminar regimes with low heat transfer coefficients. Cold-start viscosity can also cause high pressure drop and bypass. Size using the viscosity at operating temperature and check cold-start behavior.

Pressure drop. Compare the cooler's pressure drop curve at your flow and oil grade, not at water or a reference oil.

Cooling medium flow. For water-cooled units, the water flow rate sets the water-side temperature rise. Too little water flow shrinks the effective LMTD.

Fouling. Scale on the water side and dirt on the air fins reduce U over time. Add a fouling allowance, typically 10-25%.

Duty cycle. Peak heat load, not average, usually governs sizing in intermittent systems, though thermal mass of the reservoir can smooth short peaks.

Altitude and ambient extremes. Air density falls with altitude, and the design ambient should reflect the hottest realistic condition, not the annual average.

Step 5: A practical sizing workflow

1. Estimate heat load (kW) from installed power or circuit analysis.
2. Set the target oil temperature (usually 45-55°C reservoir).
3. Define the cooling medium temperature at worst-case conditions.
4. Calculate ITD or LMTD from those temperatures.
5. Determine oil flow through the cooler and check pressure drop limits.
6. Select the exchanger from manufacturer data at your flow, viscosity, and ITD, not catalog headline ratings.
7. Add a margin of 10-25% for fouling and future load growth.
8. Verify control: a thermostatic valve or temperature switch prevents overcooling.

Common sizing mistakes

• Using catalog kW ratings without correcting for ITD. Ratings are quoted at a stated ITD and flow, often 40°C ITD and 46°C ST oil.
• Ignoring worst-case ambient or water temperature. The cooler works in July, not April.
• Forcing full system flow through a small cooler. This causes pressure spikes and shortened life.
• Forgetting that heat load changes. Added loads, higher pressure settings, and worn components increase heat.
• Ignoring viscosity grade. An ISO VG 68 oil behaves very differently from VG 32 at the same temperature.

Oil flow rate and temperature differential are central to hydraulic heat exchanger sizing. Flow rate links heat load to the temperature change the oil must undergo, while temperature differential sets how quickly heat can transfer to air or water. Together with viscosity, pressure drop, and a sensible safety margin, they decide whether a cooler keeps oil in its optimal window or lets the system drift toward overheating. Size for the worst realistic conditions, verify against manufacturer performance curves, and confirm results with temperature measurements after commissioning.

1. How do I calculate the heat load for a hydraulic heat exchanger?

Estimate 20-30% of installed power as heat, or calculate losses from pressure drops and flow across valves, pumps, and motors. Measuring oil temperature rise with no cooling gives a reliable field check.

2. What is a good target temperature differential across a hydraulic oil cooler?

Many designs target an oil temperature drop of about 5-15°C per pass. Lower values need more flow, while higher values need more heat transfer area.

3. What is ITD in air-cooled oil cooler sizing?

ITD is the initial temperature difference between oil inlet temperature and ambient air inlet temperature. Manufacturers rate cooling capacity in kW per °C of ITD, so a smaller ITD requires a larger cooler.

4. Does a higher oil flow rate always improve cooling?

Not always. Higher flow reduces the temperature drop needed per pass but also increases pressure drop and may exceed the cooler's pressure limit. Flow must stay within the cooler's rated range.

5. How much safety margin should I add when sizing a hydraulic heat exchanger?

A margin of 10-25% is common to cover fouling, hotter-than-expected ambient conditions, and future load increases, while a thermostatic control prevents the system from overcooling.
