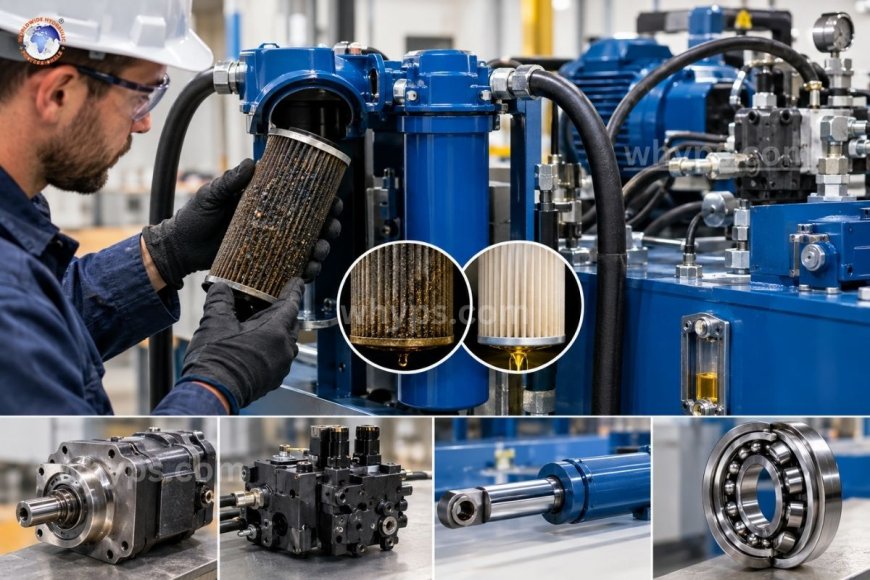

How does hydraulic filtration affect component life?

Hydraulic filtration affects component life by removing the solid particles, water, and degradation by-products that cause abrasive wear, valve sticking, seal damage, and heat buildup. Cleaner oil means less surface wear, more stable performance, and longer service intervals. Systems maintained at their target ISO 4406 cleanliness level routinely see pumps, valves, and cylinders last several times longer than those running on poorly filtered fluid. Most hydraulic failures do not start with a dramatic break. They start with microscopic particles, often smaller than the eye can see, circulating through the system thousands of times a day. Filtration is the main defense against that slow damage, and it has a bigger effect on component life than almost any other maintenance practice.

Why is contamination the leading cause of hydraulic failure?

Industry experience consistently points to contaminated fluid as the root cause behind the majority of hydraulic component failures. Hydraulic oil does more than transmit power. It lubricates, cools, and seals. When it carries hard particles, every one of those jobs suffers.

The reason is tight clearances. In a piston pump or servo valve, the gap between moving surfaces can be only a few microns. A particle of similar size does not pass through harmlessly. It scores, wedges, or erodes the surfaces it touches, and each damaged surface produces more debris. This chain reaction is why contamination problems accelerate rather than stay constant.

How do contaminants damage specific components?

Hydraulic pumps

Pumps operate at high speed and pressure with very small internal clearances, which makes them the most sensitive component to dirty oil. Abrasive particles wear pistons, vane tips, gear faces, and port plates. As clearances open up, internal leakage increases, volumetric efficiency drops, and the pump produces more heat while delivering less flow. Eventually the pump has to be rebuilt or replaced.

Control valves

Valves suffer from two main problems. First, particles lodge between the spool and bore, causing sticking, slow response, or erratic behavior. This is especially common in proportional and servo valves. Second, high-velocity oil-carrying particles erode sharp metering edges, which changes flow characteristics and causes internal leakage. A worn valve often shows up as cylinder drift or inconsistent actuator speed long before it fails completely.

Cylinders and seals

Particles that reach a cylinder can score the barrel bore and the rod surface. Once scored, the rod carries damage past the wiper and rod seal on every stroke, leading to external leaks and further contamination ingress. Seals also wear faster when trapped particles act like sandpaper between the seal lip and its mating surface. Water and oxidized oil add chemical attack to the mechanical damage, hardening or swelling elastomers.

Bearings and motors

Rolling element bearings in pumps and hydraulic motors are vulnerable to particle indentation. Each dent creates a stress point that eventually leads to spalling and fatigue failure. Bearing life can drop dramatically when fluid cleanliness falls below what the design assumes.

How does filtration protect component life?

Removing particles before they do damage

A filter captures particles as oil passes through its media. The smaller and cleaner the oil, the less abrasive material is available to wear surfaces. Because the fluid recirculates continuously, a good filter keeps the particle count stable even as new contamination enters from the environment or from normal wear.

Reducing heat and improving efficiency

Clean systems run cooler. When internal leakage from worn components is low, less energy is lost as heat, and the oil itself oxidizes more slowly. Longer oil life, in turn, reduces varnish and sludge formation that can further harm valves and filters.

Stabilizing performance

Consistent oil cleanliness gives consistent valve response, predictable actuator speed, and steadier pressure control. That stability reduces shock loads and pressure spikes that stress hoses, fittings, and seals.

Understanding filter ratings and cleanliness targets

Not every filter protects equally. Two concepts matter most.

ISO 4406 cleanliness codes describe how many particles of different sizes are present per milliliter of fluid. A lower code means cleaner oil. Component manufacturers publish target codes: servo valves and high-pressure piston pumps typically demand much cleaner fluid than low-pressure gear pump systems.

The beta ratio (ISO 16889) measures how efficiently a filter captures particles at a given size. A higher beta ratio means higher efficiency at that particle size. Nominal ratings are less reliable than beta ratios because they do not specify a capture efficiency. Selecting a filter based on its measured efficiency and matching it to the cleanliness target is more effective than choosing by micron number alone.

Filter placement and its effect on protection

Where a filter sits in the circuit changes what it protects.

• Suction strainers: Protect the pump from large debris. They must be coarse to avoid starving the pump and causing cavitation.
• Pressure filters: Placed downstream of the pump to protect sensitive valves and actuators from pump-generated debris.
• Return-line filters: Capture contamination generated by the system before it returns to the reservoir.
• Offline (kidney-loop) filtration: Continuously polishes the oil independently of system operation, allowing very fine filtration and water removal.
• Breather filters: Stop airborne dust and moisture from entering through the reservoir as oil level changes.

Most reliable systems combine several of these rather than relying on one.

Warning signs of inadequate filtration

Poor filtration usually reveals itself before catastrophic failure. Watch for:

• Frequent filter changes or rapidly rising differential pressure
• Sluggish or inconsistent actuator response
• Rising oil temperature without an obvious cause
• Dark, cloudy, or gritty oil
• Repeated seal failures or external leaks
• Premature pump wear or noise

Regular oil analysis, including particle counts and wear metal readings, gives an early view of contamination trends before symptoms appear.

Best practices to maximize component life

1. Set a target cleanliness code based on the most sensitive component in the system.
2. Choose filters by beta ratio, not just micron rating.
3. Monitor differential pressure and replace elements at the indicator threshold rather than on a fixed guess.
4. Filter new oil before use, since fresh oil from the drum is often dirtier than a system can tolerate.
5. Control ingress with quality breathers, clean fill points, and well-maintained rod wipers.
6. Add offline filtration for critical or high-duty systems.
7. Test regularly with oil analysis and patch test kits, and record results to identify trends.

Hydraulic filtration is not simply a maintenance chore. It is the practice that most directly determines how long pumps, valves, cylinders, and seals will last. Clean oil reduces wear, keeps heat down, preserves seal integrity, and protects performance. Investing in the right filter, placed correctly, and monitored consistently costs far less than the repeated component replacements that contamination causes.

1. How does hydraulic filtration extend component life?

It removes abrasive particles and water that wear pumps, valves, cylinders, and seals. With less material loss and fewer stuck valves, components hold their tolerances longer and run more efficiently.

2. What cleanliness level should a hydraulic system maintain?

It depends on the most sensitive component. Servo valves and high-pressure piston pumps need much cleaner oil than simple low-pressure systems. Follow the manufacturer's target ISO 4406 code and set filtration accordingly.

3. Which hydraulic component is most affected by dirty oil?

Pumps and servo or proportional valves are the most sensitive because of their tight clearances, though cylinders, seals, and bearings also suffer noticeably from contamination.

4. How often should hydraulic filters be replaced?

Replace them when the differential pressure indicator reaches its limit, or at the manufacturer's scheduled interval, whichever comes first. Heavy contamination environments may require shorter intervals.

5. Is a finer filter always better?

Not necessarily. Filters that are too fine for the application can clog quickly, raise pressure drop, and increase cost. The best choice matches filter efficiency to the required cleanliness level and the system's operating conditions.
