Hydraulic systems form the foundation for modern machines, driving everything from forklifts and excavators to agricultural machinery and industrial presses. The heart of all these machines are the hydraulic fittings, crucial connectors that make sure fluid flows effectively and safely at high pressure. But one of the most challenging issues that engineers, technicians, and maintenance staff have to overcome is recognizing the correct threads of hydraulic fittings.

The wrong thread for fittings could result in leaks, loss of pressure or damage to equipment, or even safety issues. Because hydraulic fittings are made of various sizes, thread standards, and sealing methods, it is crucial to identify the right thread for repairs, maintenance, and system upgrades.

This guide explains how you can determine the correct threads for hydraulic fittings. The most common thread types that are used throughout the world as well as the tools needed and tips for avoiding costly errors.

Why does hydraulic thread identification matter?

Hydraulic systems typically operate with pressures of more than 3000 PSI, and some industrial systems go above the limit. In these conditions, even a small gap between threads could cause severe issues.

The correct thread identification can help:

• Stop leaks from hydraulics

• Make sure that the operation is safe

• Avoid equipment downtime

• Reduce the cost of maintenance

• Improve system efficiency

• Increase the lifespan of components

A fitting might look like it "fits" physically while actually having an incompatible thread geometry. This is among the most frequent causes of failures of hydraulics on the job.

Understanding hydraulic fitting threads

Hydraulic fittings are made using various thread standards, based on the manufacturer's country and the application. The threads are different in the following:

• Thread angle

• Pitch

• Diameter

• Taper or parallel design

• Mechanism to seal

Before you can identify a thread, it is essential to comprehend the two main thread types.

1. Parallel threads

Parallel threads keep the same diameter throughout the entire fitting length.

The fittings usually require the following:

• O-rings

• Seals with a bond

• Metal-to-metal seating surfaces

Examples include:

• BSPP (British Standard Pipe Parallel)

• JIC (Joint Industry Council)

• ORFS (O-Ring Face Seal)

2. Tapered threads

The threads that are tapered become more narrow towards the final part of the fitting.

They are sealed with thread interference and are often used.

• Thread sealant

• PTFE tape

Examples include:

• NPT (National Pipe Taper)

• BSPT (British Standard Pipe Taper)

Common hydraulic thread types

Knowing what is known as common thread standards can be the initial step to identify the thread properly.

NPT (National pipe taper)

Threads made of NPT are extensively used throughout North America.

Key features:

• Threads with tapered thread

• 60-degree thread angle

• Seals are formed through thread deformation

• Needs a thread sealant

Identification clues:

• The thread's diameter decreases as you get closer to the edge

• Flattened valleys and peaks

• In older hydraulic systems, common in older hydraulic systems.

BSP threads (British standard pipe)

BSP threads are widespread throughout Europe, Asia, and Australia as well as in many machines that are imported.

Types:

• BSPP (Parallel)

• BSPT (Tapered)

Key features:

• 55-degree thread angle

• Whitworth thread form

Identification clues:

• Threads with rounded with peaks and valleys

• BSPP utilizes sealing washers or O-rings

• BSPT is similar to NPT, but it's not interchangeable

JIC threads

JIC fittings are very popular in industrial and hydraulic systems.

Key features:

• 37-degree flared seating surface

• Straight threads

• Metal-to-metal seal

Identification clues:

• Flared nose

• Fine straight threads

• Used in heavy machinery and in agriculture

ORFS (O-ring face seal)

ORFS fittings are made for high-pressure use.

Key features:

• Face of flat sealing

• O-ring in groove

• Great leak prevention

Identification clues:

• A visible O-ring appears on the face

• Straight threads

• Flat mating surface

Metric threads

Metric fittings are commonly employed for European and Asian machines.

Key features:

• Measuring in millimeters

• Available in tapered and parallel designs.

• Common in modern equipment

Identification clues:

• Metric pitch measurement

• Sometimes, the stamps are marked with the metric size of the mark.

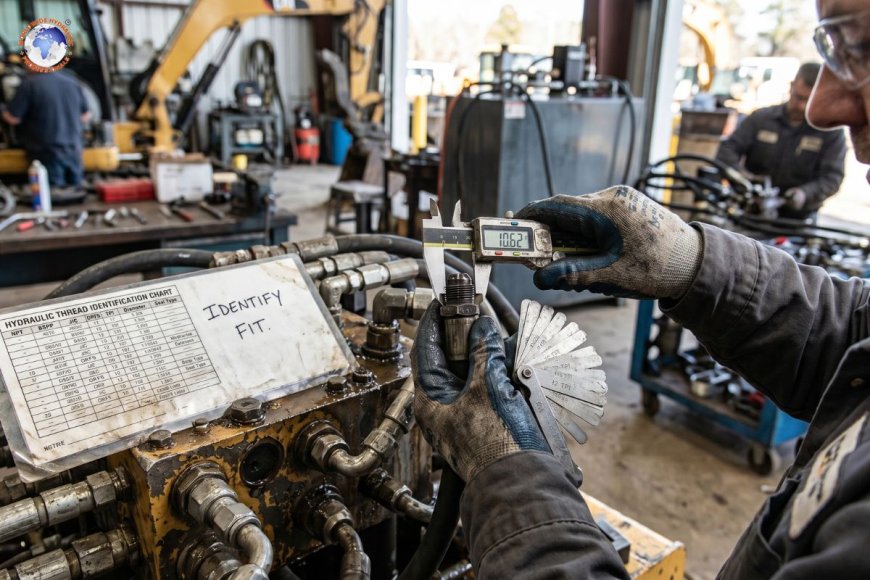

Tools needed for hydraulic thread identification

Achieving a correct identification requires fundamental tools.

1. Thread pitch gauge

The thread pitch gauge determines the length of threads.

For threads with metric dimensions:

• Measuring in millimeters

For threads with imperial dimensions:

• The measurement is in Threads Per Inch (TPI)

2. Calipers

Calipers that are manual or digital are used to measure the following:

• Outside diameter

• Inside diameter

• Dimensions of thread

Accurate measurements are crucial since even tiny differences can be significant.

3. Thread identification chart

A thread chart is a tool to compare measurements with standards that are known.

These charts can help you identify the following:

• The Thread family

• Size

• Pitch

• Seal Type

4. Visual reference guide

Diagrams and images are great to compare:

• Thread shape

• Flare angle

• O-rings placed in

• Taper characteristics

Step-by-step process to identify hydraulic threads

Step 1: Determine whether the thread is tapered or parallel

This is the very first and most crucial step.

How to check:

• Determine thread diameter at several locations

• If the diameter changes, tapered

• If the diameter stays constant—parallel

Tapered fittings typically tighten gradually.

Parallel fittings usually spin in a free manner until they're seated.

Step 2: Measure thread diameter

Make use of calipers to measure:

• Male threads' outside diameter

• Female thread with diameter inside

Take care to take a careful measurement at the largest point.

Step 3: Measure thread pitch

Utilize a thread pitch gauge to find:

• Threads/inches (imperial)

• Threads' distance (metric)

The correct pitch match is vital.

Step 4: Identify thread angle

Thread angle can help distinguish between standard threads.

Common angles:

• NPT = 60°

• BSP = 55°

• Metric = typically 60°

Special gauges and optical comparators could assist in ensuring precision.

Step 5: Inspect the sealing method

Different fittings seal in different ways.

Common sealing methods:

• O-ring seal

• Metal flare

• Flat face seal

• Thread interfering with thread

The seal's style is often revealed to reveal the appropriate family.

Common mistakes in thread identification

Assuming similar threads are compatible

Many thread types look similar; however, they're not interchangeable.

For instance:

• BSPT and NPT look identical

• However, their thread angles are different.

Incompatible threads can:

• Damage fittings

• Leaks can cause problems.

• Create dangerous pressure failures

Ignoring seal types

The fittings that seal are:

• Threads

• Flare surfaces

• O-rings

Even if threads are compatible, the wrong sealing surface can cause problems.

Measuring dirty or damaged threads

Contamination has an effect on the measurement.

Always:

• Make sure that the threads are clean and dry.

• Examine for wear or damage.

Threads damaged by damage can result in incorrect readings.

Hydraulic thread identification chart basics

Technicians frequently rely on reference charts that contain:

• Nominal size

• Thread pitch

• Major diameter

• Thread angle

• Seal Type

A clear identification chart will save time and helps reduce errors.

Tips for accurate hydraulic thread identification

Label fittings during disassembly

When you are servicing hydraulic equipment:

• Tag fittings must be fitted immediately.

• Place the pieces that are compatible together

This helps avoid confusion later.

Use proper lighting

Good lighting helps reveal:

• Thread profile

• Damage

• Taper

• O-ring grooves

Magnification tools are also helpful.

Keep sample fittings

Many workshops have a suitable reference board that contains:

• Common thread examples

• Standards that are known

• Visual comparisons

This is extremely helpful to field techs.

Consult manufacturer specifications

Manuals of equipment typically include:

• Thread standards

• Ratings of pressure

• Fittings approved for replacement

Always check when it is possible.

Differences between hydraulic and plumbing threads

The most common error is confusing plumbing fittings and hydraulic fittings.

Hydraulic systems need:

• Much greater pressure tolerance

• Sealing with precision

• Stronger materials

Plumbing fittings are not suitable for hydraulic use unless they are specifically certified.

The role of thread standards in global equipment

Different regions typically utilize different thread systems.

North America:

• NPT

• JIC

• SAE

Europe:

• BSP

• Metric

• DIN

Japan:

• JIS threads

Imported equipment often incorporates multiple specifications, thereby making identification more vital.

Modern hydraulic thread identification technology

Nowadays, many technicians employ:

• Digital thread identification applications

• Hydraulic systems with QR codes

• Automated measuring instruments

• 3D scanner equipment

These techniques enhance speed and accuracy particularly for large industrial processes.

Safety considerations

A faulty fitting for hydraulics could be hazardous.

Potential hazards include:

• High-pressure fluid injection injuries

• Hose blowouts

• Equipment failure

• Fire risks near hot surfaces

Always:

• Inspect systems prior to depressurization

• Eye protection is essential.

• Follow manufacturer torque specifications

Safety must always be the first priority.

Identifying hydraulic fitting threads correctly is a vital skill for anyone working with hydraulic systems. Because fittings come in numerous standards — including NPT, BSP, JIC, ORFS, and metric types — accurate identification requires careful measurement, inspection, and understanding of thread geometry and sealing methods.

With the right equipment, following a methodical identification procedure, and understanding the distinctions in thread specifications, engineers can avoid leaks, decrease the time of downtime, and ensure secure hydraulic operations.

If you're maintaining industrial equipment, agricultural equipment construction vehicles, or manufacturing systems, understanding the identification of hydraulic threads will help you save time, money and frustration in the end.

In hydraulics, even the tiniest thread mismatch could cause the most serious problems and correct identification is crucial to avoid these.
