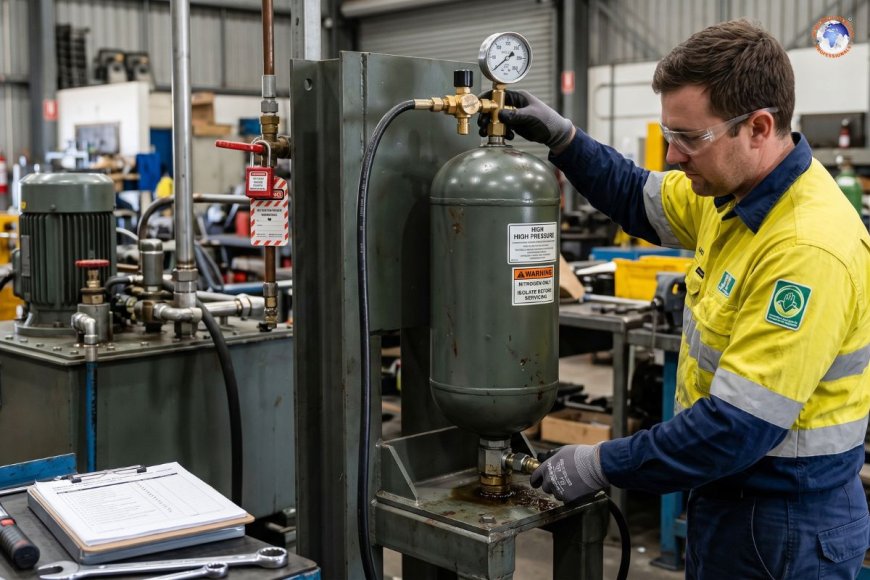

How to inspect a hydraulic accumulator for safety risks?

Hydraulic accumulators play an essential role in a wide variety of mobile and industrial hydraulic systems. They conserve energy through pressure-sensitive fluids, which help stabilize pressure, absorb shocks, and provide an emergency power source. But, since they work under high-pressure accumulation systems can pose grave safety hazards if they are not maintained properly and checked.

A malfunction in an accumulator hydraulic system isn't a mechanical issue, but it could result in catastrophic accidents such as explosions, equipment damage, and serious injuries. This is why a regular and thorough inspection is crucial. This guide offers a comprehensive procedure for inspecting hydraulic accumulators for safety hazards as well as ensuring their effectiveness and workplace safety.

Understanding the risks of hydraulic accumulators

Before you begin to look into the inspection procedure, it is crucial to comprehend the reasons why accumulators could be dangerous. They are able to store energy in compressed gases (usually nitrogen) and are separated from hydraulic fluid through pistons, bladders, or a diaphragm. If an accumulator malfunctions to function, the stored energy could be released abruptly and quickly.

Common hazards are:

• Over-pressurization
• Diaphragm or bladder rupture
• Gas leakage
• The structural and corrosion issues are a result of this.
• Incorrect installation or maintenance

Because of the risks involved, in light of these risks, inspections should not be considered as an option; they constitute a fundamental element of system security.

Types of hydraulic accumulators and inspection considerations

Different kinds of accumulators have very different inspection techniques:

1. Bladder accumulators

They are made of a flexible bladder of rubber that is filled with. They are popular, but are susceptible to bladder rupture and wear.

2. Piston accumulators

They employ the sliding piston to separate gas and liquid. They're durable, but they need to be checked for leaks and seal wear.

3. Diaphragm accumulators

They are fitted with a fixed diaphragm and are commonly employed for smaller-scale systems. Inspection focuses on the diaphragm's integrity.

Knowing what kind of accumulator you're working with will help you tailor the inspection procedure.

Pre-inspection safety precautions

Before checking any hydraulic accumulator, safety should be the priority. Take these steps to ensure safety:

• Completely depressurize the system.
  Check that both gas and hydraulic pressures are let out in a safe manner.
• Tagout/Lockout (LOTO)
  Secure the equipment to avoid accidental activation.
• Wear the appropriate protective equipment
  That includes gloves, safety glasses, and other protective clothing.
• Verify that the state is zero energy.
  Verify the valves and pressure gauges before going on.

Inadvertently ignoring these steps could transform an ordinary inspection into a potentially dangerous situation.

Step-by-step inspection process

1. Visual inspection of external condition

Begin with a thorough inspection of the exterior of the accumulator.

Look for:

• Cracks, dents, or deformation of the shell
• The signs of rust or corrosion
• Oil leakage in seals and fittings
• Broken brackets to mount

Even the smallest physical injury can weaken the structure and cause collapse under stress.

2. Check for hydraulic fluid leaks

Examine the connections, seals, and valves to ensure there is no leakage.

Leakage indicators:

• Surfaces that are oily or wet
• Dripping fluid
• Dust accumulation in the joint (often caused by dust from oil jdhb)

Leaks don't just reduce system performance, but they can also be a sign of an internal issue or failure of the seal.

3. Inspect gas pre-charge pressure

The gas pre-charge is crucial to ensure proper function of the accumulator.

Procedure:

• Utilize a suitable charging kit specifically designed for accumulators
• Check your nitrogen pressure (never utilize oxygen or compressed air)
• Compare the specifications of the manufacturer with the ones provided by the manufacturer.

The safety risks associated with a wrong pre-charge

• Too low: damage to the bladder because of the over-expansion
• Too high: less capacity for fluids and stress

Monitoring of the pressure in the pre-charge area is among the most crucial inspection tasks.

4. Examine safety devices and valves

Hydraulic accumulators are usually equipped with safety features, for example:

• Valves for pressure relief
• Shut-off valves
• Valve valves that are leaking

Check for:

• Proper operation
• Contamination or blockages
• Evidence of corrosion or wear

Safety devices that are not properly designed can cause the release of pressure, thereby increasing the danger of explosions.

5. Inspect mounting and support structures

Accumulators need to be mounted securely to withstand pressure and vibration fluctuations.

Look for:

• Fasteners or loose bolts
• Supports that are cracked or weak
• Misalignment

A poor mounting technique can cause mechanical stress and eventually failure.

6. Check for abnormal noise or vibration

During the course of system operation (if it is safe to watch), be attentive and watch for unusual behaviors.

Warning signs include:

• Sounds of banging or knocking
• Excessive vibration
• Sudden pressure fluctuations

These symptoms could be a sign of internal issues, either gas loss or fluid imbalance.

7. Internal inspection (when required)

In certain situations, particularly when scheduled maintenance shutdowns are in place, internal inspections are necessary.

This could involve:

• The accumulator must be removed from service.
• The unit can be opened (only by certified personnel)
• Inspecting pistons, bladders, or diaphragms

Look for:

• Tears or cracks in the bladder.
• Damaged seals or scoring on pistons
• Contamination within the chamber

Internal inspections must always be conducted in accordance with safety guidelines from the manufacturer.

8. Check for corrosion and material degradation

Corrosion can be a subtle but significant threat to accumulator security.

Inspect:

• Shells for the outer part to protect against pitting or rust
• Weld seams to prevent cracks
• The areas exposed to moisture or chemicals

If the corrosion is severe, the accumulator needs to be removed from service immediately.

9. Verify pressure ratings and labels

Check that all labels and markings are legible and clear.

Check:

• Maximum pressure rating
• Number of serials and certificates
• Dates for inspection and tests

Labels that are not read or understood can result in unsafe use and violations of safety.

10. Review maintenance records

Inspection is more than just physical. It also requires documentation.

Look for:

• Previous inspection reports
• Repair history
• Pre-charge pressure logs

Regular records can help you identify common problems and help predict the likelihood of failure.

Common warning signs of accumulator failure

During inspection, pay attention to the following red flags

• The need to refill gas frequently is frequent.
• Sudden drops in system pressure
• Gas contamination by oil (foaming)
• A visible deformation of the body of the accumulator
• Unusual system behavior

If any of the signs are visible, urgent action is needed.

Inspection frequency recommendations

When should you examine an accumulator for hydraulics?

General guidelines:

• Weekly/Daily: Visual checks for damages and leaks
• Monthly: Pre-charge pressure verification
• Each year: Detailed inspection and testing
• Five times every five years (or according to the standards): Pressure testing and certification

Critical or high-risk systems might require regular inspections.

Standards and compliance

Inspections of the hydraulic accumulator should adhere to accepted safety standards, such as:

• ASME (American Society of Mechanical Engineers)
• ISO standard for the pressure vessel industry.
• Local regulations

The compliance process ensures security, but also legal protection in operation and reliability.

Best practices for safe operation

To reduce the risk and prolong the lifespan of your accumulator

• Always make use of nitrogen to charge
• Avoid exceeding pressure limits
• Personnel to train in the correct handling and inspection
• Utilize high-quality components, and use replacement components
• Make sure to schedule regular preventive maintenance

An approach that is proactive can be better than reactive repairs.

When to replace an accumulator

A thorough inspection could reveal that replacing is the most secure option.

Alternate the value of the accumulator:

• Significant corrosion is present or structural damage.
• The diaphragm, or the bladder, is unable to function properly.
• It fails the pressure test
• Safety components cannot be repaired.

Continued use of a damaged accumulation device is a major risk.

Hydraulic accumulators are strong and valuable parts; they require respect and cautious handling. Regular inspection is crucial to avoiding accidents, ensuring that the system is functioning properly, and maintaining safety regulations.

Through a systematic procedure for inspection, starting with safety measures, performing rigorous functional and visual checks, and keeping accurate records, you can greatly reduce the risk of these high-pressure machines.

In the industrial environment where safety and reliability are essential, a properly maintained hydraulic accumulator is more than an element, but a crucial protection. Making the effort to conduct an inspection that is thorough today will help avoid expensive failures and potentially dangerous events in the future.
