Signs of internal leakage in directional control valves

Hydraulic systems are developed to ensure precise control and efficient power transmission. The core of these machines is the directional control valves (DCVs), which control the flow of hydraulic fluid, thereby controlling the movement of actuators. If these valves are functioning correctly, they will ensure effectiveness, accuracy, and security. But an issue that is frequent and frequently ignored is leakage inside the valve.

In contrast to external leaks, which are easily identified, internal leaks are hidden inside the valve and may cause system failure in a quiet manner. If not properly detected, it could lead to excessive heat, energy loss, as well as reduced productivity and expensive downtime. Knowing the signs of leakage within directional valves is crucial for maintenance personnel as well as engineers, operators, and technicians.

What is internal leakage?

Internal leakage is the flow of unintentionally pumped hydraulic fluid in the valve because of damage or wear to internal elements. Instead of the fluid flowing precisely to the port intended for it, some of it is able to bypass by clearings between internal components like the spool or the valve body.

A little leakage is common and is designed into the valve to serve the purpose of lubrication. However, excessive leakage is an issue that needs to be addressed.

Why internal leakage matters?

Internal leakage might not be apparent immediately. However, the effects could be substantial:

• Reducing system efficiency
• The actuator is not controlled.
• Energy consumption is rising.
• Heat generation
• Premature component wear

For critical tasks like manufacturing equipment, construction machinery, or agricultural tractors, the issues could lead to malfunctions and safety hazards.

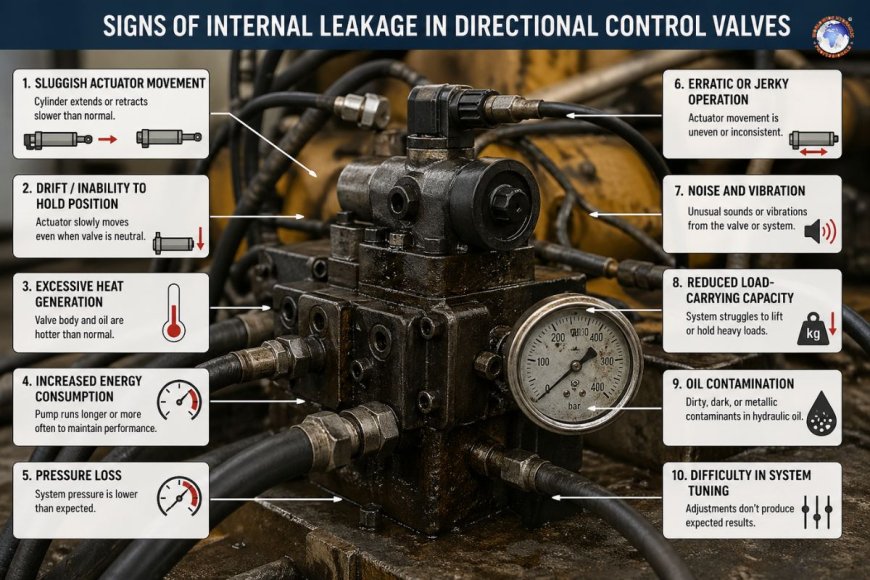

Key signs of internal leakage in directional control valves

Being aware of the signs early will help avoid major problems. Here are the most frequent indicators to be aware of.

1. Sluggish or unresponsive actuator movement

A prime indication of internal leakage could be a slow or unreliable actuator performance.

How does it work?
If the fluid leaks inside that causes pressure to be less able to reach an actuator (cylinder or motor). This means that the actuator could slow down or not reach its full speed.

Examples:
A hydraulic cylinder that was once expanded quickly is now moving slowly or becomes agitated in operation.

What causes it to happen:
Fluid bypassing the valve can reduce the flow of fluid and pressure that is delivered by the valve to its actuator.

2. Inability to hold position (drift)

The movement of the actuator is an important indication of leakage inside the body.

What happens is:
Even if it is in a closed or neutral position, the actuator moves slowly without instruction.

Example:

• A loader arm is gradually lowered as long as the lever of control is not in use.
• A press cylinder slowly retracts when under the pressure of

The reason it happens:
Internal leakage can allow fluid to move between ports, creating tension imbalance and unintentional motion.

3. Excessive heat generation

Hydraulic systems are based on the controlled movement of fluid. Leakage can disrupt the control and cause heat.

How does it work?
The leakage of fluid causes turbulence and friction within the valve, which converts power into heat.

Symptoms include:

• Unusually high temperatures for oil
• The valve body is overheated.
• The viscosity of oil decreases over time.

What is the significance of HTML0?
Overheated components cause seals to wear faster and reduce the life of the oil, and may cause damage to other parts.

4. Increased energy consumption

Internal leakage can reduce system efficiency, which makes pumps perform harder.

What happens is:
In order to keep the flow and pressure required, it compensates for the fluid loss by boosting output.

Signs include:

• Power consumption is higher.
• More fuel consumption in mobile devices
• Pump operating more frequently or continuously

Effect:
Over time, this can lead to increased operating costs and a shorter life span of equipment.

5. Pressure loss in the system

Inadequate drops in pressure could indicate leakage inside the valve.

What happens is:
A fluid traversing internal clearances lowers the pressure needed to complete work.

Symptoms:

• Pressure gauge readings are lower than what was expected.
• Inability to achieve the required strength or load capacity
• Fluctuating pressure levels

The reason it happens:
Leakage causes an alternative route for fluid, which prevents proper pressure building.

6. Erratic or jerky operation

Internal leakage could disrupt the smooth flow of fluids, leading to instability in actuator movement.

What happens is:
Instead of a steady motion, actuators can move in a jerky or in a non-linear way.

Example:

• A hydraulic arm that is moving in an uneven way
• Sudden stops and starts again in the course of operation

Reason:
Uneven pressure distribution caused by leakage can affect the stability of the flow.

7. Noise and vibration

Though it's not always apparent, internal leakage could result in unusual noises and vibration.

How does it work?
A turbulent fluid flow due to leakage triggers vibrations in the valve.

Signs include:

• Whining or hissing sounds
• Vibrations in components or hydraulic lines

What's the point?
The constant vibrations can cause mechanical fatigue and damage to the body.

8. Reduced load-carrying capacity

If a system can't keep pressure in check due to leakage, the system will be unable to sustain stress.

What happens?
It is possible that the actuator might not be able to lift or hold up heavy loads.

Example:

• A crane that isn't able to carry its rated capacity
• A press that fails to apply enough force

The reason:
Loss of pressure caused by internal leakage decreases force output.

9. Oil contamination indicators

Internal leakage is usually linked to wear, which causes pollutants.

What happens is:
Components that are worn out discharge metal particles into the hydraulic fluid.

Signs include:

• Discolored or dirty oil
• The increase in particle count in oil analysis
• Filter clogging occurs more often

What is the significance of HTML0?
A contamination causes further wear, resulting in a vicious cycle of degradation.

10. Difficulty in system tuning or calibration

Hydraulic systems require precise control. Internal leakage can upset this balance.

What happens when:
Adjustments to flow, pressure, or timing don't result in the expected outcomes.

Symptoms:

• Inconsistent behavior of the system
• Requirements for calibration are frequently needed.
• Insufficient repeatability of automated systems

The reason:
Leakage interferes with the control of circulation and pressure.

Common causes of internal leakage

Recognizing the root cause can aid in preventing and maintaining.

1. Wear and tear

In time, the spool as well as the valve body build up clearance due to friction and usage.

2. Contaminated hydraulic fluid

Dirt, debris, and metal particles can cause friction and end up damaging internal surfaces.

3. Poor lubrication

Lack of lubrication can increase friction and speed up wear.

4. High operating temperatures

Heating causes expansion of the material and degradation, which increases leakage paths.

5. Improper installation

Incorrect alignment or misalignment can cause damage to internal components.

6. Excessive pressure

When you exceed the design limit, it strains the valve and causes wear.

How to diagnose internal leakage

Finding leaks in the internal structure requires careful testing.

Visual inspection

• Look for any external indications of contamination or overheating
• Inspect fluid condition

Pressure testing

• Test the pressure at various locations
• Compare system specifications to the specifications of the computer.

Flow testing

• Examine flow rates to find the loss

Isolation testing

• The valve should be isolated and observed for the actuator's behavior

Thermal imaging

• Locate hotspots in the energy supply that signal loss of energy

Preventing internal leakage

Prevention is always cheaper than repair.

Maintain clean hydraulic fluid

Filter properly and frequently change the oil to avoid contamination.

Follow maintenance schedules

Regular maintenance and inspections can help identify the early signs of wear and tear.

Monitor operating conditions

Do not exceed the temperature or pressure limit.

Use quality components

Seals and valves of high-quality lower the risk of leakage.

Train operators

The proper handling and operation can reduce stress on the system.

When to repair or replace?

Some leaks do not require replacement immediately, but excessive leakage is a must.

Repair is possible in the following situations:

• Wear is very minimal
• Components are reconditioned
• Minor parts or seals are damaged

Replacement is required in the following situations:

• The valve body or spool is very worn
• Performance is not restored.
• Leakage can cause operational failure

Internal leakage within directionally controlled valves can be an unnoticed but serious problem with hydraulic equipment. While it isn't immediately apparent, its effect on efficiency, performance, and reliability can be significant. If you recognize the most important signs, such as slow motion, the loss of pressure, actuator drift, and overheating, you can act quickly to avoid expensive damage.

Regular maintenance, correct operation of the system, and prompt diagnostics are vital to ensure that the directional valves are operating efficiently. In the case of high-demand applications, tiny inefficiencies could lead to serious issues, which is why it's essential to be proactive.

If you can identify and address internal leakage, you will not only prolong the life span of your hydraulic parts but also ensure dependable, safe, and cost-effective performance of your system.
