What does foamy hydraulic oil mean?

Hydraulic systems comprise the foundation of modern construction equipment, as well as agricultural equipment. From excavators to production presses, these equipments depend on hydraulic oil to transfer power effectively. But when the hydraulic oil begins to foam, this indicates a problem that cannot be overlooked.

Foamy hydraulic oil isn't simply a visual annoyance. It's also an indicator of more serious issues that could compromise system performance, accelerate wear, and eventually cause equipment failure. In this thorough guide, we'll look at the meaning behind foamy hydraulic oil, why it happens, and what it does to your system, and the steps you can take to stop it from happening.

Understanding foamy hydraulic oil

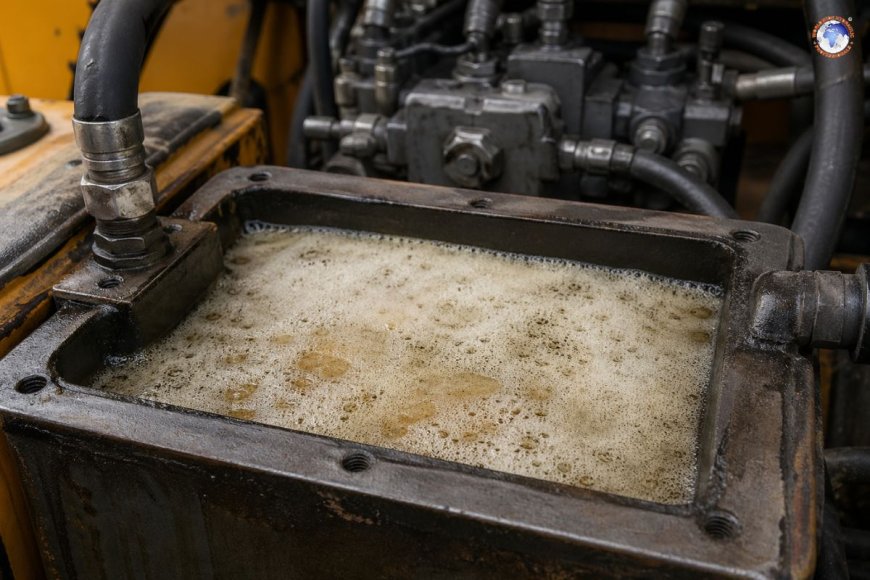

Foamy hydraulic oil is characterized by the presence of foam or air bubbles either on the surface or in the oil. It is typically the appearance of a milky or frothy coating, especially within the reservoir. While minor air entrainment may occur naturally during the process, excessive foaming is a sign of the presence of a problem that needs attention.

Two major types of air pollution can affect hydraulic oil.

• Entrained air, tiny bubbles that scattered all over the petroleum.
• free air (foam): Larger bubbles that rise to the surface, and then form foam.

Both of these forms decrease the effectiveness of the oil and may cause harm to the system's components.

Why hydraulic oil foams?

Foaming happens when air gets into the hydraulic system, and it mixes with the oil. There are a variety of factors that can cause this problem:

1. Air leaks in the system

Air can enter the hydraulic system via holes in suction lines or fittings, seals, or the pump's inlet. As opposed to leaks from oil, they are more difficult to identify as they do not leave visible evidence.

2. Low oil levels

If the level of oil in the reservoir reaches a certain point, the pump could draw in air alongside the oil. This causes turbulence and can lead to foaming.

3. Poor oil quality

Oil that is degraded or contaminated reduces its anti-foaming capabilities. As time passes, oxidation, dirt, and water contamination can affect the oil's ability to let air out.

4. Incorrect oil type

The wrong hydraulic oil, especially one with no anti-foam additives, can increase the chance of foam formation.

5. High return line turbulence

If return lines aren't correctly designed or placed, the oil could splash too much upon returning to reservoirs, capturing air and forming foam.

6. Water contamination

Hydraulic oil's water can produce emulsions that look like foam. It is usually seen as a cloudy or milky liquid.

7. Faulty system design

Incorrect reservoir design, absence of baffles, or inadequate venting could prevent air from segregating from the oil promptly.

Signs of foamy hydraulic oil

Foamy oil is generally evident, but it is important to be aware of the warning signs

• Bubbles or foams are visible within the reservoir.
• Cloudy or milky appearance of oil
• Unusual sound emanating from an engine (cavitation or knocking)
• Erratic actuator movement
• System efficiency is reduced
• Temperatures of operation increased
• Inconsistent or slow response from hydraulic components

The symptoms are often present together and can get worse If the issue isn't treated.

Effects of foamy hydraulic oil

Foamy hydraulic oils can be a serious threat to the performance of your system and its longevity:

1. Reduced lubrication

Air can reduce the capacity of oil to lubricate moving components, increasing friction and wear.

2. Cavitation damage

Air bubbles can break up under pressure, which can cause cavitation. This causes erosion and pitting of the metal surfaces, particularly in valves and pumps.

3. Overheating

Foamy oil is less efficient in heat transfer, which causes the system to overheat faster.

4. Loss of hydraulic efficiency

Air is compressed more than oil, which results in slow or spongy system responses.

5. Increased oxidation

Exposure to air speeds up oxidation, which reduces the quality of oil and causes dangerous deposits.

6. Component failure

Foaming that persists for a long time can cause damage to seals, pumps, and valves, resulting in expensive repairs or downtime.

How to diagnose foamy hydraulic oil?

The identification of the source of foaming is essential for successful troubleshooting. Here are some suggestions to take:

1. Visual inspection

Inspect the reservoir for bubbles, foam, or discoloration. Observe oil behavior during operation.

2. Check oil level

Check that the oil level is at the recommended level. A low level of oil is among the most straightforward reasons to fix.

3. Inspect for leaks

Take a look at fittings, suction lines, and seals to identify air leaks.

4. Test oil quality

Conduct an oil analysis to look for any signs of contamination, viscosity fluctuations and depletion of additives.

5. Monitor temperature

Temperatures that are too high can lead to foaming and may indicate other issues.

6. Evaluate system design

Examine the size of the reservoir, return line location, and airflow. Poor design may need modification.

How to fix foamy hydraulic oil

If you can pinpoint the root of the issue, take corrective action to improve system performance:

1. Eliminate air leaks

Fittings should be tightened, replaced with new seals, and the connection should be checked.

2. Maintain proper oil levels

Fill the reservoir up with the recommended amount of water using the appropriate hydraulic oil.

3. Replace contaminated oil

If the oil has degraded or is polluted, flush it out and then replace it. If necessary, flush the system.

4. Use the correct oil

Always use manufacturer-recommended oil with proper anti-foam additives.

5. Improve the return line design

Make sure return lines drain at a distance below the surface of the oil to reduce turbulence.

6. Install or repair baffles

Baffles within the reservoir assist in removing air from oil and help reduce foaming.

7. Remove water contamination

Replace or use dehydration systems to remove oil if the water contamination is very severe.

Preventing foamy hydraulic oil

Prevention is better than treatment. Use these tips to prevent foaming problems:

Regular maintenance

Conduct routine inspections and maintenance of hydraulic systems.

Oil analysis programs

Examine the condition of oil on a regular basis to spot early signs of degradation or contamination.

Proper system design

Make sure that the reservoirs are properly sized and have vents and baffles.

Use high-quality oil

Choose a quality hydraulic oil that has strong anti-foam qualities.

Keep the system clean

Keep dust, moisture, and air from getting into the system.

Train operators

Train operators to spot early indications of foaming and notify them of any problems promptly.

Real-world example

Imagine a construction company that is experiencing unsteady performance from excavators. On inspection, technicians found foamy oil inside the reservoir. The investigation further discovered a leaky suction line fitting that allowed air to get into the system.

When the fitting was tightened and the degraded fluid and foam dissipated, the system's functionality returned to normal. This case illustrates how an issue that appears to be minor could cause major problems in the event of neglect.

When to seek professional help?

Although many problems with foaming can be solved with simple maintenance, some situations require expert assistance:

• Foaming that is persistent despite corrective measures
• Complex system design problems
• Acute contamination or damage to the component
• Pump failures repeatedly

In these instances, it is recommended to consult a hydraulic expert. can help you save time and avoid costly errors.

The presence of foamy hydraulic fluid is an indication that something is wrong with the hydraulic system. It could be caused by air leaks, contamination, or improper maintenance; it shouldn't be overlooked. Foam can cause problems with the efficiency of lubrication, decrease efficiency, and increase wear, leading to failure of the system.

By identifying the root cause and symptoms and taking swift corrective actions, you will be able to keep your equipment safe and make sure that it runs smoothly. Regular maintenance, correct oil selection, and a keen eye to system design are crucial to prevent foaming and prolong the lifespan of the hydraulic equipment.
