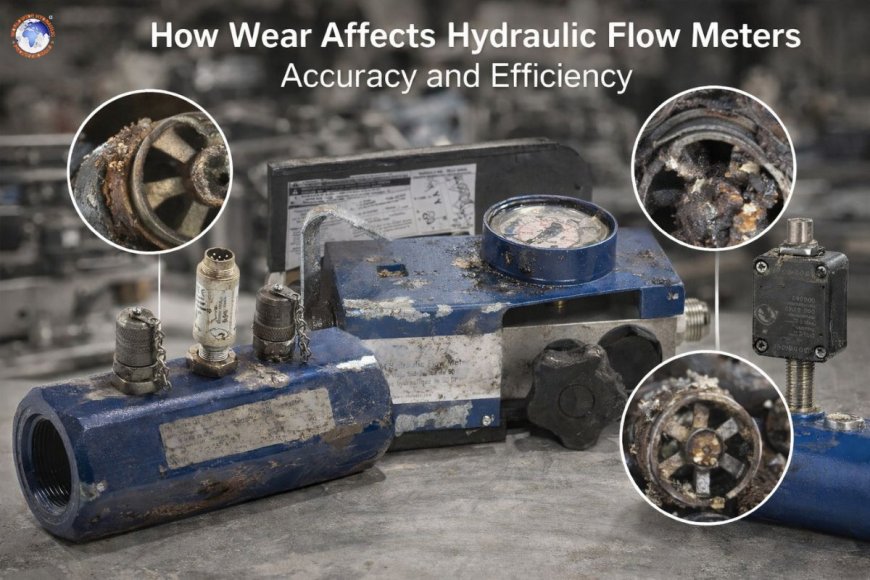

How wear affects Hydraulic Flow Meters accuracy and efficiency

These flow meters are an essential function in monitoring the performance, control, and optimization of hydraulic systems in industries like construction, manufacturing, oil and natural gas, energy generation, and mobile machines. Accurate flow measurement is essential to ensure reliability, efficiency of the system, energy efficiency, component protection, and high-quality performance. Like any electronic or mechanical component working under extreme pressure as well as in varying temperatures and fluids that are contaminated Hydraulic flow meters are susceptible to wear as time passes.

The wear may appear to be gradual and not noticeable initially. However, the cumulative effect could seriously affect the accuracy of flow meters and the efficiency of the system. If not addressed, wear and tear on flow meters could result in incorrect diagnosis and excessive energy consumption, damage to components, and expensive downtime. This article examines the process of wear that develops in flow meters for hydraulics and how it affects the accuracy of measurement and efficiency, warning signs to look out for, and the best practices to reduce its impact.

Knowing Hydraulic Flow Meters

Hydraulic flow meters determine the amount or volume of hydraulic fluid that flows through a system during the period of period of time. They are crucial for commissioning the system and troubleshooting, as well as monitoring performance, and for preventive maintenance.

The most common types of flow meters for hydraulic include:

• Measurements of flow in the gear

• Turbine flow meters

• Meters for paddle wheels

• Positive displacement meters

• Ultrasonic flowmeters

• Coriolis mass flow meter

Every type is based on internal mechanical motion as well as electronic sensing or measuring principles based on acoustics. This means that different wear mechanisms impact each design in different ways.

What is the reason for wear In Hydraulic In Flow Meters?

The wear in hydraulic flow meters is mostly caused by operating conditions and the quality of the fluid. The most frequently cited contributors are:

1. Fluid Contamination

Particles like metal shavings, dirt, sand, and damaged seal materials circulate in hydraulic fluid. These substances erode internal components, particularly on meters that contain moving parts.

2. A high Operating Pressure, Flow Rate, and High Operating Pressure

The repeated exposure to high pressure and speed accelerates the erosion of internal surfaces and bearings.

3. Temperature Extremes

Thermal cycling triggers material expansion and contraction, which weakens seals, housings, and electronic components as time passes.

4. Chemical Degradation

Additives, moisture, or other incompatible fluids may damage internal components as well as sensors.

5. Mechanical Fatigue

Continuous operation causes fatigue of rotating shafts, parts, and bearings, decreasing their performance and precision.

How wear affects flowmeter Accuracy

Accuracy is the most important performance metric used by flow meters for hydraulics. Wear and tear directly affect the ability of the instrument to precisely measure flow.

1. An Increased Internal Leakage

In gears as well as positive displacement flowmeters, the clearances are controlled. As wear builds up, these gaps increase and allow fluid to flow through measurement chambers. This leads to under-reporting of the actual flow, in particular when flow rates are lower.

2. Sensitivity is reduced for moving components.

The turbine and paddle wheel meters rely on free movement. Wearing shafts or bearings can cause friction, leading to delayed or even non-existent rotation. The sensor records fewer pulses, which can lead to incorrect readings.

3. Sensor Drift as well as Signal Degradation

Electronic sensors and transducers deteriorate as time passes due to vibration, heat, and electrical stress. This could cause signals to drift, inconsistencies in output, or inaccurate data that is inaccurate in describing the actual flow conditions.

4. Calibration Deviation

Wear alters the internal design of the flow meter, resulting in an invalid factory calibration. Minor dimensional adjustments can result in serious measurement mistakes.

5. Flow Profile Distortion

Internal surfaces that are eroded disrupt laminar flow, causing turbulent flow that can affect the accuracy of measurements, particularly in ultrasonic and turbine meters.

The effects of wear on Hydraulic System Performance

Beyond accuracy in measurement, wear-resistant flow meters can affect the overall efficiency of hydraulic systems.

1. Incorrect System Adjustments

Operators rely on flow meter information to set the parameters of valves, pumps, and actuators. Inaccurate readings can result in inadequate settings, leading to loss of energy, overheating, or slow system response.

2. More Energy Consumption

The flow that is not reported correctly could cause operators to increase the output of their pumps in excess, using more power and increasing wear on other parts.

3. Delayed Fault Detection

The worn-out meters can mask issues like internal leakage or pump inefficiency valve issues, allowing the issue to worsen prior to detection.

4. Process Quality is reduced

In high-precision applications such as the injection mold or testing bench, incorrect flow data can affect the reliability and quality of the product.

5. More expensive maintenance costs

False information leads to unnecessary replacement of parts or the failure to service components that actually require attention, which increases maintenance costs.

Wear Impact Measured by the Flow Type of Meter

Different designs of flow meters experience wear differently

Gears and Positive Displacement Meters

• Newly developed and highly accurate.

• Highly sensitive to contamination

• Leakage causes wear and decreases low-flow precision.

Turbine Flow Meters

• Bearings are the main wear point.

• Performance decreases quickly when contamination of the fluid occurs

• At risk of damage caused by overspeed

Flow Meters for Paddle Wheels

• Simple and affordable

• • prone to mechanical fatigue as well as corrosion

• The accuracy decreases significantly as you wear

Ultrasonic Flow Meters

• There are no moving parts

• More unaffected by wear and tear

• Signal degradation can affect the quality of the signal.

Coriolis Flow Meters

• Extremely precise

• Resistant to contamination-related wear

• Costly and sensitive to stress and vibration

Warning: The signs of wear on the flowmeter

The early detection of wear and tear could prevent system problems from becoming serious. Signs of wear include:

• Instability or fluctuating flow readings

• Gradual deviation from the expected flow values

• A higher pressure drop across the meters

• The response time to flow changes is delayed.

• Unusual sounds or vibrations

• Requirements for frequent calibration

If you ignore these warnings, it could cause a number of mistakes to be repeated and damage to the equipment.

Prevention and Maintenance Strategies

Preventive maintenance is the most effective method of reducing problems related to wear in flow meters for hydraulics.

1. Maintain Fluid Cleanliness

Install proper filtration and monitor the level of contamination. Clean fluid significantly extends the life of the meter and improves accuracy.

2. Schedule Regular Calibration

Recalibration periodically helps detect wear-related issues earlier and improves the accuracy of measurement.

3. Monitor Operating Conditions

Beware of exceeding the rated flow, pressure, and temperature limit. Stress from thermal and speed increase wear.

4. Select the right Meter for the application

Choose flow meters specifically designed for your specific fluid type, level of pollution level, and operating conditions.

5. Monitoring of Implementation Condition

Utilize trend analysis as well as digital diagnostics to follow the subtle changes in flow behavior over time.

6. Replace damaged components immediately

Seals, bearings, and sensor elements must be replaced before any failure that affects the system's performance.

The role of Digitalization and Smart Flow Meters

The latest hydraulic flowmeters have a tendency to incorporate self-diagnostics and smart sensors as well as digital communications protocols. These devices help in reducing wear through:

• Automatically detecting the signal's drift

• Notifying operators of problems with calibration

• Historical performance data recording

• The ability to use proactive maintenance strategies

While digital meters don't eliminate wear, they can reduce the operational impact.

Conclusion

Wear and tear are normal occurrences in flow meters for hydraulic fluids. However, its impact on efficiency and accuracy can be mitigated with proper knowledge and proper maintenance. As the internal components wear out, the flow measurement becomes less reliable, resulting in an inefficient operation, a rise in power consumption, and more maintenance costs. By noting wear mechanisms, keeping track of indicators for wear, and implementing proactive maintenance plans, companies can ensure the accuracy of measurement and prolong the lifespan of the hydraulic system.

In a world where efficiency, durability, and reliability are essential, ensuring accurate flow measurements for hydraulics is no longer an option but crucial. Investing in the best technology for flow meters, along with fluid cleanliness and monitoring of condition practices, will ensure that wear doesn't silently affect the system's performance.
