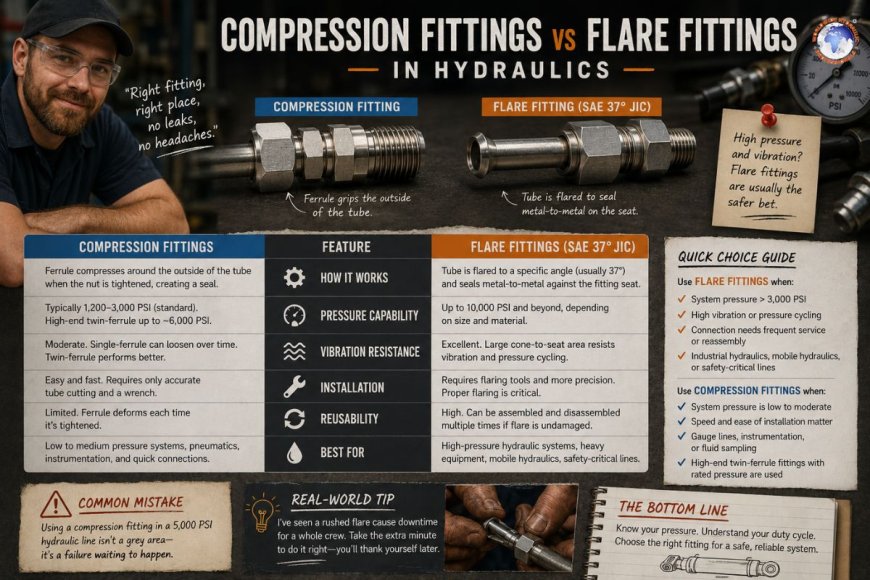

Compression fittings vs flare fittings in hydraulics

If you've worked with hydraulic systems, whether they're heavy machinery, industrial fluid lines, or high-pressure equipment, you've probably faced the question. One of the more popular choices is compression fittings as well as flare fittings. They look remarkably identical at first glance. Both are leak-proof connections. Both are easily accessible. However, if you use the wrong one in a hydraulic circuit with high pressure, you'll end up having a poor day.

This article explains the ways each one performs, the areas where each one shines, where it is a failure, and how to determine which one is the best fit for your setup.

What are the compression fittings that work?

A compression fitting forms an airtight seal by mechanically forming the ferrule (sometimes known as a sleeve, or olive) around the exterior of the tube while it is tightened by the fitting's nut. When you tighten the nut, the ferrule is pushed into the tube's wall and into the body of the fitting and creates a metal-to-metal grip and seal that does not require any modifications to the tube's end.

This is the most important benefit for the tube: it requires no prep other than being cut precisely and squarely. There is no flaring tool, no special dies, and no exact tube-end geometry. Slide on the nut and slide it onto the ferrule to insert the tube and then tighten.

Compression fittings come in single-ferrule and twin-ferrule styles. Twin-ferrule designs (common in instrumentation-grade fittings from brands like Swagelok or Parker CPI) use a back ferrule to grip and a front ferrule to seal, providing better vibration resistance and pull-out strength. Single-ferrule designs are less complicated and more affordable, often used in lower-pressure plumbing as well as pneumatic systems.

What are the functions of flare fittings?

Flare fittings use the opposite approach. Rather than forming a ferrule, they require that you mechanically flare the tube's tip outwards at a specific angle—typically around 37° (SAE/JIC standard) as well as 45° (British/DIN or the AN/aerospace standard). The flared cone is secured between the body of the fitting with the flare nuts to create an extensive metal-to-metal seal surface.

The geometry of the flared fitting is structural. The cone spreads load over an extensive area. This is the reason flare fittings have their superior resistance to pressure and vibration. Because the seal is dependent on the way in which the flare is paired to the seat of the fitting, the design and quality are crucial. A flare that is not properly made—cracked, wrinkled, or off-angle—could be an open leak that is waiting to happen.

Flaring requires specific equipment that includes a flaring bar to secure the tube and a flaring tool to make the cone. The best flaring tools aren't costly, but the expertise and diligence required to create clean flares shouldn't be overlooked.

Pressure performance: The most important difference

This is the place where the two types of fluids diverge the most strongly, and it is crucially important in hydraulics.

Flare fittings, particularly SAE 37 deg (JIC) flare fittings, are designed for hydraulic service at high pressure. JIC fittings are typically used for working pressures that go up to 10,000 PSI depending on the tube's size and the material. The wide contact area of flare cones ensures they are able to withstand both static pressure and dynamic pressure conditions such as surges and spikes, which are normal in hydraulic circuits that are driven by actuators and pumps.

Compression fittings, however, typically are suited to low and medium pressures. Compression fittings that are standard in materials typically have ratings within the range of 1,200-3,000 PSI depending on the size of the tube and the material used, as well as the manufacturing. High-quality instrumentation-grade twin-ferrule compression fittings can reach higher ratings, but they remain broadly outpaced by flare fittings when it comes to the pressure levels typical in mobile hydraulics, industrial hydraulics, or heavy equipment.

It doesn't mean that compression fittings are less effective in the strict sense, but it does make the wrong choice for situations in which they'll be stressed. A compression fitting used in a 5,000 PSI hydraulic circuit doesn't constitute a grey area. It's a sign of failure.

Resistance to fatigue and vibration

Hydraulic systems rarely remain static. Pumps are pulsed. Actuators rotate. The equipment vibrates. In time this cyclic load wears out connections and may cause cracking or loosening.

Flare fittings are the best in this. The large cone-to-seat area implies that the fitting does not rely only on thread friction alone for sealing. Metal-to-metal contact is able to distribute stress and resist the micro-movement caused by vibration. SAE as well as AN flare fittings can be utilized in heavy mobile and aerospace equipment because of their durability.

Compression fittings—particularly single-ferrule designs—are more prone to loosening caused by vibrations. The ferrule grip, although sturdy against pull-outs, can allow micro-rotation in the presence of sustained vibration, which eventually backs away from the sealing. Twin-ferrule designs are more effective in this respect, however in high vibration environments flare fittings are the most reliable option.

Installation: Ease vs Precision

Compression fittings have the advantage of ease of installation. The tube is prepared with the simple cutting. The only tool required is the use of a wrench. Anyone with some mechanical skills is able to make a reliable compression fitting connection in a short time. This makes them suitable for situations in which the time is important and the pressures required are within their capabilities.

Flare fittings require a greater amount of preparation and expertise. The tube has to be cut squarely, deburred, and then flared according to the proper angles and the proper depth. The flare should be checked for any flaws prior to assembly. When done properly, it will result in an extremely reliable and high-performance connector. If you do it wrong—like a flare that is rushed using a poor tool—the result is a cone that appears to be correct but fails to seal properly and could fail when pressure is applied.

Reassembly is a possibility. Compression fittings are typically removed and reassembled a certain number of times (the ferrule deforms during assembly and is not able to be restored completely). Flare fittings are able to be assembled and disassembled multiple times in the event that the flare is not damaged, making them more dependable for situations that require frequent disconnection.

Fluid compatibility and material compatibility

Both fitting types are offered in a wide range of materials, including stainless steel and steel brass, as well as, in certain instances, exotic alloys that are suitable to deal with corrosive media. Stainless steel is widely used for sanitary and instrumentation purposes. Zinc-plated steel and carbon steel dominate industrial hydraulics.

Fluid compatibility depends on the material used more than fitting style. It is important to note that for high-pressure hydraulic oil service carbon-steel JIC flare fittings constitute the standard. In hydraulic systems that deal with water-glycol fluids or phosphate ester fluids or other aggressive chemicals, selecting the appropriate material demands more care, regardless of the style of fitting.

The bottom line is when to make use of each

Utilize fittings for flares (SAE 37deg/JIC) for the following situations: :

• System pressure exceeds 3,000 PSI
• The application is characterized by significant vibrations or pressure cycling.
• You require an internet connection that is able to be serviced and rebuilt multiple times
• You're working with industrial hydraulics, mobile hydraulics circuits or other safety-critical pressure lines

Make use of compression fittings only when:

• The pressure in the system is moderate (low-pressure pneumatics, hydraulics, and instrumentation lines)
• Speed and ease of installation are important factors.
• It's time to work on gauge connection lines for fluid sampling or instrument tubing
• The most high-end twin-ferrule instrumentation fittings are designed with pressure ratings confirmed

The relationship of these types of hydraulics is very narrow. For the majority of hydraulic circuits—the type that move motors, driving cylinders as well as controlling motors that are under loads—flare fittings provide the best solution. Compression fittings are a valid position in the wider fluid handling industry, but using them as compatible with flare fittings in high-pressure hydraulics is a mistake that systems engineers and skilled technicians are prone to steer clear of.

Be aware of your pressures. Learn your operating cycle. Select your fittings according to the duty cycle.
