What filtration requirements are critical in power packs?

The critical filtration process in a power pack demands matching the micron values of the filter to the most sensitive part within the circuit (typically proportional valves or servos with a sensitivity of 3-5 microns), placing filters properly between suction, pressure returns, and suction lines. confirming beta ratios of 200 or more to ensure a reliable control of contamination and keeping target ISO 4406 cleanliness codes throughout the system and reservoir. Incorrectly placed or oversized filtration is among the main reasons for premature wear of the pump or valve sticking. It can also lead to unexpected power pack failure.

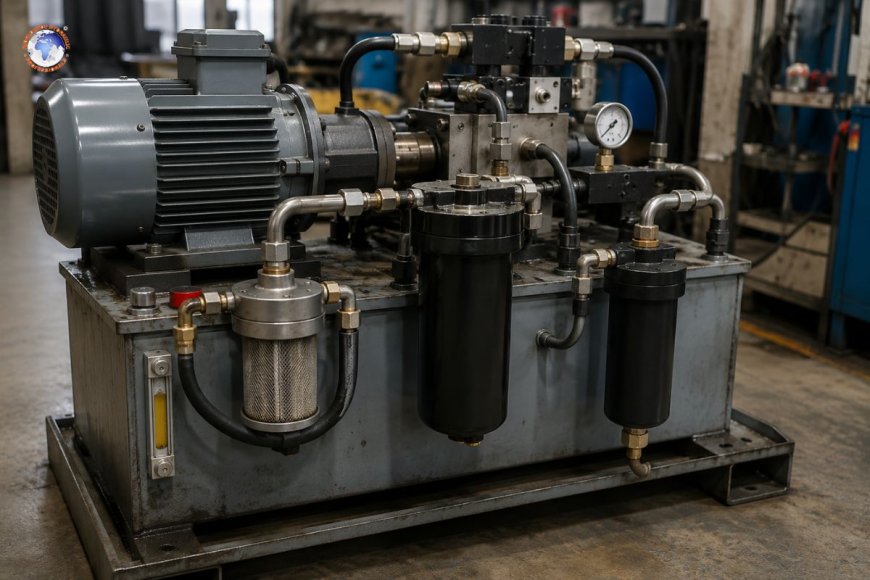

A power pack that is the self-contained motor, pump, and reservoir as well as the valve that supplies hydraulic power to machines is only as solid as the fluid that flows through it. The presence of contamination doesn't signal it by flashing a warning light. It can be detected months later in the form of a scuffed bore on a cylinder, a sticking spool, or a pump that suddenly stops working at a volumetric level. Filtration is the silent system that can prevent all of this from happening, and a mishap is among the most frequently made and expensive errors in the design of power packs.

What is the reason that filtration is not a requirement within power packs?

Contrary to a hydraulic system that spreads across a massive machine, which has numerous reservoirs and components, the power pack consolidates the pump, valves, and reservoir for fluid into a compact unit. This compactness can have consequences. It is more likely to build up heat; the fluid volume is typically smaller relative to flow Any contamination that is introduced will have a shorter time to spread before it gets the threshold of clearance.

Clearances in precise hydraulic equipment are measured using microns. A servo valve's spool-tosleeve clearance could be as precise as 1 micron. The internal clearances of a piston pump generally fall in that 0.5-5 millimeter range. One unfiltered particle within the same size range, moving frequently through a closed-loop power pack, can cause the wear to be cumulative with each passing, which is the reason filtering specifications shouldn't be added on as an afterthought and bolted onto the final design.

The three filtration zones found in a power pack.

Suction line filtration

Suction filters are located in between the reservoir as well as the pump's intake to protect the pump from ingestion of large debris, rust, or contamination of the assembly. The downside is the pressure drop. Too small a suction filter could cause cavitation of the pump, particularly in situations of cold start when the viscosity is high.

The majority of power pack designs use a suction strainer that is coarser (typically around 100 to 150 micron nominal) coupled with more fine filtration downstream, rather than attempting to achieve fine filtration through a suction outlet. Suction strainers must include an escape route or be constructed amply to ensure that they do not restrict flow when they are loaded with debris. A partly clogged suction strainer is a typical, but undiagnosed, source of noise cavitation from pumps.

Pressure line filtration

Pressure filters, which are installed in the downstream area of the pump, guard the most delicate downstream components, including proportional valves and valves for servos as well as precision cylinders. Since the pump has already raised pressure at this point, the housings of the filters should be designed to handle full system pressure. Also, the filter elements must be strong enough to prevent falling apart under differential pressure spikes.

Filtration by pressure line is the area where the beta ratio is most important. A filter that has the beta ratio that is 200 millimeters (written by b10 as 200) =) gets rid of 199 of 200 particles 10 microns and greater. Power packs that feed proportional valves or servo valves the target of 5-10 >200 is a good starting point for directional valves that are less sensitive. Circuits typically accommodate b15-20 > 200.

Return line filtration

Return filters capture the contamination that is generated within this system—wear particles from valves, cylinders, and the pump itself—and then allow it to re-enter the reservoir. This is perhaps the most crucial filtration element to ensure long-term cleanliness since it blocks internally generated wear particles from circulating back into the system.

Return filters usually have a smaller part than the suction strainers (10-25 microns nominally is typical) and must include a bypass valve that has an indicator. This is so that the loader doesn't filter fluid that isn't filtered back to the tank without notifying the user.

Filtration matching to ISO cleaning codes

The filter selection must always go back to an ISO 4406 cleanliness code, not merely a micron value selected by a whim. This ISO code (expressed in three numbers, like 18/16/13) gives the particle count per milliliter at three sizes (>=4 microns + 6 microns, 14 microns, or more).

Component manufacturers release minimum cleanliness standards for their valves and pumps.

• Fixed displacement gear pumps that typically can withstand ISO 20/18/15.
• Piston pumps: typically require ISO 18/16/13 or better
• Proportional valves are typically required ISO 17/15/12
• Servo valves: usually require ISO 16/14/11 or more sturdier

A power supply designed for a system that has servo valves but with a return line filtration that is designed for the basic gear pump circuit is likely to get dirtier than the valve's servo can endure, whatever the design is carried out. The filtering specifications should begin by determining the component with the highest requirements for cleanliness and then work backwards to determine the micron rating of the filter as well as beta ratio.

Redundancy and filter placement considerations

In addition to the 3 zones mentioned above, there are a few design elements that distinguish a properly filtered power pack from one that is not:

• Off-line (kidney-loop) filtering For power packs that are able to support machines with high value or for precision applications An independent loop of filtration recirculation—continuous regardless of the machine's cycle—continuously polishes the reservoir fluid and helps attain levels of cleanliness that are difficult to achieve using only in-line filtration.
• Filter housing indicators Pressure gauges that are differential and electronic indicators for clogging ought to be a standard feature for return and pressure filters, providing maintenance teams an information point rather than an estimate of intervals for changing.
• Breather filtration: Reservoir-air breathers are usually not considered. A breather cap that is vented could be a major source of contamination through humid or dusty air. Desiccant breathers that are rated to be at or below 3 microns can be worth the additional cost for any power source running in a secluded setting.
• Filtration of the fill port A new oil does not always clean. Filtration at fill (or filtering the new liquid through carts prior to it being able to enter the reservoir) protects the power pack from being contaminated after day one.

Common filtration errors in the design of power packs

The most common mistakes that are discovered in the field are the under-sizing of suction strainers in order to reduce space; indicating return filters on the basis of price rather than the cleanliness codes downstream valves really require; omitting bypass indicators so the load of filters is not noticed; and not focusing on the quality of the reservoir breather. Each of these errors is cheap to rectify in the initial design phase, but costly after an engine or valve has failed.

Filtration isn't a singular element that can be bolted on to the power pack—it's a strategy for the entire system covering suction, pressure, and return circuits that are matched to the requirements for cleanliness of the component with the highest sensitivity in the system. Power packs that supply proportional valves or servo valves require significantly tighter filtering than those that run fundamental directional controls, and this requirement should guide filter selection right from the initial design phase, rather than being reverse-engineered following a failure. Making sure that you have suction sizing, pressure line beta ratios, return-line positioning, and breather performance early is generally less costly than repairing a failed pump or sticking valve later.

What micron count is the best for a hydraulic powerpack filter?

It's all about the most sensitive element within the circuit. Basic directional valve systems generally operate with 20-25 microns of filtering, while proportional valves generally require 10 microns of filtration. Likewise, most servo valve systems require 3 to 5 microns of absolute filtering.

What is the beta ratio in hydraulic filtering?

The beta ratio is a measure of the effectiveness of a filter in taking in particles of a certain size. The beta value of 200 at a micron (b₁₀ equals 200) indicates that the filter can remove 199 of 200 particles of size equal to or greater than it in a single run.

Where are the appropriate filters to be put in an energy pack?

The majority of power packs have three zones of filtration A suction strainer with a coarse size that protects the pump's intake and a pressure filter to protect valves downstream and a return filter collecting wear debris prior to when it is allowed to return to the reservoir.

What is the frequency at which the power pack filters are replaced?

Change intervals should be determined based on differential pressure indications instead of fixed time schedules since the actual load on the filter is based on levels of contamination, the ingress rate, duty cycle, and environmental conditions, not calendar time and calendar time alone.

Is a suction filter too small?

Yes. Suction filters that are too fine cause a rise in pressure at the pump's inlet and may cause cavitation, especially during cold starts in which the viscosity of fluid is high. Suction filtering is usually more coarse, while finer filtration is being handled downstream.
