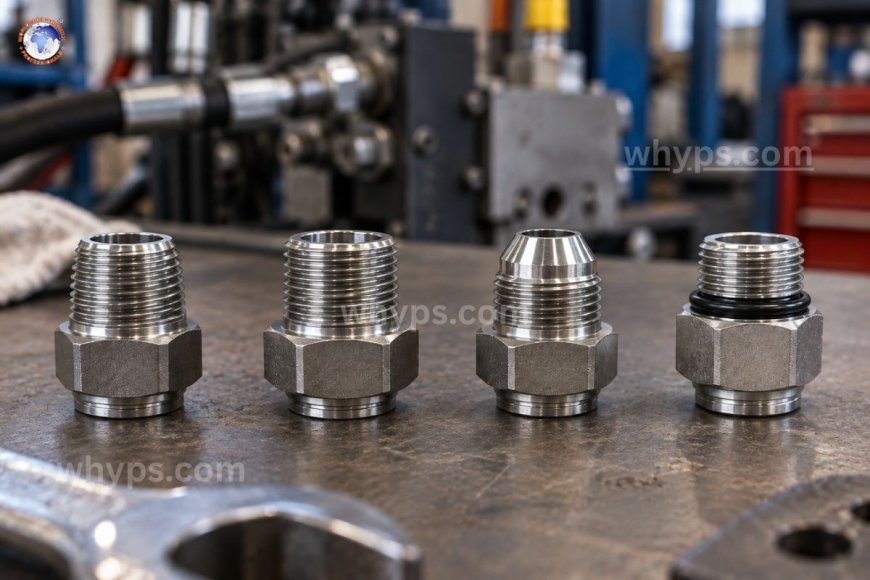

NPT, BSP, JIC, and SAE fittings: what’s the difference?

NPT, BSP, JIC, and SAE are four different fitting standards distinguished primarily by thread angle, sealing method, and country of origin—NPT and BSP seal via tapered threads, BSPP and SAE seal via O-rings on parallel threads, and JIC seals via a 37° metal-to-metal flare, so mixing them without adapters causes leaks or thread damage even when sizes appear to match. Hydraulic systems fail more often at the connection than anywhere else in the circuit, and thread confusion is a leading cause. A fitting that "almost fits" is often the most dangerous kind, because it can be forced together enough to hold pressure briefly before it weeps, then fails. Understanding what separates NPT, BSP, JIC, and SAE fittings—and where each belongs—prevents that failure mode before it starts.

Why do fitting standards exist?

Different regions and industries developed their own thread and sealing conventions long before global equipment supply chains made cross-compatibility a daily concern. American manufacturing standardized around NPT and, later, SAE and JIC. British and European manufacturing standardized around BSP. Neither system is objectively superior; they simply solve the same problem—a leak-tight, vibration-resistant connection—with different geometry.

The practical consequence is that a hydraulic technician working on mixed-origin equipment (a European pump paired with an American cylinder, for instance) will regularly encounter all four standards on the same machine.

NPT (National pipe taper)

NPT is the standard American tapered pipe thread, defined by ANSI/ASME B1.20.1.

How it seals: NPT threads are tapered on both the male and female sides. As the fitting is tightened, the taper causes increasing thread interference, and the threads themselves deform slightly to create the seal. Because metal-to-metal thread contact alone is not fully reliable at higher pressures, NPT fittings are almost always installed with thread sealant or PTFE tape.

Where it's used: Ports on pumps, valves, and cylinders, low- to mid-pressure hydraulic and pneumatic lines, and general industrial piping in North America.

Watch out: Over-tightening NPT fittings can crack cast housings, since the tapered thread keeps advancing and generating stress even after the seal is achieved. NPT should never be paired with NPS (National Pipe Straight) threads for a pressure seal—NPS threads are used for mechanical fastening only, not sealing.

BSP (British Standard Pipe)—BSPT and BSPP

BSP splits into two distinct variants that are easy to confuse because they share a thread form but seal completely differently.

BSPT (tapered): Functions much like NPT—the taper itself creates the seal, typically assisted by thread sealant. BSPT and NPT threads look similar but are not interchangeable; the thread angle and pitch differ enough that forcing them together strips threads or leaves a connection that leaks under pressure.

BSPP (parallel/straight): Uses a straight thread with a bonded washer or O-ring at the base of the male fitting, or a captured O-ring boss, to create the seal. The threads themselves provide mechanical strength and alignment; the elastomer does the sealing. This is a more reliable, more repeatable seal than a tapered-thread connection, and it's why BSPP shows up frequently in higher-pressure European hydraulic equipment.

Where it's used: BSPT and BSPP dominate hydraulic and pneumatic equipment manufactured in the UK, Europe, Australia, and much of Asia. Import machinery commonly arrives with BSP ports even when the rest of the hydraulic system is otherwise built to American standards.

JIC (Joint Industry Council) 37° flare

JIC is a flare-style fitting rather than a straight-thread or tapered-thread design.

How it seals: The male fitting has a 37° flared cone that mates directly against a matching 37° flare on the female fitting. There's no thread sealant or elastomer involved—the metal-to-metal contact at the flare face is the seal, and the straight thread behind it exists purely to draw the two flares together under clamping force.

Where it's used: JIC is the dominant standard for hydraulic hose ends and tube fittings in North American mobile and industrial hydraulics, especially wherever the connection needs to be disassembled and reassembled repeatedly without degrading the seal. Because there's no sealant to renew or elastomer to replace, JIC connections are popular for serviceable, high-pressure lines.

Watch for: JIC fittings look similar to SAE 45° flare (an older automotive standard) and to metric 24° cone fittings used in some European equipment. The angle difference is subtle to the eye but will not seal correctly if mismatched, and forcing a 37° flare against a 24° cone typically damages both flare faces.

SAE straight thread (O-ring boss)

SAE fittings, standardized by the Society of Automotive Engineers, most often refer in hydraulics to the SAE J1926 O-ring boss (ORB) port and the corresponding straight-thread fitting.

How it seals: Like BSPP, SAE ORB uses a straight thread with an O-ring—in this case seated in a groove on the male fitting—that compresses against the machined boss face or a chamfer in the port. The thread itself carries the mechanical load; the O-ring carries the seal.

Where it's used: SAE ORB ports are extremely common on American-made pumps, motors, valves, and manifolds, frequently paired with a JIC flare or an O-ring face seal (ORFS) fitting on the hose side. It's worth noting that "SAE" sometimes also refers to SAE 45° flare fittings, a legacy automotive/low-pressure standard distinct from ORB—always confirm which SAE variant a spec sheet means.

Watch for: SAE ORB threads can be close enough in size to metric straight threads that a mismatched fitting will start to thread in before binding—a strong sign to stop and check the standard rather than force it further.

Quick comparison

How to identify an unknown fitting in the field?

1. Check the thread profile. Run a fingernail or thread gauge along the male thread—if it visibly tapers toward the tip, it's NPT or BSPT. If it's uniform diameter along its length, it's BSPP, JIC, or SAE.
2. Look for a flare. A straight-thread fitting with a visible cone-shaped flare at the end (and no O-ring groove) is almost certainly JIC.
3. Look for an O-ring. A straight thread with a captured O-ring near the base or in a groove points to BSPP or SAE ORB—measuring thread pitch (metric vs. imperial) will usually distinguish the two.
4. Measure, don't guess. Thread pitch gauges and fitting identification charts exist because visual inspection alone frequently misleads even experienced technicians, particularly between NPT/BSPT and between JIC/SAE-45°/metric flare.

Can NPT and BSPT fittings be used interchangeably?

No. Despite looking similar, NPT and BSPT have different thread angles and pitches. Forcing them together can strip threads or produce a connection that appears tight but leaks under pressure.

Why do some fittings use O-rings while others rely on tapered threads?

O-ring seals (BSPP, SAE ORB) generally provide a more consistent, reusable seal and are easier to service, while tapered-thread seals (NPT, BSPT) are simpler and cheaper but depend more heavily on sealant and correct torque.

Is JIC the same as SAE 45° flare?

No. JIC uses a 37° flare angle, while the older SAE flare standard uses 45°. They are not compatible, and mismatching them damages the flare surfaces.

How can I tell BSPP and SAE ORB fittings apart?

Both use straight threads with O-ring seals, so the most reliable way to distinguish them is measuring thread pitch—BSPP is measured in threads per inch on a Whitworth (55°) thread form, while SAE ORB follows the Unified thread form. A thread gauge resolves ambiguity quickly.

What happens if mismatched fitting standards are forced together?

Best case, the connection won't fully thread, and the mismatch is caught immediately. Worst case, it seats far enough to hold static pressure temporarily, then fails under vibration, thermal cycling, or a pressure spike—often at the worst possible moment in service.
