What is hydraulic filter efficiency and how is It measured?

Hydraulic filter efficiency is a measure of how effectively a filter removes contaminant particles of a given size from hydraulic fluid, expressed most commonly as a beta ratio and corresponding percentage derived from standardized multi-pass testing (ISO 16889). A filter rated Beta200 at 10 microns removes 99.5% of particles 10 microns and larger, while a lower-rated filter at the same micron size might remove far less—the Beta ratio, not the micron rating alone, tells you how well a filter actually performs. Two filters can carry the same "10-micron" label on the box and deliver very different results in the field. One might trap the overwhelming majority of particles at that size; the other might let most of them through. Understanding how efficiency is defined and tested is what separates a filter selection based on marketing copy from one based on engineering data.

Why does filter efficiency matter?

Contamination is the leading cause of premature wear in pumps, valves, cylinders, and seals. Particles in the 5-15 micron range are particularly damaging because they fall within the clearances of critical wear surfaces inside pumps and servo/proportional valves. A filter that looks adequate on paper but performs poorly in practice allows this damage to continue silently, often for months, before symptoms like erratic valve response or pump noise appear.

Efficiency ratings let engineers match a filter's actual removal capability to the cleanliness level (ISO 4406 code) the system requires, rather than relying on a nominal micron size that has no standardized meaning on its own.

Nominal vs. absolute micron ratings

Before beta ratios became standard, filters were often marketed using two loosely defined terms:

Nominal rating

A nominal micron rating indicated the filter could capture some percentage—often undefined or inconsistently defined by the manufacturer—of particles at that size. Two filters both labeled "nominal 10 micron" could have wildly different real-world performance, because there was no enforced test standard behind the number.

Absolute rating

An absolute rating was meant to indicate the largest particle size that could pass through the filter under test conditions, implying a much higher capture efficiency at that size. It was a step toward precision but still lacked the standardized, repeatable methodology needed for real engineering comparison.

Both terms have largely been superseded in serious specification work by the Beta ratio system, which replaces vague marketing language with a number derived from a controlled, repeatable test.

The beta ratio: the real measure of efficiency

The beta ratio (β) is the industry-standard expression of filtration efficiency, defined by the ISO 16889 multi-pass test. It compares the number of particles of a given size upstream of the filter to the number of particles of that same size downstream:

β(x) = (number of particles ≥ x microns upstream) ÷ (number of particles ≥ x microns downstream)

The subscript x denotes the particle size in question. A filter rated β10 = 75 means that for every 75 particles 10 microns or larger entering the filter, only 1 passes through.

Converting Beta Ratio to Efficiency Percentage

The beta ratio converts directly to a capture efficiency percentage using:

Efficiency = [(β − 1) ÷ β] × 100

This produces the familiar efficiency tiers used across the industry:

• β2 = 50% efficiency
• β10 = 90% efficiency
• β75 = 98.7% efficiency
• β200 = 99.5% efficiency
• β1000 = 99.9% efficiency

A filter advertised as "99% efficient" without a stated particle size and Beta ratio is not giving you enough information to evaluate it — efficiency is always efficiency at a specific micron size, not a single blanket number for the whole filter.

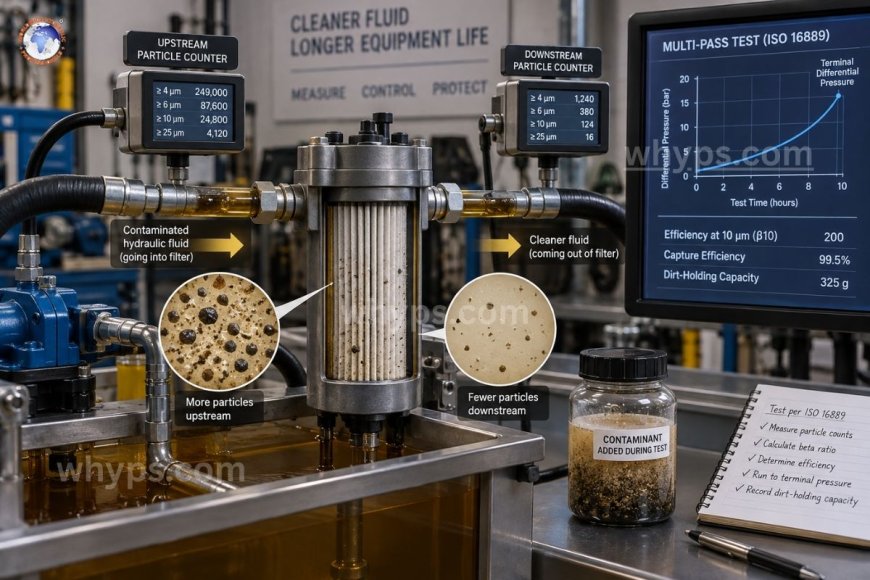

How the ISO 16889 multi-pass test works

The multi-pass test is the standardized procedure that produces beta ratio data, and it's designed to simulate real operating conditions rather than a single idealized pass of fluid through a filter.

Test setup

Fluid is circulated in a closed loop through the filter under test, with contaminant continuously injected upstream at a controlled rate to simulate ongoing ingression during real operation, rather than a one-time dose.

Particle counting

Automatic particle counters sample fluid upstream and downstream of the filter at regular intervals throughout the test, across a range of particle sizes simultaneously—not just at one micron value.

Terminal condition

The test continues until the filter reaches a specified terminal differential pressure, simulating the filter's full service life rather than stopping at an arbitrary early point. This matters because filtration efficiency for a given filter media can change as the filter loads with contaminant—some media become more efficient as they load (a phenomenon called "depth loading"), which the multi-pass test captures across the filter's life rather than only at a fresh, clean state.

Dirt-holding capacity

The same test also produces the filter's dirt-holding capacity—how much contaminant mass it can accumulate before reaching terminal pressure. Efficiency and dirt-holding capacity are reported together because a filter with excellent efficiency but poor capacity will need far more frequent replacement, changing the real-world maintenance and cost picture.

Filter media and efficiency

The construction of the filter media itself drives where a filter lands on the efficiency curve:

• Cellulose (paper) media—lower cost, moderate efficiency, typically used in less critical applications or as a first stage
• Microglass (synthetic) media—finer, more uniform pore structure, capable of high beta ratios (β200+) at smaller micron sizes with good dirt-holding capacity
• Cellulose/synthetic blends—balance cost against performance for mid-tier applications

For systems with proportional or servo valves, tight pump tolerances, or high-pressure operation, microglass media rated at β200 or higher at the required micron size is generally the appropriate choice—the tighter internal clearances in this equipment leave very little margin for particles that a lower-efficiency filter would pass through.

Matching filter efficiency to system requirements

Selecting a filter isn't just about picking the highest available beta ratio. The right efficiency level should be matched to:

• The target ISO 4406 cleanliness code required by the most sensitive component in the circuit (often the pump or a proportional/servo valve)
• The particle size range that causes the most damage in that specific system
• Flow rate and pressure drop constraints, since finer, higher-efficiency media typically increase initial pressure drop
• Expected contaminant ingression rate, which affects how quickly dirt-holding capacity is consumed regardless of efficiency rating

Over-specifying efficiency where it isn't needed adds cost and can increase pressure drop unnecessarily; under-specifying it allows damaging contamination to reach critical components. The beta ratio and its test data are what make this a calculable decision rather than a guess.

What does a beta ratio of 200 mean in practical terms?

A beta ratio of β200 at a given micron size means the filter removes 99.5% of particles at or above that size—for every 200 particles entering, only 1 passes through.

Is a higher micron rating always less efficient?

Not necessarily. Efficiency is specific to both the media and the particle size being measured; a filter can have a high Beta ratio at a larger micron size and a much lower one at a smaller size, so the full Beta curve matters more than a single micron number.

What's the difference between nominal and absolute filter ratings?

Nominal ratings indicated only loosely defined, manufacturer-specific removal capability, while absolute ratings implied the largest particle size passed under test—but neither followed a standardized, repeatable test method the way beta ratio testing does.

Does filter efficiency change as the filter loads with contaminant?

Yes, which is why the ISO 16889 multi-pass test runs to terminal differential pressure rather than measuring only a clean, fresh filter—this captures how efficiency behaves across the filter's actual service life.

How do I know what beta ratio my hydraulic system needs?

Match the required efficiency to the target ISO 4406 cleanliness code for your most sensitive component, typically the pump or any proportional/servo valves, since these have the tightest internal clearances and the lowest tolerance for particulate contamination.
