What routine maintenance does a patch test kit require?

A patch test kit needs routine maintenance to keep its contamination readings trustworthy: clean and inspect the filter holder, vacuum pump, and sample bottles before and after every test; check seals for leaks; keep the microscope optics and comparison charts clean and undamaged; store membranes and solvent in a sealed, particle-free container; replace consumables before they expire; and follow a scheduled inspection or calibration check as recommended by the manufacturer.

Why does patch test kit maintenance matter?

A patch test kit is one of the most practical tools for checking hydraulic fluid cleanliness on site. It lets a technician draw a fluid sample through a fine membrane, examine the trapped particles under a microscope, and compare them with reference images to estimate the fluid's cleanliness level, usually expressed as an ISO 4406 code.

The result is only as good as the kit that produced it. A dirty filter holder, a leaking pump, or a scratched microscope lens can add or hide particles. That leads to false alarms, unnecessary oil changes, or a contaminated system that looks clean on paper.

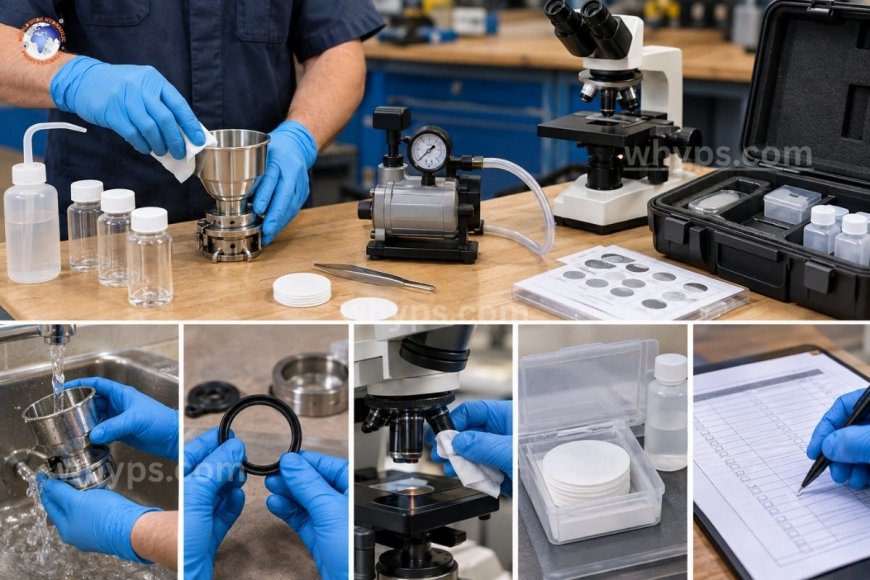

What a typical patch test kit includes

Most kits contain the same core parts:

• Sample bottles for collecting fluid
• A vacuum or hand pump to pull fluid through the membrane
• A filter holder (a funnel-and-base assembly) that clamps the membrane in place
• Membrane filters (patches) that capture particles
• A solvent dispenser or wash bottle for pre-filtered solvent
• Tweezers for handling membranes
• A microscope and comparison photographs or charts

Routine maintenance tasks

Before every test

Preparation is where most contamination errors are prevented.

1. Inspect the filter holder. Check the funnel and base for scratches, residue, or debris. Even a small fiber can look like a particle on the patch.
2. Rinse with filtered solvent. Flush the funnel, base, and any surfaces that touch the sample. Use only pre-filtered solvent, since unfiltered solvent can introduce contamination of its own.
3. Check the sample bottle. Bottles should be verified clean, and lids should be sealed until use.
4. Confirm tools are clean. Wipe tweezers with a lint-free cloth and rinse them with filtered solvent before handling a membrane.
5. Run a blank test if in doubt. Filtering clean solvent alone shows whether the kit itself is adding particles.

After every test

Cleaning right after use prevents oil residue from drying and hardening.

• Disassemble the filter holder and rinse every part with filtered solvent until no oil remains.
• Let parts air-dry in a clean area.
• Rinse sample bottles and caps, and store them closed.
• Wipe down the pump body and tubing to remove oil film.

Vacuum pump and hand pump care

The pump creates the suction that pulls fluid through the membrane, so poor performance leads directly to slow, uneven, or incomplete filtration.

• Check seals and O-rings for cracks, flattening, or swelling. A worn seal causes vacuum loss and inconsistent flow.
• Inspect the tubing and connectors for kinks, splits, or loose fittings.
• Test for leaks by sealing the inlet and confirming the pump holds vacuum.
• Replace worn components promptly. Do not stretch a failing seal through "one more test."

Filter holder and gasket inspection

The filter holder must clamp the membrane evenly so fluid passes through the patch rather than around it. Inspect the sealing surface and gasket for nicks, deformation, or embedded debris. A damaged gasket can let particles bypass the membrane. Replace gaskets at the first sign of damage and keep spares in the case.

Microscope and comparison chart care

The microscope is where the final judgment is made, so treat it carefully.

• Clean the lenses with lens-safe tissue and appropriate cleaner only. Avoid rough cloths, which scratch optics.
• Check the lighting. Weak or uneven illumination makes particle counting less reliable, so replace batteries or bulbs as needed.
• Protect the comparison photographs. Faded, stained, or torn charts should be replaced, because the reference images are what your reading is judged against.
• Store the microscope in its case with the lens covers on to keep dust and moisture off.

Membrane, solvent, and consumable management

Consumables are a common weak point.

• Store membranes in their original packaging or a sealed container, away from dust, humidity, and direct heat.
• Handle membranes only with clean tweezers by the edge.
• Keep solvent in a tightly closed, clean container, and confirm it is pre-filtered to the level the kit calls for.
• Check expiry or shelf-life guidance for membranes and solvent where the supplier provides it.

A simple maintenance schedule

Adjust the schedule to usage: a kit used daily on a dusty job site needs more attention than one used monthly in a clean shop.

Common maintenance mistakes to avoid

• Skipping the pre-test rinse, which lets old residue contaminate the next sample
• Using unfiltered solvent, which adds particles to every patch
• Ignoring small pump leaks, which quietly reduce filtration quality
• Reusing membranes or handling them with bare fingers
• Using a damaged or faded comparison chart and trusting the result anyway

Documenting maintenance and results

Keep a simple log of when the kit was cleaned, inspected, and restocked, alongside test results. It helps trace a strange reading back to a kit problem and shows that your process is controlled.

A patch test kit is simple by design, but its accuracy depends on discipline. Clean it before and after every use, keep pumps and seals in good condition, protect the microscope and charts, manage consumables carefully, and log what you do. With a consistent routine, the kit will give reliable cleanliness readings that support better decisions on filtration, oil changes, and component protection.

1. How often should a patch test kit be cleaned?

Clean the wetted parts, including the filter holder, bottles, and tools, after every test, and rinse them again with filtered solvent before the next one. Do a fuller inspection at least monthly, or sooner if the kit is used heavily.

2. Can I reuse a membrane filter?

No. A membrane is a single-use item. Reusing it means old particles remain on the surface and will distort the next reading.

3. What happens if the vacuum pump leaks?

A leaking pump reduces suction, slows filtration, and can cause uneven particle deposition on the patch. That makes the sample harder to read and the cleanliness estimate less reliable. Repair or replace the seals before testing again.

4. How should I store a patch test kit?

Keep it in its case in a clean, dry, moderate-temperature location, with the microscope lens covers on, membranes sealed, and solvent tightly closed. Avoid dusty vehicles and open workbenches.

5. Does a patch test kit need calibration?

Patch kits are generally comparison-based rather than calibrated instruments, but the microscope, lighting, and reference charts should be checked regularly. Follow the manufacturer's recommendations for service intervals and chart replacement.
