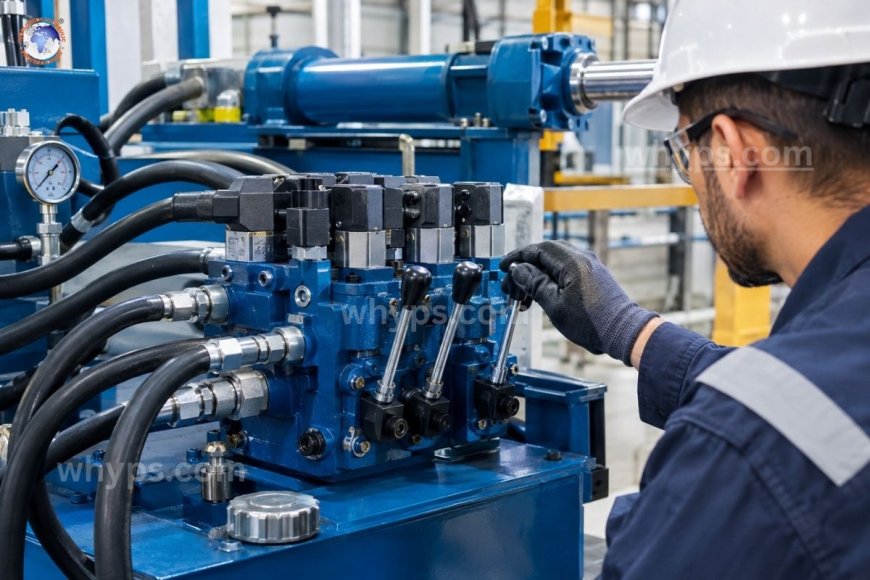

How does a hydraulic control valve affect system performance?

A hydraulic control valve directly governs system performance by regulating the direction, pressure, and flow rate of hydraulic fluid—determining how fast actuators move, how much force they generate, how efficiently the system uses energy, and how smoothly the machine responds to load changes. A poorly matched, worn, or improperly adjusted control valve can cause sluggish response, excess heat generation, energy waste, and premature wear across the entire circuit, while a correctly specified and maintained valve keeps speed, force, and efficiency within design targets. Control valves sit at the heart of every hydraulic circuit. They don't generate power themselves — that's the pump's job — but they decide how that power is delivered. Because of this gatekeeping role, even small deviations in valve condition or selection tend to show up as system-wide performance problems long before they're recognized as a valve issue.

What does a hydraulic control valve actually control?

Hydraulic control valves fall into three broad functional categories, and each one affects performance differently.

Directional control valves

Directional control valves determine which way fluid flows through the circuit and therefore which way an actuator moves—extend or retract, clockwise or counterclockwise. Performance impact here shows up as response lag. A valve with worn spool lands, sticky solenoids, or contamination in the shift mechanism delays the moment fluid actually starts moving after a command is given. In applications like mobile equipment or automated presses, that lag translates into cycle-time loss and reduced throughput.

Pressure control valves

Pressure control valves—relief valves, pressure-reducing valves, and sequence valves—protect the system and manage force output. A relief valve set too low limits the force or torque available to the actuator, causing stalling under load. Set too high, it fails to protect the system from pressure spikes, accelerating wear on seals, hoses, and pump components. Pressure-reducing valves that drift out of calibration cause downstream circuits to receive inconsistent force, which is especially problematic in multi-actuator systems sharing a single pump.

Flow control valves

Flow control valves regulate actuator speed by metering how much fluid reaches a cylinder or motor per unit time. This is where energy efficiency is won or lost. A flow control valve that bleeds excess fluid to the tank through a bypass generates heat and wastes pump output, while a valve integrated into a load-sensing or pressure-compensated circuit only supplies the flow the actuator actually needs, cutting energy consumption and heat load simultaneously.

Direct performance effects of valve condition and selection

Actuator speed and cycle time

Flow through a control valve is the primary variable determining actuator speed. Any restriction beyond the intended metering orifice—from contamination buildup, internal wear enlarging clearances, or an undersized valve for the application—changes actual cycle time from what the system was designed to deliver. Operators often notice this first as an equipment "just not being as fast as it used to be," which is frequently a valve wear symptom rather than a pump problem.

Force and load-holding capability

The pressure differential a control valve can support determines how much force an actuator can exert and how well it holds a load without drifting. Internal leakage across a valve's spool or seats—a common failure mode as clearances wear open over time—allows fluid to bypass internally under pressure. The actuator may still move, but it loses holding force, and cylinders under load may creep or drift when they should stay static.

Heat generation and energy efficiency

Every pressure drop across a valve converts hydraulic energy into heat. Valves that are undersized for the flow passing through them or that operate with unnecessary pressure differentials due to poor circuit design generate excess heat that raises fluid temperature system-wide. That elevated temperature accelerates oil oxidation, degrades seal life, and reduces viscosity, compounding into a cycle where valve inefficiency drives broader system degradation.

System stability and response smoothness

Control valve dynamics—spool response time, damping characteristics, and the presence of pressure compensation—determine whether an actuator moves smoothly or in jerky, oscillating steps. Poor valve dynamics show up as chatter, pressure spikes on directional shifts, or instability in closed-loop systems using proportional or servo valves. This isn't just a comfort issue; oscillation accelerates fatigue in hoses, fittings, and mechanical linkages downstream.

How do valve wear and failure degrade performance over time?

Control valves rarely fail suddenly under normal operation. Performance typically degrades gradually as internal clearances open up from particulate contamination, cavitation erosion, or normal wear on spools and seats. Common progression includes:

• Early stage: slightly slower response, marginal internal leakage that isn't yet noticeable in normal operation
• Mid stage: measurable speed loss, increased heat generation, load drift under static holding conditions
• Late stage: significant internal bypass, inability to reach rated pressure or maintain force, erratic directional shifting

Because these symptoms overlap with pump wear, contamination issues, and fluid degradation, valve-specific diagnosis typically requires isolating the valve—checking pressure drop across it directly, verifying spool travel, and testing for internal leakage independent of other components.

Matching control valve selection to application requirements

Performance problems often trace back to selection mismatches rather than pure wear. Key considerations include:

• Flow capacity: A valve sized below the system's actual flow requirement creates unintended pressure drop and heat even when new
• Response time requirements: High-speed or precision applications need valves with fast spool response and appropriate damping; standard valves in these roles create lag that compounding automation systems can't tolerate
• Compensation type: Load-sensing and pressure-compensated valve designs maintain consistent actuator speed regardless of load changes, while fixed-orifice designs allow speed to vary with load—a critical distinction in multi-actuator or variable-load applications
• Contamination sensitivity: Proportional and servo valves have tighter internal clearances and are far more sensitive to particulate contamination than standard directional valves, making filtration strategy part of the valve performance equation

Maintaining control valve performance

Sustaining designed performance over the valve's service life comes down to a few consistent practices: keeping fluid cleanliness within the valve manufacturer's specified ISO code, monitoring pressure drop across valves during routine inspections to catch wear before it affects operation, verifying relief and pressure-reducing valve settings periodically since spring fatigue and seat wear cause calibration drift, and addressing sluggish or inconsistent actuator behavior early rather than waiting for complete failure.

1. What is the main function of a hydraulic control valve?

A hydraulic control valve regulates the direction, pressure, or flow rate of hydraulic fluid within a circuit, directly controlling actuator movement, force, and speed.

2. How does a worn control valve affect hydraulic system efficiency?

Wear increases internal clearances, allowing fluid to bypass internally. This raises heat generation, wastes pump output, and reduces the force and speed the actuator can actually deliver.

3. Can a control valve cause a hydraulic cylinder to drift under load?

Yes. Internal leakage across a valve's spool or seats lets fluid bypass under pressure, causing a loaded cylinder to creep instead of holding position.

4. Why do hydraulic actuators sometimes move slower than they used to?

Reduced actuator speed is commonly caused by valve wear, contamination restricting flow paths, or a valve that was undersized for the application from the start.

5. How often should hydraulic control valves be inspected?

Inspection frequency depends on duty cycle and criticality, but routine checks of pressure drop, response time, and calibration settings during scheduled maintenance intervals catch most degradation before it causes downstream failures.
