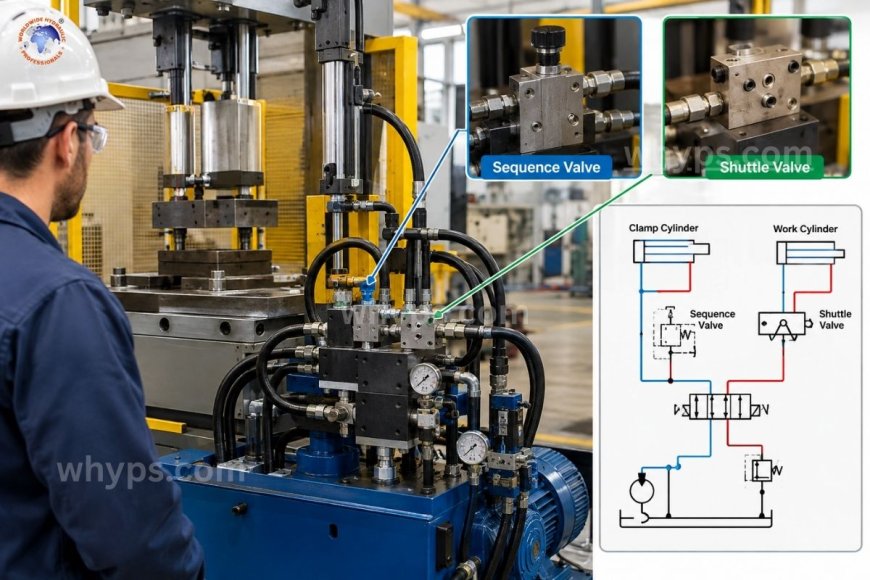

Where are sequence and shuttle valves used in complex hydraulic circuits?

Sequence valves and shuttle valves are used in complex hydraulic circuits to control the order in which actuators move and to manage multiple pressure or pilot signal sources without adding electronic controls. Sequence valves force one cylinder or motor to complete its stroke before a second actuator begins, using a pressure setting rather than a timer or sensor, while shuttle valves automatically pass whichever of two inlet signals is higher (or, in some designs, lower) through to a single outlet. Together, they let designers build circuits—clamp-then-bend presses, dump truck outriggers, tie-rod cylinders, mobile equipment pilot systems—that behave predictably without a PLC managing every step.

Why do sequencing and signal selection matter in complex circuits?

As a hydraulic circuit grows past a single cylinder or motor, two problems show up repeatedly. First, multiple actuators sharing one pump need a defined order of operation—clamp before cut, extend before lift, and stabilize before load. Second, a single component, like a pilot line or a brake release circuit, often needs to respond to signals arriving from more than one source, and only one of those signals should win at a time. Sequence valves solve the first problem. Shuttle valves solve the second. Both are purely hydro-mechanical, which is why they remain common even in circuits that also carry electronic controls—they provide a hardwired safety or logic layer that keeps working even if a sensor or controller fails.

How do sequence valves work?

A sequence valve is a normally closed, pressure-operated valve installed in a branch of the circuit feeding a secondary actuator. It stays shut, blocking flow to that branch, until pressure in the primary line reaches a preset value—typically because the primary actuator has reached the end of its stroke and pressure has built against a mechanical stop. Once that setpoint is met, the valve opens and diverts flow to the secondary actuator. Because the valve responds to pressure rather than position or time, it inherently tolerates variation in cycle speed, load, or temperature: the second motion only starts once the first one has actually finished doing its job, not once a fixed number of seconds has elapsed.

Sequence valves are typically direct-acting or pilot-operated, and many designs include an integral check valve that allows free reverse flow, so the circuit can retract normally without needing to satisfy the sequence pressure again. Setpoints are usually adjustable in the field, which matters in circuits where load conditions shift with the application.

Where sequence valves are used

Clamp-and-work operations. In many fixturing, forming, and machining circuits, a workpiece must be clamped securely before a second cylinder performs a cut, bend, punch, or weld. A sequence valve set above normal clamping pressure keeps the working cylinder locked out until the clamp cylinder has bottomed out and built pressure, preventing the part from shifting mid-operation.

Multi-cylinder presses. Presses that use more than one cylinder — for example, a hold-down ram paired with a forming ram — rely on sequence valves to guarantee the hold-down engages first. This protects both the part and the tooling from misalignment that a purely time-based control scheme could allow if cycle conditions vary.

Mobile equipment outriggers and stabilizers. Dump trucks, aerial lifts, and other mobile platforms often need outriggers or stabilizer legs to extend and set before a lifting or dumping function engages. Sequence valves provide this interlock hydraulically, which is valuable in mobile applications where electronic interlocks add cost and another failure point exposed to vibration and weather.

Tie-rod and double-clamping cylinder circuits. Some cylinder arrangements require a rod-locking or tie-rod clamp to fully seat before the main cylinder is allowed to move, protecting against misalignment under load. A sequence valve enforces that order regardless of operator input speed.

Automatic circuit staging in multi-actuator machines. Where a single pump feeds several actuators performing a fixed operational sequence—such as index, clamp, then advance—chained sequence valves can stage the entire cycle hydraulically, each valve unlocking the next stage only once the prior one has reached its pressure threshold.

How do shuttle valves work?

A shuttle valve is a simple, typically ball- or poppet-type valve with two inlet ports and one outlet port. Whichever inlet has the higher pressure pushes the internal element against the opposite seat, opening a path from the high-pressure inlet to the outlet while blocking the low-pressure inlet. If the pressure relationship reverses, the element shifts the other way. The valve requires no external power, signal, or control input—it responds purely to the pressure differential between its two inlets, making it essentially a hydraulic OR gate.

Some shuttle valve variants are configured to pass the lower of two pressures instead, and double shuttle valve arrangements can combine three or more signal sources into one output, which is common in circuits with redundant or multi-source pilot supplies.

Where shuttle valves are used

Dual pilot signal circuits. In pilot-operated check valve (counterbalance) circuits, a load may need to be released by pressure arriving from either of two directions depending on which function is active. A shuttle valve selects whichever pilot signal is present and routes it to release the load-holding valve, without the two signal sources interfering with each other.

Emergency or backup control systems. Mobile and industrial equipment with both a primary hydraulic control source and a manual or emergency override often use a shuttle valve to let either source operate a critical function—a brake release or a steering assist, for instance—so the system automatically defaults to whichever source is actively pressurized.

Dual-pump or load-sharing systems. Circuits fed by two pumps, or by a pump plus an accumulator, use shuttle valves to feed a common downstream component from whichever source currently has adequate pressure, supporting redundancy without cross-flow between the sources.

Brake release circuits on mobile equipment. Spring-applied, hydraulically released brakes on tractors, loaders, and similar machines frequently use a shuttle valve so the brake can be released by either the main system pressure or a secondary/parking release circuit, whichever is active.

Multi-function pilot manifolds. In circuits where a single downstream valve or actuator can be commanded from more than one operator station or control lever, shuttle valves consolidate the pilot signals into a single line feeding the shared component, preventing signal conflict between stations.

Combining sequence and shuttle valves in the same circuit

In more elaborate machines, sequence and shuttle valves frequently appear together. A shuttle valve might select between two possible pilot sources to trigger a function, while a sequence valve downstream enforces that a related actuator only moves once a prior stage has reached full pressure. This layering lets designers build multi-step, multi-source logic entirely in the hydraulic domain—useful in circuits where electronic controls are impractical, where redundancy is required for safety, or where the added cost and complexity of a PLC-based interlock system isn't justified by the application.

What is the main difference between a sequence valve and a shuttle valve?

A sequence valve controls the order of actuator motion based on pressure buildup, while a shuttle valve selects between two pilot or pressure signal sources and passes the dominant one to a single outlet.

Can a sequence valve replace a directional control valve?

No. A sequence valve only opens or blocks flow based on pressure; it does not direct flow to different actuators or reverse actuator motion the way a directional control valve does.

Do shuttle valves need an external power source?

No. Shuttle valves are purely hydro-mechanical and shift position based solely on the pressure differential between their two inlets.

Why use a sequence valve instead of a timer-based control?

Because sequence valves respond to actual pressure conditions, they adapt to variations in load, temperature, and cycle speed, whereas a timer-based control assumes a fixed cycle time that may not match real operating conditions.

Are sequence and shuttle valves adjustable in the field?

Sequence valves typically have an adjustable pressure setpoint. Standard shuttle valves are not adjustable—they simply respond to whichever inlet pressure is higher—though the pressure sources feeding them are often separately adjustable elsewhere in the circuit.
