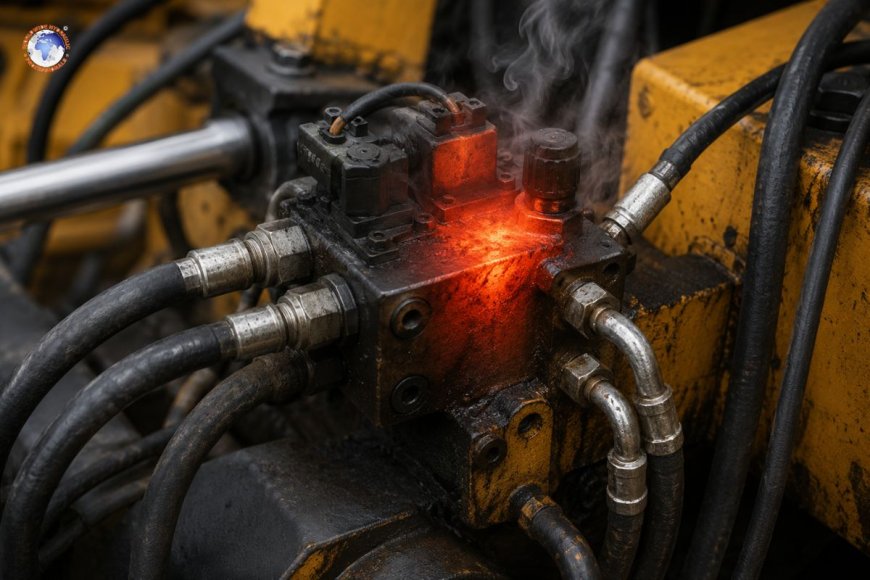

What causes a hydraulic valve to overheat?

The reason valves for hydraulics overheat is because of a high pressure drop over the valve. This is caused by leakage that goes past worn spools and seats; flow passages that are not sized correctly that result in high fluid velocity; damaged hydraulic fluids with low viscosity or additive breakdown; and system-level issues such as blockage of coolers or contaminated or blocked fluid or a pump that is operating outside of its efficient curve. If left unaddressed, overheating of the valve can cause seal degradation; the oxidation of fluid, which increases the leakage inside; and may cause an unpredictable actuator response or even complete failure of the valve.

The presence of heat is among the most commonly cited and largely ignored symptoms of an underlying problem with the hydraulic system. The valve that is hot rarely fails due to heat; it does so because heat is an outcome of energy loss in a place it shouldn't. Finding out where that energy comes from is essential to identifying the cause and stopping the valve from overheating.

The reason why is that heat is a symptom and not the root reason.

In a system of hydraulics, each pressure drop that's not producing any value is transformed to heat. A valve is fundamentally restricted by control; therefore, it generates heat in a way that is integral to its purpose. The issue arises when the pressure drop is excessive in relation to the flow that is controlled and when the valve gets compelled to operate outside of its intended operating limits. If this happens often or over a long period of time, the heat generated at the valve could outstrip the thermal capabilities of the surrounding fluid and equipment and cause visible overheating.

The main causes of valve overheating are

A high pressure drop across the valve

The primary cause of valve overheating is the pressure drop. Each hydraulic valve is designed to have a particular tension differential between its ports at a specific flow rate. When the actual pressure drops are higher than this rating, usually due to the valve being too small for the intended application or the downstream restriction creating more back-pressure, the extra hydraulic energy transforms into thermal energy in the body of the valve. This is particularly frequent for flow control and pressure-reducing valves, where throttling serves as the primary purpose of the valve and heat generation is directly correlated according to the pressure differential multiplied by the flow rate.

Internal leakage through worn components

When spools, poppets, and seats age, the internal clearances get larger, and the fluid is able to escape the flow path intended for it. This leakage isn't doing any work; it just recirculates high-pressure liquid through a limitation and generates heat without equivalent output. The valves that are damaged often display an obvious pattern as the valve heats up in time, even if it's not changing in terms of demand because clearances keep opening as wear continues to progress.

Insufficiently sized flow passages and high fluid velocity

When the flow passages of a valve aren't large enough to accommodate the flow rate that flows through them, the speed of flow is increased significantly. A higher velocity can cause frictional losses in the valve's body, and those losses show up as heat. This can be seen most often when a system is upgraded—larger pumps or actuators that are faster—without any adjustments to the valve's sizing, which can force an oversized valve to manage flow beyond the original purpose of its design.

Fluids for hydraulics that are degraded or not properly lubricated

Viscosity of fluids is directly related to the internal pressure and leakage. Fluid that is too thin—whether from using the wrong viscosity grade or from thermal thinning at elevated operating temperatures—increases internal leakage past close-tolerance valve components, which in turn generates more heat, which thins the fluid further. This triggers feedback loops that can accelerate once it starts. Oxidized or additive-depleted fluids compound the problem since the degraded fluid has different viscosity characteristics as well as decreased lubricity, causing friction between metal and metal inside the valve.

The sticking of the valve and semi-automatic actuator

A spool that is stuck partway throughout its length, be it from varnish buildup, contamination, or mechanical binding, typically settles to a partially closed position instead of being completely closed or open. This partially open position creates a constant, unintentional restriction that produces heat when the system is under pressure and even if no actuator movement occurs.

System-level contributors

Valve overheating is often traced back to issues outside of the valve within the valve:

• Fluids with contamination: Particulate pollution speeds up wear on valve clearances, which increases the leakage of heat and heat production as time passes.
• Heat exchangers that are blocked or not sized properly In the event that the cooling capacity isn't keeping up with the increase in heat output, the ambient fluid temperature rises, and every valve within the circuit is hotter than the baseline.
• A pump operating according to its efficiency curve that is operating at a rate that is below its maximum flow as well as a relief valve that dumps excessive flow constantly is a waste of hydraulic energy in the form of heat before the fluid can even reach its downstream valve.
• Insufficiently sized reservoir: A reservoir that is too small for the flow rate of the system does not allow enough time to let heat disperse before the fluid returns to circulation.

The process of overheating a valve can lead to failure

When a valve is running overheated, damage can be exacerbated. The increased temperature can accelerate sealing and O-ring degradation, which can lead to external leakage as well as additional internal bypass. Also, it accelerates the oxidation of fluid, creating sludge and varnish, which can lead to the stickiness described earlier. When the leakage inside increases due to the heat and wear-related clearance changes, the valve's precision for control decreases, resulting in slow or inconsistent actuator responses. In the most severe instances, continuous overheating may cause the seizure of moving parts or the permanent deformation of valves that are machined to tight tolerances.

Finding the cause of valve overheating

A methodical approach allows you to pinpoint the root of the problem rather than guessing

1. Examine the pressure drop across the valve in real-time operating conditions with pressure gauges or the portable data logger. Compare the pressure drop to the valve's rated differential.
2. Verify the viscosity and condition of the fluid by analyzing oil, looking for shifts in viscosity as well as water contamination and additive depletion.
3. Check for leakage inside the valve by isolating your valve and evaluating the flow of bypass, as long as your circuit design permits.
4. Check the flow rate against the specific specifications for valve sizing, particularly when you make any changes to the system that involve actuators or pumps.
5. Assess the cooling system's performance and fouling of the heat exchanger and the size of reservoirs in relation to flow in the system.

Stopping recurring overheating

Prevention focuses on matching the selection of valves to operating conditions and maintaining the quality. This includes sizing the valves for expected flow with more margin than minimum requirements, using the right grade of viscosity that is suitable for the system's operating temperature range, and ensuring cleanness by ensuring proper filtration and routine oil analysis as well as monitoring system and valve temperatures as a regular maintenance measure instead of looking into the issue after it occurs. The use of thermal imaging in routine inspections can detect hot spots developing before they become components' damage, giving an early warning that's more affordable than a complete replacement of the valve.

What temperature is too hot to be a suitable temperature for a hydraulic valve?

The majority of industries have hydraulic systems constructed to function with temperatures that range from 120°F to 150°F (49°C to 66°C). Valve surface temperatures noticeably hotter than the surrounding fluid or system baseline—often perceptible as too hot to touch comfortably—indicate localized heat generation that warrants investigation.

Does a faulty hydraulic valve cause the pump to overheat?

Yes. A worn pump that has internal leakage creates its own heat. It could also fail to provide sufficient flow at a given pressure that causes relief valves to discharge excess flow constantly that raises the temperature of the entire system, and also the downstream valves are heated.

Do you think that using the wrong viscosity for hydraulic fluid results in the valve overheating?

Yes. Fluid that is too thin can cause the leakage inside valve clearances, which generates heat via constant bypass flow. Likewise, fluid that's too thick can increase resistance to flow and pumping, both of which can raise the operating temperature.

How fast could the overheating of a valve in a hydraulic system cause failure?

The severity of the problem is dependent. A valve operating at a slightly higher than normal temperature can run for months before the symptoms get worse, and a valve that is partially closed under the full pressure of the system can produce dangerous heat in a matter of minutes, especially in smaller volume systems that have a small thermal mass.

Does valve overheating only happen because of the valve?

No. In many instances the valve is responding to an issue within the system, like degraded fluid, the failure of a pump, a blocked heat exchanger, or a contaminant-driven failure of other elements. To determine if there is an overheated condition, you must examine the entire system, not only the valve on its own.
