How is hybrid technology being incorporated into the design of hydraulic power packs?

The Future of Hydraulic Power: Efficiency, Intelligence, and Sustainability

Hydraulic power units have long been the foundation of mobile and industrial equipment, supplying the force and accuracy required to power excavators, presses, lifts, loaders, and many other machines. Typically, simple units that include pumps, motors reservoir, valves, and controls, the units work by converting mechanical or electrical energy into a pressurized fluid which is used to power hydraulic actuators.

However, as industries seek greater efficiency, lower emissions, and more efficient control, hybrid power packs for hydraulics are becoming a significant trend in the development of fluid power. The hybrid systems mix traditional hydraulics with electric components and energy recovery, as well as advanced control strategies and smart designs to help make hydraulic systems better, cleaner, and more suited to the demands of today.

This blog examines how these hybrid energy packs that are hybrid are being created in a variety of ways, from component innovations and system designs to practical applications, research breakthroughs, and the future of technology.

1. The Context: Why Hybrid Hydraulic Power Packs Matter

Hydraulics are notable for their powerful power densitythat is, they are able to deliver huge forces in proportion to their weight and size -- making them ideal for applications that require heavy-duty power, such as mining equipment, construction machinery, as well as industrial presses.

However, traditional hydraulic systems are afflicted by certain limitations:

Inefficiency in energy due to loss of throttling and waste heat.

Mobile equipment consumes a lot of fuel. equipment.

A limited integration of electrification trends.

Hybridization addresses these issues by mixing hydraulic power with energy storage systems for electrical energy, intelligent controls, smart control, and energy-recovery systems. As hybrid electric vehicles include combustion engines and batteries to improve fuel efficiency Hybrid hydraulic power packs combine electrical and hydraulic components to enhance overall system performance.

2. What Is a Hybrid Hydraulic Power Pack?

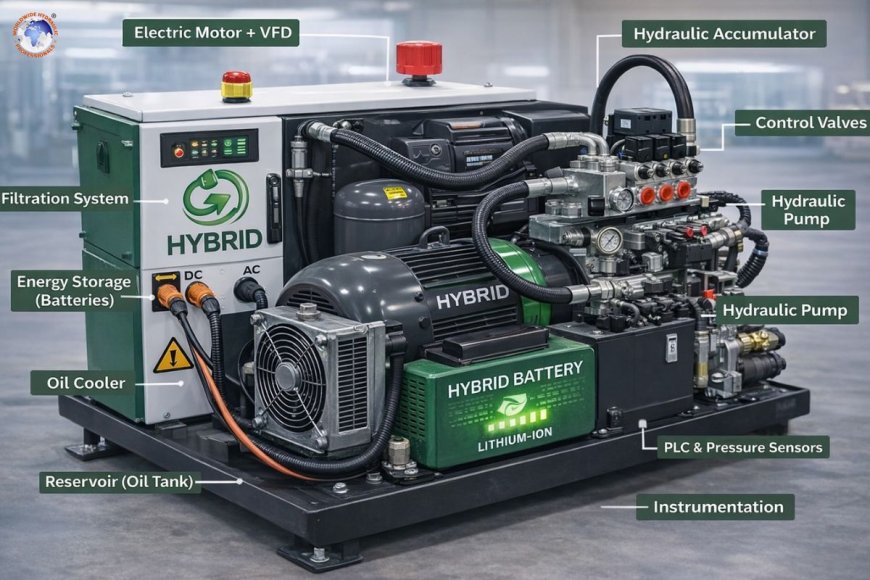

In essence, it is a hybrid hydraulic power pack that is more than a traditional Hydraulic power unit (HPU). It could include:

Generators or electric motors can be used alongside conventional pumps

Energy storage components like batteries, hydraulic accumulators, or hydraulic batteries

Energy recovery systems for capturing and reusing potential or kinetic energy

Modern sensors, control, and systems provide live monitoring as well as optimization.

They work in tandem so that the energy is utilized more effectively and that the energy wasted is retained instead of being wasted in the form of heat.

For instance, modern hydraulic power packs are already incorporating technologies such as variable speed drives as well as load-sensing pumps to maximize energy delivery according to the demand.

Hybridization goes further by taking energy that would otherwise have been wasted (e.g., when decelerating or lowering heavy loads) and then reusing it.

3. Core Technologies Driving Development

Hydraulic power systems that are hybrids in the making are being created by advancing in a variety of crucial areas of technology:

a. Energy Recovery and Storage

The most transformative features of hybrid hydraulics their capability to reuse and recover energy.

In conventional hydraulic systems, when machinery slows down or returns an enormous weight (like dropping the boom), the energy that is kinetic or potential is usually lost in the form of heat inside valves. Hybrid technology takes this energy through:

Hydraulic accumulators are used to store the pressurized fluid to be used later.

Supercapacitors, also known as batteries, store electrical energy in electrohydraulic hybrid systems.

For instance, research has demonstrated innovative energy recovery systems that can capture energy from excavating operations can be used to capture energy and reuse it, and save up to 78% of energy input during specific motions.

Similar to hydraulic launch assist systems, pioneered by companies such as Eaton, which use accumulators to collect energy from braking and then use it for acceleration in large trucks, which can result in substantial fuel savings.

B. Electro-Hydraulic Integration

Instead of relying on the mechanical power of engines that burn internal fuel, several hybrid hydraulic systems today incorporate generators and electric motors in the same hydraulic system.

Parker Hannifin's Hybrid (Electro-Hydraulic Pump) system, for example, combines high-efficiency electric motors and hydraulic pumps, creating a hybrid motor system that enhances efficiency and reduces the amount of fuel used by off-highway machines.

This integration allows:

Power at the moment of need

Regeneration during deceleration

Motors with smaller engines or motors designed to carry average loads, instead of peak requirements

In the construction and mining industries These systems can reduce emissions and engine size while also enhancing the power and performance.

C. Digital and Smart Controls

The latest hybrid power pack hydraulics aren't simply mechanical devices- they're becoming increasingly sophisticated systems.

Sensors IoT connectivity, as well as advanced algorithms for controlling, permit real-time monitoring of flow, pressure, motor speed, and the condition of the fluid. These capabilities allow:

Predictive maintenance

Control adapted to operating conditions

Alerts and remote diagnostics

These digital improvements enable hybrid systems to be more responsive, reliable, and efficient over a range of tasks.

4. System Architectures in Hybrid Hydraulic Development

Hybrid power packs don't "one size fits all." Two main hybridism strategies have a major influence on the development of today's technology:

a. Parallel Hybrid Hydraulic Systems

In a parallel arrangement, the hybrid system is used in conjunction with the traditional engine and hydraulic circuit. Energy can be stored in the form of a memory device (e.g., the accumulator), which is then used to aid the engine or do secondary tasks.

This is a common practice in heavy-duty equipment and vehicles where hybrid elements help but don't substitute for the main engine.

In this case, the hydraulic motors and pumps are used as actuators as well as generators, turning mechanical movement into hydraulic pressure and then back to motion when needed.

b. Series Hybrid Hydraulic Systems

In series designs, the engine or principal power source is the one that supplies energy to the hydraulic pump or generator that then powers actuators. There isn't a direct connection between the motor and the final drive. The connection is via fluid power and storage systems.

Series hybrids excel in situations that have frequent stop-start cycles and offer efficient energy recovery. Hybrid hydraulic drive studies conducted by the U.S. EPA showed that series hybrids have the potential to significantly improve fuel efficiencyoften by more than 60% when compared to traditional drives.

5. Research and Innovations in Hybrid Hydraulic Power Packs

Research in the fields of academic and industrial continues to propel the development of hybrid hydraulics, with particular focus on areas such as

a. Digital Displacement Technology

Digital hydraulics employs electronically controlled valves to regulate displacement in real-time. In conjunction with hybrid systems, digital displacement pumps are able to increase efficiency and energy recovery drastically.

Researchers from China have created digital pump systems that conserve energy and use it again during boom lifting - taking up to 86 percent of the energy used and drastically reducing external power demands.

b. Optimized Energy Management Strategies

Hybrid systems require sophisticated control strategies that determine when to store energy, and when to release it, and the best way to manage multiple sources of power (engine batteries, accumulator, engine).

Dynamic programming and models prescriptive control techniques are in development to improve the allocation of energy, optimizing efficiency while reducing the amount of fuel consumed.

C. The Component Efficiency Improvements

The development of hydraulic componentsfor example, more efficient motors, pumps and accumulator componentscan also support hybridization:

High-efficiency electro-hydraulic pumps enable better energy conversion.

Advanced designs for accumulators increase the storage capacity of energy.

Variable speed drives adjust output to demand, thus reducing the loss.

Together, these advancements help make hybrid hydraulic systems more feasible and more competitive.

6. Real-World Applications

Hybrid Hydraulic power packs are creating a buzz in various industries:

Construction Machinery

Komatsu's PC200-8 hybrid excavator is an outstanding example of a machine that combines hydraulic and electrical systems to cut down on fuel consumption by as much as 40% during certain tasks.

Other prototypes of research and concept loaders concentrate on the coupling of traction motors to hydraulic systems to decrease the overall energy use across multiple operating modes.

Commercial and Urban Vehicles

Hydraulic hybrid drive truck -including the refuse collection vehicles and delivery trucks benefit from regular stop-start cycles. Regenerative braking systems such as Eaton's Hydraulic Launch Assist absorb the energy of braking and recycle it, reducing fuel consumption and emissions.

Industrial Automation

Hybrid hydraulic systems are used in industrial presses, metal-forming equipment, as well as factory automation systems, where precision management and efficiency of energy are crucial.

Smart hybrid HPUs can reduce energy consumption and adapt the energy supply to meet demand in real time and reduce operating costs.

7. Challenges and Future Directions

Although there are clear advantages that are evident, these power systems have many issues:

a. Energy Storage Limitations

The accumulators of hydraulics store the energy as gas and fluid that is pressurized. They are great for power-hungry short bursts, but they usually have less energy density than batteries, which means they are less efficient in storing energy per volume. Researchers are looking for methods to create accumulators that are less bulky and more efficient.

b. System Complexity and Cost

Hybrid systems incorporate elements that control the system, which increase the initial cost and complexity. Maintaining reliability and reliability requires sophisticated engineering and highly skilled technicians.

C. Integration with Electrification Trends

As electrification gains momentum, hybrid hydraulics will need to be integrated with electrified systems that are larger in scopesuch as battery-electric platforms and autonomous control systems.

This integration offers potential (e.g., completely electrohydraulic automobiles) as well as challenges (e.g., interoperability with batteries with high voltages).

8. Conclusion: A Hybrid Future Powered by Intelligence and Efficiency

Hybrid hydraulic power packs are an enormous advancement in fluid power technologyconnecting traditional hydraulics with electrification, intelligent control, and energy recycling. From delivery and construction trucks to automation for industrial use, the systems can provide impressive gains in efficiency, emission decrease, and operational efficiency.

Inspiring by research into technology for energy storage, electronic hydraulics advanced components, as well as optimized controls, the hybrid power pack for hydraulics is not only theoretical. They are being developed and implemented now, and transforming our perception of hydraulic power. As environmental and energy demand standards continue to increase, Hybrid hydraulics is positioned to play an integral part in the future of smart, efficient machines.
