How are telescopic cylinders tested in the field or factory before use?

Telescopic Cylinders are among the more adaptable and efficient actuators for hydraulic applications. Typically, they are used in dump trucks, agricultural equipment, waste handling systems, and construction equipment. Multi-stage cylinders can provide lengthy strokes from small lengths that retract. However, due to their complicated structure - with numerous nested stages, they require extensive tests before they are used in the field.

Testing assures that telescopic cylinders function effectively, safely, and effectively under real-world conditions. If they are conducted in a controlled manufacturing environment or in the field, testing is essential to detect manufacturing defects and ensure that the product is in compliance with the performance standards and to avoid costly failures.

This article examines the many methods of testing used to test Telescopic cylinders before deployment, including the factory-level procedures as well as field validation methods.

Understanding the need for testing

In contrast to single-stage hydraulic cylinders, telescopic cylinders have several moving stages, seals, cylinders, and internal passageways. This complexity can pose several hazards:

• Uneven extension or retraction
• Internal leakage that occurs between stages
• Failure of seals under pressure
• The structural weaknesses of extended positions

Testing can ensure that each stage is functioning properly, expand in the correct sequence, and can withstand the pressures and loads of the rated model without failing.

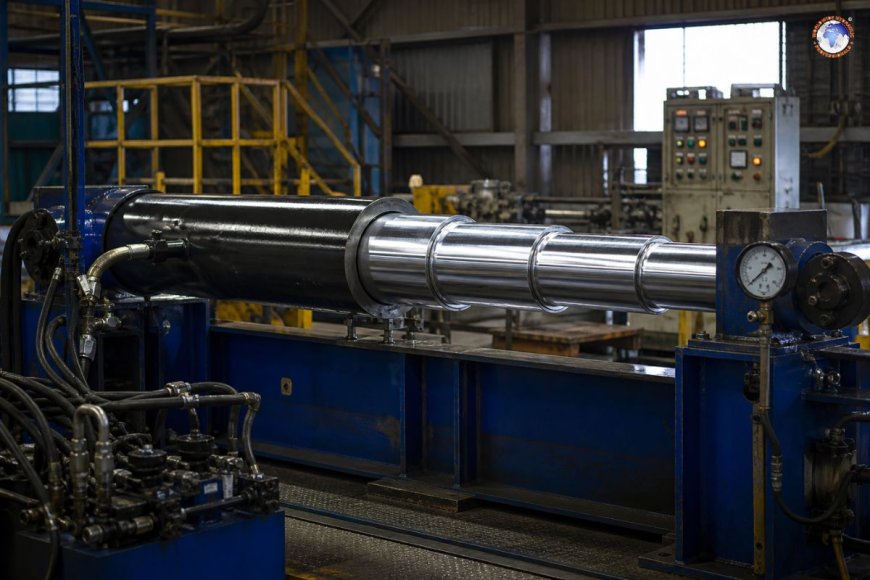

Factory testing of telescopic cylinders

Manufacturers usually run an array of tests before the shipment of a remote Cylinder. These tests adhere to international standards and internal quality guidelines to ensure the quality of the product.

1. Visual and dimensional inspection

Before beginning any dynamic testing, the cylinders are subjected to a thorough inspection.

• Surface quality test: Ensures no scratches or dents on rods and cylinders.
• Quality of the dimensions. The measurements of the bore's size and length, as well as mounting surfaces, are validated.
• Weld Integrity: Welded joints are inspected for cracks and inconsistencies.

This assures that the cylinder is in compliance with the design specifications and is free of apparent imperfections.

2. Pressure testing (hydrostatic testing)

The most important test is hydrostatic pressure testing.

• The tank is loaded with hydraulic fluid and pressurized up to 1.25 to 1.5 times its work pressure.
• Pressure is maintained for a predetermined time.
• Engineers can monitor:
  • External leaks
  • Permanent deformation
  • Pressure drop

This test checks the strength of the cylinder when it is subjected to high-pressure conditions.

3. Functional testing (extension and retraction)

This test ensures that the cylinder will be operating at its full speed:

• Each stage is extended in a sequence and then retracts smoothly.
• The rate of extension as well as the speed of retraction is measured.
• The proper stage synchronization is checked.

Any jerking, hesitation, or irregular movement may indicate problems, such as internal leakage or inadequate machine tolerances.

4. Leakage testing

Leakage testing is conducted in two methods:

External leakage test

• The cylinder is then pressurized and is inspected for leaks in the fluid around ports, seals and welding.

Internal leakage test

• Make sure to check for oil bypass during stages.
• Engineers check the stability of pressure as well as movement under loads.

Even small leaks can decrease the efficiency of your system and cause long-term failure.

5. Load testing

Load testing is a simulation of real-world operating conditions:

• The cylinder is put under the same load as its capacity.
• Engineers are aware of:
  • Structural deflection
  • Stability throughout extension
  • Capacity to hold a position even under loads

This is crucial for dump trucks, where stability is essential for lifting.

6. Endurance (cycle) testing

To determine the durability of cylinders, they go through multiple cycles of operation:

• Many thousands of extension and retraction cycles are carried out.
• Testing could involve testing with different pressures and loads.

This allows you to determine the wear patterns, seal degradation, and fatigue problems over time.

7. Seal integrity testing

Seals are crucial for ensuring pressure and preventing leaks:

• Tests of high pressure ensure that seals are able to stand up to the stress of daily use.
• Temperature variations can be used to test the seal's performance in various conditions.

8. Non-destructive testing (NDT)

Advanced testing techniques are utilized to find hidden defects:

• Ultrasonic testing: Identifies internal flaws in metal components.
• Magnetic Particle Inspection finds cracks on the surface.
• Dye Penetrant Testing: It reveals micro-cracks within welds.

These techniques ensure that the cylinder is not afflicted by structural weakness.

Field testing of telescopic cylinders

Even after testing in the factory, the cylinders are often subjected to tests in the field before deployment. This assures that they are compatible with the machine's specifications in operation.

1. Installation verification

Before a procedure, technicians make sure:

• Affecting the correct alignment to mounting points
• Connecting the hydraulic hoses securely
• Correct ports and connections

A poor installation can cause premature failure even in the event that the cylinder is perfectly.

2. Initial operation test

The cylinder operates at a low pressure

• Gradual extension and retraction
• Be alert for unusual sounds or vibrations
• Checking for smooth stage transitions

This ensures that the system functions properly without stressing any components.

3. System pressure testing

Once the initial checks are completed:

• This system will bring the operating pressure.
• The piston is tested under real-world hydraulic conditions.

Operators closely monitor the performance of their equipment in search of any leaks or unsteady movements.

4. Load testing in real conditions

Field load testing is a method of testing:

• The cylinder is operated under actual load conditions
• Inspecting the stability and the ability to respond
• Making sure that the load is handled correctly

For instance, when you are driving the case of a dump truck, the cylinder needs to be able to lift and hold the load with no drift or instability.

5. Leak and seal monitoring

Following the initial use:

• Joints and seals are checked for leaks
• The level of hydraulic fluid is checked

Leaks are detected early and prevent the risk of permanent damage.

6. Temperature and environmental testing

The field conditions can vary greatly:

• High temperatures can impact seal performance
• Dust and contaminants could affect the operation

Technicians examine the performance of the cylinder under real-world conditions.

Common issues detected during testing

Testing is often the best way to identify problems that can be fixed before deployment:

• Stage binding: It is caused by misalignment or machining mistakes
• An uneven extension due to leakage in the internals or a pressure imbalance
• The failure of the seal: Resulting from poor quality of the material or installation
• Surface injuries: Leading to premature wear

The early detection of these issues can prevent expensive downtime and security risks.

Importance of documentation and certification

In the aftermath of testing, they offer:

• Certifications for tests verifying compliance with the standards of performance and pressure
• Inspector reports: In-depth reports of measurements, observations, and other information
• Certification of materials: Assurance of the quality of raw materials

These documents are essential to ensure quality and conformity.

Advancements in testing technology

Modern testing techniques are becoming more sophisticated thanks to the use of digital instruments:

• Sensor-based monitoring, live data about temperature, pressure, and the speed of
• automated test benches: Ensures consistent and repeatable testing processes
• Predictive analysis: Using data to forecast potential failures

These advancements increase accuracy and reduce the chance of human error during testing.

Best practices for reliable testing

To ensure the accuracy and efficiency of testing, both technicians and manufacturers use the most effective practices:

• Use instruments calibrated for measurement
• Keep the hydraulic fluid clean during testing
• Utilize standard test procedures
• Note all results carefully
• Training personnel on the correct methods of testing

Telescopic cylinders play an essential function in hydraulic applications that require heavy-duty and their dependability directly affects operational efficiency and safety. Testing thoroughly, both in the factory as well as on the job-site, is essential in order to make sure that the complicated components work as expected.

From leakage and pressure tests to endurance cycles and loads that are real-world, every procedure is designed to detect problems before they can become costly problems. As technology improves and testing techniques become more specific and data-driven, increasing the reliability of the telescopic Cylinders.

Through investing in thorough testing procedures, manufacturers as well as operators can ensure a longer service life, better performance, and safer operation for hydraulic systems in all industries.
