How does electro-hydraulic integration change mobile equipment?

Mobile equipment ranging from construction machinery and agricultural tractors, to mining vehicles and material handling systems -- has undergone significant changes over the last few years. In the past, these machines relied on only hydraulic and mechanical systems for tasks such as lifting or digging, steering, and propulsion. While hydraulics are still essential to providing powerful power as well as force, the addition of electronic components has revolutionized the way these systems function.

Electro-hydraulic Integration refers to the integration of electronic controls with hydraulic systems in order to increase accuracy, efficiency, security, and safety. The fusion process is changing the design of mobile devices into more intelligent, more responsive, and more efficient machines. In this blog, we'll look at the electro-hydraulic integration process and its main components, and how it's changing the look, function, and performance of today's mobile devices.

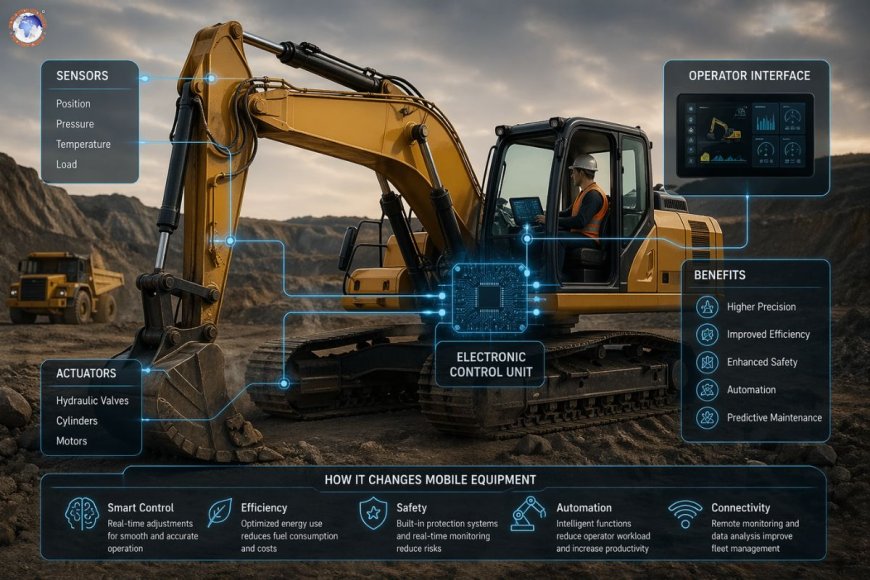

Understanding electro-hydraulic integration

In its essence, electro-hydraulic integration is a combination of three fundamental components:

• Hydraulic parts (pumps and cylinders, motors and valves)
• Electronic control units (ECUs)
• Sensors as well as actuators

In a conventional hydraulic system that is operated by the operator, the operator manually adjusts valves that direct the flow of fluid. In an electro-hydraulic system, electronic signals, rather than direct mechanical inputs, control the hydraulic components. Sensors receive real-time information, which is transformed by ECUs to alter the behavior of hydraulics dynamically.

In this case, instead of the direct mechanical linkage that exists between a joystick and valve can send its electrical impulse to the ECU, which then regulates the position of the valve.

Enhanced precision and control

One of the biggest advantages of electrohydraulic technology is the significant increase in precision.

Traditional systems:

• Control accuracy is not as high.
• Operator-dependent performance
• Time delays in response

Electro-hydraulic systems:

• Control of proportional and servo valves
• Fluid and precise movements
• Repeatable operations that can be repeated

This degree of control is particularly valuable in situations such as

• Grading and excavation
• Precision agriculture
• Crane operations

Operators can complete delicate tasks with little effort, thus reducing fatigue and boosting overall efficiency.

Increased efficiency and energy savings

Efficiency in energy is a key concern for mobile devices, particularly with the rising cost of fuel and environmental laws.

Electro-hydraulic systems maximize energy use through:

• Controlling flow and pressure in a way according to demand
• Reduce the need for pumping
• Minimizing heat generation

Key technologies:

• Load-sensing devices provide only the flow required and pressure
• Pumps with variable displacement automatically adjust output
• Electronic flow control prevents energy waste

It is the result that:

• Lower fuel consumption
• Reduction in operating expenses
• Longer component life

Improved safety features

Safety is a major concern for mobile equipment, specifically in mining and construction settings.

Electrohydraulic integration improves safety through:

• Monitoring in real-time of the parameters of the system
• Automatic shutdown in the event of a fault.
• Anti-drop, load-holding, and anti-drop functions
• Stability control systems for stability control

Sensors, for instance, can detect overload conditions within the crane and stop unsafe movement. Similar to that, the boom and bucket positions can be adjusted to prevent tipping or collision dangers.

Automation and smart functions

The most transformative features of electro-hydraulic integration have been the capability to automate operations.

Examples of automation:

• Automatic leveling system in loaders and graders
• Functions of the Return-to-Dig features in excavators
• Precision farming with GPS guidance
• Semi-autonomous, autonomous, and autonomous vehicles

They rely on:

• Feedback from sensors (position, temperature, pressure)
• Advanced control algorithms
• Communication between machine components

Automation eases the burden of operators. It also improves consistency, which improves productivity.

Real-time diagnostics and predictive maintenance

The traditional approach to maintenance has been reactive, fixing problems once they arise. Electrohydraulic systems allow the shift to prescriptive maintenance.

How it works:

• Sensors constantly monitor the health of the system
• ECUs examine data for irregularities and look for signs of trouble.
• Alarms and fault codes are generated
• The maintenance can also be planned in advance

Benefits:

• Reduced time to shut down
• Lower repair costs
• The equipment's lifespan is extended

Technicians and operators can access diagnostic data via displays onboard or remotely to make troubleshooting easier and more precise.

Integration with telematics and IoT

Modern mobile phones are becoming connected using telematics as well as the Internet of Things (IoT). Electro-hydraulic systems play an essential part in this type of connectivity.

Capabilities:

• Remote monitoring of the machine's performance
• Data log and analysis
• Fleet management optimization
• Calibration and software updates

For fleet managers, this implies better decision-making on the basis of the latest data in real time, like fuel consumption, as well as idle time and the efficiency of the system.

Enhanced operator experience

Electrohydraulic integration greatly enhances the experience of the user.

Key improvements:

• Ergonomic controls (joysticks and touchscreens)
• Physical effort is reduced
• Customizable control settings
• Machines that are responsive and smooth

Operators are able to adjust the sensitivity, speed, and control modes in accordance with their preferences and work environment. This does not just improve the comfort of workers but also increases productivity and precision.

Environmental benefits

With the stricter emission standards worldwide, cutting down on environmental impact is an absolute priority.

Electrohydraulic systems are a part of:

• Lowering fuel consumption
• Reduced emissions
• The support for hybrid and electric powertrains

In mobile devices that are powered by electricity, electro-hydraulic integration is crucial to:

• Efficient energy management
• Controlling precisely electrically powered pumps
• Integration of battery systems with battery systems

Design flexibility and system optimization

Electronics help engineers design more adaptable and efficient hydraulic systems.

Advantages:

• Fewer mechanical links
• Modular system design
• Integration of new features is easier.
• Software-based upgrades

This allows manufacturers to design machines that are easily adjusted to various applications and the requirements of customers.

Challenges of electro-hydraulic integration

Despite its numerous advantages, electro-hydraulic integration is not without problems:

1. Increased complexity

• Needs highly skilled technicians
• More elements to manage

2. Higher initial cost

• Electronics and advanced sensors can increase the cost of a project.

3. Sensitivity to environmental conditions

• Electronics must be able to stand up to the effects of heat and vibration, dust, and even moisture

4. Need for specialized training

• Maintenance personnel and operators need to learn about new systems

But these issues are usually offset by the long-term benefits of efficiency, performance, and reliability.

Future trends in electro-hydraulic systems

Mobile devices are tightly tied to advances in technological advancements in the field of electrohydraulic technology.

Emerging trends:

• Fully self-contained machines
• Control systems that are driven by AI
• Hybrid systems and electrification
• Advanced Human-Machine Interfaces
• Cloud-based control and analytics

As technology advances, electro-hydraulic systems will be more sophisticated, flexible, and efficient.

Electrohydraulic integration is fundamentally altering the way mobile equipment is used. Through combining the lqw@ and resiliency of hydraulics, with the power and precision of electronic technology, the latest machines are becoming more efficient, safer, and more user-friendly.

From better control and automation to proactive maintenance and environmental benefits, the benefits of this kind of integration will be extensive. Although challenges are present, technological advancements keep pushing the limits of what mobile devices can accomplish.

For manufacturers, operators, and fleet managers, the adoption of electro-hydraulic technology is no longer a choice but a necessity to stay at the top of the game in a rapidly evolving and competitive sector.

As we look towards the future of more sustainable and smarter machines, electrohydraulic integration will be at the center of technological innovation in mobile equipment.
