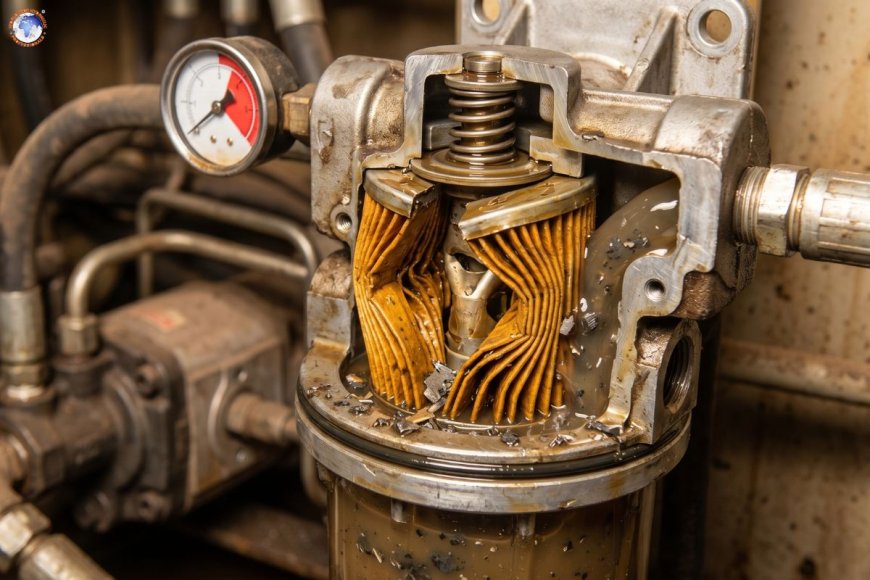

What happens when a hydraulic filter collapses?

Hydraulic systems comprise the core of the modern machine, supplying all kinds of equipment from building machines to agricultural tractors, to manufacturing lines and industrial presses. At the core of these systems is a crucial, but often ignored, component called the hydraulic filter. Its primary function is to filter out any contaminants in the water to ensure that it runs smoothly and protects sensitive components.

But what happens if the hydraulic filter fails, and specifically when it falls apart?

A collapsed hydraulic filter that is collapsed is not just an issue with maintenance; it can cause severe damage to the system, costly downtime, or even total failure of the equipment. In this comprehensive blog post, we'll discuss what collapse is, how it occurs, the consequences, how to recognize it, and, perhaps most importantly, what you can do to prevent it from happening.

Understanding hydraulic filter collapse

A hydraulic collapse of a filter occurs because the inner structure that makes up the filter - typically the support core or filter media--breaks under pressure. Instead of retaining its form and filtering pollutants effectively, the filter element is deformed and tears or explodes.

The resulting structural defect causes the filter to become ineffective and allows fluid that is not filtered to circulate throughout the system, which can carry harmful debris with it.

How are hydraulic filters designed to work?

To understand the concept of collapse, you must be aware of how a hydraulic filter works in normal conditions.

Hydraulic filters are made to:

• Infiltration of contaminants such as dirt, metal particles, and even debris
• Let fluid flow freely, with little resistance
• Pressure differentials that can be withstood between the outlet and the inlet

The majority of filters contain:

• Media for filtering (captures the particles)
• Support core (maintains structural integrity)
• End caps (hold the element in place)
• bypass valve (opens when pressure is too high)

If everything is working correctly, the filter makes sure pure fluid gets to the critical components such as valves, pumps, and actuators.

Causes of hydraulic filter collapse

Filter collapse isn't a random event; it's generally the result of issues with the hydraulic system. The most frequent reasons:

1. Excessive differential pressure

The most frequently cited reason for filter collapse is the high differential pressure (the gap between the outlet and inlet pressure).

This could happen when:

• The filter gets clogged up with contaminants.
• The flow of fluid is way too much for the filter's capacity.
• Cold oil raises the viscosity of oil, which limits flow

If pressure rises above the limit of the filter's design, the element may deform or even break.

2. Blocked or faulty bypass valve

A bypass valve acts as a security device designed to stop collapse. It permits fluid to pass through the filter if the pressure gets excessively high.

If the bypass valve is:

• It isn't able to open
• It is shut
• Is it not correctly sized

...then the pressure continues to rise, which increases the chance of a collapse.

3. Incorrect filter selection

The wrong filter on your system could result in premature failure.

Common errors can include:

• Selecting a filter that has a low pressure rating
• Incorrect micron ratings
• Filters that are not compatible or of low quality

A filter that isn't designed to suit the flow rate of the system or pressure is more likely to break and fall apart.

4. Cold start conditions

Hydraulic systems can be troublesome when they are first started in cold climates.

Cold oil:

• It becomes thicker (higher viscosity)
• The flow is slower
• Increases resistance across the filter.

The sudden increase in pressure can result in the suspension of the filter's fall as the system heats up.

5. Contamination overload

If a system is highly polluted, the filter could get overloaded fast.

The sources of contamination are:

• Ingress of dirt from the surrounding environment
• Wear particles that are emitted from internal components
• Water contamination

If the filter media becomes saturated, pressure rises, and the possibility of collapse increases.

6. Poor maintenance practices

Inattention to routine maintenance is a major cause of failure of filters.

Examples include:

• Filters are not replaced on time
• Inattention to warning signs
• Using substandard replacement parts

Filters that are frequently used are more prone to collapse.

What happens when a hydraulic filter collapses?

Let's look at the actual effects of a leaking hydraulic filter.

1. Unfiltered fluid circulates

After the filter has collapsed, it is no longer able to keep contaminants out. Metal particles, dirt, and other debris can freely flow throughout the filter.

This can lead to:

• Wear and tear of components accelerates
• The risk of failure is increased
• Reducing system efficiency

2. Damage to critical components

Hydraulic systems depend on precise tolerances. Even tiny particles can cause serious harm.

Components affected are:

• Pumps Internal wear and scoring
• Valve blockage or stickiness
• Actuators. The problem with seals is leakage

In time, the contamination could cause irreparable damage to crucial components.

3. System pressure instability

A clogged filter could disrupt normal fluid flow, which can cause:

• Pressure fluctuation
• Erratic machine behavior
• Performance is reduced

Operators might notice unsteady movements, slow response times, or an absence of power.

4. Filter debris from entering the system

If a filter is collapsed, parts of the filter's media or internal components may be smashed and then enter the system.

This is the introduction to:

• Other contamination
• Blockages in narrow passageways
• More damage to the delicate parts

5. Increased heat generation

Uncontrolled or interrupted flow can cause friction and lower efficiency.

This leads to:

• More operating temperatures
• Faster fluid degradation
• Lower lubrication efficiency

Wear and tear accelerate with heat, which can cause a chain of failures.

6. Costly downtime and repairs

A filter that is leaking can lead to system failure, which requires:

• Shut down of equipment
• Component replacement
• Cleaning and flushing of the fluid

The financial impact of the event includes:

• Lost productivity
• Expensive repairs
• More expensive maintenance costs

Signs of a collapsed hydraulic filter

Early detection could prevent major damage. Be aware of these warning indications:

1. Sudden drop in system performance

• A slower operation
• Reduction in power output

2. Unusual noises

• The sounds of whining or grinding emanate from the pumps

3. Pressure spikes or fluctuations

• Irregular pressure readings
• Regular activation of the relief valve

4. Dirty or discolored fluid

• There is visible contamination in the oil.

5. Filter condition indicators

• A lot of systems have clogging indicators that indicate high differential pressure

6. Overheating

• The temperature of the oil increased, but without an apparent reason

How to prevent hydraulic filter collapse?

Prevention is always more cost-effective and less expensive than repair. Here are some key strategies to follow:

1. Choose the right filter

Make sure the filter is in line with:

• System pressure rating
• The flow rate requirement
• Filtration efficiency (micron rating)

Always choose high-quality filters made by reputable manufacturers.

2. Monitor differential pressure

Check regularly and install:

• Pressure gauges
• Filter condition indicators

Change filters before they become too clogged.

3. Maintain the bypass valve

Make sure the bypass valve is in place:

• Works correctly
• Are you properly rated for the system

Regular inspection can prevent dangerous pressure buildup.

4. Follow a regular maintenance schedule

• Replace filters as recommended.
• Inspect fluid condition regularly
• Maintain records of maintenance

Consistency is essential to ensure system reliability.

5. Control contamination

Reduce contamination by:

• Using clean fluid during refills
• Making sure the system is properly sealed
• Installing seals and breathers

Cleaner systems can extend the life of the filter dramatically.

6. Manage cold starts

In colder environments:

• Use fluid heaters
• Let the system warm up before allowing it to fully operate.
• Make sure you use oil with the proper viscosity.

This helps reduce pressure spikes at the time of startup.

What to do if a filter collapses?

If you suspect a possible filter failure, take action immediately:

1. Turn off the device to stop any further harm
2. Check and replace the filter
3. Verify for debris within the system
4. Clean your hydraulic fluid in the event of severe contamination
5. Check critical components for damage
6. Find and correct the root cause

In the absence of attention, the issue will make the damage worse and raise repair costs.

A collapsed hydraulic filter isn't an inconvenience; it's an extreme failure that could affect all hydraulic systems. By allowing contaminants to circulate freely, destroying crucial components, and causing expensive downtime, the results can be serious.

The positive side is that filter collapse can be prevented. If you choose the right filter, ensure good system conditions, observe pressure, and adhere to the correct maintenance program to protect your equipment and ensure its long-term stability of your equipment.

When it comes to hydraulics, hygiene is the most important factor, and the humble filter plays an essential part in keeping it. Consider it a crucial element, not an extra, and your system will be rewarded with performance, durability, and efficiency.
