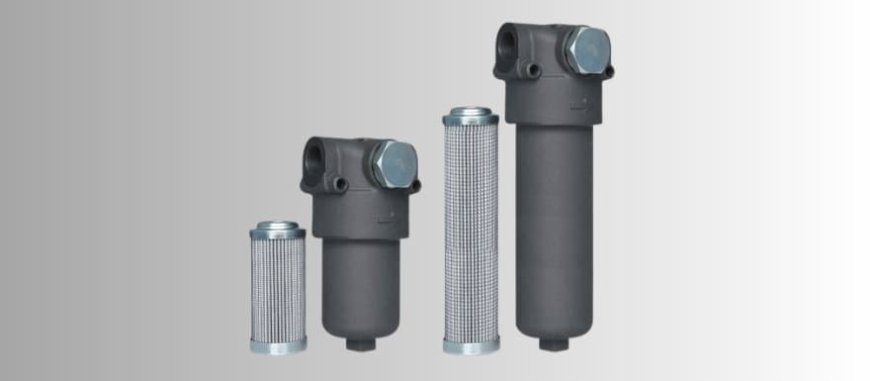

Why Hydraulic Pressure Line Filters Are Non-Negotiable ?

In the realm of hydraulics cleanliness is the key to power. The fluid that flows through the hydraulic system isn't only a means of energy transfer, but it's also a lubricant and a coolant, as well as a power source. It's also an excellent magnet for contamination.

When hydraulics are considered to be the heart and vessels of a machine, and then it is likely that the Pressure line filter is the most intensive care unit, which is working continuously to maintain the overall health of the operation. Inattention to this vital component can be an easy way to cause the possibility of catastrophic system failure.

What is a Pressure Line Filter?

The pressure line filter can be described as a specific part that is installed in the downstream area from the pump however ahead of the critical control components such as servos or proportional valves. It's designed to handle the maximum working fluid pressures of the system, which is typically many thousands of pounds/square inches (psi).

Its task is easy: to capture the highest quality and most harmful particles of solid contamination--often particles that are not visible to the naked eye, before they get into the most sensitive and expensive components of the system.

The Silent Killer: Contamination

Contamination, mostly as a result of particulate matter that is hard (like steel filings and wear particles or silica dust) is the reason for more than 70-85% of mechanical system malfunctions.

There are three primary reasons why contamination is risk:

1. wear: The particles get trapped within the close space clearances (measured by microns) in motors, pumps and valves. This causes scratching, friction, and rapid wear on the precision surfaces.

2. Erosion The high velocity of the fluid that carries contaminants infiltrates components, gradually devouring them particularly in the vicinity of valve ports.

3. Component Seizure Larger particles could completely encase themselves in tiny spaces and cause valves to become stuck or pumps to swell which can lead to a complete failure.

The Critical Location: Why Pressure is King

Filters for hydraulics can be placed in various places (suction return or off-line) However, placing one on the pressure line has distinct, vital advantages:

• The Last Line of Defense for Critical Components: By sitting just in front of the components that are sensitive (like controllers for flow or valves) The pressure line filter is the highest degree of protection. If wear debris has been generated within the pump the pressure filter will remove it right away.

• High-Efficiency Filtration Since the fluid is extremely pressurized and is pushed by the element of filtering at a precisely controlled rate, which allows for to use extremely tiny filter media (typically 3-10 microns). This catches the smaller silting particles that cause the most harm.

• Monitoring Wear Loops The most serious contamination is usually internally produced from the pump. The filter should be placed in place immediately after the pump stops this cycle of contamination, significantly cutting down the time rate at which the wear is incurred by the whole system.

Key Features of a High-Performance Pressure Filter

Due to the harsh conditions These filters aren't simple screens. They have specialized features that assure reliable operation:

• Strong High-Burst The filter housing and element have to be strong enough to withstand the pressure of the entire system without bursting or collapsing.

• Bypass Valve All pressure filters comes with the bypass valve. When the filter element is blocked (saturated by contaminants) the valve opens so that the fluid can pass through the filter. While this compromises filtering temporarily however, it stops the differential pressure from causing damage to the pump or draining the entire process of flowing.

• Dirt Alarm (Indicator): This digital or electronic indicator indicates when the drop in pressure over the element is at an unacceptably high level, alerting the user that the filter element requires replacement prior to that bypass valve is opened.

The Return on Investment (ROI) is Clear

Although pressure line filters as well as their replacement components are the initial expense but they're among the best investments for long-term durability of hydraulic systems.

They can extend the life of expensive parts (pumps motors, valves) by an amount at least two. By maintaining ultra-clean fluid pressure line filters reduce the amount of downtime and repair costs and ensure that your machine performs at its highest efficiency for the foreseeable future. They are, in essence the essential protectors of hydraulic power.
