Key electro-hydraulic components used in industrial automation

Modern industrial automation increasingly relies on electronic control systems, but hydraulics remain essential in applications that require high force and precise motion control.

An electro-hydraulic system combines electronic control with hydraulic power. The controller sends command signals, the valves regulate flow or pressure, sensors provide feedback, and the hydraulic circuit delivers force. The result is a system that is far easier to automate than traditional manual hydraulics.

In one common example, automated press systems use closed-loop control to maintain repeatable positioning during every cycle, even as load conditions change from part to part.

What makes an electro-hydraulic system different?

Traditional hydraulics rely on manual adjustments and operator judgment. Electro-hydraulic systems insert a control layer, typically a PLC or motion controller, that drives valves and receives real-time feedback from sensors. That architecture supports stable and precise closed-loop control, better positioning, and easier integration with plant automation.

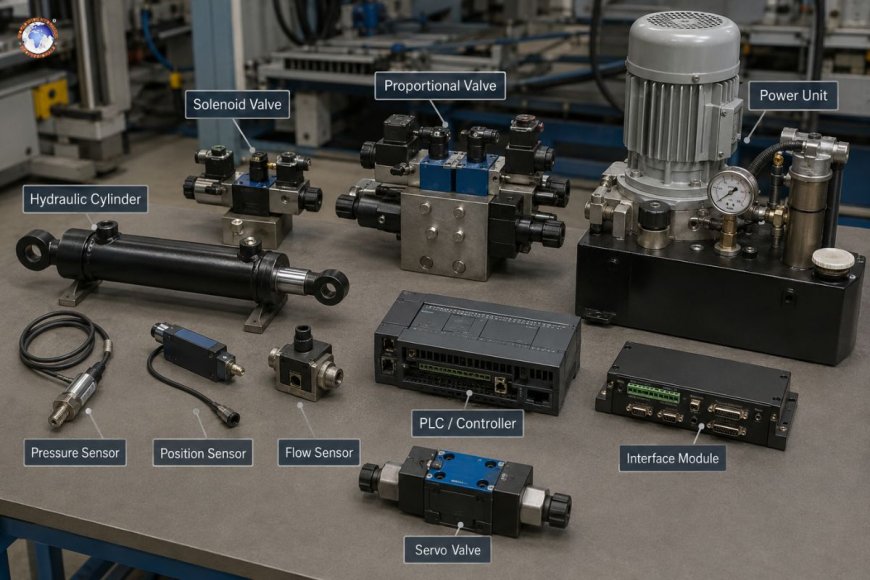

Core electro-hydraulic components

Solenoid and Proportional Valves

Solenoid valves are widely used for on/off control because they are simple, robust, and easy to maintain. Proportional valves go further by varying flow or pressure in response to an analog command signal. That modulation helps reduce shock at start-up and stop, which supports better part quality and longer machine life.

Servo Valves

For applications that demand very fast response and very fine control, such as fatigue testing, press cushion systems, or flight simulation, servo valves are the standard choice. They react in milliseconds and offer very low hysteresis. Their main limitation is sensitivity to fluid contamination, so filtration and cleanliness discipline matter.

Sensors: closing the loop

Position, pressure, and flow sensors provide the feedback that makes closed-loop control possible. A magnetostrictive position sensor in the cylinder tells the controller exactly where the actuator is; a pressure transducer verifies clamping force. Without accurate feedback, even a well-designed valve train cannot deliver consistent control.

Controllers and interface modules

The PLC reads sensor signals, executes the control logic, and sends outputs to the valves. Proper integration depends on signal conditioning, grounding practice, and noise immunity. Those details often separate a stable machine from one that generates intermittent faults and maintenance calls.

Actuators and the power unit

Cylinders and hydraulic motors convert fluid power into motion. Many include embedded sensors for position or load feedback. The power unit—pump, motor, reservoir, and pressure regulation—must supply clean and stable hydraulic energy. If the unit cannot maintain pressure under load, the control system loses effectiveness no matter how advanced the electronics are.

How do the components work as a system?

Consider an automated press. The PLC initiates a motion profile, the proportional valve opens to the commanded degree, the cylinder extends, and the position sensor reports actual travel back to the controller. When measured performance deviates from the target, the controller adjusts the signal in milliseconds. That command-regulate-sense-correct loop is the core of electro-hydraulic precision.

A simplified control sequence looks like this:

•            Start command from PLC

•            Valve opens proportionally

•            Cylinder extends

•            Position sensor confirms travel

•            Controller corrects signal if needed

Where Electro-Hydraulic Components Are Used

These systems are common in industrial presses and forming machines that demand high force and repeatability, in injection molding for precise speed and pressure control, in machine tools for clamping and positioning, and across heavy process automation such as lift systems, large manipulators, and steel mill equipment where an all-electric alternative may be impractically large.

Important factors when selecting electro-hydraulic components

•            Required force, speed, and control precision

•            Operating pressure and flow range under worst-case load

•            Environmental conditions such as dust, vibration, and washdown

•            Sensor compatibility and signal type

•            Maintenance access and fail-safe requirements

Valve comparison table

Common electro-hydraulic failure points

Three issues appear again and again on the plant floor. Contamination can wear valve internals and reduce sensor reliability long before a hard failure appears. Overheating can thin the oil, accelerate seal wear, and reduce response consistency. Grounding issues can introduce electrical noise into sensors and control wiring, which then looks like a hydraulic problem even when the hardware is healthy.

Conclusion

Electro-hydraulic components remain essential because they solve a problem neither purely electric nor purely hydraulic approaches can address alone: delivering high force with precise, repeatable control. Understanding the role of valves, sensors, controllers, actuators, and the power unit gives engineers a solid basis for reliable system design and faster troubleshooting. As plant automation becomes more integrated, that coordination between hydraulic hardware and control logic matters even more.
