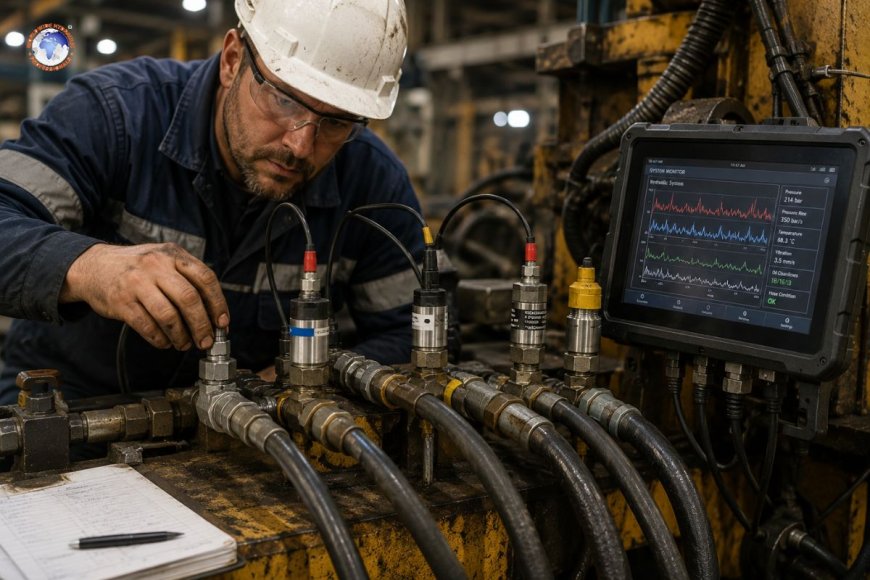

Can hydraulic hose failures be predicted using sensors or condition monitoring?

Yes. Hydraulic hose problems can be identified with significant precision using a combination of pressure sensors as well as vibration analysis, temperature monitoring, and monitoring of fluid condition, especially when coupled with visual inspection of the cover and maintenance record. There is no single sensor that can catch all the details, but layered monitoring can identify the majority of problems prior to them becoming unplanned downtime, blowing seals, or safety hazards.

Failure of the hose has earned an image of being one of the "sudden" failure modes in hydraulic systems. One moment the machine is operating, and the next, there's a leak of pressurized fluid on the floor of the shop. However, the majority of problems with hoses aren't that unexpected even. They're the visible ending to the gradual degrading process that can begin several weeks or even months before. The problem has not been whether or not hoses show warning signals—they do, but the question is the question of who or what is looking for them.

How is hose failure prediction different from valve or cylinder prediction?

Cylinders and valves break down due to wear on metal surfaces that have been machined that tend to wear in a linear, quantifiable manner. Hoses are made up of a combination comprising an inner tube and layer of reinforcement (braid or spiral wire) as well as an outer cover and they are prone to failure due to various causes that include fatigue cracks at the reinforcement layer, abrasion on the cover and chemicals attacking the tube and fitting-to-hose-interface fatigue. This means that hose degrading does not show up on one measurement of the axis. A successful prediction involves combining several different signals instead of relying on a single sensor type to complete the task.

This is the reason why the prediction of failures in hoses has lagged behind bearing and pump condition monitoring, which has decades of proven vibration-signature research behind it. Hoses are now catching up; however, the way of doing it looks different.

The layers of monitoring and sensors that actually function

1. Monitoring for pulsation and spikes in pressure

The fatigue of reinforcement in a hose is primarily caused by pressure load, not steady-state cyclic pressure. A hose with a rating that's well at its maximum working pressure may be prone to failure if exposed to frequent pressure surges due to the pump's ripple, valve shock, or shock load at the cylinder stroke-end.

In-line pressure transducers that record high pressure, speed of pressure rise, and frequency of spikes provide an early indication of the accelerated fatigue. Systems that record pressure spikes that exceed a certain threshold in time could signal the hoses are aging faster than their intended life expectancy would suggest prior to the time an obvious leak or bulge appears.

2. Monitoring of temperature on the hose's surface and fitting

Heat speeds up the degradation of the tube and covers in a significant way. When a hose is continuously operating at or above the tube's rated temperature, it will lose flexibility and tensile force far quicker than the tubing in a properly cool circuit. Infrared spot sensors, or thermocouples fixed in hot areas—like close to valve blocks, pump outlets, or return lines that run close to engine compartments—are able to detect overheated localized areas that conventional temperature gauges for reservoirs do not detect completely.

Fitting connections can be an important monitoring tool, as fittings with crimped connections are often hotter than the hose body when subjected to flex-fatigue and vibration conditions. Fitting-to-hose separation is among the most frequent catastrophic failure types.

3. Vibration and tracking flex-cycles

Hoses that pass through high-vibration zones such as engine, mobile equipment chassis runs, and reciprocating machinery can cause mechanical fatigue that is regardless of pressure cycling. Accelerometers that are mounted close to hose clamps and routing points can measure the amount of vibration that is exposed over time, which is correlated very well with abrasions at contact points as well as fatigue at bend radiuses that are below the hose's bend rating.

This is particularly true for off-highway and mobile equipment, in which the constraints of routing often force hoses closer towards their minimum bend radius than what is optimal.

4. Monitoring the condition of the fluid and monitoring particle size

It's a bit counterintuitive; however, it's well documented. As the inner tube of a hose starts to degrade through abrasion or chemical degradation and abrasion, it releases material into the flow of fluid. Counters for particles and analysis of oil software commonly used to monitor the filtration of fluids and health of pumps will detect elevated levels of particulate that are indicative of tube degradation, particularly in systems that use high-additive or biodegradable fluids, which are more aggressive towards specific tube components.

The analysis of fluids won't reveal the hose that is being damaged in a multi-hose system. However, it's a signal that something within the path of fluid—seal, hose, or whatever—is disintegrating internally.

5. Ultrasonic monitoring and the emission of sound

It is a new technology, but it is increasingly being used for high-value or safety-critical hose runs: Acoustic emission sensors can detect the high-frequency sound signatures generated by the breakage of reinforcement wire prior to it being visible externally. This technique is typically used for high-pressure, large-bore systems where failure or replacement of hoses can have significant financial or dangerous consequences, since the expense of sensors is more difficult to justify on smaller, less risky circuits.

The combination of sensor data with images and manual inspection

Sensor-based monitoring functions best as an additional layer and not as a replacement for routine visual inspection. Kinking, cover abrasion, UV degradation, and fitting corrosion can be most effectively detected with trained eyes or a scheduled walk-down. The benefit of sensors is continuous coverage during inspection intervals and quantifiable data trends that a visual examination isn't able to provide. You can observe that the hose is in good shape now; however, a sensor will inform you that it's running 15 percent hotter than the baseline over the past three weeks.

The most efficient condition monitoring systems treat the health of hoses as a composite score that includes history of pressure spikes and temperature trends, the exposure to vibration, the fluid condition, and final visual inspection results, weighed together, rather than analyzed as a whole.

How does this fit into the maintenance program?

For systems or fleets that comprise an abundance of hose assemblies, implementing all-sensor instrumentation for each hose will not be cost-effective. A successful rollout usually focuses on:

• High-pressure hoses that exceed a specified threshold of working pressure
• Hoses in circuits that are safety-critical (steering and braking lifting, steering)
• Hoses with known high-failure-rate routing locations (tight bend radius, high vibration mounts, runs that are heat-adjacent)
• Hoses that have a documented record of premature failures on the specific machine or application

Runs with lower risk and low cost are typically more efficiently served by interval-based replacement or visual inspection, rather than specific sensor investments.

The failure of a hydraulic hose isn't as unpredictable as it's addressed. Pressure spike logs, temperature monitoring, vibration tracking, as well as fluid condition analysis each capture an element of the overall degrading picture and when combined, they provide an accurate picture of the health of the hose and can shift replacing hoses from being a reactive and failure-driven incident into a scheduled maintenance project. The investment is most effective when the consequences of failure are most severe in high-pressure, safety-critical, and high-vibration areas in which the price of a non-planned downtime or accident is far greater than the cost of instruments.

1. What is the first warning sign that a pipe is in danger of failing?

The elevated operating temperature and the increased frequency of pressure spikes typically show up weeks prior to visible signs such as bulging, cracking, or bulging of the cover or leakage from the fitting.

2. Can condition monitoring be used to predict fitting failures and leaks in the body of hoses?

Yes. Separation of the fitting from the hose is often due to heat buildup in the local area and vibrations in the crimp area. Both of these are tracked using accelerometers and temperature sensors placed close to the fitting.

3. Is hose monitoring using sensors effective in all hydraulic systems?

It's not always the case. It's more cost-effective in high-pressure, safety-critical, or high-vibration situations, whereas circuits with lower risk are usually better served by regular visual inspection or interval-based repair.

4. How can fluid analysis determine if a hose is failing? If it doesn't examine the hose in the first place?

The inner tube of a hose gets damaged chemically or through abrasion; it is able to release particles into the fluid. Therefore, analysis of the oil and particle count will detect the early signs of internal tube degradation as part of the routine monitoring of fluids.

5. Does condition monitoring take away the need for regular visual inspection of hoses?

No. Sensor data is a complement to visual inspection by capturing the duration between inspections and quantifying patterns, but it doesn't detect the kinking, abrasion, and external corrosion. They are best assessed through routine physical inspection.
