How do you diagnose internal leakage in hydraulic motors?

Internal leakage within a hydraulic motor is detected by measuring the flow of the case drain at load, looking for the possibility of a decrease in output speed or torque at constant pressure, and then comparing volumetric efficiency with the benchmark of the manufacturer. A flow test of the case can be the best way to test for determining excessive flow that is returning to the tank via the drain line of the case (rather than working on the shaft) indicates an internal bypass that is past the motor's rotating group and the extent of the flow is a sign of how much the motor is degrading.

Motors with hydraulics seldom fail without warning. When a motor ceases moving completely, it starts becoming less efficient. A tiny amount of oil slips through internal clearances every time, and the machine that it drives becomes unresponsive, slow, or unsteady. Being able to spot the slippage before it happens and conclude it's an internal leakage and not other than the circuit itself is what differentiates the planned rebuild of a motor from a haphazard stoppage in production.

What exactly is an internal leakage?

Each hydraulic motor, whether vane, gear, or piston type, is based on close-tolerance internal clearances that convert pressurized fluid to effective rotational force. Certain fluids will inevitably slide through the clearances (between housing and gears vanes, cam ring and vane, or between bores and pistons) and then drain through the case, rather than pressing onto the working element. This is normal and acceptable in small quantities; this is why there are drain lines in the case in the first place.

Internal leakage can be a concern when clearances are opened because of damage, wear, or other damages, and the amount of fluid flowing through the rotating system increases beyond the design tolerance. In this case the motor is receiving the full flow of pressure and flow; however, a larger portion of the hydraulic energy is transformed into heat and drain flow instead of speed and torque in the direction of output.

Signs that indicate internal leakage

Loss of torque when under load

Motors with leakage inside will stop or slow significantly as the load increases, even if the pressure is normal in the gauge. Healthy motors maintain their speed constant as the load fluctuates within their range of performance. The speed of a leaky motor drops off quicker than the load on its own can explain.

Speed reduced at flow rate

When the pump is operating slower than the displacement, the flow rate that it is supposed to produce, and the difference isn't attributed to relief valves or other flow control settings within the circuit, then internal slippage is likely to be the reason.

Temperatures of excess case drain

Fluid that passes through the rotating group through tight clearances produces heat by friction. A drain line for the case that is more hot than the return line—typically by a substantial margin—is an obvious indication of internal leakage.

A sporadic (or "spongy") operation

Operators may describe a leaky motor as a feeling that is uneven or soft, especially when the load is variable. This is because the proportion ratio between "wasted" flow and "working" flow changes when load and pressure change; thus, the impact isn't always the same throughout the load range.

The flow of cases draining is increasing over time.

The most obvious indicator for the long term is a gradual increase in drain flow when measured frequently under the same conditions. A single reading can tell the position of the motor, and a trend will tell you the speed at which it is decreasing.

How to diagnose it Step by step

Step 1: Eliminate the external cause first.

Before assuming leakage inside, make sure the leakage isn't downstream. Examine the pressure of the system at the motor's intake under load. Ensure that the pump is generating the appropriate flow, check for leaks in the external area of seals and fittings, and ensure that the flow control and relief valves are in good working order. The leakage in the internals is usually a particular motor diagnosis, and it's easy to assign an issue with the valve or pump to the motor when this step is not taken care of.

Step 2: Determine the case drain flow

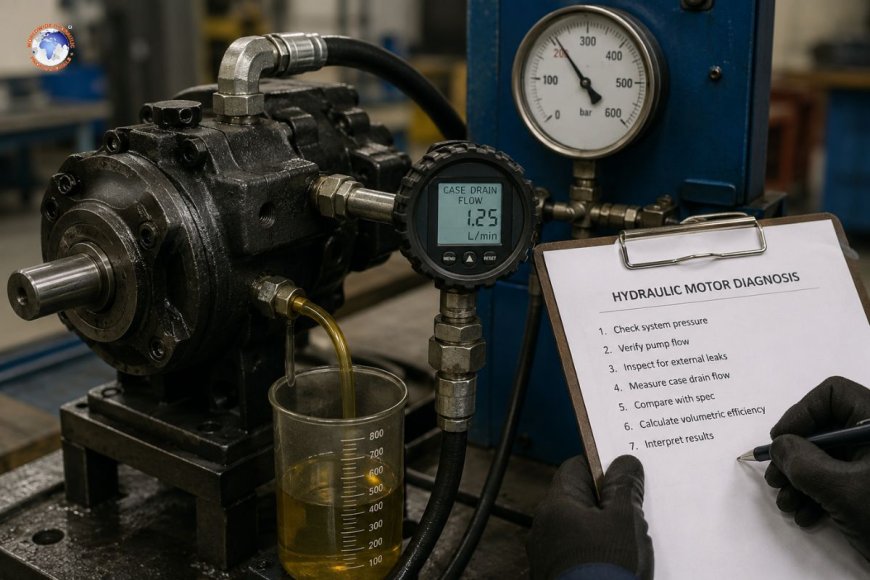

This is the only simple test. If the motor is operating at or close to its maximum pressure and with a load representative of draining the case line through a flow meter (rather than directly to the tank), then record how much flow you are getting. Then compare this figure to the maximum allowed by the manufacturer's flow of the case drain for that displacement and model of motor.

For a general benchmark for healthy motors, they typically have drainage from the case at a low single-digit percent of the motor's nominal inlet flow. Manufacturers have specific thresholds for their models, and these figures are the benchmark, as leakage levels can vary depending on the type of motor and the displacement.

Step 3: Calculate volumetric efficiency

Volumetric efficiency is a measure of the actual output speed with theoretical speed, based on the flow input and motor displacement.

Volumetric Efficiency = (Actual Motor Speed / Theoretical Motor Speed) x 100

The theoretical speed is calculated by the input flow divided by the motor displacement, which is adjusted to account for units. A brand-new motor is typically at a mid-to-high 90s percentage volumetric efficiency. A figure that is significantly lower than the efficiency of the manufacturer's estimate, in particular when compared to an earlier reading, in the time the motor was considered to be healthy, is a sign of internal wear.

Step 4: Perform a test throughout the range of pressure.

Internal leakage tends to get worse with increasing pressure, since pressure differentials that are higher force more fluid over worn-out clearances. Test the flow of drains in the case and speed at various pressure locations (light load, medium load, and near-rated) will reveal if the leakage increases with pressurean expected pattern for wear of clearances -or if it's a fixed drag that is not related to pressure, pointing to a different issue, similar to mechanical bind.

Step 5. Compare to the baseline of historical

If possible, compare your current readings with an established baseline at the time of the motor's introduction or recent rebuild and conducted under similar conditions. The trending of data over time is more reliable than just a single snapshot since it differentiates regular manufacturing tolerability from active degradation.

Step 6: Examine the internals If the readings prove that there is a problem.

If the flow of case drain and volumetric efficiency both indicate leaks inside the motor, it must be removed to inspect the internals. Find marks on the faces of gears or bores on pistons and vane tips worn out or damaged, cam rings, or excessive clearances at the thrust and bearing surfaces dependent on the type of motor. This is a good indicator of the root issue and helps determine if replacing the entire motor or a complete rebuild is the best option.

Common diagnostic errors to be aware of and avoid

Testing with no load or with low load only. Leakage in the internals that are minimal at low pressure may turn into a major issue near pressure. Tests that are limited to low-load conditions could miss an engine that fails under actual loads.

Ignoring fluid condition. A degraded or contaminated liquid can increase internal wear and can also impact flow measurements. Always consider the latest oil analysis results when interpreting data from case drains.

Comparison of thresholds against generic ones rather than the specifications of the manufacturer. The acceptable flow of case drains differs significantly between vane, gear, and piston motors and among models in this same group. Always refer to the tolerances of the motor that are documented.

The mistake of ignoring temperature as a factor. The viscosity of fluids changes with temperature, and this can affect leakage rates, independent of wear and tear on the mechanical. Tests for draining the case must be performed at the normal operating temperature to ensure consistent and comparable results.

Finding leakage within the hydraulic motor boils in the form of separating the motor from the circuit and measuring the flow of draining through the case and calculating volumetric efficiency against a predetermined base. The first step is to identify external causes, and then testing the range of pressure and observing the changes over time transforms an unspecific symptom, such as "the machine feels weaker," into a precise, quantifiable diagnosis. This gives maintenance teams time to plan for a repair prior to the failure of the motor when it is in use.

What is the normal flow of drain for a motor that is hydraulic?

Normal drain flow for the case is typically a fraction of the motor's nominal inlet flow; however, the amount that is acceptable differs by type of displacement, model, and manufacturer. Make sure to check the specific motor's specifications rather than making a decision based on an industry-wide number.

Is internal leakage within the hydraulic motor fixed without a complete replacement?

In many instances, the majority of cases, yes. If the internal inspection indicates wear that is limited to certain components like vane tips or gear faces or sealings, then a repair with new internal components could bring back the performance. Housing damage or severe scoring could require a complete replacement.

Does leakage from the inside always result in evident external manifestations?

However, not all the time, especially at the beginning of. The slight leakage could manifest as a slight raised temperature in the case drain or a small efficiency loss, and that is why regular tests detect problems before relying solely on complaints from the operator.

When should the case drain flow be checked on the most critical hydraulic motors?

In the case of motors operating in critical or high-duty-cycle environments Testing during regular intervals of preventive maintenance and following any unusual performance issue is a common procedure. The appropriate frequency is determined by what the duty cycle is and how important the engine is for operation in general.

Internal leakage is the same as leakage from the outside?

No. External leakage occurs when fluid escapes the motor housing completely and is visible as a leak in the seals and fittings. Internal leakage remains in the hydraulic circuit but does not affect the working components of the motor and returns to the tank via the drain in the case, rather than producing any output.
