What are the common pressure ratings and working temperatures for hydraulic hoses?

Hydraulic hoses are among the most crucial components of the hydraulic systems. They function as a flexible conduit to transfer hydraulic fluid between various components such as valves, pump motors, cylinders, and pumps. The selection of the correct hydraulic hose is vital since the incorrect pressure rating or inadequate temperature tolerance can cause system malfunction, leaks, downtime, and expensive repairs.

Knowing the most common work temperatures for hydraulic hoses aids engineers, maintenance specialists, and operators of equipment in making educated decisions. When used in construction equipment or agricultural equipment and industrial manufacturing systems and mobile hydraulics, the hydraulic hoses have to meet specific demands for operation.

This article explains the most common working temperatures and pressure ratings for hydraulic hoses, the elements that affect hose performance and the way to select the best type of hose to meet your needs.

Understanding hydraulic hose pressure ratings

Pressure rating is the highest internal pressure that a hydraulic hose is able to safely handle in operation. The pressure measurement is determined by the quality of the design and reinforcement layers and the materials and design specifications.

Hydraulic hoses generally contain three pressure specifications:

1. Working pressure

This is the most constant pressure that the hose is able to safely operate at in normal operating conditions.

This is the main pressure rating to consider when deciding on a hose to use in an application.

For instance:

• A hose that is rated for 3,300 PSI will continuously work at this pressure.

• If you exceed this pressure frequently, it will cause the hose to become weaker over time.

2. Burst pressure

Burst pressure refers to the pressure that the pipe will break or fail.

The majority of hydraulic hoses are constructed with an 4:1 safety ratio, which means that your burst pressure will be four times that of the working pressure.

For instance:

• Working Pressure: 5,000 PSI

• Burst Pressure: 20,000 PSI

This security feature protects against sudden pressure spikes and surges.

3. Impulse pressure

Hydraulic systems typically experience fluctuations in pressure due to valve switchover and sudden load changes or shock to the system.

The pressure rating of the impulse gauges the hose's capacity to endure repeated pressure cycles.

A hose that has a high resistance to impulses is vital for the most demanding of applications, like

• Excavators

• Hydraulic presses

• Injection molding machines

• Mining equipment

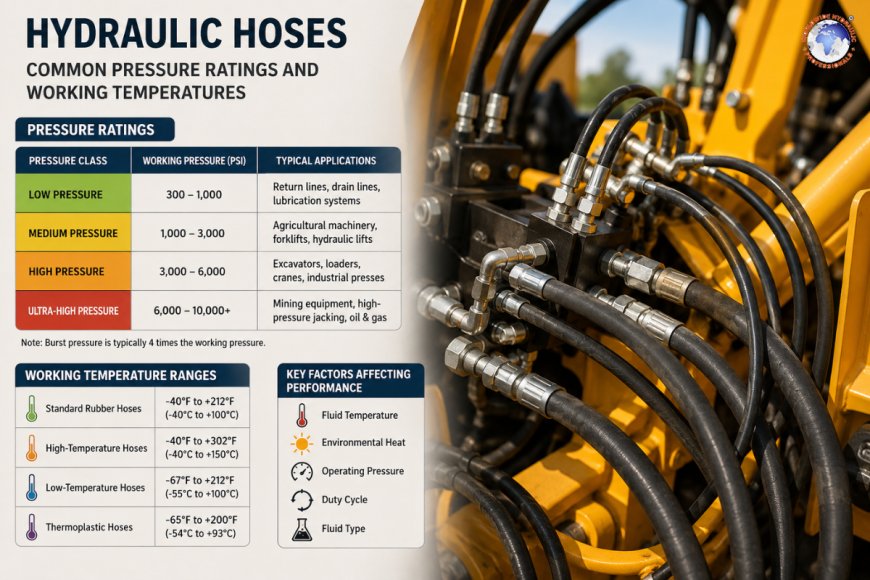

Common hydraulic hose pressure ratings

Hydraulic hoses can be found in a range of pressure ratings based on the application.

Low-pressure hydraulic hoses (300-1,000 PSI)

They are utilized in systems that have moderate demands on hydraulics.

Common applications are the following:

• Return lines

• Drain lines

• Lubrication systems for Lubrication

• Transfer of low-pressure fluids

Examples of typical instances include:

• SAE 100R3

• SAE 100R6

These hoses are light and flexible; however, they are not suitable for circuits with high pressure.

Medium-pressure hydraulic hoses (1,000–3,000 PSI)

Medium-pressure hoses are employed in general industrial applications.

Applications comprise:

• Machinery for agriculture

• Forklifts

• Light construction equipment

• Hydraulic lifts

Common hose types:

• SAE 100R1

• SAE 100R2

They provide an equilibrium between flexibleness and durability.

High-pressure hydraulic hoses (3,000–6,000 PSI)

These hoses are made for hydraulic systems that demand more performance.

Common applications:

• Excavators

• Loaders

• Cranes

• Industrial hydraulic presses

Examples of typical instances include:

• SAE 100R12

• SAE 100R13

• SAE 100R15

They have several levels of wire-reinforced steel to provide additional strength.

Ultra-high-pressure hydraulic hoses (6,000–10,000+ PSI)

These are specially designed hoses designed specifically for use in extreme-duty situations.

In:

• Heavy mining equipment

• High-pressure jacking systems

• Equipment for oil and gas

• Hydraulic tools with specialization

Examples:

• Spiral-wire-reinforced hoses

• Thermoplastic hydraulic hoses

The hoses are designed to withstand the highest pressure and long-lasting.

Standard hydraulic hose pressure classes

Many hydraulic hoses are manufactured to meet international standards, like

• SAE (Society of Automotive Engineers)

• EN (European Norm)

• ISO Standards

Examples include:

SAE 100R1

• Working Pressure: 1,300-3,000 PSI

• Reinforcement: Single steel wire braid

SAE 100R2

• Working Pressure: 2,250-6,000 PSI

• Reinforcement: Double steel wire braid

SAE 100R12

• Working Pressure: Up to 4,000 PSI

• Reinforcement: Four spiral wire layers

SAE 100R15

• Working Pressure: Up to 6,000 PSI

• Reinforcement: Six spiral wire layers

The selection of a product that conforms to accepted standards assures compatibility and reliability.

Understanding hydraulic hose working temperature

The temperature rating indicates the temperature range that an hydraulic hose is safe to be used in.

Hydraulic hoses have to be able to handle the following:

• Ambient temperature

• Temperature of hydraulic fluid

• External sources of heat

• Temperature-related cycling

A temperature that is not within the range could result in:

• Hose hardening

• Cracking

• Lack of flexibility

• Premature failure

• Leakage of fluids

Common hydraulic hose temperature ranges

Standard rubber hydraulic hoses

The majority of traditional rubber hydraulic hoses work between

-40°F to +212°F
(-40°C to +100°C)

These hydraulics are suitable for a majority of mobile and industrial hydraulic systems.

Applications:

• Construction equipment

• Machinery for agriculture

• Hydraulics in factories

High-temperature hydraulic hoses

It is designed for high temperatures.

Common range:

-40°F to +302°F
(-40°C to +150°C)

It is used in:

• Steel mills

• Foundries

• High-temperature industrial processes

The hoses are typically made of synthetic rubber mixtures.

Low-temperature hydraulic hoses

The design was developed for cold climates and applications that require arctic temperatures.

The typical range is:

-67°F to +212°F
(-55°C to +100°C)

Applications:

• Equipment to remove snow

• Cold storage facilities

• Outdoor equipment in freezing conditions

They remain flexible in low temperatures.

Thermoplastic hydraulic hoses

Temperatures vary:

-65°F to +200°F
(-54°C to +93°C)

Advantages:

• Lightweight

• Excellent resistance to chemicals

• Good flexibility

Common in:

• Material handling

• Aerial lifts

• Applications for high-abrasion

Factors that affect hose temperature performance

A variety of factors affect how the hose will perform under temperature stress.

1. Hydraulic fluid type

Different hydraulic fluids generate different heat levels.

Examples:

• Petroleum-based oils

• Synthetic fluids

• Water-glycol fluids

• Phosphate esters

Some fluids require specialized hose materials.

2. Environmental exposure

External conditions, such as:

• Direct sunlight

• Heating of the engine

• Hot surfaces

• Freezing temperatures

could have a significant impact on the temperature of hoses.

Protective sleeves can help reduce exposure.

3. Duty cycle

Continuous heavy-duty operation produces more heat than intermittent usage.

Systems that have constant cycling require hoses that have a higher thermal resistance.

4. Pressure-induced heat

The pressure of high pressure causes internal friction as well as heat buildup.

This is particularly important when it comes to compact hydraulic systems.

How pressure and temperature work together?

Temperature and pressure are closely linked.

As temperature rises:

• The material of the hose can soften.

• Pressure resistance could reduce

• The reinforcement layers could be weakened

For instance an hose designed at 5000 PSI when 70°F is at its maximum could have a lower capacity for pressure when it reaches temperatures of 212 degrees.

Manufacturers usually offer charts of derating that show how the limits of pressure change as temperatures increase.

Always refer to these charts prior to choosing the right water hose.

Choosing the right hydraulic hose

To determine the appropriate hose, think about the STAMPED method: Stamped method:

S - Size

Check the correct dimensions and diameters.

T – Temperature

Record the temperature of the ambient fluid as well as the temperature.

A – Application

Know the requirements of the system.

M – Material

Make sure the hose is compatible in relation to hydraulic fluid.

P – Pressure

Work pressure and the system's demands.

E – Ends

Make sure that the fittings and connections are in good order.

D – Delivery

Take into consideration the installation and routing needs.

Best practices for hydraulic hose safety

To extend the service life of your equipment:

Inspect regularly

Check for:

• Cracks

• Blisters

• Abrasion

• Leaks

Avoid overpressure

Set up the pressure relief valves.

Prevent excessive heat exposure

Make use of heat shields whenever you need to.

Replace aging hoses

Even if they appear to function, they will degrade with time.

Follow manufacturer guidelines

Always follow the recommended limits on temperature and pressure.

Hydraulic hose pressure ratings as well as working temperatures are essential elements in the performance of hydraulic systems and security.

The typical pressure ratings vary between 300 PSI in low-pressure systems up to more than 10,000 PSI in ultra-high-pressure systems, and temperatures typically range between 40°C and +150°C according to the construction of the hose.

The right choice of hydraulic hose is a matter of understanding the requirements for pressure and operating temperatures, as well as environmental conditions, as well as compatibility with fluids.

By selecting hoses with care according to these parameters and implementing proper maintenance procedures, business owners can improve the reliability, decrease downtime, and prolong the life of hydraulic equipment.

In the highly competitive world of hydraulics, a good fitting isn't just a part; it is an investment in safety and performance.
