The fields of hydraulics and fluid mechanics constitute two fundamental branches of engineering that study the behavior of liquids and gases when they are in motion. If it's water flowing through pipelines, air moving through an aircraft's wing, or blood flowing through the body of a person, recognizing the flow of fluids is vital to designing efficient and safe systems. A major and significant theory used in studying flowing fluids is known as that of the Reynolds number.

Reynolds Number: The Reynolds number helps engineers and researchers determine if a flow is steady or chaotic. This simple but powerful number is revolutionizing the field of study on fluid mechanics and continues to play a major part in the design of engineering experiments, research, and experimentation.

This article examines the significance that is associated with the Reynolds number, its mathematical expression, its physical significance, and its significance in the field of hydraulics and fluid mechanics.

What is the reynolds number?

Reynolds Number: The Reynolds number is a dimensionless measure used to forecast the characteristics of fluid flow. It reveals the effect of viscous forces and inertial forces in a fluid that is moving.

The concept was first proposed by the British engineer and scientist Osborne Reynolds in the late nineteenth century with his famous dye-flow experiments.

Mathematically it is said that the Reynolds number is expressed as

Re = \frac = \frac

Where:

• Re = Reynolds Number

• R (rho) = density of the fluid

• V = the velocity of the fluid

• D is the particular length of diameter or

• (m) (mu) = dynamic viscosity of the fluid

• (nu) = kinematic viscosity of the fluid. (nu) = kinematic viscosity of the fluid

Since the Reynolds number is not a number with elements, the number is referred to as a dimensionless number.

Physical meaning of reynolds number

To comprehend the Reynolds number, it is essential to comprehend the two forces that are involved when fluids move:

1. Inertial forces

These forces are correlated to the speed and motion of the flow. The higher velocity of the fluid increases the inertial force and can make the fluid unstable.

2. Viscous forces

These forces result from that fluid's friction, or viscosity. Viscosity impedes movement and encourages the smooth flow.

Reynolds Number The Reynolds Number essentially compares these two forces:

• Low Reynolds Number—viscous forces dominate

• High Reynolds Number—inertial forces dominate

This test determines the kind of flow taking place within a pipe, in a channel, and around an item.

Types of fluid flow based on reynolds number

The flow's nature is generally classified into three types.

1. Laminar flow

Laminar flow is when fluid particles are moved in orderly, smooth layers, with little mixing.

For flow through pipes:

Re < 2000

Laminar flow characteristics

• A smooth, predictable and steady motion

• Low energy loss

• It occurs at low speeds.

• Fluid particles travel parallel to each other.

A good example is oil flowing slowly through a tube.

2. Turbulent flow

Turbulent flow is when fluid movement becomes chaotic and irregular.

For flow of pipe:

Re > 4000

The characteristics of turbulent flow

• Random fluid motion

• The formation of vortices and eddies

• Energy losses are higher

• More fluid particles are mixed.

Examples include floods, river currents, winds, and the quick flow of water through pipelines.

3. Transitional flow

This is the stage that lies between turbulent and laminar flow.

For flow through pipes:

2000 < Re < 4000

In this zone, the flow could change unpredictably between turbulent and laminar states.

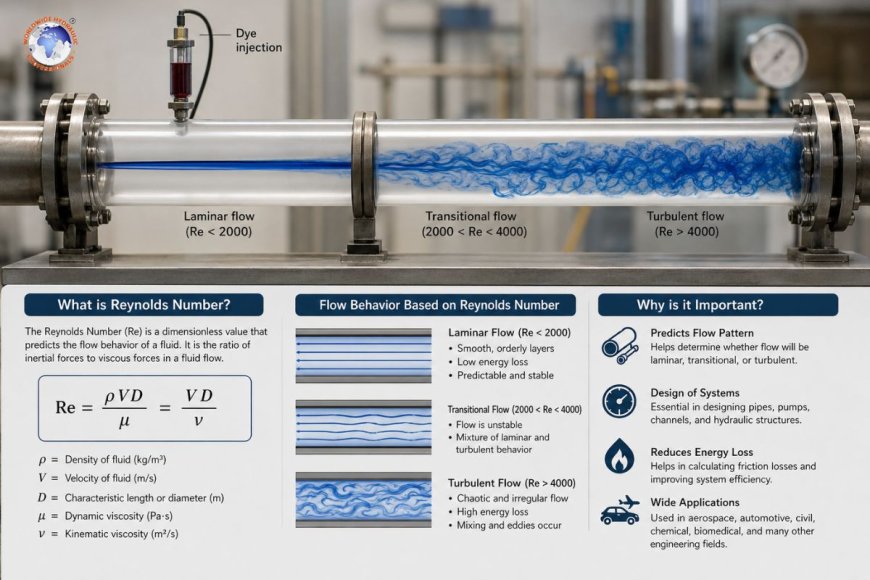

Osborne reynolds’ experiment

The Reynolds number's significance was evident through Reynolds' famous experiment.

In the study:

• The water flowed through a clear pipe.

• A colorless dye is injected in the water.

• At low speeds the dye traveled across a line, signaling laminar flow.

• As the velocity increased, the color began changing and mixing, revealing turbulent flow.

This experiment proved the fact that fluid flow behavior is influenced in large part by velocity and viscosity as well as pipe dimensions. This led to the formulation of the Reynolds number.

Importance of reynolds number in fluid mechanics

The Reynolds number is one of the most essential ideas in the field of fluid mechanics since it aids engineers in predicting and studying the behavior of fluids.

1. Predicting flow patterns

The most important aspect in the calculation of the Reynolds number lies in determining whether the flow is either laminar or turbulent.

This is important since the two kinds of flow perform quite differently when it comes to:

• Pressure loss

• Energy consumption

• Transfer of heat

• Mixing effectiveness

If it weren't for the Reynolds number, engineers would be unable to accurately simulate fluid systems.

2. Designing pipelines and hydraulic systems

In hydraulics, pipelines transport chemicals, water, oil, and various other fluids. Engineers should be aware of the type of flow prior to deciding on the size of pipes, pumps, and other materials.

For instance:

• Laminar flow is less demanding of pumping power.

• More friction is caused by turbulent flow. loss.

Through the calculation of the Reynolds number, engineers can calculate friction coefficients as well as pressure drop in a pipe.

This assists in:

• Systems for water supply

• Sewage systems

• Irrigation networks

• Pipelines for gas and oil

3. Calculating friction losses

Frictional losses are a significant problem in the fluid transportation system.

The Darcy-Weisbach equation, which is widely employed in hydraulics, is based in large part on the Reynolds number as the friction factor changes in response to the flow conditions.

In fluid flow that is turbulent, the friction loss can increase dramatically, which affects efficiency in energy use and operational costs.

So, the Reynolds number directly influences:

• Selection of the pump

• Power needs

• Pipeline efficiency

4. Aircraft and automobile design

Aerodynamics is the study of aerodynamics. The Reynolds number is used to examine the flow of air around aircraft and vehicles.

The flow pattern of the wing or car body determines:

• Drag force

• Lift with force

• Stability

• Fuel efficiency

Engineers test models at scale in wind tunnels and then use Reynolds similarity to predict real-world behavior.

For instance:

• Wings of aircraft are designed to limit the amount of turbulence.

• The sports cars are designed to decrease drag.

5. Heat transfer applications

Heat exchangers, boilers, condensers, and cooling systems depend on the flow of fluids for heat transfer.

Turbulent flow is generally a good way to improve heat transfer through greater mixing, whereas laminar flow provides lower rates of heat transfer.

By controlling the Reynolds number, engineers can improve the efficiency of thermal systems to:

• Industrial cooling

• Power plants

• Refrigeration systems

• Automobile radiators

6. Chemical and process industries

Chemical industries employ the Reynolds number in reactor design and mixing operations, as well as transportation of fluids.

The ability to mix efficiently is crucial to chemical reactions. Turbulence typically improves the speed of reaction.

Applications comprise:

• Mixing tanks

• Spray systems

• Manufacturing of pharmaceuticals

• Food processing

7. Biomedical engineering

The notion that the Reynolds number is also important in biology and medicine.

For instance:

• The flow of blood through arteries is generally laminar.

• A rapid blood flow can be a sign of health issues, like artery blockage.

Biomedical engineers employ Reynolds Number to design:

• Artificial heart valves

• Pumps for blood

• Medical tubing systems

Reynolds number in hydraulics

Hydraulics specifically focuses on the control and movement of liquids, specifically water.

In hydraulic engineering the Reynolds number is vital to analyze:

• Pipe flow

• Open channel flow

• Pump systems

• Hydraulic turbines

• Dams and spillways

Open channel flow

In canals and rivers, the Reynolds number helps determine whether the flow is smooth or turbulent.

The predominant flow is turbulent in natural rivers due to their massive dimensions and high velocities.

Understanding this behavior can help engineers create the following:

• Irrigation canals

• Systems for drainage

• Structures for flood control

Hydraulic machinery

Pumps and turbines have to function efficiently in a variety of flow conditions.

Reynolds Number is a factor in

• Efficiency

• Cavitation risk

• Separation of Flow

• Mechanical wear

A proper Reynolds analysis boosts the machine's performance and longevity.

Factors affecting reynolds number

Many factors impact the importance of the Reynolds number.

1. Velocity of fluid

Higher speeds increase the Reynolds number and encourage turbulence.

2. Characteristic length

The larger the diameter of the pipe or size of the object, the higher the Reynolds number.

3. Fluid density

Fluids with higher density generally have greater Reynolds numbers.

4. Fluid viscosity

A higher viscosity decreases the Reynolds number and promotes laminar flow.

For instance:

• Honey is highly viscous and has a low Reynolds number.

• Water has a lower viscosity as well as a greater Reynolds number.

Advantages of using the reynolds number

The Reynolds number offers several practical advantages.

Simple flow prediction

A single numerical number provides important information on flow behavior.

Useful for model testing

Engineers are able to test models at a small scale and then predict full-scale performance based on Reynolds similarity.

Applicable across many fields

It is employed in:

• Mechanical engineering

• Civil engineering

• Aerospace engineering

• Chemical engineering

• Biomedical science

Helps improve efficiency

Through understanding the flow conditions, systems can be optimized to achieve reduced energy consumption and higher performance.

Limitations of the reynolds number

Although the Reynolds number is very beneficial, it does have some limitations.

Not the only governing parameter

Certain complex flows are dependent on other dimensionless numbers, for example,

• Froude Number

• Mach Number

• Prandtl Number

Transitional flow uncertainty

The flow of fluids in the transitional region is often unpredictable.

Surface roughness effects

The roughness of the pipe can affect turbulent flow even when the Reynolds number stays the same.

Despite these limitations, the Reynolds number remains a cornerstone of fluid mechanics.

Real-life examples of reynolds number

Here are a few everyday examples in which the Reynolds number plays an important role:

Reynolds Number: The Reynolds number is one of the most fundamental and commonly employed concepts in hydraulics and fluid mechanics. It offers a simple but efficient method of understanding the flow of fluids through the comparison of viscous and inertial forces.

The type of flow, whether it is turbulent, laminar, or transitional, has a significant impact on energy efficiency, pressure loss, and heat transfer, as well as general system efficiency. Engineers depend heavily on the Reynolds number in the design of hydraulic systems; pipelines, including aircraft and vehicles; heat exchangers; and many other industrial applications.

From dams and rivers to medical devices and aircraft The influence of the Reynolds number can be seen everywhere in contemporary technology and research. The ability of the Reynolds number to predict the flow's behavior makes it a vital tool for researchers, engineers, and students.

In short, the Reynolds number is not simply a mathematical formula but the key to understanding how fluids function on the ground.
