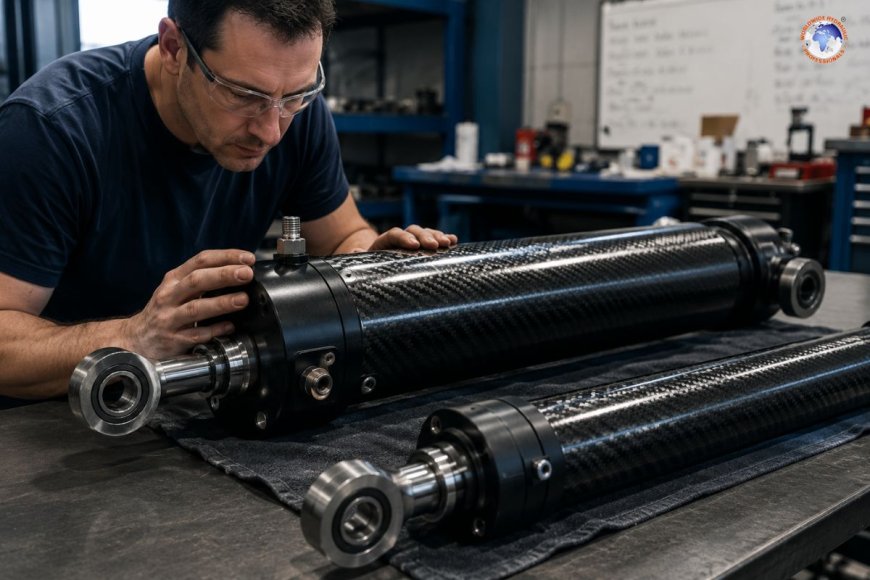

Carbon fiber hydraulic cylinders: Are composite materials the future?

Hydraulic cylinders play an essential role in industries like manufacturing, construction, agriculture, and aerospace, as well as marine engineering. For many years the use of aluminum and steel has been the most commonly used materials for cylinders due to their durability and strength. But a new development is receiving interest: carbon fiber hydraulic cylinders.

As companies seek more lightweight, stronger, as well as more effective solutions for their needs, materials such as carbon fiber are increasingly appealing. However, are these carbon-fiber hydraulic cylinders the future, or is it just an obscure technology?

We'll look at the different types of carbon-fiber hydraulic cylinders along with their pros and cons and if composite materials will revolutionize our hydraulic industries.

What are carbon fiber hydraulic cylinders?

Carbon-fiber hydraulic cylinders can be described as hydraulic actuators made of carbon fiber composite material in place of the traditional aluminum or steel to make their structural components lighter.

Carbon fiber is comprised of tiny carbon atoms, which are then mixed with an epoxy matrix. This results in a light-weight material that has exceptional strength and rigidity.

In hydraulic cylinders, carbon fiber is often used for:

• Cylinder barrels

• Outer sleeves

• Structural reinforcement

• Applications for defense and aerospace that are specifically designed.

A piston's seal and internal components are typically still made of steel because they require precise machining as well as wear resistance.

Why are some companies exploring carbon fiber?

The drive towards carbon fiber hydraulic cylinders is motivated by one primary goal: reducing the weight of cylinders without compromising performance.

A variety of industries are in a position to increase the efficiency of their fuel, increase payload capacity, and decrease the amount of energy consumed. Every kilo saved can make the impact.

For instance:

• Aircraft manufacturers seek lighter components in order to cut down on consumption of fuel.

• Equipment manufacturers in the construction industry are seeking to increase efficiency.

• Robotics companies require lightweight actuators to facilitate better motion.

• Applications in marine require corrosion-resistant material.

Carbon fiber can solve many of these problems.

Carbon fiber has many advantages, including hydraulic cylinders.

1. Significant weight loss

One of the main advantages of carbon fibers is their light weight.

Carbon fiber composites are up to 70 percent lighter than steel, with comparable strength.

The weight reduction could provide:

• Better fuel efficiency

• Easier handling

• Lower transportation costs

• Payload capacity increased

• Performance of the machine is improved

Aerospace applications are not the only ones where tiny weight reductions can result in huge operational benefits.

2. High strength-to-weight ratio

Carbon fiber is known for its incredible strength-to-weight ratio.

Although steel is extremely strong, it's also very heavy. Carbon fiber is able to provide the same structural strength for less weight.

These make carbon-fiber hydraulic cylinders appealing to

• Aerospace systems

• Defense equipment

• Robotics with advanced technology

• High-performance vehicles

The ability to mix the strength of carbon fiber with its lightweight appearance is among carbon fiber's most significant advantages.

3. Resistance to corrosion

Steel cylinders made of traditional materials are prone to corrosion and rust, particularly in extreme conditions.

Carbon fiber composites naturally resist

• Exposed saltwater

• Moisture

• Chemicals

• Weather conditions are harsh

This makes them ideal for offshore and marine as well as industrial uses where corrosion could affect the life of equipment.

4. Increased efficiency of energy use

Equipment that is lighter requires less energy to run.

If hydraulic systems make use of smaller cylinders, they usually have the following issues:

• Power consumption is reduced

• Rapider response times

• Lower operating costs

• Improved productivity

These efficiency gains are particularly relevant in battery-powered equipment and electric machines.

5. Reduced fatigue problems

Hydraulic cylinders often experience frequent load and unloading cycles.

Carbon fiber composites usually have superior fatigue resistance, which means they can stand up to repeated stress without bending as quickly as certain metals.

This could extend the component's lifespan in highly demanding applications.

Industries that benefit from carbon-fiber hydraulic cylinders

Aerospace

The aerospace industry is among the largest adopters of composite material.

Aircraft manufacturers are always looking for ways to reduce their weight while ensuring safety and efficiency.

Hydraulic cylinders made of carbon fiber may help the following:

• Lower fuel consumption

• Affordability of the aircraft improved

• Payload capacity increased

Defense

Equipment and military vehicles are aided by lighter equipment that can maintain their strength and endurance.

Carbon fiber cylinders may help reduce the weight of your vehicle while increasing mobility and efficiency of the fuel.

Marine

Saltwater environments can be extremely corrosive to steel parts.

The resistance to corrosion of carbon fiber makes it a desirable choice for:

• Ships

• Offshore platforms

• Subsea equipment

• Naval vessels

Robotics

Modern robots require light actuators to ensure precise and efficient movements.

Hydraulic cylinders made of carbon fiber are a great way to help improve:

• Speed

• Agility

• Efficiency in energy use

• Payload performance

High-performance vehicles

Specialized and racing vehicles typically focus on weight reduction.

Components of hydraulics made of composite can help improve acceleration as well as handling along with overall quality.

The challenges of carbon fiber hydraulic cylinders

Despite their benefits, the carbon fiber hydraulic pistons do not come free of difficulties.

Costs of manufacturing are high.

Carbon fiber is still considerably more expensive than aluminum and steel.

The manufacturing process includes:

• Specialized materials

• Innovative tooling

• Expertise in the field of labor

• Complex quality control

In the end carbon fiber cylinders are more expensive than conventional alternatives.

For a lot of industries, the cost remains the biggest obstacle to wide-scale adoption.

Complex manufacturing process

The process of making composite components is more difficult than the process of machining metal components.

Manufacturers should be aware of:

• Fiber orientation

• Resin application

• Curing processes

• Structural Integrity

This increases the time to produce and also costs.

Repair difficulties

The cylinders of steel can be repaired by welding or machining or by replacing damaged sections.

Repairs to carbon fiber are more specific and could require:

• Composite repair techniques

• Specialized materials

• Expert technicians

This can result in higher maintenance costs in certain applications.

A lack of industry experience

Hydraulic cylinders made from steel have been successfully used for a long time.

Carbon fiber cylinders are new, which means the following:

• Long-term performance data is not as reliable.

• Standards for industry are constantly evolving.

• Certain users are still in a state of uncertainty about their adoption.

As more testing in the real world takes place and as more testing is conducted, confidence in the capabilities is likely to increase.

How does the carbon fiber cylinder differ from steel cylinders?

Steel is the predominant material. Carbon fiber has advantages that are hard to ignore, especially in situations where weight reduction is a major concern.

Are composite materials the future of hydraulic systems?

Many experts believe that composite materials will play an increasingly important role in hydraulic technology in the next few decades.

A variety of trends back this assumption:

• Demand for lighter machinery growing

• A renewed focus on energy efficiency

• The expansion of electric vehicles and other equipment

• New developments in composite manufacturing

• The cost of production is falling over time.

Similar shifts have already taken place in sectors like automotive, aerospace, and sporting items.

As technology advances, carbon-fiber hydraulic cylinders could be less expensive and more accessible.

It is, however, likely that steel will not disappear completely.

In the meantime, the future could be a hybrid of designs that blend the following:

• Carbon Fiber Composite Structures

• Metal internal components

• Modern manufacturing techniques

This method can offer the ideal balance between durability, strength, price, and performance.

Are carbon-fiber hydraulic cylinders more durable than steel?

Carbon fiber may provide an increased strength-to-weight ratio compared to steel. While steel might still provide more absolute strength in certain instances, carbon fiber offers amazing performance while weighing less weight.

Why are carbon fiber hydraulic cylinders costly?

The price is due to the raw materials and the special manufacturing processes, as well as strict quality control guidelines.

Where can carbon fiber hydraulic cylinders made?

They are typically used in defense, aerospace, marine, and robotics as well as high-performance industrial applications in which weight savings can be extremely beneficial.

Do carbon fiber cylinders get rusty?

No. Composites made of carbon fiber are resistant to corrosion and don't corrode like steel.

Can carbon fiber substitute hydraulic cylinders made of steel?

Not entirely. Carbon fiber may supplement rather than substitute steel. Different applications will require different materials.

Carbon-fiber hydraulic cylinders are an exciting new development of hydraulic engineering. Their lightweight design, high strength-to-weight ratios, and corrosion resistance as well as their energy efficiency make them appealing for a variety of industries.

While challenges like expensive manufacturing costs and complex processes remain, continuous developments of composites are providing the means to overcome these challenges.

As the industries continue to place a high value on efficiency, performance, and sustainability, carbon fiber hydraulic pistons have the potential to become an increasingly significant component of the future hydraulic landscape.

While steel remains the standard industry standard, composite materials are creating the future of hydraulic systems. The question is not whether carbon fiber is a viable option, but how fast the technology is expected to become a standard.
